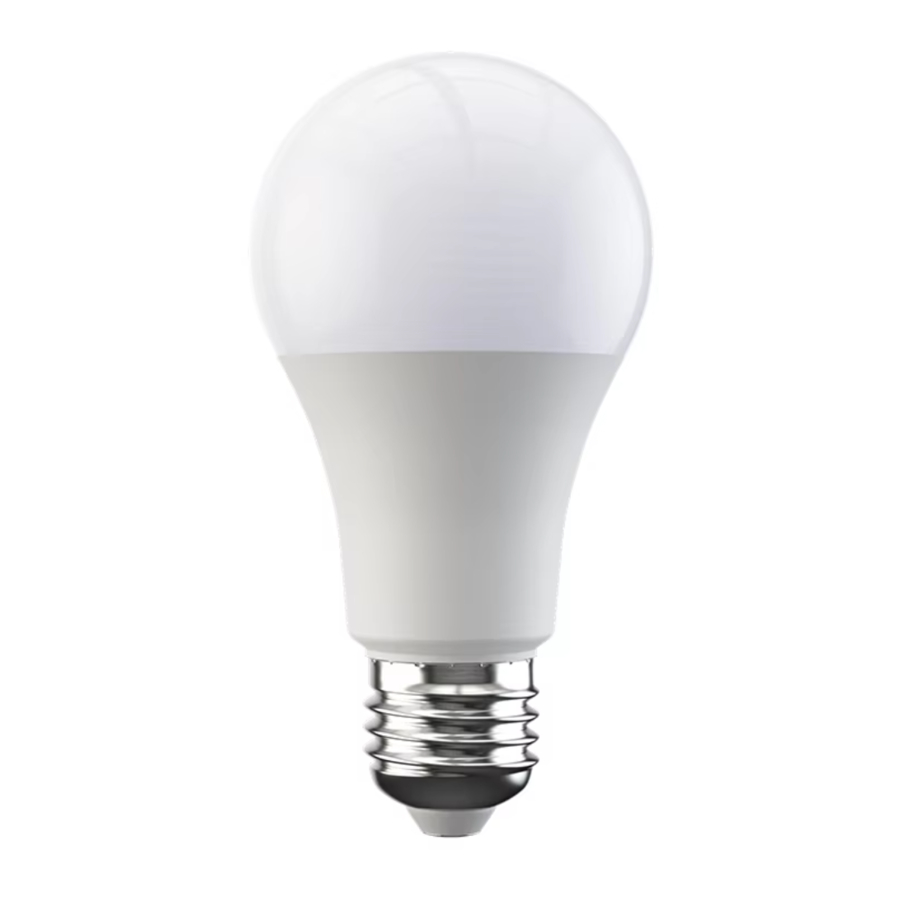

BroadLink LB1, LB27 C1, LB26 R1, LB27 R1 Manual
Overview
 APP Dimmable | LB1 Lamp Base: E27 Shape: A60 Rated Power: 6.5W Rated Voltage: AC 220-240V, 50/60Hz Luminous Flux: 600lm Size: ф60x112mm |
 Color Temp. APP Dimmable | LB27 C1 Lamp Base: E27 Shape: A60 Rated Power: 6.5W Rated Voltage: AC 220-240V, 50/60Hz Luminous Flux: 600lm Size: ф60x112mm |
 RGB Color Color Temp. APP Dimmable | LB26 R1 Lamp Base: E26 Shape: A19 Rated Power: 10W Rated Voltage: AC 120V, 50/60Hz Luminous Flux: 800lm Size: ф60x117mm |
| LB27 R1 Lamp Base: E27 Shape: A60 Rated Power: 10W Rated Voltage: AC 220-240V, 50/60Hz Luminous Flux: 800lm Size: ф60x117mm |
Indications
| Status | Indication |
| Flashes intermittently (repeat flashing 4 times and off) | Device is in AP Setup mode (waiting to be added). This is the default mode for new product. |
| Flashes quickly (continuously flash 5 times/sec) | Device is in Smart Setup mode (waiting to be added) |
| Flashes slowly then always on | Device is being set up and added to network |
- Reset for AP Setup
When the bulb is in any conditions (except AP Setup mode), quickly switch it off and on for FIVE(5) times (off > on > off > on...) until the bulb flashes intermittently. - Reset for Smart Setup
When the bulb is in AP Setup mode, quickly switch it off and on for FIVE(5) times (off > on > off > on...) until the bulb flashes quickly.
Troubleshooting
- I can't add the device in APP, I don't know what is the problem?
Make sure your Wi-Fi network is 2.4GHz and password contains no more than 32 non-special characters. Make sure the device is in either AP Setup mode or Smart Setup mode before proceeding on App. - I can't find the device in Alexa and Google Home APP. How can I do?
Make sure the device can be controlled from external networks (ex. 4G) in BroadLink APP before discovering in Alexa and Google Home.
Make sure you selected the same region as you've done in BroadLink APP during account linking in Alexa and Google Home APP.
- For indoor use in dry environment only.
- Use in open luminaire only.
- This device is not designed for use with emergency exits.
- This device may not work with standard (incandescent) dimmers.
For more promotions and supports
BroadLink International
web: www.ibroadlink.com
e-mail: support@ibroadlink.com
