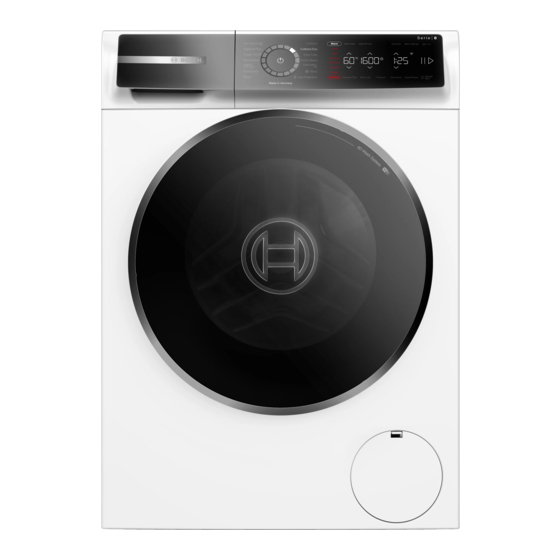

Washing machine
WGB24609AU
[en]
User manual and installation
instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the WGB24609AU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bosch WGB24609AU

  • Page 1 Washing machine WGB24609AU [en] User manual and installation instructions...
  • Page 2 Further information and explanations are available online: Table of contents 1 Safety ...........  4 8 Buttons ........  22 1.1 General information.... 4 9 Programmes ......  25 1.2 Intended use...... 4 1.3 Restriction on user group.. 4 10 Accessories......  29 1.4 Safe installation ...... 5 11 Laundry........  29 1.5 Safe use ........
  • Page 3 14 Childproof lock......  34 20 Customer Service....  49 14.1 Activating the childproof 20.1 Product number (E-Nr.), lock ........ 34 production number (FD) and consecutive numbering 14.2 Deactivating the childproof (Z-Nr.) ........ 49 lock ........ 34 21 Consumption values....  50 15 Home Connect ......  34 21.1 Information for test institute...  50 15.1 Setting up the Home Con- nect app ........
  • Page 4 en  1 Safety Observe the following safety instructions. 1.1 General information ¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. 1.2 Intended use Only use this appliance: ¡...
  • Page 5  en 1.4 Safe installation WARNING ‒ Risk of electric shock! Incorrect installation is dangerous. ▶ Connect and operate the appliance only in accordance with the specifications on the rating plate. ▶ Connect the appliance to a power supply with alternating cur- rent only via a properly installed socket with earthing. ▶...
  • Page 6 en  WARNING ‒ Risk of injury! The heavy weight of the appliance may result in injury when lifted. ▶ Do not lift the appliance on your own. If this appliance is not correctly installed in a washer-dryer stack, the installed appliance may fall. ▶...
  • Page 7  en ▶ Wear protective gloves when installing and transporting the ap- pliance. 1.5 Safe use WARNING ‒ Risk of electric shock! If the appliance or the power cord is damaged, this is dangerous. ▶ Never operate a damaged appliance. ▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.
  • Page 8 en  WARNING ‒ Risk of poisoning! Detergents and care products may result in poisoning if con- sumed. ▶ If accidentally swallowed, seek medical advice. ▶ Keep detergents and care products out of the reach of children. WARNING ‒ Risk of explosion! Laundry that has been pretreated with flammable cleaning agents that contain solvents may cause an explosion in the appliance.
  • Page 9  en 1.6 Safe cleaning and maintenance WARNING ‒ Risk of electric shock! Improper repairs are dangerous. ▶ Never make any technical modifications to the appliance or its features. ▶ Repairs to the appliance should only be carried out by trained specialist staff. ▶ Only use genuine spare parts when repairing the appliance. ▶...
  • Page 10 en  Make sure that the length of the ▶ Preventing material damage 2 Preventing material thread on the connection to the water tap is at least 10 mm. damage If the water pressure is too high or too low, the appliance may not be Preventing material damage ATTENTION! able to operate properly.
  • Page 11  en Remove all detergent residue, If you do not use the appliance for an ▶ spray residue or other residues im- extended period, it automatically mediately if they come into contact switches to standby mode. with the appliance. Installation and connection 4 Installation and con- Environmental protection and saving energy 3 Environmental protec-...
  • Page 12 en  erate properly, or this may result in WARNING material damage or damage to the Risk of injury! appliance. When using the appliance on a base, Do not operate the appliance with ▶ the appliance may tip over. incomplete or defective accessor- Always secure the feet of the appli- ▶...
  • Page 13  en Unscrew and remove all of Installation loca- Requirements the screws for the 4 transit bolts tion using a WAF 13 wrench. Kitchen unit Only install the appliance under- neath a continu- ous worktop that is securely con- nected to adja- cent cabinets.
  • Page 14 en  Put on the 4 cover caps. Connect the water inlet hose. Push the 4 cover caps downwards. Connect the water inlet hose to a tap (26.4 mm = 3/4"). Note: To install the transit bolts to Open the water tap carefully and transport the appliance, perform check that the connection points these steps again in the reverse or- are tight.
  • Page 15  en In the event of a blocked or covered The connection details of the appli- outlet, accumulated wastewater can ance can be found under Tech- flow back into the appliance. nical data → Page 51. Before operating the appliance, en- ▶ Check the mains plug is inserted sure that the wastewater drains properly.
  • Page 16 en  Use a WAF 17 wrench to tighten Pour approx. 1 litre of tap water the lock nuts against the housing into compartment II. until they are hand-tight. Add washing powder containing In doing so, hold the foot tight and oxygen bleach to compartment II.
  • Page 17  en Familiarising yourself with your appliance 6 Familiarising yourself with your appliance Familiarising yourself with your appliance 6.1 Appliance You can find an overview of the parts of your appliance here. On certain models, specific details such as the colour and shape may differ from those pictured.
  • Page 18 en  Dosing aid for liquid deter- gent → Page 32 Compartment II: Detergent for the main wash Compartment : Fabric softener Compartment I: Detergent for prewash 6.3 Control panel You can use the control panel to configure all functions of your appliance and to obtain information about the operating status.
  • Page 19  en tings by pressing the buttons. The ac- To hide the additional buttons, tivated settings are highlighted briefly press More again. brightly on the display. Changing a setting value ATTENTION! If you activate certain settings, the Pressing on the display with force display shows selection buttons and may cause damage.
  • Page 20 en  Display 7 Display The display shows the current set- Display tings, options or relevant information. Depending on the programme status, the display shows some information in area, e.g. ⁠ . Note: Additional functions may be available as a result of software updates. → Page 35 If a software update is available, you can find further information in the Home Connect app.
  • Page 21  en Display Description Blood The "Blood" stain type is activated. Grass The "Grass" stain type is activated. Red Wine The "Red wine" stain type is activated. Sweat The "Sweat" stain type is activated. Butter/Oil The "Cooking fat/cooking oil" stain type is activated. Tomatoes The "Tomato"...
  • Page 22 en  Buttons 8 Buttons Some buttons are hidden for a re- Buttons Note: Additional functions may be duced display. You can display these available as a result of software up- additional buttons on the display. dates. → Page 35 → "Displaying or hiding additional but- If a software update is available, you tons", Page 19 can find further information in the...
  • Page 23  en Button Selection More information ⁠   - 1600 Adjust the spin speed or activate (Rinse Hold). Set spin speed in rpm. is selected, the water is not drained at the end of the washing cycle and the spin cycle is deactiv- ated.
  • Page 24 en  Button Selection More information Water/Rinse+ ¡ Activate Activate or deactivate a washing pro- gramme with more water and an addi- ¡ Deactivate tional rinse cycle. Recommended for particularly sensit- ive skin or in regions with very soft water. Night Wash ¡...
  • Page 25  en Programmes 9 Programmes Programmes Notes ¡ The laundry's care labels provide you with additional information about pro- gramme selection. → "Care symbols on the care labels", Page 30 ¡ The programme's temperature setting guarantees that the recommended temperature on the care label is not exceeded. The temperature that is reached in the appliance may differ from the set temperature.
  • Page 26 en  Programme Description Max. load (kg) Quick Mixed Wash items made from cotton, linen or synthetic fabrics. Suitable for lightly soiled laundry. Programme setting: ¡ Max. 60 °C ¡ Max. 1600 rpm Delicates/Silk Wash delicate, washable items made from silk, vis- cose and synthetic fabrics.
  • Page 27  en Programme Description Max. load (kg) Hygiene Plus Wash hard-wearing items made from cotton or linen. Suitable for allergy sufferers and for strict hygiene requirements. Note: Once the set temperature has been reached, it remains constant throughout the entire washing process. Programme setting: ¡...
  • Page 28 en  Programme Description Max. load (kg) Jeans/Dark Wash dark-coloured and colour-intense items made Wash from cotton or easy-care fabric, e.g. jeans. Turn laundry inside-out before washing. Use liquid detergent. Programme setting: ¡ Max. 40 °C ¡ Max. 1200 rpm Super 15'/30' Wash items made from cotton or synthetic fabrics.
  • Page 29  en Accessories 10 Accessories Use original accessories. These have Accessories been made especially for your appli- ance. Tip: Some accessories are available in other colours. Contact customer service. → Page 49 Order num- Water inlet hose ex- Extend the water inlet hose for cold water WMZ2381 tension or AquaStop (approx.
  • Page 30 en  11.2 Care symbols on the Basic operation 13 Basic operation care labels Basic operation Washing care symbols 13.1 Switching on the appli- ance Symbol Recommended pro- gramme Note: If you switch the appliance on ⁠ Cottons (normal) the first time after you have connec- ⁠...
  • Page 31  en Setting additional programmes 13.4 Opening the door Requirement: Home Connect is set Grip under the door handle and up. → Page 34 pull on the door. Set the ⁠   App Programs pro- gramme. a ⁠   Remote Start flashes. Press ⁠   Remote Start. a The Home Connect app displays the programmes that can be selec- ted.
  • Page 32 en  Slide the measuring aid forwards. 13.6 Inserting the measuring Pull out the detergent drawer. Press down on the insert and re- move the detergent drawer. Fold the measuring aid down and click it into place. Insert the measuring aid. 13.8 Adding detergent and care product Note: Observe the information about detergents and care products...
  • Page 33  en a The drum rotates and load detec- 13.12 Cancelling the pro- tion takes place. This can take up gramme to 2 minutes, after which water enters the drum. Press a The display shows the programme Open the door. → Page 31 duration or the programme end The appliance door remains time.
  • Page 34 en  Note: Leave the appliance door and The Home Connect app guides you the detergent drawer open to dry. through the entire login process. Fol- low the instructions in the Home Con- nect app to configure the settings. Childproof lock 14 Childproof lock Tip: Please also follow the instruc- tions in the Home Connect app.
  • Page 35  en a In the event of a malfunction, in- 15.3 Activating Wi-Fi on the stallation may take up to appliance 40 minutes. Do not reset the net- work settings or the appliance to Press and hold ⁠   Remote Start for the factory settings. approx.
  • Page 36 en  nect server and if Remote Dia- Basic settings 16 Basic settings gnostics is available in the country in which you are using the appliance. You can configure the basic settings Basic settings Tip: For further information and de- for your appliance to meet your tails about the availability of Remote needs.
  • Page 37  en if you have not used the appliance Restore the appliance to the for a prolonged period, but at least factory settings (rES). once a year. 16.2 Changing the basic set- CAUTION tings Risk of injury! Permanently washing at low temper- Requirement: The display shows all atures and a lack of ventilation for additional buttons.
  • Page 38 en  Pull out the insert upwards. Clean the opening for the deter- gent drawer. Clean the detergent drawer and in- sert with water and a brush, and Push in the detergent drawer. then dry them. 17.3 Cleaning the drain pump Clean the drain pump regularly, at least once a year, as well as in the event of faults, e.g.
  • Page 39  en Open and remove the mainten- CAUTION - Risk of scalding! ance flap. When you wash at high temperat- ures, the detergent solution gets hot. Do not touch the hot detergent ▶ solution. To allow the detergent solution to flow out into the container, remove the sealing cap.
  • Page 40 en  Insert the drain hose into the Clean the interior, the thread on holder. the pump cap and the pump hous- ing. Cleaning the drain pump Ensure that both impellers can turn. Requirement: The drain pump is empty. → Page 38 Since water may remain in the drain pump, unscrew the pump cap carefully.
  • Page 41  en Screw the pump cap as far as it Remove any foreign objects and will go. fluff from the rubber gasket. The handle on the pump cap must Remove any blockages from the be in a vertical position. intake opening. Insert and close the maintenance flap.
  • Page 42 en  Troubleshooting 18 Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- Troubleshooting ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Improper repairs are dangerous. Never make any technical modifications to the appliance or its features. ▶...
  • Page 43  en Fault Cause and troubleshooting E:38 -25 -26 Inlet opening of the rubber gasket is blocked. Clean the inlet opening in the rubber gasket. ▶ H:32 The appliance has interrupted the spin cycle because the laundry is unevenly distributed. Redistribute the laundry in the drum. ▶...
  • Page 44 en  Fault Cause and troubleshooting All other error codes. Malfunction To restart the appliance, press and hold for ap- proximately 5 seconds. If the fault occurs again, disconnect the appliance from the power supply for at least 30 seconds. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box.
  • Page 45  en Fault Cause and troubleshooting The programme is Start the Spin programme or a suitable draining ▶ paused or has been programme. → Page 25 interrupted, but the door will not open. The door cannot be The door is locked. opened due to a Open the door using the emergency release.
  • Page 46 en  Fault Cause and troubleshooting Damp stains have Water droplets from the drum or from the door have formed on the fabrics moistened the fabrics. The drops come from either after the Iron Assist  condensed steam or the residual moisture from the programme has previous wash programme.
  • Page 47  en Fault Cause and troubleshooting Residual water is Insert in compartment is blocked. present in the com- Clean the detergent drawer. → Page 37 ▶ partment Fabric softener re- The use of fabric softener is not supported for the se- mains in the detergent lected programme.
  • Page 48 en  18.1 Emergency release Transportation, storage and disposal 19 Transportation, stor- Releasing the door age and disposal Requirement: The drain pump is Transportation, storage and disposal empty. → Page 38 19.1 Removing the appliance ATTENTION! Escaping water may Turn off the tap. cause material damage. Do not open the door if you can Empty the water inlet hose.
  • Page 49  en 19.3 Using the appliance tronic appliances (waste electrical and electronic again equipment - WEEE). For further information, see The guideline determ- ▶ → "Installation and connection", ines the framework for Page 11 and the return and recycling of used appliances as → "Starting an empty washing applicable throughout cycle", Page 16.
  • Page 50 en  Consumption values 21 Consumption values The indicated consumption values are approximate. Consumption values The values may deviate from the indicated values depending on water pres- sure, water hardness, water inlet temperature, room temperature, type of laun- dry, amount and soiling of laundry, detergent used, fluctuations in the mains voltage and selected settings.
  • Page 51  en Pre-treatment of new appliance Appliance width 59.8 cm Run two empty runs of Cottons Appliance depth 59.0 cm 90 °C with 1600 rpm: The 1st run Appliance depth 64.8 cm with 50 g detergent and 8 g anti with door closed sudsing agent, the 2nd run without detergent and sudsing agent.
  • Page 52 Connect functionality conforms to the essential requirements and other rel- evant provisions of Directive 2014/53/EU. A detailed RED Declaration of Con- formity can be found online at www.bosch-home.com among the additional documents on the product page for your appliance. Depending on the appliance specifications...
  • Page 53  en UK (NI) 5 GHz WLAN (Wi-Fi): For indoor use only. 5 GHz WLAN (Wi-Fi): For indoor use only.
  • Page 56 Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts. Find out everything about the many ways Bosch can support you: www.bosch-home.com/service Contact data of all countries are listed in the attached service direct- ory.
