Vento VT8X Operation Manual

Introduction:

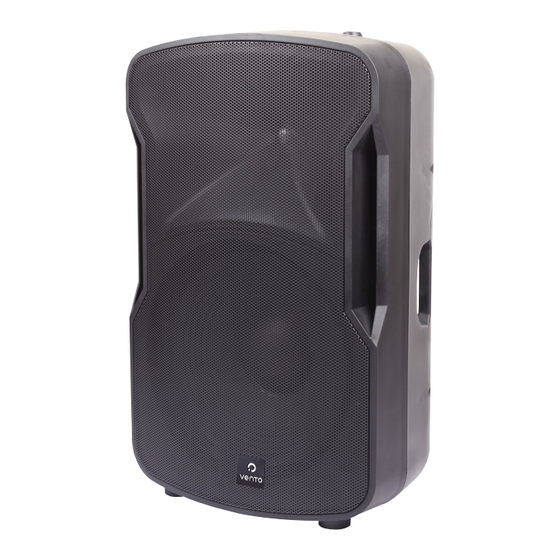

Congratulations on your purchase of the ampli ed loudspeaker; this speaker includes the very latest technology in lightweight ABS design. The
trapezoidal design was used for a more precise and accurate sound and will add increased sound de nition on vocal frequencies. This state of the art
speaker will give you years of enjoyment.
Features for Active Series:
• Steel basket woofer
• Bluetooth stereo pairing (only for VT12X and VT15X)
• Stand mounting socket
• Auxiliary Line Input
• USB HOST/SD MMC MP3
• Metal Grill
• High Temperature Voice coil
• Rubber Feet
• Bluetooth Function
• Folder Function
• FM Function
• Remote Control
• EQ
• High wattage powered ampli er
• NFC Pairing Function
Speci cation:
VT8X
2-WAY CONFIGURATION
WITH PASSIVE FILTER
3.2" TITANIUM DRIVER
8" WOOFER
CLASS AB AMPLIFIER
USB HOST/SD MP3, FM RADIO,
BLUETOOTH
FREQ RESP: 60HZ-20KHZ
LINE/ MIC INPUT: 1/4"JACK OR XLR
AUX IN: 6.3MM JACK
TAPE IN: RCA
2 BAND EQ
LINE OUTPUT: RCA
POWER RMS: 150 WATTS
MAX SPL: 113dB/123dB(PEAK)
POWER MAX: 600 WATTS
POWER VOLTAGE: AC120V
Cautions:
1. All operating instructions should be read before using this equipment.
2. To reduce the risk of electric shock, do not open the unit. There are NO REPLACEABLE PARTS INSIDE. Please refer servicing to a quali ed service
technician.
3. Do not expose this unit to direct sunlight or to a heat source such as a radiator or stove.
4. This unit should be cleaned only with a damp cloth. Avoid solvents or other cleaning detergents.
5. When moving this equipment, it should be placed in its original carton and packaging. This will reduce the risk of damage during transit.
6. DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
7. DO NOT USE ANY SPRAY CLEANER OR LUBRICANT ON ANY CONTROLS OR SWITCHES.
8. Make sure ALL of your equipment is completely OFF and lower ALL VOLUME, LEVEL & GAIN controls before connecting the speaker.
9. ONLY LINE LEVEL SIGNALS CAN BE SENT TO YOUR SPEAKER.
OPERATIONS MANUAL-VT8X/VT10X/VT12X/VT15X
Professional ABS Molded Loudspeaker
VT10X
2-WAY CONFIGURATION
WITH PASSIVE FILTER
3.2" TITANIUM DRIVER
10" WOOFER
CLASS AB AMPLIFIER
USB HOST/SD MP3, FM RADIO,
BLUETOOTH
REQ RESP: 55HZ-20KHZ
LINE/ MIC INPUT: 1/4"JACK OR XLR
AUX IN: 6.3MM JACK
TAPE IN: RCA
2 BAND EQ
LINE OUTPUT: RCA
POWER RMS: 200 WATTS
MAX SPL: 116dB/125dB(PEAK)
POWER MAX: 800 WATTS
POWER VOLTAGE: AC120V
Disregarding any of the above will void your warranty!!!!!
VT12X
2-WAY CONFIGURATION
WITH ACTIVE FILTER
3.5" TITANIUM DRIVER
12" WOOFER
CLASS AB AMPLIFIER,
USB HOST/SD MP3, FM RADIO,
STEREO BLUETOOTH
FREQ RESP: 50HZ-20KHZ
2 WAY MIC INPUT: XLR OR 1/4"JACK
LINE INPUT: XLR OR 1/4"JACK
2 BAND EQ(80HZ, 12KHZ)
POWER RMS: 250 WATTS
MAX SPL: 121dB/130dB(PEAK)
POWER MAX: 1000 WATTS
LINE OUTPUT: XLR
POWER VOLTAGE: AC100V - AC120V
VT15X
2-WAY CONFIGURATION
WITH ACTIVE FILTER
4.5" TITANIUM DRIVER
15" WOOFER
CLASS H AMPLIFIER,
USB HOST/SD MP3, FM RADIO,
STEREO BLUETOOTH
FREQ RESP: 45HZ-20KHZ
2 WAY MIC INPUT: XLR OR 1/4"JACK
LINE INPUT: XLR OR 1/4"JACK
2 BAND EQ(80HZ, 12KHZ)
POWER RMS: 250 WATTS
MAX SPL: 121dB/130dB(PEAK)
POWER MAX: 1000WATTS
LINE OUTPUT: XLR
POWER VOLTAGE: AC100V - AC120V
