Summary of Contents for Vento VL6A

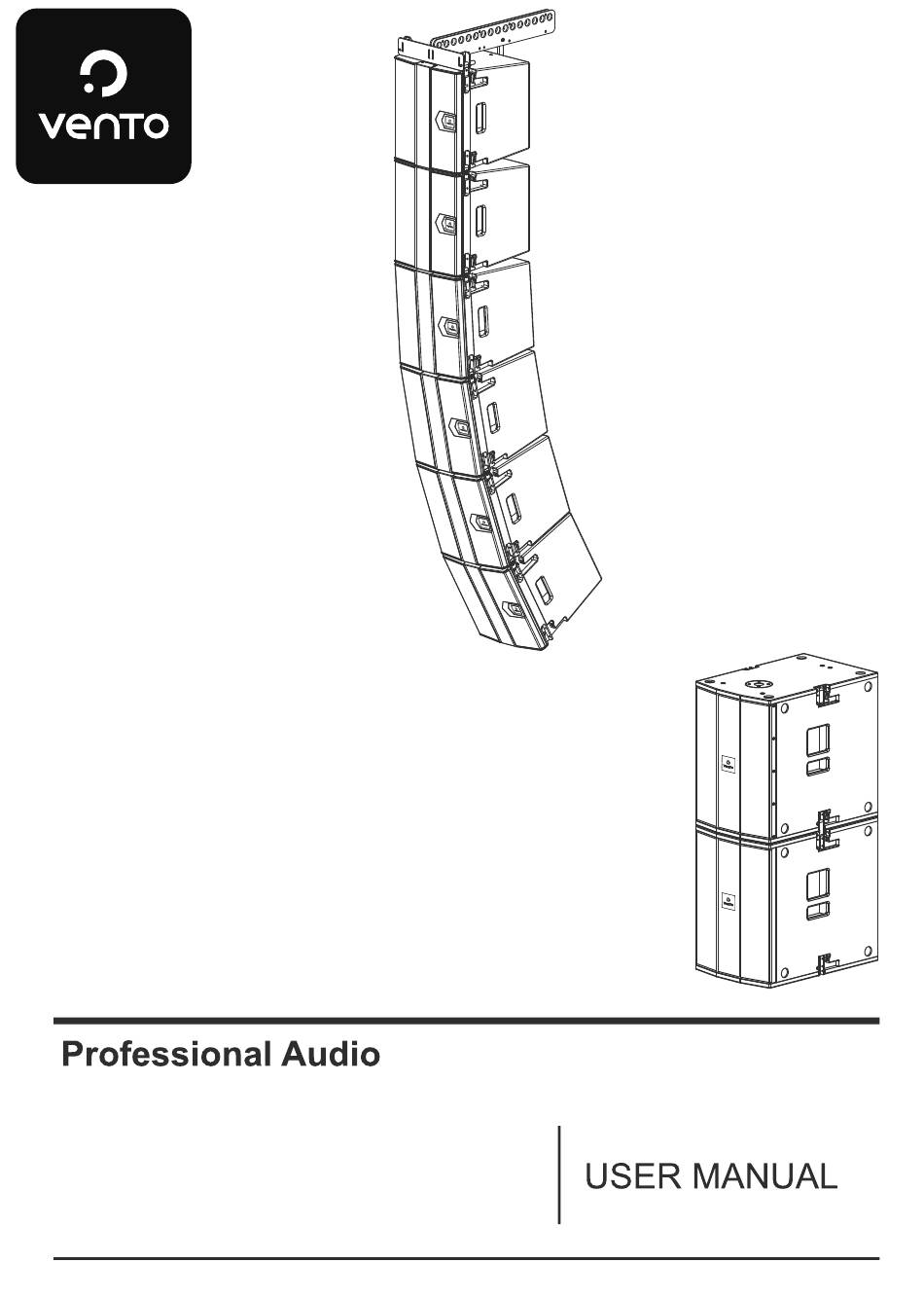

  • Page 1 VL6A VL15S...

  • Page 2: Table Of Contents

    GENERAL INFORMATION Thank you very much for your choice of Introduction VENTO loudspeaker product for your VL6A array array adjustable angle design,coaxial application! design to avoid abnormal near-field sound quali- ty,special waveguide technology,greatly reducing midrange interference,unique FIR filter technology In order to feel assured that you have gained a good...

  • Page 6: Product Announcement

    PRODUCT ANNOUNCEMENT VL6A Products in the box VL15S Products in the box VL6A *1 Manual VL15S *1 Manual 3M power cable 315mm...

  • Page 7: Accessories

    ACCESSORIES 0.6M signal cable 2M signal cable 0.6M power cable 2M power cable 3M power cable VL6-FB flybar VL6-Pole...

  • Page 8: Configuration

    CONFIGURATION DSP SETUP 1 CONFIGURATION 1 On-ground mode Speaker&Accessaries 0.6M signal cable x1 0.6M power cable x1 VL6A x1 2M signal cable x1 2M power cable x1 VL6-Pole x1 VL15S x1 3M power cable x1...
  • Page 9 CONFIGURATION DSP SETUP 2 CONFIGURATION 2 On-ground mode Speaker&Accessaries 2M signal cable x2 0.6M signal cable x2 VL6A x3 VL6-FB flybar 2M power cable x2 0.6M power cable x2 VL15S x2 3M power cable x1...
  • Page 10 CONFIGURATION DSP SETUP 3 CONFIGURATION 3 Ground-hanging Speaker&Accessaries 2M signal cable x3 0.6M signal cable x3 VL6A x6 VL6-FB flybar 2M power cable x3 0.6M power cable x3 VL15S x3 3M power cable x1...
  • Page 11 CONFIGURATION VL6A＞6 DSP SETUP 4 VL6A x2 match with VL15Sx1 CONFIGURATION 4 Ground-hanging Speaker&Accessaries 2M signal cable ＞3 0.6M signal cable ＞5 VL6A ＞ 6 VL6-FB flybar 2M power cable ＞3 0.6M power cable ＞5 VL15S ＞3 3M power cable x1...

  • Page 12: Installation&Connection

    3.VL6A fix in mounting pole 7.5° Dual angle mounting pole 0° 7.5° VL6-Pole 1.connect pole,adjust pole height 4.Stack second VL6A speaker,select desired throw angles POWER AND SIGNAL CONNECT VL15S MASTER VOL signal out 2 signal input 2 SERVICE DATA FUNCTIONS...
  • Page 13 INSTALLATION&CONNECTION POWER AND SIGNAL CONNECT 1.pull out lockpin 2.flip connector upwards VL6A VL6A signal power VL6A 3.stack second VL6A,connect with lockpin power signal VL6A VL6A-FB 4.adjust angle signal MASTER VOL SERVICE DATA FUNCTIONS CONTROL OUTPUT1 INPUT1 power OUTPUT2 INPUT2 signal VL15S 1.assemble 2pcs SUB...
  • Page 14 INSTALLATION&CONNECTION POWER AND SIGNAL CONNECT 2.flip connector upwards 1.pull out lockpin VL6A VL6A signal power VL6A 3.stack second VL6A,connect with lockpin power signal VL6A VL6-FB 4.adjust angle signal MASTER VOL SERVICE DATA FUNCTIONS CONTROL OUTPUT1 INPUT1 power OUTPUT2 INPUT2 signal...
  • Page 15 INSTALLATION&CONNECTION VL6-FB CONFITURATION 3: Mount several VL6A line array by VL6-FB flybar,ground use several VL15S SUB.DSP setup to 3-4,6pcs VL6A setup to 3,VL6A＞6pcs,setup to 4Hanging use,suitable for medium-big performances DSP SETUP VL6A 1.pull out lockpin 2.flip connector upwards 3.mount with lockpin 4.adjust angle...

  • Page 16: Vl6A Function Instruction

    VL6A FUNCTION INSTRUCTION Overview-Connections&controls Bar code serial number...
  • Page 17 VL6A FUNCTION INSTRUCTION VL6A panel function 1.POWERCON OUT Connect another speaker power input. 2.POWERCON IN Power input. 3.SERVICE DATA Only used by VENTO customer service department.Pls don't insert any other USB. 4.POWER Blue indicates main power. 5.SIG/LIMIT Power input,green indicates signal input,red indicates the internal circuit has tripped.

  • Page 18: Vl15S Function Instruction

    VL15S FUNCTION INSTRUCTION Overview-Connections&controls MASTER VOL FUNCTIONS CONTROL OUTPUT1 INPUT1 OUTPUT2 INPUT2 Bar code serial number...
  • Page 19 Power outout is connected in parallel with mains input and be used to power additional speakers. 3.POWER SWITCH Power on-off. 4.SERVICE DATA Only used by VENTO customer service department.Pls don't insert any other USB. 5.SIGNAL OUTPUT1 Signal output connect another speaker signal input.

  • Page 20: Specification

    SPECIFICATION VL6A VL15S Item Type Active Line Array Active Subwoofer Frequency Response 65~20KHz 40~120Hz Crossover Point 630Hz Selectable Directivity 120° H *10 MAX output SPL(1m) 132dB 134dB Power output(RMS) 500W(LF)+500 W(HF) TOTAL 1000W 1000 W Sensitivity +3dBV 0dBV -3dBV -6dBV...
