New Classic Furniture G896-10S Assembly Instructions

Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts,
which may have come loose inside the carton during shipment. Identify and count all items and compare with
the PARTS LIST and/or HARDWARE LIST shown below.
Caution: Please read the instructions thoroughly before assembly.
1. We recommend that you assemble this product with the assistance of another person; this will make the
assembly easier, and will help eliminate damage to the product or injury to persons during assembly.
2. Please do not over tighten screws or bolts until the assembly is completed.
3. Please put all parts on a non-abrasive floor before assembly,and follow the assembly steps to assemble
your newly purchased product correctly and efficently.
PARTS LIST
NO. COMPONENT
A LEFT LEG
B RIGHT LEG
C SEAT FRAME
D
BACK FRAME
E SEAT CUSHION
F
B A C K C U S I H O N
G BACK PILLOW
Assembly Instructions
SKETCH QTY.
1 PC
1 PC
1 PC
1 PC
1 PC
1 P C
1 PC
MADE IN VIETNAM
ITEM NO. G896-10S

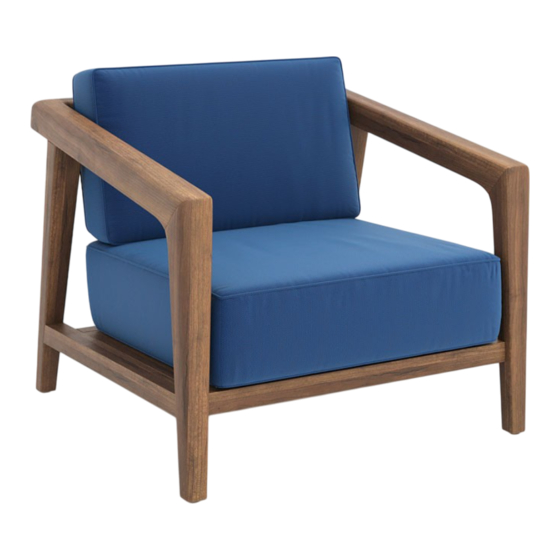

BALI SET OF TWO CLUB CHAIR
HARDWARE LIST
NO. COMPONENT
BOLT
1
8X55X15mm.
BOLT
2
8X45X15mm.
HALF MOON
3
WASHER
ALLEN KEY
4
M4.
SKETCH QTY.
6 PCS
2 PCS
2 PCS
1 PC
PAGE: 1 OF 2
