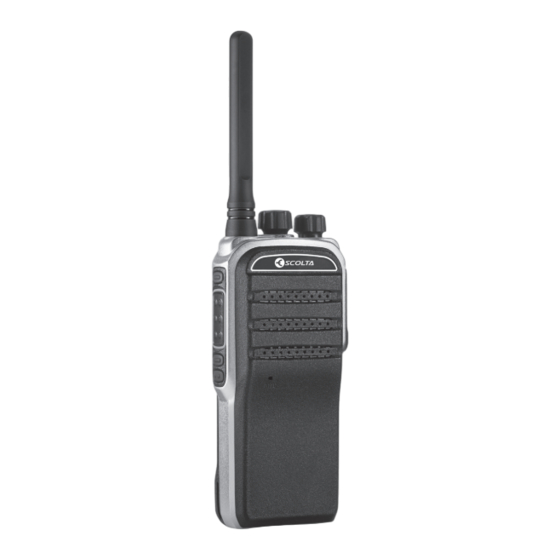

- Page 1 DELTA Mod. RP-302 UHF UHF ANALOG & DIGITAL-DMR HANDHELD TRANSCEIVER INSTRUCTION MANUAL...
- Page 2 Waste disposal. Directive 2012/19/UE Information on waste disposal of electrical and electronic equipment (WEEE). This symbol on the product means that the electrical and electronic products used should not be mixed with household waste. For proper treatment, recovery and recycling, take this product to designated collection points where it will be accepted free of charge.
- Page 3 Thank you Thank you for choosing our ESCOLTA DELTA DMR Digital Radio. We believe it is a good choice to choose us because we have the latest technology, the most stable components, the most advanced production technology. ESCOLTA DELTA radio will provide you with reliable performance and the high quality you demand.
- Page 4 Index Package Content ....................5 Accessories .......................5 Initial Assembly ....................6 Battery Installation ..................6 Antenna assembly ...................6 Battery charge ..................6 Belt clip assembly ..................7 Connect Microphone ................7 Basic operations and functions ................8 Turn the radio on and off .................8 Change channel ..................8 Transmit and receive ................8 Battery information ..................9 Battery Protection ...................9...
- Page 5 Package content Extract the radio carefully from the packaging and before throwing away the box verify that all the accessories listed below are: Item Quantity Antenna Belt clip AC adapter Charger Battery pack Lanyard Instruction manual Accessories Antenna Belt clip AC adapter Lanyard Charger...
- Page 6 Initial assembly Battery installation Assembly Align the battery with the slot, push forward and down until the battery clicks into place. Disassembly Lift the battery latch at the bottom of the battery, lift it and remove it from the chassis. Antenna assembly Insert the threaded antenna connector into the radio antenna connector.
- Page 7 Belt clip assembly Secure the belt clip with the screws aligning them with the threaded holes in the chassis. Belt clip disassembly Unscrew the screws that hold the belt clip and remove the clip from the chassis. Micro-earphone connection Remove the rubber cover to insert the headphone jack...
- Page 8 Basic operations and functions Turn the radio ON and OFF Turn on Turn the Power / volume control knob clockwise. One click will be heard when the radio is turned on. If a power tone is programmed, it will be heard and the radio will enter in reception status.
- Page 9 Battery Information Use only the charger and the supplied battery. The charger LED will indicate the status of the charging process. Battery protection This transceiver uses environmentally friendly lithium batteries. These battery tips will help you get the best performance and prolong the life of your battery. 1.
- Page 10 8. Prevent the battery from being in contact with metallic elements as it could cause a short circuit to the battery. 9. Dispose of old or damaged batteries according to local recycling regulations. 10. NEVER expose the battery to fire as it could cause an explosion and serious injury.
- Page 11 Function keys...
- Page 12 Functions No function / Emergency alarm / Cancel emergency alarm / VOX / Power switch / Monitor / Cancel squelch / Scan / Talkaround / Direct access 1 / Direct access Short 2 / Direct access 3 / Direct access 4 / Local ID access (DMR) / Announce channel press number / Announce power / Announce battery level / Announce channel type / Change area.
- Page 13 Information digital channels Function: set parameters related to the digital protocol of the digital channel. Local Number: unique unit ID used to identify an individual radio / radio user. Group Call Timer: keep group calls during the timer period for group call users Private Call Timer: keeps the private call during the timer period so that the two units of the call do not leave the private call until the timer expires.
- Page 14 CTCSS / DCS CTCSS features: CTCSS is a sub-audible signaling used in analog operation to limit those with co- rresponding signaling. Reduce interference on a channel by selectively opening the radio’s audio door. Características de DCS: DCS uses digital signaling in analog operation to limit users to groups with similar signaling.
- Page 15 Digital channel settings Receiving Groups List This feature allows users to receive several calls from different groups on a digital channel Range of values: Group Call List 1- Group Cail List 32 Default value: Group Call List 1 Transmitting Groups List Select the people you want to call from the contact list.
- Page 16 Safety information This manual provides safe and simple instructions for our ESCOL- TA DELTA handheld transceiver. Operation and Electromagnetic Exposure When pressing PTT, hold the radio upright 2.5 to 5.0.cm from the mouth. Make sure the antenna is at least 2.5 cm away from your head and body when transmitting.
- Page 17 Damaged antenna Damaged antennas must be replaced. Exposure to the metal parts of a dama- ged antenna can cause burns. Battery The batteries will not be changed in hazardous environments. Small flames and / or sparks can cause an explosion. Any metal conductor, such as jewelry or keys, that touches the battery can cause a short circuit that can cause a fire or burns.
- Page 18 EU DECLARATION OF CONFORMITY FALCON RADIO & ACCESSORIES SUPPLY, S.L. ID no.: B-60565314. C/ Vallespir, nº 13. Polígono Industrial Fontsanta. 08970 San Joan Despí - Barcelona (SPAIN). Phone no.: (+34) 934 579 710 - Fax no.: (+34) 934 578 869 - www.telecomfalcon.com Product description: Equipment: UHF ANALOG &...
- Page 19 CERTIFICATE OF GUARANTEE FALCON RADIO & A.S., S.L. CIF: B-60565314 C/ Vallespir, nº 13. Polígono Industrial Fontsanta. 08970 Sant Joan Despí. Barcelona (España). Tfno: +34 93 457 97 10. www.telecomfalcon.com Appliance Brand: Model: Serial no: Buyer's name: Address: Seal and dealer’s name: City: Zip Code: Province:...
