Summary of Contents for Ansul R-102

Page 1 R-102 RESTAURANT FIRE SUPPRESSION SYSTEM Design, Installation, Recharge and Maintenance Manual...
Page 2 Twelve-year maintenance must include agent tank hydrostatic testing. ANSUL PART NO. 418087-09 ANSUL, ANSUL AUTOMAN and ANSULEX are trademarks of Ansul Incorporated or its affiliates.
Page 3 REVISION INDEX UL EX 3470 ULC CEx747 Page 1 4-1-06 REV. 10 DATE PAGE REV. NO. DATE PAGE REV. NO. 8-1-01 5-14 10-1-02 8-1-01 5-20 10-1-02 8-1-01 5-23 10-1-02 8-1-01 5-27 Deleted 10-1-02 10-1-02 10-1-02 10-1-02 10-1-02 10-1-02 4-10 10-1-02 9-6.2 10-1-02 4-12...
Page 4 REVISION INDEX UL EX 3470 ULC CEx747 Page 2 REV. 4 4-1-06 DATE PAGE REV. NO. DATE PAGE REV. NO. 3-1-04 4-1-06 4-23 3-1-04 4-1-06 4-24 4-1-06 4-1-06 4-28 4-1-06 4-1-06 4-29 4-1-06 4-1-06 4-32 4-1-06 4-1-06 4-34 4-1-06 4-1-06 4-35 4-1-06 4-1-06...
Page 5 REVISION INDEX UL EX 3470 ULC CEx747 Page 3 4-1-06 REV. 2 DATE PAGE REV. NO. DATE PAGE REV. NO. 4-1-06 4-56 4-1-06 4-57 4-1-06 4-58 4-1-06 4-59 4-1-06 4-60 4-1-06 4-1-06 4-1-06 5-2.1 4-1-06 4-1-06 4-1-06 5-10 4-1-06 5-11 4-1-06 5-13 4-1-06...
Page 6 FUSIBLE LINK 3-11 MAXIMUM REGISTERING 3-11 III. SYSTEM COMPONENTS 3-1 – 3-12 THERMOMETER EXTINGUISHING AGENT HOSE/GROMMET PACKAGE 3-11 ‘‘ANSUL AUTOMAN’’ REGULATED BURSTING DISC 3-11 RELEASE ASSEMBLY NOZZLE AIMING DEVICE 3-11 (MECHANICAL) STAINLESS STEEL ACTUATOR HOSE 3-11 ‘‘ANSUL AUTOMAN’’ REGULATED RELEASE ASSEMBLY IV.
Page 7 TABLE OF CONTENTS UL EX. 3470 ULC CEx747 Page 2 REV. 7 4-1-06 SECTION PAGES SECTION PAGES IV. SYSTEM DESIGN (Continued) VII. RECHARGE AND RESETTING 7-1 – 7-4 DETECTION SYSTEM 4-53 – 4-54 PROCEDURES REQUIREMENTS CLEANUP PROCEDURES Detector Identification 4-53 RECHARGE 7-1 –...
Page 8 The R-102 system suppresses fire by spraying the plenum area, labor department, health department, building official, electrical the filters, cooking surfaces, and the exhaust duct system with a inspector, or others having statutory authority.
Page 9 “…predetermined flow rates, nozzle Detector: A device which includes the detector bracket, detector pressures, and quantities of liquid agent.” The R-102 system, as linkage, and fusible link used for automatic operation of the fire prescribed by UL (Underwriter’s Laboratories), has specific pipe suppression system.
Page 10 TOTAL SYSTEM There are three types of R-102 Restaurant Fire Suppression Double-Tank System Systems: The R-102 double-tank system is available with a stainless steel 1. Single-tank System enclosure and consists of: 2. Double-tank System 1. ANSUL AUTOMAN Regulated Release Assembly (Electrical or Mechanical) 3.
Page 11 Page 2-2 REV. 4 3-1-04 TOTAL SYSTEM (Continued) Multiple-Tank System The R-102 multiple-tank system is available with a stainless steel enclosure and consists of: 1. ANSUL AUTOMAN Regulated Release Assembly (Electrical or Mechanical) 2. Nitrogen Cartridge(s) and/or Carbon Dioxide Cartridge(s) 3.
Page 12 Manual actuation of the system occurs when personnel pull on the remote manual pull station pull ring. FIGURE 3 000139 * NOTE: ANSUL AUTOMAN Regulated Electrical Release, Part No. 429856, is not intended to be used with electric detection.
Page 13 The Remote Mechanical Release, Part No. 433485, is used to The Bracket Assembly can only be utilized with 3.0 gallon tanks actuate up to five (5) R-102 regulated actuators. The remote (Part No. 429862). mechanical release utilizes a 101-10 carbon dioxide cartridge as the actuation pressure to operate the regulated actuators.
Page 14 No. 79493, contains the same regulated release mechanism as The tank enclosure is designed to mount in a minimum amount of the standard ANSUL AUTOMAN Regulated Release Assembly. space. The OEM Regulated Electrical Release/Bracket Assembly, Part No.
Page 15 This assembly consists of a 24 VDC numbers: ANSUL AUTOMAN II-C regulated release mechanism, expellant Shipping Wt. gas hose, and enclosure knockouts to facilitate installing actuation Part No. Description...
Page 16 REV. 6 GAS CARTRIDGES NOZZLES The R-102 system uses gas cartridges to store nitrogen or carbon There are 11 types of discharge nozzles each designed to distrib- dioxide expellant gases under pressure until the system is actuat- ute the liquid agent in a uniform pattern throughout the hazard...
Page 17 SECTION III – SYSTEM COMPONENTS UL EX. 3470 ULC CEx747 Page 3-6 REV. 5 4-1-06 SWIVEL ADAPTOR CB METAL BLOW-OFF CAP FOR CHAIN BROILERS The Swivel Adaptor Assembly, Part No. 418569, consists of a swiv- The CB Metal Blow-off Cap, Part No. 433208, is used for all chain el nut, swivel body and swivel ball.
Page 18 SECTION III – SYSTEM COMPONENTS UL EX. 3470 ULC CEx747 Page 3-7 4-1-06 REV. 5 “COMPRESSION-SEAL” ADAPTOR This adaptor is a mechanical bulkhead fitting that produces a liquid-tight seal around pipe and conduit when installing distribu- tion piping and detection conduit through restaurant hoods and ducts.
Page 19 There are two types of pulley elbows used to change the direction 12 detectors can be in one detection system: 11 series detectors, of the wire rope by 90°. ANSUL recommends for temperatures not Part No. 56837 and 1 terminal detector, Part No. 56838.
Page 20 32 °F to 130 °F (0 °C to 54 °C). in., and 2 in. ANSUL style; and 2 1/2 in. and 3 in. Asco style. The Pulley tees can be used in mechanical gas valve actuation lines valves are rated for natural and LP gas.
Page 21 ALARM INITIATING SWITCH The Alarm Initiating Switch Kit, Part No. 428311, can be field mounted within the ANSUL AUTOMAN release. This switch must be used to close a supervised alarm circuit to the building main fire alarm panel when the ANSUL AUTOMAN release actuates. This action will signal the fire alarm panel that there was a system actu- ation in the kitchen area.
Page 22 BURSTING DISC The R-102 Bursting Disc is installed in the tank adaptor assembly. The bursting disc eliminates the siphoning of the agent up the pipe during extreme temperature variations. The bursting discs are available in packs of 10, Part No.
Page 23 SECTION III – SYSTEM COMPONENTS UL EX. 3470 ULC CEx747 Page 3-12 4-1-06 NOTES:...
Page 24 Those individuals responsible for the design of the R-102 system must be trained and hold a current ANSUL certificate in an R-102 training program. The R-102 and the PIRANHA systems use compatible agents and components, therefore, they may be used together for cooking appliance, hood, and duct protection.
Page 25 SECTION IV – SYSTEM DESIGN UL EX. 3470 ULC CEx747 Page 4-2 REV. 4 4-1-06 Duct Protection – Multiple Nozzle DUCT SIZES UP TO 135 IN. (343 cm) PERIMETER – 3 FLOW OPTION • One 1W Nozzle (Part No. 419336) and one 2W Nozzle (Part No.
Page 26 SECTION IV – SYSTEM DESIGN UL EX. 3470 ULC CEx747 Page 4-3 10-1-02 REV. 4 Duct Protection – Multiple Nozzle (Continued) When working with Chart 2, one half of the quantity of nozzles determined must be equally positioned in the top half of the area DUCT SIZES GREATER THAN 135 IN.
Page 27 FIGURE 5 000196 Normally electrostatic precipitators do not require protection but Note: For ESP used in Pollution Control units, contact Ansul should the “authority having jurisdiction” require protection, use the Technical Services for recommended application. following guidelines.
Page 28 Option 2: The 1W nozzle must be placed perpendicular, 8-12 in. (20-30 cm) from the face of the filter and angled to the The R-102 system uses the 1W Nozzle (Part No. 419336) or the center of the filter. The nozzle tip must be within 2 in.
Page 29 SECTION IV – SYSTEM DESIGN UL EX. 3470 ULC CEx747 Page 4-6 REV. 5 4-1-06 Plenum Protection (Continued) HORIZONTAL PROTECTION – OPTION 2 For a plenum, either single or “V” bank, with a linear extension longer than 10 feet (3.1 m), each bank may be protected using one 1W NOZZLE –...
Page 30 SECTION IV – SYSTEM DESIGN UL EX. 3470 ULC CEx747 Page 4-7 10-1-02 REV. 3 Appliance Protection The following pages detail types of appliance protection. Each design requires several factors: correct nozzle choice, correct noz- zle height above hazard, correct nozzle location and correct aim- ing point.
Page 31 SECTION IV – SYSTEM DESIGN UL EX. 3470 ULC CEx747 Page 4-8 REV. 6 4-1-06 Fryer – Single Nozzle Protection (Continued) Maximum Area Dimensions – Single Nozzle Fryer Protection Max. Size Max. Size Overall Type of Nozzle Height Nozzle Frypot Only With Dripboard Nozzle Above Top of Fryer...
Page 32 SECTION IV – SYSTEM DESIGN UL EX. 3470 ULC CEx747 Page 4-9 4-1-06 REV. 8 Fryer – Single Nozzle Protection (Continued) Maximum Area Dimensions – Single Nozzle Fryer Protection (Continued) Max. Size Max. Size Overall Type of Nozzle Height Nozzle Frypot Only With Dripboard Nozzle...
Page 33 SECTION IV – SYSTEM DESIGN UL EX. 3470 ULC CEx747 Page 4-10 REV. 5 10-1-02 Fryer – Multiple Nozzle Protection Design Requirements: Example: A fryer with a dripboard. The inside vat without the drip- board measures 18 in. in depth x 30 in. in length (46 cm. x 76 cm) Fryers exceeding the coverage of a single nozzle can be divided and the inside of the overall vat including the dripboard measures into modules.
Page 34 SECTION IV – SYSTEM DESIGN UL EX. 3470 ULC CEx747 Page 4-11 4-1-06 REV. 8 Fryer – Multiple Nozzle Protection (Continued) Maximum Area Dimension – Multiple Nozzle Fryer Protection Max. Size Module Max. Size Module Overall Type of Nozzle Height Nozzle Frypot Only With Dripboard...
Page 35 SECTION IV – SYSTEM DESIGN UL EX. 3470 ULC CEx747 Page 4-12 REV. 5 10-1-02 Multiple Nozzle Fryer Protection – Tilt Skillet / Braising Pan Protection for tilt skillets or braising pans is to be based upon the coverage limitations provided for deep fat fryer protection. Refer to Section IV, DESIGN, starting on Page 4-10, for maximum fryer nozzle coverages and maximum fryer nozzle height limitations.
Page 36 When this type of hazard is equipped with a back shelf located above the range top, two protection options are available: One The R-102 system uses five different nozzles for the protection of requires a 1F nozzle, Part No. 419333, and the other option ranges.
Page 37 SECTION IV – SYSTEM DESIGN UL EX. 3470 ULC CEx747 Page 4-14 REV. 5 10-1-02 Range Protection 2-Flow Nozzle High Proximity Application (2-Flow Nozzle): 40 in. to 50 in. COOKING (102 cm to 127 cm) above the cooking surface. AREA This high proximity application uses the 245 nozzle, Part No.
Page 38 SECTION IV – SYSTEM DESIGN UL EX. 3470 ULC CEx747 Page 4-15 10-1-02 REV. 4 Range Protection 2-Flow Nozzle Medium Proximity Application (2-Flow Nozzle): 30 in. to 40 in. COOKING AREA (76 cm to 102 cm) above the cooking surface. The medium proximity application uses the 260 nozzle, Part No.
Page 39 SECTION IV – SYSTEM DESIGN UL EX. 3470 ULC CEx747 Page 4-16 REV. 6 4-1-06 Range Protection 2-Flow Nozzle Low Proximity Application Two (2-Flow Nozzles): 15 in. to 20 in. COOKING LONGITUDINAL (38 cm to 51 cm) above the cooking surface. AREA CENTERLINE The low proximity application requires two (2) 290 nozzles, Part...
Page 40 Page 4-17 10-1-02 REV. 5 Griddle Protection 1-Flow Nozzle The R-102 system uses four different nozzles for the protection of griddles. One of the applications requires a 1-flow nozzle and NOZZLE LOCATION three of the applications require a 2-flow nozzle.
Page 41 SECTION IV – SYSTEM DESIGN UL EX. 3470 ULC CEx747 Page 4-18 REV. 5 10-1-02 Griddle Protection 2-Flow Nozzle Option 1 – Nozzle Center Located COOKING AREA High Proximity Application: 30 in. to 50 in. (76 cm to 127 cm) 1 IN.
Page 42 SECTION IV – SYSTEM DESIGN UL EX. 3470 ULC CEx747 Page 4-19 10-1-02 REV. 3 2-Flow Griddle Protection (Continued) Option 2 – Nozzle Perimeter Located COOKING AREA High Proximity Application: 30 in. to 50 in. (76 cm to 127 cm) above the cooking surface.
Page 43 SECTION IV – SYSTEM DESIGN UL EX. 3470 ULC CEx747 Page 4-20 REV. 4 10-1-02 2-Flow Griddle Protection (Continued) Option 2 – Nozzle Perimeter Located (Continued) Medium Proximity Application: 20 in. to 30 in. (51 cm to 76 cm) above the cooking surface. The medium proximity application uses the 290 nozzle, Part No.
Page 44 SECTION IV – SYSTEM DESIGN UL EX. 3470 ULC CEx747 Page 4-21 10-1-02 REV. 3 2-Flow Griddle Protection (Continued) Option 2 – Nozzle Perimeter Located (Continued) Low Proximity Application: 10 in. to 20 in. (25 cm to 51 cm) above the cooking surface. The low proximity application uses the 2120 nozzle, Part No.
Page 45 REV. 4 4-1-06 Chain Broiler Protection The R-102 system uses two 1N Nozzles (Part No. 419335) for Overhead Chain Broiler Protection chain broiler protection. The nozzle tip is stamped 1N, indicating The R-102 system uses two 1W Nozzles (Part No. 419336) for that this is a one-flow nozzle and must be counted as one flow overhead chain broiler protection.
Page 46 Upright/Salamander Broiler Protection (61 x 51 cm), with an opening of 16 in. x 16 in. The R-102 system uses two 1/2N Nozzles (Part No. 419334) for all (40.6 x 40.6 cm). upright/salamander broiler protection. The nozzle tip is stamped To determine minimum opening size, multiply the 1/2N, indicating that this is a half-flow nozzle.
Page 47 REV. 6 4-1-06 Gas-Radiant/Electric Char-Broiler Protection The R-102 system uses the 1N nozzle, (Part No. 419335) for gas- radiant/electric char-broiler protection. The nozzle tip on the 1N nozzle is stamped with a 1N, indicating that this is a one-flow nozzle and must be counted as one flow number.
Page 48 10-1-02 REV. 6 Lava Rock (Ceramic) Char-Broiler Protection The R-102 system uses the 1N Nozzle (Part No. 419335) for all Natural Charcoal Broiler Protection lava rock char-broiler protection. The nozzle tip is stamped with The R-102 system uses the 1N Nozzle (Part No. 419335) for all 1N, indicating that this is a one-flow nozzle and must be counted natural charcoal broiler protection.
Page 49 Alternate Ceramic/Natural Charcoal Char-broiler Protection Wood Fueled Char-Broiler Protection The R-102 system may also use the 3N nozzle (Part No. 419338) The R-102 system uses the 3N Nozzle (Part No. 419338) for for all ceramic (lava rock) and natural charcoal char-broiler protec- mesquite char-broiler protection.
Page 50 2. A 1N Nozzle, Part No. 419335, will protect a wok 11 in. (28 cm) minimum diameter up to 24 in. (61 cm) maximum diameter. The R-102 system uses two different nozzles for the protection of The wok depth must be no less than 3 in. (8 cm) and no woks.
Page 51 SECTION IV – SYSTEM DESIGN UL EX. 3470 ULC CEx747 Page 4-28 REV. 5 4-1-06 Nozzle Application Chart The following chart has been developed to assist in calculating the quantity and type of nozzle required to protect each duct, plenum, or appliance.
Page 52 SECTION IV – SYSTEM DESIGN UL EX. 3470 ULC CEx747 Page 4-29 4-1-06 REV. 5 Nozzle Application Chart (Continued) Minimum Nozzle Tip Maximum Hazard Nozzle Nozzle Nozzle Stamping – Hazard Dimensions Quantity Heights Part No. Flow No. Fryer (Non-Split Maximum Size Vat Only)* (with drip board) 21 in.
Page 53 SECTION IV – SYSTEM DESIGN UL EX. 3470 ULC CEx747 Page 4-30 REV. 3 10-1-02 Nozzle Application Chart (Continued) Minimum Nozzle Tip Maximum Hazard Nozzle Nozzle Nozzle Stamping – Hazard Dimensions Quantity Heights Part No. Flow No. Griddle Longest Side (High Proximity) 30 –...
Page 54 SECTION IV – SYSTEM DESIGN UL EX. 3470 ULC CEx747 Page 4-31 3-1-04 REV. 6 Nozzle Application Chart (Continued) Minimum Nozzle Tip Maximum Hazard Nozzle Nozzle Nozzle Stamping – Hazard Dimensions Quantity Heights Part No. Flow No. Wood Fueled Char-Broiler Longest Side –...
Page 55 SECTION IV – SYSTEM DESIGN UL EX. 3470 ULC CEx747 Page 4-32 REV. 6 4-1-06 SPECIFIC APPLICATION BY MODEL FRY POT CENTERLINE 1 1/8 IN. 8 IN. Dean Industries Gas Fryer, Model 2424 GTI, 120,000 BTU/hr. (2.9 cm) (20 cm) 1 1/8 IN.
Page 56 SECTION IV – SYSTEM DESIGN UL EX. 3470 ULC CEx747 Page 4-33 10-1-02 REV. 5 SPECIFIC APPLICATION BY MODEL (Continued) Far West Hospitality Products Gas Fryer, Model PAR-1-20, Frymaster 14 KW – 208V Electric Fryer, Model MACH 14 63000 BTU/hr Rating Series This specialized gas fryer can be protected with a single, 290 This specialized single vat electric fryer can be protected either...
Page 57 The heat input rating of the fryer shall not exceed 122,000 BTU/HR. – An R-102 3-gallon system with a maximum of 6 flow numbers, The 245 nozzle shall be located 18 in. to 20 in. (46 cm to must be used for protection of each broiler, including plenum 51 cm) above the top of the fryer vat, 2 in.
Page 58 SECTION IV – SYSTEM DESIGN UL EX. 3470 ULC CEx747 Page 4-35 4-1-06 REV. 4 SPECIFIC APPLICATION BY MODEL (Continued) Nieco Broiler – Model 950, 960, 980 Nieco Broiler – Model 9015 (With or Without Catalytic Converter) • Nozzle Quantity/Type: (1) One 2W nozzle, Part No. 419337. •...
Page 59 SECTION IV – SYSTEM DESIGN UL EX. 3470 ULC CEx747 Page 4-36 REV. 4 4-1-06 SPECIFIC APPLICATION BY MODEL (Continued) Nieco Broiler – Model 9025 (With or Without Catalytic Nieco Broiler – Model MPB94 (With Catalytic Converters) Converter) • Nozzle Quantity/Type: (1) One 2W nozzle, Part No. 419337. •...
Page 60 SECTION IV – SYSTEM DESIGN UL EX. 3470 ULC CEx747 Page 4-37 4-1-06 REV. 4 SPECIFIC APPLICATION BY MODEL (Continued) Marshall Air – Model 2001BK Multi-Chamber Broiler Marshall Air Electric Broiler – Model FR14B AutoBroil • Nozzle Quantity/Type: (2) Two 1W nozzles, Part No. 419347. Nozzle Quantity/Type: One 260 Nozzle (Part No.
Page 61 SECTION IV – SYSTEM DESIGN UL EX. 3470 ULC CEx747 Page 4-38 REV. 6 4-1-06 SPECIFIC APPLICATION BY MODEL (Continued) Krispy Kreme Fryers – Models 150 D/H, 270 D/H, 600 D/H, and 1000 D/H Grease Grabber-80™ Two Stage Filtration System Nozzle Type: 3N Nozzle (Part No.
Page 62 Page 4-39 4-1-06 REV. 5 OVERLAPPING NOZZLE COVERAGE • All appliance protection currently listed in the R-102 Design Manual, Part No. 418087, is also approved protection. Zone pro- Hazard Zone tection can be considered optional protection. The hazard zone is defined as a theoretical, flat and level, rectan-...
Page 63 SECTION IV – SYSTEM DESIGN UL EX. 3470 ULC CEx747 Page 4-40 REV. 4 4-1-06 OVERLAPPING NOZZLE COVERAGE (Continued) 4. The overlapping appliance nozzles must be located 0 in. to 6 in. (0 mm to 152 mm) forward of the centerline or aimline of Overlapping Appliance Nozzle and Hazard Zone Locations the selected hazard zone.
Page 64 SECTION IV – SYSTEM DESIGN UL EX. 3470 ULC CEx747 Page 4-41 4-1-06 REV. 4 OVERLAPPING NOZZLE COVERAGE (Continued) 2. When obstructions are located adjacent to appliance(s) pro- tected by overlapping nozzles, the overlapping appliance noz- Overlapping Appliance Nozzle and Hazard Zone Locations – zle spacing must start with the appliance(s) adjacent to the Group Protection obstruction.
Page 65 2 ft. (.61 m) from end of plenum. Note: Standard detector placement can also be utilized when using overlapping protection. However, the overlapping detector option cannot be used when utilizing standard R-102 protection. Refer to Pages 4-53 and 4-54 for detector placement.
Page 66 GAS LINE LENGTH TOTALS REGULATED ACTUATOR ASSEMBLY ACTUATION GAS LINE WITH AN LT-20-R, LT-30-R, 101-10 OR 101-20 CARTRIDGE MAXIMUM LENGTH OF 20 FT. (6 m), MAXIMUM NO. OF FITTINGS 9 REGULATED ACTUATOR ASSEMBLY “ANSUL AUTOMAN” REGULATED RELEASE ASSEMBLY FIGURE 80 000775...
Page 67 2. The actuation gas line piping is installed from the 101 remote (Continued) mechanical release to each R-102 regulated actuator assem- bly. The total length of the actuation gas line from the remote Actuation Gas Line – 6 to 8* Tanks Maximum (Continued) mechanical release to the regulated actuator assemblies must 3.
Page 68 General Piping Requirements 1. All R-102 system piping is straight line. Therefore, the need for critical lengths and balancing is minimized. 2 Two 45° elbows count as one 90° elbow.
Page 69 Supply and Branch Line Identification SUPPLY LINE The R-102 distribution piping network is broken down into four The Supply Line is defined as the length of pipe which runs from specific pipe runs: the Supply Line, the Duct Branch Line, the agent tank outlet to the last branch line (whether a duct, appli- the Plenum Branch Line, and the Appliance Branch Line.
Page 70 SECTION IV – SYSTEM DESIGN UL EX. 3470 ULC CEx747 Page 4-47 4-1-06 REV. 4 DISTRIBUTION PIPING REQUIREMENTS (Continued) Supply and Branch Line Identification (Continued) PLENUM BRANCH LINE The Plenum Branch Line is defined as the length of pipe which NOTICE runs from the supply line to the plenum nozzle(s).
Page 71 SECTION IV – SYSTEM DESIGN UL EX. 3470 ULC CEx747 Page 4-48 REV. 4 4-1-06 DISTRIBUTION PIPING REQUIREMENTS (Continued) START OF LAST BRANCH LINE Distribution Piping Requirements – 1.5 Gallon System START OF FIRST BRANCH LINE DUCT, PLENUM, AND APPLIANCE PROTECTION 1.
Page 72 2. For certain McDonald’s applications, 11.5 flow numbers are allowed when using a combination of one (1) 2W duct nozzle, one (1) 1/2N electrostatic precipitator nozzle, one (1) 1N plenum nozzle, and four (4) two-flow appliance nozzles. Contact Ansul Applications Engineering Department for additional information.
Page 73 SECTION IV – SYSTEM DESIGN UL EX. 3470 ULC CEx747 Page 4-50 REV. 4 4-1-06 DISTRIBUTION PIPING REQUIREMENTS (Continued) LENGTH OF PIPING MUST NOT EXCEED 24 FT. (7.3 m) FROM START OF FIRST BRANCH LINE Distribution Piping Requirements – 6.0 Gallon Manifolded TO START OF LAST BRANCH LINE System As an option to piping two (2) 3.0 gallon tanks separately, two (2)
Page 74 SECTION IV – SYSTEM DESIGN UL EX. 3470 ULC CEx747 Page 4-51 4-1-06 REV. 4 DISTRIBUTION PIPING REQUIREMENTS (Continued) Distribution Piping Requirements – 6.0 Gallon Manifolded Distribution Piping Requirements – 6.0 Gallon System with System (Continued) Independent Pipe Runs This configuration consists of two 3 gallon tanks. Both tanks are Independent pipe runs can also be used with the regulated connected to a common manifold tee and are pressurized from a release assembly and the tank/enclosure assembly.
Page 75 2. For certain McDonald’s applications, 11.5 flow numbers are allowed when using a combination of one (1) 2W duct nozzle, one (1) 1/2N electrostatic precipitator nozzle, one (1) 1N plenum nozzle, and four (4) two-flow appliance nozzles. Contact Ansul Applications Engineering Department for additional information.
Page 76 Note: On secondary filtration units utilizing multiple filter the total number of “clip-on” style detectors (11 stages/media, contact Ansul Technical Services for instructions. series and 1 terminal) is still allowed. 3. If hinge style detectors are mixed in a system with either clip- on or scissor style, the maximum length of wire rope must not exceed 103 ft.
Page 77 The conduit offset cannot be used with pulley tees. All other changes in direc- tion must be made by using ANSUL approved pulley elbows, Part No. 423254 or 415670. See Figure 101.
Page 78 Metal Stamped Style – Part No. 4835 or 54011 Parts that may be used for installation of a metal stamped remote A remote manual pull station allows the R-102 system to be man- manual pull station are: ually operated at some point distant from the regulated release assembly.
Page 79 See Page 5-25 for wiring information. The following is a brief explanation of how the R-102 system oper- ates with an Electric Gas Shut-off Valve attached: The switch is rated 50 mA, 28VDC.
Page 80 ELECTRIC GAS VALVE JUNCTION BOXES (NOT SUPPLIED BY ANSUL) 000273 WIRING SCHEMATIC WIRING SCHEMATIC – RELAY PART NO. 426151 BLACK ANSUL SNAP-ACTION SWITCH (SWITCH CONTACTS SHOWN WITH ANSUL AUTOMAN IN THE COCKED POSITION) BROWN POWER RESET INDICATOR SCREW L2 NEUTRAL...
Page 81 3. GAS VALVES: “UL LISTED ELECTRICALLY-OPERATED SAFETY VALVE FOR NATURAL, OR LP GAS AS NEEDED OF APPROPRIATE PRESSURE AND TEMPERATURE RATING, 110V/60 HZ” OR ANSUL GAS VALVES, PART NUMBERS 13707, 13708, 13709, 13710, AND 17643. 4. DO NOT USE BLACK WIRE ON SNAP-ACTION SWITCH IN NORMAL INSTALLATION. BLACK WIRE TO BE USED ONLY FIGURE 105 FOR EXTRANEOUS ALARM, LIGHT CIRCUITS, ETC.
Page 82 (NOT SUPPLIED BY ANSUL) CONTACTOR (CUSTOMER SUPPLIED) 000279 WIRING SCHEMATIC WIRING SCHEMATIC – RELAY PART NO. 426151 BLACK ANSUL SNAP-ACTION SWITCH BROWN (SWITCH CONTACTS SHOWN WITH ANSUL AUTOMAN IN THE COCKED POSITION) RESET POWER INDICATOR SCREW L2 NEUTRAL 110 VAC/60HZ RELAY COIL...
Page 83 SECTION IV – SYSTEM DESIGN UL EX. 3470 ULC CEx747 Page 4-60 REV. 1 4-1-06 NOTES:...
Page 84 R-102 system must Fill tanks per instructions listed in Steps 3 and 4 on be trained and hold a current ANSUL certificate in an R-102 train- Page 5-3. ing program.
Page 85 SECTION V – INSTALLATION INSTRUCTIONS UL EX. 3470 ULC CEx747 Page 5-2 REV. 4 4-1-06 MOUNTING THE COMPONENTS (Continued) 3.0 GALLON TANK BRACKET 3 1/2 IN. OEM RELEASE/BRACKET ASSEMBLY (9 cm) 6 IN. 7 IN. (15 cm) (18 cm) 9 3/4 IN. (25 cm) 8 5/8 IN.
Page 86 SECTION V – INSTALLATION INSTRUCTIONS UL EX. 3470 ULC CEx747 Page 5-2.1 4-1-06 REV. 5 MOUNTING THE COMPONENTS (Continued) STAINLESS STEEL TANKS 3. Fill each agent tank by completing the following steps: 2 1/4 IN. ± 1/8 IN. (57 mm ± 3 mm) FROM THE TOP OF THE COLLAR a.
Page 87 SECTION V – INSTALLATION INSTRUCTIONS UL EX. 3470 ULC CEx747 Page 5-2.2 REV. 1 7-1-98 NOTES:...
Page 88 SECTION V – INSTALLATION INSTRUCTIONS UL EX. 3470 ULC CEx747 Page 5-3 7-1-98 REV. 2 INSTALLING THE ACTUATION AND EXPELLANT GAS LINE NOTICE Do not allow tape to overlap the pipe open- Before installing any actuation or expellant gas line, the piping ing, as this could cause possible blockage of design must be determined;...
Page 89 MAXIMUM COMBINED LENGTH – 30 FT. (9 m), MAXIMUM COMBINED FITTINGS – 9 REGULATED ACTUATOR ASSEMBLY EXPELLANT GAS LINES NOT INCLUDED IN COMBINED TOTALS REGULATED ACTUATOR ASSEMBLY REGULATED ACTUATOR ASSEMBLY REGULATED RELEASE ASSEMBLY FIGURE 9 ANSUL AUTOMAN REGULATED 000298 RELEASE ASSEMBLY...
Page 90 SECTION V – INSTALLATION INSTRUCTIONS UL EX. 3470 ULC CEx747 Page 5-5 10-1-02 REV. 4 INSTALLING THE ACTUATION AND EXPELLENT GAS LINE (Continued) 4. If an actuation gas line is connected to the regulated release Expellant Gas Line From The Regulated Release Assembly assembly along with an expellant gas line, the total combined length of the gas lines must not exceed 30 ft.
Page 91 SECTION V – INSTALLATION INSTRUCTIONS UL EX. 3470 ULC CEx747 Page 5-6 REV. 3 4-1-06 INSTALLING THE ACTUATION AND EXPELLENT GAS LINE (Continued) Actuation Gas Line From Remote Release(s) to Regulated Actuation Gas Line – 10 to 15* Tanks Maximum – Using 1/4 in. Actuators Stainless Steel Hose Install actuation gas piping from the remote release(s) to the reg-...
Page 92 SECTION V – INSTALLATION INSTRUCTIONS UL EX. 3470 ULC CEx747 Page 5-7 4-1-06 REV. 4 INSTALLING THE DISTRIBUTION PIPING Before the following procedures can be completed, the piping 2. Based on the piping sketch developed in the “System Design” design must already be determined; and the actuation and expel- section of this manual, install the supply line and position the lant gas lines from the regulated release, each regulated actuator, tees at points where branch lines must be installed.
Page 93 Inside of pipe and fittings must be free of oil and dirt. When changing the direction of conduit, use only ANSUL pul- ley elbows, except, at the top of the regulated release, it is acceptable to use the “Conduit Offset Assembly”...
Page 94 SECTION V – INSTALLATION INSTRUCTIONS UL EX. 3470 ULC CEx747 Page 5-9 7-1-98 REV. 1 INSTALLING THE DETECTION SYSTEM (Continued) Installing “Clip-On” Style Linkage (Continued) 6. To give a constant tension on the wire rope during installation of the detector linkage, hang a vice grip or other weighted 4.
Page 95 10. Next, rotate both halves of the detector linkage upside down, center, toward the terminal detector side. with the detector linkage groove over the wire rope. See 13. Install the linkage and the correct ANSUL fusible link in the Figure 24. remainder of the detector brackets.
Page 96 TENSION LEVER IN “UP” POSITION FIGURE 30 000322 18. Verify each detector linkage assembly, with correct ANSUL fusible link, is in the detector bracket, located slightly toward the terminal detector side. NOTICE Due to the close adjustment between the trip...
Page 97 SECTION V – INSTALLATION INSTRUCTIONS UL EX. 3470 ULC CEx747 Page 5-12 REV. 3 7-1-98 INSTALLING THE DETECTION SYSTEM (Continued) Installing “Clip-On” Style Linkage (Continued) NOTICE Do not use zinc die cast compression connec- 20. Lower tension lever to “DOWN” position and inspect the base tors on the detection conduit lines as these will of the wire rope clamping device to make certain that there is not withstand the normally high temperatures...
Page 98 7. Install detector scissor assembly as shown in Figure 38. Note detector is mounted within a duct or header opening, and that the ANSUL AUTOMAN release is located on the left side install the stop sleeve approximately 2 to 3 in. (5 to 8 cm) from of the detector bracket.
Page 99 INSTALLING THE DETECTION SYSTEM (Continued) “Scissor” Style Linkage Installation (Continued) 9. Install the linkage and the correct ANSUL approved fusible link in the remainder of the detector brackets. Make certain all detector linkages are positioned against either the front or back upper lip of the formed detector bracket.
Page 100 See Figure 47. raise tension lever, loosen set screws on locking clamp and repeat Steps 15 and 16.) CAUTION Make certain the hook assembly with the ANSUL fusible LOCKING link in place is located toward the terminal detector side of CLAMP each bracket.
Page 101 Locate the linkage in the cen- ter of the detector bracket. See Figure 49. FIGURE 49 000333 9. Proceed to install the remainder of the ANSUL fusible links on FIGURE 51 the detector hooks and position the linkage in the center of 000320 each bracket.
Page 102 BASE TENSION LEVER IN “UP” POSITION FIGURE 53 000322 FIGURE 54 14. Verify each detector linkage assembly, with correct ANSUL 000323 fusible link, is approximately centered in the detector bracket. CAUTION NOTICE Due to the close adjustment between the trip...
Page 103 Steps 2 and 3 before completing the following installation steps. RING HANDLE JUNCTION BOX (NOT 3. Select a convenient location in the path of egress for mount- SUPPLIED BY ANSUL) ing the pull station(s) to the wall. The pull station should be FIGURE 55 001090 installed at a height of 42 in.
Page 104 SECTION V – INSTALLATION INSTRUCTIONS UL EX. 3470 ULC CEx747 Page 5-19 10-1-02 REV. 4 INSTALLING REMOTE MANUAL PULL STATION (Continued) INSTALLING MECHANICAL GAS VALVE NOTICE PULLEY TEE, PART NO. 427929 ONLY Mechanical gas valves are designed for indoor installation only. To install each Mechanical Gas Shut-off Valve complete the fol- NO ELBOWS lowing steps.
Page 105 REV. 2 8-1-01 INSTALLING MECHANICAL GAS VALVE (Continued) TOP KNOCKOUTS MECHANICAL GAS VALVE AIR CYLINDER R-102 REGULATED BOTTOM RELEASE KNOCKOUTS FIGURE 59 000341 Note: Two air cylinders are necessary only if the old style pul- ley tee, Part No. 15342, is utilized. If new style pulley tee, Part No.
Page 106 4-1-06 REV. 3 INSTALLING MECHANICAL GAS VALVE (Continued) ANSUL MECHANICAL GAS VALVES 6. Install the necessary 1/8 in. copper tubing and fittings for each air cylinder to the accessories piping arrangement on the reg- ulated release mechanism. See Figures 58 and 60.
Page 107 18. Note: If utilizing a pulley tee to operate a single mechanical FIGURE 62 gas valve from two (2) ANSUL AUTOMAN releases, see 000347 Figure 64 for installation instructions. Maximum length of wire 12. With the end of wire rope already threaded through hole in air rope to each ANSUL AUTOMAN release must not exceed cylinder rod, slide stop sleeve (Part No.
Page 108 SECTION V – INSTALLATION INSTRUCTIONS UL EX. 3470 ULC CEx747 Page 5-23 8-1-01 REV. 3 INSTALLING ELECTRICAL GAS VALVES CORRECT WAY: VISE GRIP ENDS NEXT TO PIPE NOTICE BEING INSERTED. PREVENTS Electric gas valves are designed for indoor EXCESS STRAIN ON VALVE BODY. installation only.
Page 109 3-1-04 INSTALLING ELECTRICAL SWITCHES The procedure for field installing an electric (snap-action) switch is b. With the ANSUL AUTOMAN in the fired position, press the as follows: lever of each switch up, there should be no audible click. When installing multiple switches, make certain all switch- CAUTION es transfer when the release operates.
Page 110 004891 ALARM INITIATING SWITCH The Alarm Initiating Switch is mounted in the ANSUL AUTOMAN Release on the same mounting plate where the current snap- action switches are mounted. If the alarm initiating switch is used alone, the enclosed extension pin and pin nut are not needed.
Page 111 SECTION V – INSTALLATION INSTRUCTIONS UL EX. 3470 ULC CEx747 Page 5-26 REV. 4 3-1-04 WIRING 24 VDC REGULATED RELEASE ASSEMBLY (ULC APPROVED ONLY) Refer to the following notes and wiring diagram for instruction on wiring the 24 VDC regulated release assembly. Notes: 1.
Page 112 Connect visual inspection seals (Part No. 197) on ANSUL type glass break rod out. On molded plastic pull station, seal will be valves.
Page 113 SECTION VI – TESTING AND PLACING IN SERVICE UL EX. 3470 ULC CEx747 Page 6-2 REV. 2 3-1-04 TESTING ELECTRICAL GAS VALVES TESTING ELECTRIC SWITCH To test each Electric Gas Shut-off Valve complete the following The procedure for testing a field installed Electric (Snap-Action) steps: Switch is as follows: NOTICE...
Page 114 SECTION VI – TESTING AND PLACING IN SERVICE UL EX. 3470 ULC CEx747 Page 6-3 10-1-02 REV. 2 TESTING DETECTION SYSTEM 1. Test detection system by completing the following steps: 4. Upon successful actuation of the system, complete the follow- ing steps: a.
Page 115 SECTION VI – TESTING AND PLACING IN SERVICE UL EX. 3470 ULC CEx747 Page 6-4 REV. 2 10-1-02 NOTES:...
Page 116 RECHARGE tations and parameters of this pre-engineered system. Those indi- NOTICE viduals responsible for the recharge of the R-102 system must be Determine the cause of system discharge and trained and hold a current ANSUL certificate in an R-102 training correct immediately before performing system program.
Page 117 001740 8. If using the plastic tubing option, utilize 1/2 in. (1.3 cm) O.D. b. Cock ANSUL AUTOMAN Release Mechanism and insert plastic tubing with wall thickness not to exceed .062 in. lock bar. (1.6 mm), and make certain it can withstand the pressures of c.
Page 118 Placing In Service” section, Page 6-3, of this manual. 21. After successful actuation, raise the tension lever to “UP” position. 22. Install properly-rated, ANSUL approved, fusible link in terminal detector. 23. Cock the regulated release mechanism and install lock bar (Part No. 14985).
Page 119 5. If no gaseous odor exists, pilot light may be ignited at this time. Resetting Pressure Switch 6. Reinstall side cover to gas valve housing. On ANSUL type Reset the pressure switch by completing the following: valve, make certain roll pin is positioned within both sides of 1.
Page 120 R-102 system From tank in bracket assembly: Loosen wingnut, disengage must be trained and hold a current ANSUL certificate in an R-102 bracket band, and remove each tank. Keep tank in upright training program.
Page 121 Before proceeding with Step 18, test electric (snap-action) switches: a. With the ANSUL AUTOMAN in the cocked or ready posi- tion, press the lever of each switch up. If the switch is work- ing properly, there should be an audible click.
Page 122 24. Inspect wire rope at all detector locations, pulley elbows, pul- 33. Re-cock the gas valve by pulling the valve stem up until the pin ley tee and at ANSUL AUTOMAN release. If wire rope shows in the stem engages the cocking lever.
Page 123 10. At this point, each liquid agent tank, including the 1/4 in. 1. Remove the enclosure cover from the ANSUL AUTOMAN gas hose assembly, must be HYDROSTATICALLY TESTED to regulated release assembly and each regulated actuator 330 psi (2275 kPa).
Page 124 SECTION VIII – MAINTENANCE EXAMINATION UL EX. 3470 ULC CEx747 Page 8-5 4-1-06 REV. 4 12-YEAR MAINTENANCE EXAMINATION (Continued) For Second Tank: Disconnect expellant gas piping at union. Remove union from expellant gas piping and install pipe 11. The regulator must be flow tested at 12 year intervals. Check cap to prevent cartridge pressure from escaping during the date code stamped on the regulator body to determine if test.
Page 125 O-RING Two styles of regulators are used with the R-102 release mechanisms. The diaphragm style (see Figure 13) was used in R-102 systems up to approximately 1988. The pis- FIGURE 14 ton style (see Figure 13) has been used since 1988.
Page 126 FIGURE 15 23. After successful actuation, raise the tension lever to “UP” 000320 position. 24. Clean and return properly-rated, ANSUL approved, fusible link to terminal detector. NOTICE Fusible links installed in system for six months or more must be replaced.
Page 127 SECTION VIII – MAINTENANCE EXAMINATION UL EX. 3470 ULC CEx747 Page 8-8 REV. 1 10-1-02 12-YEAR MAINTENANCE EXAMINATION (Continued) 37. Install cover on regulated release assembly and each regulat- ed actuator assembly and secure with appropriate fasteners 26. Lower tension lever to “DOWN” position. or visual inspection seal.
Page 128 SECTION IX – APPENDIX UL EX. 3470 ULC CEx747 Page 9-1 10-1-02 REV. 5 SYSTEM SELECTION GUIDE Note: System options do not cover all conceivable variations. They are listed here as a general guideline to show the most common type arrangement for multiple systems, Based on certain system designs utilizing manifolding, non-manifolding, 3-tank systems, etc., other tank/cartridge combinations can be designed.
Page 129 SECTION IX – APPENDIX UL EX. 3470 ULC CEx747 Page 9-2 REV. 5 10-1-02 SYSTEM SELECTION GUIDE (Continued) Total Tank Type of Carbon Dioxide Nitrogen Flow No.* Quantity System Type of Hardware Cartridge Required Cartridge Required 50-55 Multiple 3.0 Gal. Reg. Release 101-30 (423443) Double (423493) 3.0 Gal.
Page 130 SECTION IX – APPENDIX UL EX. 3470 ULC CEx747 Page 9-3 10-1-02 REV. 5 SYSTEM SELECTION GUIDE (Continued) Total Tank Type of Carbon Dioxide Nitrogen Flow No.* Quantity System Type of Hardware Cartridge Required Cartridge Required 78-82 Multiple 1.5 Gal. Reg. Release 101-30 (423443) LT-30-R (423435) 3.0 Gal.
Page 131 *** If tanks are manifolded, either an LT-A-101-30 nitrogen cartridge (Part No. 423491) or a double tank cartridge (Part No. 423493) can be used. Options are available up to a maximum of 15 tanks. Contact ANSUL Technical Services Department for detailed information.
Page 132 Includes: Actuator and Regulator Stainless Steel Mounting Box Hose 429859 24 VDC Regulated Release Shipping Assembly (ULC) Includes: 24 VDC ANSUL AUTOMAN II-C 429862 3.0 Gallon Tank Shipping Assembly Release Mechanism in Stainless Steel Mounting Box 429864 1.5 Gallon Tank Shipping Assembly 430299 3.0 Gallon Mechanical Release Shipping Assembly...
Page 133 SECTION IX – APPENDIX UL EX. 3470 ULC CEx747 Page 9-6 REV. 5 4-1-06 SYSTEM COMPONENT INDEX (Continued) Part No. Description Part No. Description 417368 Terminal Detector Package (“Scissor”) Includes: Test Link 419346 Nozzle Shipping Assembly (1N) Includes: 25 1N Nozzles (Part No. 419335) 415671 Pulley Elbows Shipping Assembly 25 Blow-Off Caps...
Page 134 Includes: 3.0 Gallon (11.4 L) Container of ANSULEX Low pH Liquid Fire 428311 Alarm Initiating Switch Kit Suppressant 55598 Gas Shut-off Equipment Mechanical (ANSUL) 79694 Recharge Equipment Includes: Mechanical Gas Valve – 3/4 in. Includes: 1.5 Gallon (5.7 L) Container of ANSULEX Low pH Liquid Fire...
Page 135 Includes: Lock Bar 14995 Recharge Equipment Includes: Cocking Lever 26310 Recharge Equipment Includes: Cocking Lever for ANSUL AUTOMAN II-C 15618 Recharge Equipment Includes: Cocking Lever and Lock Bar Assembly 15240 Recharge Equipment Includes: 500 °F (260 °C) Exhaust Duct Thermometer...
Page 136 SECTION IX – APPENDIX UL EX. 3470 ULC CEx747 Page 9-7 10-1-02 REV. 3 “ANSUL AUTOMAN” REGULATED RELEASE ASSEMBLY 14 (ORDERED SEPARATELY) 19, 20 000373 Figure Mechanical Electrical Description Part No. Part No. – Regulated Release Shipping Assembly 429853 429856...
Page 137 SECTION IX – APPENDIX UL EX. 3470 ULC CEx747 Page 9-8 REV. 3 10-1-02 REGULATED ACTUATOR ASSEMBLY (ORDERED SEPARATELY) 000374 13, 14 Figure Description Part No. – Regulated Actuator Assembly 429850 Mounting Box 419293 Pneumatic Actuator Assembly Including Regulator 79340 Hex Jam Nut 67990 Hole Adaptor (2)
Page 138 SECTION IX – APPENDIX UL EX. 3470 ULC CEx747 Page 9-9 4-1-06 REV. 4 ENCLOSURE ASSEMBLY 000290 Figure Description Part No. – Enclosure Shipping Assembly 429870 Enclosure 419295 Cover 419296 Nameplate 429871 Screw 15362 Speed Nut 423479...
Page 139 SECTION IX – APPENDIX UL EX. 3470 ULC CEx747 Page 9-10 REV. 3 10-1-02 BRACKET ASSEMBLY 000376 Figure 3.0 Gallon Description Part No. – Bracket Shipping Assembly 429878 Bracket Assembly – Grommet 14089 Grommet 8688 Wing Nut 12065...
Page 140 SECTION IX – APPENDIX UL EX. 3470 ULC CEx747 Page 9-10.1 4-1-06 REV. 3 TANK ASSEMBLY 000375 Figure 1.5 Gallon 3.0 Gallon Description Part No. Part No. – Tank Assembly 429864 429862 Tank Adaptor Shipping Assembly 430096 79522 Pickup Tube Assembly 429883 417700 Vent Plug Assembly...
Page 141 SECTION IX – APPENDIX UL EX. 3470 ULC CEx747 Page 9-10.2 REV. 2 4-1-06 REMOTE RELEASE 6, 7, 8 007499 Figure Description Part No. — Remote Release 433485 Mounting Box 419295 Cover 419296 Maintenance Label 17351 Spring 79094 Speed Nut 423479 Machine Screw 14973...
Page 142 SECTION IX – APPENDIX UL EX. 3470 ULC CEx747 Page 9-11 10-1-02 REV. 5 Multiple Nozzle Fryer Protection Calculation Examples Example No. 2 – Fryer With Dripboard. This fryer has an overall fry vat, including a dripboard, that measures 24 in. (61 cm) in Example No.
Page 143 SECTION IX – APPENDIX UL EX. 3470 ULC CEx747 Page 9-12 REV. 3 10-1-02 NOTES:...

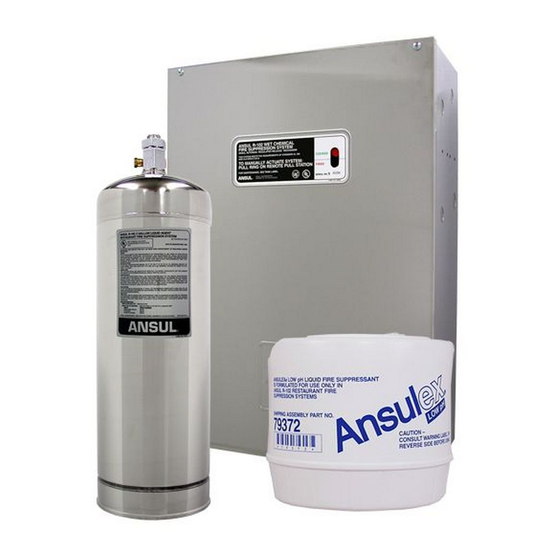

Ansul R-102 Installation And Maintenance Manual
