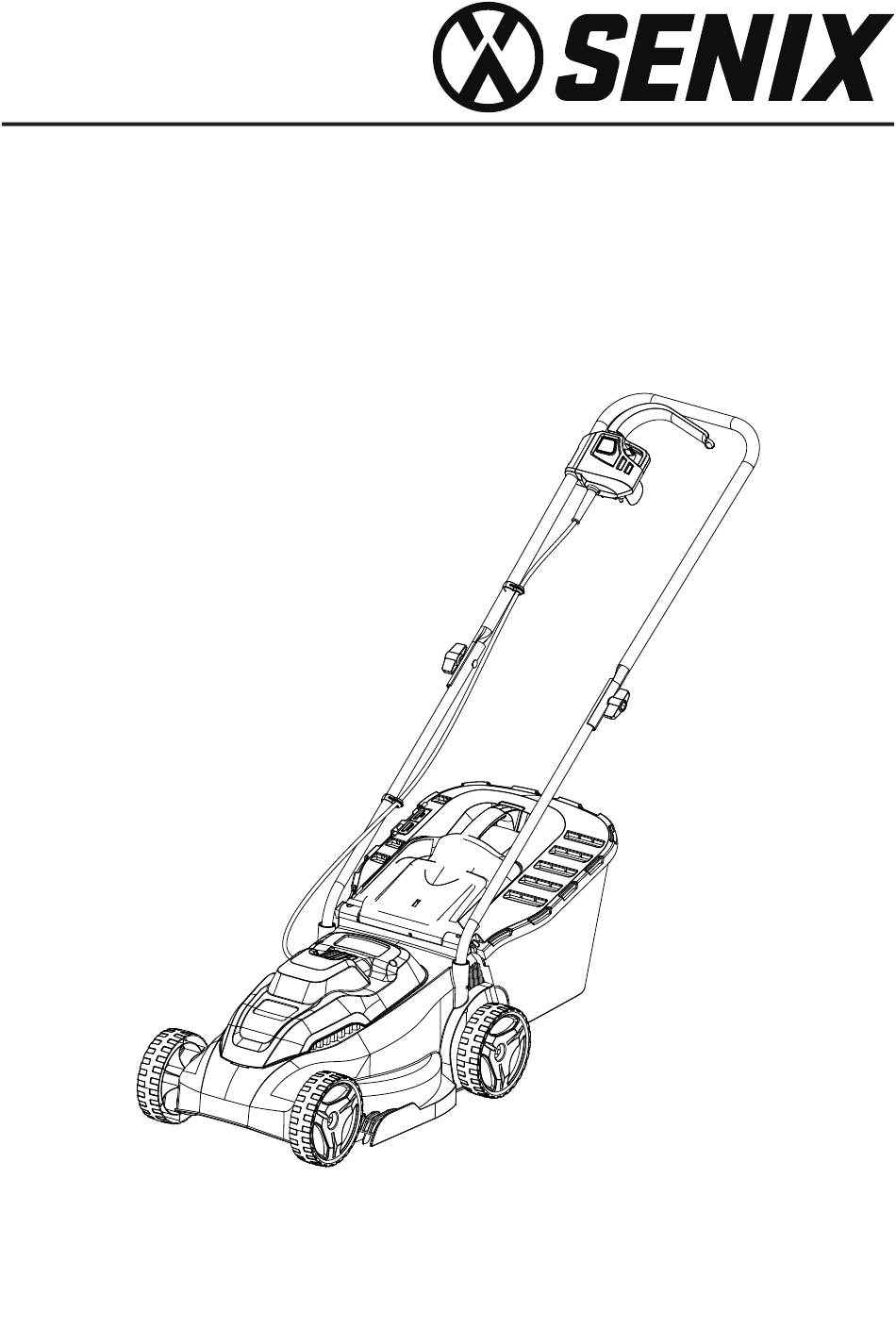

Operator's manual

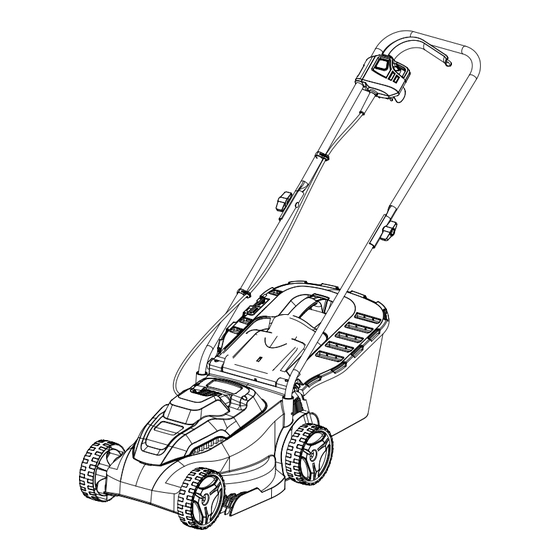

220-240V Electric Lawn Mower
EN
For customer service please find all information on www.senixtools.com.
CAUTION: BEFORE USING THIS PRODUCT, READ THIS MANUAL AND FOLLOW ALL ITS SAFETY RU-
LES AND OPERATING INSTRUCTIONS.
ORIGINAL INSTRUCTIONS
Model :
LPPE10-L-EU
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Senix LPPE10-L-EU
Summary of Contents for Senix LPPE10-L-EU
- Page 1 Model : Operator’s manual 220-240V Electric Lawn Mower LPPE10-L-EU For customer service please find all information on www.senixtools.com. CAUTION: BEFORE USING THIS PRODUCT, READ THIS MANUAL AND FOLLOW ALL ITS SAFETY RU- LES AND OPERATING INSTRUCTIONS. ORIGINAL INSTRUCTIONS...
- Page 2 • SAFETY & INTERNATIONAL SYMBOLS • This operator’s manual describes safety and international symbols and pictographs that may appear on this product. Read the operator’s manual for complete safety, assembly, operating and maintenance and repair information. Slip on slope hazard – Use extra caution when mowing on slopes to prevent slip and Caution/ Warning.
- Page 3 TABLE OF CONTENTS SAFETY..................2 KNOW YOUR UNIT................6 SPECIFICATIONS* ................7 ASSEMBLY..................8 OPERATION...................9 MAINTENANCE................11 CLEANING AND STORAGE............12 TROUBLESHOOTING..............13 PARTS...................14 SAFETY SAFETY WARNINGS IMPORTANT caught in moving parts. Always wear protective goggles to SAFETY INSTRUCTIONS protect your eyes from injury when using power tools.It is an employer's WARNING: responsibility to enforce the use of appropriate safety protective...
- Page 4 not worn or damaged. Replace worn standing in front of the discharge or damaged components in sets to opening. preserve balance. Replace damaged 30. Do not put hands or feet near or under or unreadable labels. rotating parts. 14. Before use check the supply and 31.
- Page 5 42. Replace worn or damaged parts for GUIDELINES FOR USING EXTENSION safety. Use only genuine replacement CORDS parts and accessories. Make sure your extension cord is in good 43. When servicing the blades be aware condition. that, even though the power source When using an extension cord, be sure to is switched off, the blades can still be use one heavy enough to carry the current...
- Page 6 over longer period of time or not adequately managed and properly maintained. 2. Injuries and damage to property to due to broken accessories or hidden objects that are suddenly dashed. 3. Injuries and damage to property to due to thrown and fallen objects. 4.
- Page 7 KNOW YOUR UNIT APPLICATIONS Model :LPPE10-L-EU As a lawn mower: • Cutting grass in small lawns and gardens. Trigger Grass Collector Handle Safety Button Wheel Cable Clip Grass collection bag Motor Housing Lower Handle Cutting Deck Handle Fixing Knob Grass Flap...
- Page 8 SPECIFICATIONS* Model LPPE10-L-EU Voltage 220-240V 50Hz No-load speed 3800 min Rated power input 1000 W Cutting width 320 mm Cutting height 25-65 mm Collector capacity 30 L Weight 5.8 kg Sound pressure level 83.9 dB(A) Uncertainty K 3 dB(A) Measured sound power level 94.6 dB(A)
- Page 9 ASSEMBLY This product requires assembly. Carefully remove the product and any accessories from the box. Inspect the product carefully to make sure no breakage or damage occurred during shipping. Do not discard the packing material until you have carefully inspected and satisfactorily operated the product.
- Page 10 OPERATION WARNING: STARTING THE MOTOR 1. Plug the machine into the electric supply, ensuring In some countries regulations define at what time it meets the recommended requirements. Electrical of the day and on what special days products are power should be supplied via a residual current allowed to be used and what restrictions apply! Ask device (RCD) with a tripping current of not more than your community for detailed information and observe...
- Page 11 OPERATION ELM 38/1600 PLUS Fig. 5 MOWING TIPS For best results cut your lawn in alternative directions switching direction each time you cut. Cut your lawn at an equal and same height. Slightly overlap your cutting lines(Fig. 6). Fig. 6 www.ffgroup-tools.com 10 - EN www.senixtools.com...
- Page 12 MAINTENANCE WARNING: The steel blade is designed to provide a fine cut in long or tough grass. Deterioration in the quality of cut Before cleaning, repairing, or inspecting the lawn indicates blade wear or damage. mower, disconnect the power supply to the unit and verify that allmoving parts have come to a complete WARNING: stop.
- Page 13 CLEANING AND STORAGE CLEANING DISPOSAL Waste product should not be disposed of with WARNING: household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling Always switch the product off, disconnect the power advice. supply to the product and let the product cool down During the operation, the leaf or tree branches may before performing inspection, maintenance and be cut by the unit, users should clean these objects to...
- Page 14 TROUBLESHOOTING PROBLEM REMEDY Unplug the unit from the power source and check that the blade is able to rotate freely. If the lawn mower was previously in use, let the motor cool down because the electrical brake could still be engaged. Product does not start Check mains, extension cord, and circuit-breaker (fuse).
- Page 15 PARTS Model: LPPE10-L-EU 14 - EN www.senixtools.com...
- Page 16 PARTS Part # Description Qty. Part # Description Qty. 199075000410 Switch Box Assembly 202029000238 Press plate 8SJAB40-16D Self-Tapping Screw 8342-513901- Rear Cover Torsional 0000000 Spring 202083001125 Cover 8020-512011- 202083001137 Cover Switch box cover 0000120 202030001843 Cover 202113000026 Switch Box 8026-513901- Wheel Cap 8184-302201- 0000000...
