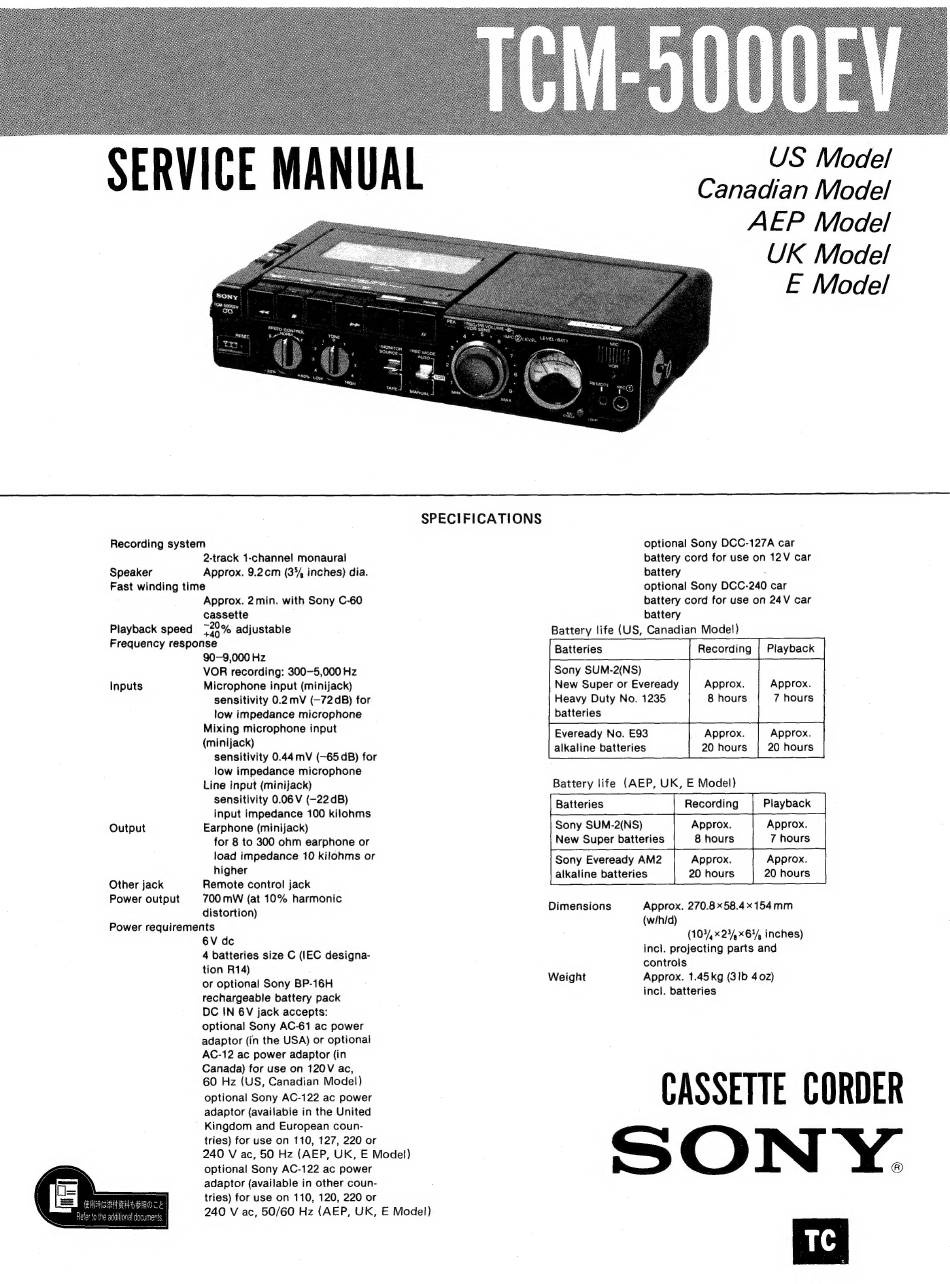

Sony TCM-5000EV Service Manual

ae
SPECIFICATIONS
Recording system
Speaker
2-track 1-channe! monaural
Approx. 9.2cm (35, inches) dia.
Fast winding time
Playback speed
Approx. 2min. with Sony C-60
cassette
aoe adjustable
Frequency response
Inputs
Output
Other jack
Power output
90-9,000 Hz
VOR recording: 300—5,000 Hz
Microphone input (minijack)
sensitivity 0.2 mV (—72dB) for
low impedance microphone
Mixing microphone input
(minijack)
sensitivity 0.44mV (—65 dB) for
low impedance microphone
Line input (minijack)
sensitivity 0.06 V (-22 dB)
input impedance 100 kilohms
Earphone (minijack)
for 8 to 300 ohm earphone or
load impedance 10 kilohms or
higher
Remote control jack
700 mW (at 10% harmonic
distortion)
Power requirements
6V dc
4 batteries size C (IEC designa-
tion R14)
or optional Sony BP-16H
rechargeable battery pack
DC IN 6V jack accepts:
optional Sony AC-61 ac power
adaptor (in the USA) or optional
AC-12 ac power adaptor (in
Canada) for use on 120V ac,
60 Hz (US, Canadian Model)
optional Sony AC-122 ac power
adaptor (available in the United
Kingdom and European coun-
tries) for use on 110, 127, 220 or
240 V ac, 50 Hz (AEP, UK, E Model)
optional Sony AC-122 ac power
adaptor (available in other coun-
tries) for use on 110, 120, 220 or
240 V ac, 50/60 Hz (AEP, UK, E Model)
ie
agnor
ope
a
ie
eee
angen
ee
er
ihe
a
S
Canadian Model
AEP Madel
UK Model
E Model
optional Sony DCC-127A car
battery cord for use on 12V car
battery
optional Sony DCC-240 car
battery cord for use on 24V car
battery
Battery life (US, Canadian Model)
Sony SUM-2(NS)
Approx. Approx.
8 hours 7 hours
New Super or Eveready
Heavy Duty No. 1235
Approx. Approx.
20 hours 20 hours
batteries
Eveready No. E93
alkaline batteries
Battery life (AEP, UK, E Model)
Sony SUM-2(NS) Approx. Approx.
New Super batteries 8 hours 7 hours
Approx. Approx.
Sony Eveready AM2
alkaline batteries 20 hours 20 hours
Dimensions Approx. 270.8x58.4 154mm
(w/hid)
(103/, x 2346 inches)
incl. projecting parts and
controls
Weight Approx. 1.45kg (31b 402)
incl. batteries
CASSETTE CORDER
SONY.
