Page 3

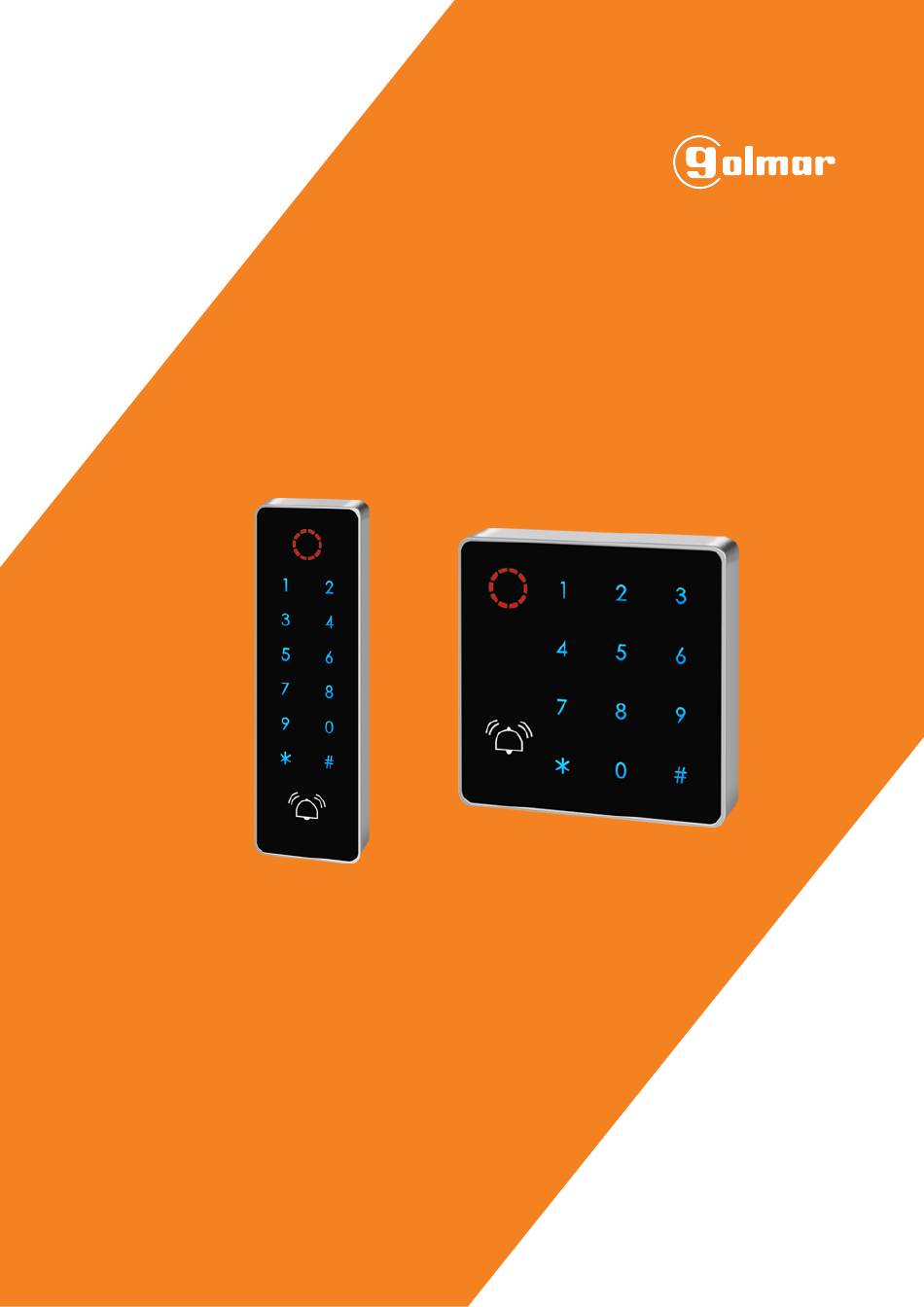

IDCOLLECT-N IDCOLLECT-SQ 2.INTRODUCTION Manual for the installation of IDCOLLECT-N and IDCOLLECT-SQ, readers that allow identification by PIN code and high frequency proximity (13,56MHz). 3.SPECIFICATIONS Material ABS plastic Protection degree IP-66 Input voltage 12Vdc Current Standby current: ≤ 100mA / Active: 150mA Capacity (max.
Page 4
IDCOLLECT-N IDCOLLECT-SQ 5.INSTALLATION Unfasten the screw at the bottom and remove the reader from the base. Drill a pair of holes in the wall (A) for the fixing blocks and another for the cables (B). Place the fixing blocks in the holes (A).
Page 5
IDCOLLECT-N IDCOLLECT-SQ 8.STANDALONE CONNECTION DIAGRAM +12V BELL + BELL - OPEN +12V DC COMMON 9.BASIC PROGRAMMING It is possible to perform basic programming using a MASTER card. To do so a MASTER card must be created by performing the procedure described in chapter “12.6.
Page 6
IDCOLLECT-N IDCOLLECT-SQ 10.PROGRAMMING BY CARD COLLECTION The reader supports card programming in collection mode. This means that once activated, any card approaches to the reader will open the door and will be programmed, once the collection mode is deactivated, the programming will be completed (new cards will not open the door and will not be programmed).
Page 7
IDCOLLECT-N IDCOLLECT-SQ 11.1.3.CARD REGISTRATION (SPECIFIC ID) Maximum number of records is 9990. User IDs from 1 to 9990. Enter administrator mode USER ID APPROACH CARD MASTER CODE (1-9990) * 987654 # 1 1 # APPROACH CARD Example: IMPORTANT: do not enter user IDs with zeros before the ID value.
Page 8
IDCOLLECT-N IDCOLLECT-SQ 12.2. ALARM TIME SETTING (TAMPER) The tamper alarm activation time is from 0 to 3 minutes. Enter administrator mode MASTER CODE 5(0-3) * 987654 # 52 # Example: In the example, the value 52 has been entered, so it would be active for 2 minutes. Default value: 51 (1 minute).
Page 10
IDCOLLECT-N IDCOLLECT-SQ 13.WIEGAND 13.1. CONNECTION DIAGRAM Door 1 Door 2 Door 1 BELL + BELL - OPEN +12V DC COMMON 13.2. PROGRAMMING PIN Generate a user with a “Access Code” credential and set the 4-digit PIN code that will perform the opening: 13.3.
Page 11
IDCOLLECT-N IDCOLLECT-SQ 14.OTHERS 14.1.CONNECTION DIAGRAM WITH VIDEO DOOR SYSTEM +12V BELL + BELL - C1 NA1 C2 NA2 Relé 1 Relé 2 12Vdc BUS(M) BUS(PL) Aout - C1 OPEN +12V DC COMMON 12Vdc/270mA Lock release NOTE: the door opener (AP) does not activate the lock release until the pulse on the reader has been finished. To avoid opening delays set the...
Page 12
