ZETA
TECHNICAL SPECIFICATIONS
Digital Broadcast Production Console
calrec.com
Putting Sound in the Picture

Advertisement

loading
Need help?

Need help?

Do you have a question about the ZETA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Calrec ZETA

Summary of Contents for Calrec ZETA

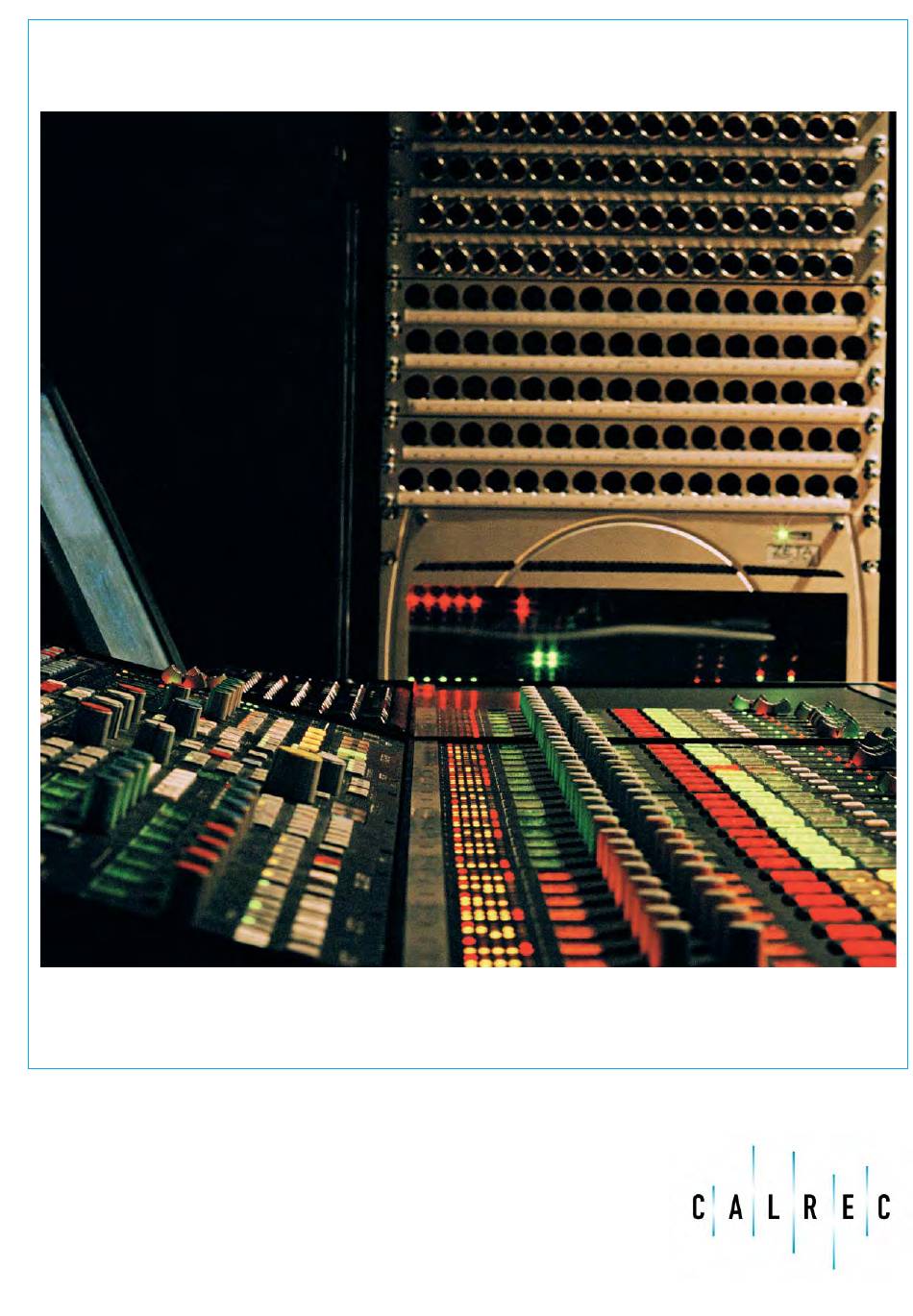

  • Page 1 ZETA TECHNICAL SPECIFICATIONS Digital Broadcast Production Console calrec.com Putting Sound in the Picture...
  • Page 2 CONTENTS OVERVIEW ...........................5 INTRODUCTION ......................6 PRINCIPAL FEATURES ....................7 PATHS AND PORTS .......................8 SIGNAL PATHS .......................9 INPUTS AND OUTPUTS ....................10 AUDIO PACKS ......................11 TOUCH SCREEN LAYOUT ...................12 FRAME OPTIONS AND DIMENSIONS ..................13 24 FADER FRAME TYPICAL LAYOUT .................14 32 FADER FRAME TYPICAL LAYOUT .................15 48 FADER FRAME TYPICAL LAYOUT .................16 CONSOLE PLAN ......................17 END ELEVATION ......................17...
  • Page 3 PC INFORMATION ....................75 SYSTEM SPECIFICATION ................76 © 2007 Calrec Audio Ltd. All Rights Reserved. No part of this manual may be reproduced or transmitted in any form or by any means, elec- tronic or mechanical, including photocopying and scanning, for any purpose, without the prior written consent of Calrec Audio Ltd.
  • Page 4 ZE TA Broadcast Production Console...
  • Page 5 ZETA OVERVIEW calrec.com Putting Sound in the Picture...
  • Page 6 The introduction of digitally controlled assignable systems in 1980 has allowed for their ergo- nomics to be continuously refi ned by user input and the Zeta refl ects this in its user interface. Fully assignable control means that any fader can control any channel or group. A dual layer design allows for single or dual path operation, and 2 Wild controls per fader allow allocation of assignable channel controls.
  • Page 7 Table-top or fl oor stand mounting. Comprehensive surround panning and monitoring. Flexible TFT screen-based meters with total user-confi gurability. Optional I/O expansion via a wide area interface such as MADI or Hydra, Calrec’s sophisticated audio networking system. Channel / Group Facilities All channels have 4-band EQ/Filters, Compressor/Limiter and Expander/Gate.
  • Page 8 PATHS AND PORTS On an analogue desk, the channel inputs are physical connections to the channel module or card. They are fi xed. Channel 1’s input is always channel 1’s input (even though it may be possible to control channel 1 from a different fader). Every channel will probably have both a mic and a line input, even though most will only use one of them at any one time.
  • Page 9 OR 56 STEREO CHANNELS B CHANNELS GROUPS 8 MONO MONITORING OR STEREO 2 MAIN OUTPUTS OUTPUTS 8 MONO TRACK STEREO OUTPUTS OR 5.1 4 STEREO OUTPUT MATRIX ANALOGUE MADI LINE OUTPUTS OUTPUTS OUTPUTS (3048-10) CALREC Putting Sound in the Picture...
  • Page 10 I/O via a wide area interface such as MADI or Hydra - Calrec’s sophisticated audio networking system. GPIO (3048-11) A standard Zeta system (where all AES slots are occupied by AES cards) has capability for: 96 Analogue inputs 96 Analogue outputs 128 AES inputs...
  • Page 11 96 AES Inputs 96 AES Outputs Input Delay 21 mono legs All desk output allocations must be derived from the above standard port provisions. However, they may be expanded by purchasing additional interface cards. CALREC Putting Sound in the Picture...
  • Page 12 TOUCH SCREEN LAYOUT The system is designed to minimise the need for the operator to use the screen once the console has been preset. A logical user interface provides easy and quick access to the functions and information on the touch screen. Failure of the console’s PC has no effect on the operation of the control surface or the audio.
  • Page 13 ZETA FRAME OPTIONS AND DIMENSIONS calrec.com Putting Sound in the Picture...
  • Page 14 24 FADER FRAME TYPICAL LAYOUT The smallest frame houses up to 24 faders, which allows up to 48 channel faders within a frame only 784mm (30.9 inches) wide. CANCEL Calrec Audio-England PSU FAIL RESET CONSOLE APFL ENABLE RESET RESET RACK...
  • Page 15 32 FADER FRAME TYPICAL LAYOUT >> CALREC Putting Sound in the Picture...
  • Page 16 48 FADER FRAME TYPICAL LAYOUT >> 16 ZE TA Digital Broadcast Production Console...
  • Page 17 33.3 32 Fader Frame 50.8 1290 33.3 48 Fader Frame 70.7 1796 33.3 END ELEVATION The end profi le is the same for all three frame sizes. An optional fl oor stand is available. CALREC Putting Sound in the Picture...
  • Page 18 FRONT ELEVATION 24 FADER 32 FADER 48 FADER 18 ZE TA Broadcast Production Console...
  • Page 19 ZETA FADER AREA calrec.com Putting Sound in the Picture...
  • Page 20 CHANNEL AND GROUP FADERS Channel and group paths are controlled by the console’s faders. Any fader can control any chan- nel or group path. Main paths have their own dedicated faders. Each fader can control two independent audio signal paths, named A and B. The A Pres 1 Mic 1 and B fader assign buttons are used to select either of the channel paths.
  • Page 21 Wild 1 or 2 for all selected fader paths. It is possible to assign the same control to Wilds 1and 2 for all fader paths by selecting ALL before pushing the required Assign panel rotary control. CLR will clear the selected Wild control from its assignment. CALREC Putting Sound in the Picture...
  • Page 22 VCA GROUPING VCA groups allow the audio level, CUT, AFL and PFL functions of several slave faders to be controlled from one master fader. A VCA group is made or edited by holding down the Assign Button (A or B) of the fader to be master and pressing the Assign buttons of faders to be added or removed as slaves.
  • Page 23 If the path’s fader is also a VCA mas- ter, the NULL LED operates only if the fader is in VCA interrogate mode thereby expos- ing the status of the slaved path. CALREC Putting Sound in the Picture...
  • Page 24 24 ZE TA Broadcast Production Console...
  • Page 25 ZETA INPUT AND OUTPUT CONTROLS calrec.com Putting Sound in the Picture...
  • Page 26 INPUT/OUTPUT CONTROLS The INPUT controls in the Input/Output section allow separate settings for the two channel inputs, port assignment and gain, and ON/OFF for the group and main direct inputs. Input Port Assignment PORT Each channel path has two inputs. Ports are assigned 1805LR STUDIO - 4.
  • Page 27 ROUTING TO PRE FDR MONO TRACK BUSSES PST FDR DIRECT O/P STEREO CHANNELS ONLY PRE FDR PST FDR LEVEL (STEREO AUXES ONLY) AUX SEL NOTE: SOME CHANNEL FEATURES ARE OMMITED HERE FOR CLARITY REASONS. (3048-9) CALREC Putting Sound in the Picture...
  • Page 28 INPUT/OUTPUT CONTROLS Stereo and Surround Panning Stereo and surround panning is provided for channels and groups. Signals can be panned to both stereo groups and 5.1 outputs simultaneously. AFL can be heard in surround, post the pan controls, if the main outputs and monitoring are surround. The L-C-R pan allows the signal to be panned from left, through centre, to right.
  • Page 29 Input delay controls can be assigned to the Wild controls, and the wild’s push switch can be used to switch the delay in and out of the path. This function is enabled on the Options-Misc screen. Delay can also be assigned to Wild controls on the User-Chan screen. CALREC Putting Sound in the Picture...
  • Page 30 INPUT PORTS SCREEN In addition to the port and insert connection controls in the Input-Output section of the control surface, port connections for all inputs and outputs and the assignment of inserts can be set using the front end application. This screen allows patching of input sources to channel inputs, insert returns, direct inputs or to output ports.
  • Page 31 Output Port Locking Some output ports may be ‘locked’ to avoid accidental removal, using the LOCK PATCH button. Operation of the locking system is only available in “Technician” or “Supervisor” password pro- tected modes. CALREC Putting Sound in the Picture...
  • Page 32 32 ZE TA Broadcast Production Console...
  • Page 33 ZETA CHANNEL CONTROL calrec.com Putting Sound in the Picture...
  • Page 34 USER-CHAN SCREEN The right side of the screen shows the faders with buttons for paths A and B. To make changes, select the required fader either from the screen or by pushing its fader assign button. Then use the controls on the left side of the screen. Path Type Selection The path type can be selected either as a mono or stereo channel using the mono and stereo buttons or as a group, using the numbered buttons.
  • Page 35 “PC Fader” to which settings can be applied independently of the current as- signment. Control is chosen using the selection buttons “PC Fader” and “Desk Fader” CALREC Putting Sound in the Picture...
  • Page 36 EQ AND FILTERS The Equaliser section of the module controls EQ and Filters on the channels. As console processing is not pooled, EQ is assigned to every channel, without fear of running out. 220Hz 750Hz 3. k 10. k FREQUENCY - 5.
  • Page 37 The overall response window shows the overall response curve for the selected path. The curve itself is only visible if EQ is switched into the path. CALREC Putting Sound in the Picture...
  • Page 38 DYNAMICS The Dynamics section of the module controls the side chain, providing a Compressor/Limiter and - 27. + 8. Expander/Gate on channels, and a Compressor/ Limiter on groups and main outputs The COMP and EXP/GATE buttons switch the THRESHOLD RECOVERY RATIO/DEPTH GAIN controls between the two functions.
  • Page 39 Nudge buttons to the right of the editable response window can also be used to make adjustments. The dynamics response is only visible if dynamics is switched into the path. Otherwise, it re- mains fl at. CALREC Putting Sound in the Picture...
  • Page 40 AUXILIARIES There can be 8 mono or 4 stereo Auxiliaries. The Auxilliary AUXILIARY OUTPUTS buses are pre-set to be mono or stereo using the User- Busses screen. If, for example, aux 4 is set to be stereo, then aux 8 will not be available (and Aux 8 will not work on the monitor selector).
  • Page 41 “PC Fader” to which aux send and output settings can be applied independently of the current assignment. A similar screen exists with which to control the Aux direct input. CALREC Putting Sound in the Picture...
  • Page 42 CHANNEL COPY Eight sections of a channel or ALL together can be copied to another channel or channels using the User-Copy screen. First select the fader path you wish to copy, by pressing its fader assign button. Use the selection buttons to select the controls you want to copy. Pressing TO FADER (fl ashes) then allows the destination/s to be chosen.
  • Page 43 ZETA MONITORING, MAIN OUTPUTS AND CONSOLE FUNCTIONS calrec.com Putting Sound in the Picture...
  • Page 44 MONITORING, METER SELECT AND LS CONTROL METER SEL LOAD SELECTED MEMORY MAIN ANCILLARY 1 ANCILLARY 2 > < INSERT TONE TONE TONE REMOVE INTO SAVE STACK EXEC DESK H/PHONES STUDIO LISTEN DESK LINE BALANCE SELECTOR 1 DESK DESK LED SMT RED DESK 1 DESK 2 CR LS SELECTOR...
  • Page 45 A similar screen exists to allocate monitor sources to the monitor selector buttons. Changes to the monitor confi guration on these screens can only be done in “Tech- nician” Mode. CALREC Putting Sound in the Picture...
  • Page 46 MAIN OUTPUTS Unlike channel faders, the main fader design is not dual path. TONE TONE The ASSIGN buttons (M1, M2) call main output 1 or 2 to the Assign panels to allow: Routing of one Main to another Insert ON/OFF Control of the Compressor and direct input PEAK PEAK...
  • Page 47 The OPTIONS-TX REH screen allows the condition switching for the sys- CANCEL tem to be set up. Functions can be set to be active, or not, in any of the Calrec Audio-England PSU FAIL three states. This can signifi cantly reduce the risk of human error, making the whole system a more robust, less stressful, user friendly environment for operators to work in.
  • Page 48 CONSOLE FUNCTIONS The console function buttons provide an easy way of clearing down console settings. These buttons are located above the meter selector controls. CHANNEL CLEAR - Clears the currently assigned channel from all settings apart from the port assignment. CHANNEL AUX CLEAR - Clears the Auxiliary send settings for the currently assigned channel.
  • Page 49 ZETA MEMORY SYSTEM calrec.com Putting Sound in the Picture...
  • Page 50 MEMORY CONTROLS 99 memories can be held in the Flash ROM for different console arrangements. In addition to this, the PC back-up can allow an unlimited number of memories, which can be restored into the Flash ROM as required. Memories can also be stored to external media, which can be useful for when several operators use the same console or when the console is used to broadcast many different weekly productions.
  • Page 51 Stacks can be saved to the hard disk or removable media as sessions. Selecting “Back Up Ses- sion” backs up the stack and all the memories in it. “Restore Session” allows previously backed up sessions to be restored. “Clear Stack” will remove all memories from the stack. CALREC Putting Sound in the Picture...
  • Page 52 MEMORY ISOLATION The Isolate screen allows some channel and group settings to be isolated from memory recall. This means their current settings will not be over-written when a different memory is loaded. The right side of the screen shows all fader paths. Paths can be selected from here or by pressing the fader assign button.
  • Page 53 A partial memory only loads those channels or components on the control surface that were se- lected using the partial memory selections. A partial memory load does not affect the currently assigned fader and the A/B layer assignments. CALREC Putting Sound in the Picture...
  • Page 54 54 ZE TA Broadcast Production Console...
  • Page 55 ZETA METERING SYSTEM calrec.com Putting Sound in the Picture...
  • Page 56 TFT METERING SYSTEM MD5404 The TFT metering system allows high quality TFT screen based meters to be incorporated into the console upstand, either instead of or alongside the existing bargraph, moving coil VU and PPM meters. These TFT meter panels allow a greater density of meter functions to be dis- played, and the user can dynamically change the meters and their arrangement using the Op- tions-Meter screen.
  • Page 57 The user can select the order that the surround signals appear. The order can be shuffl ed by selecting a signal from the list and using the Move Up and Move Down buttons. The order chosen will be used for all surround meters. CALREC Putting Sound in the Picture...
  • Page 58 TFT METERING SYSTEM Changing TFT Screen Layout The user can control the layout of the rows and columns on the TFT screens. The numbered but- tons allow the meter in that upstand position to be selected for set up. Select a meter position (its background turns blue), and select CHANGE LAYOUT. A dialogue box then allows the number of columns and rows in the selected meter’s half of the screen to be cho- sen.
  • Page 59 Changes to the confi guration being viewed/edited will not take effect until SAVE TO FILE LOAD INTO DESK is selected. Then the changes will be loaded onto the console and saved. CALREC Putting Sound in the Picture...
  • Page 60 STANDARD METERING OPTIONS -3 -2 -3 -2 PHASE MU6007 MV5353 MV5279 Twin VU, Bargraph VU Meter 4 x Twin Bargraph & Phase Meter -3 -2 -3 -2 PHASE MU5380 MU5278 MU5352 MV5501 Phase Twin VU Meter PPM Meter R/G (A/B) 8 x Twin Bargraph Meter Sources are allocated to bargraph and moving coil meters using the Options-Meters screen.
  • Page 61 Calrec bargraphs provide a bar which can be set to either VU or PPM. In addition, there can be a True Peak spot (which incorporates a long release time). Together, these allow the operator to see the level of the signal using a familiar meter and at the same time to see how close the peaks of the signal are to the digital maximum.
  • Page 62 62 ZE TA Broadcast Production Console...
  • Page 63 ZETA OTHER INTERFACES calrec.com Putting Sound in the Picture...
  • Page 64 GENERAL PURPOSE OUTPUTS Up to 16 opto outputs, 40 Darlington outputs and 8 change-over relays are available. “Misc Functions” or “Channel Fader Open” The general purpose outputs can have various console functions assigned (with “Misc Functions” selected), or they can be set to operate when particular faders are opened (with “Channel Fader Open”...
  • Page 65 If general purpose inputs are patched to input ports, when fi red externally, they will cut any channel to which that input port is connected. Locking In Technician Mode, assignments can be locked using the Opto Lock button, to prevent acciden- tal removal. CALREC Putting Sound in the Picture...
  • Page 66 SERIAL INTERFACE The system currently supports the following serial interfaces: Cue Director Nexus Router TSI Image Video 1000 Serial port setup and label associations are made using the Options-Serial I/F screens. Serial Port Settings Screen The console has a serial interface port for allowing equipment to be connect- ed to the system.
  • Page 67 A Router uses a reference code to defi ne each of its output ports The user must enter these refer- ence codes into the Label ID column for each label. The User Reference column allows the user to give the label a friendly name of up to six charac- ters. CALREC Putting Sound in the Picture...
  • Page 68 SERIAL INTERFACE Router Label Association Screen This screen allows each of the defi ned labels to be associated with one of the console’s input ports. The input ports are shown down the left hand side of the screen, and the labels are shown along the bottom of the screen.
  • Page 69 The rack mounted MADI Interface unit contains two independent, AES10 MADI compatible interfaces, and is available as an option. The two ports are interfaced to the Zeta system via a Wide Area Bulk (WAB) card, which occupies one of the AES/bulk card slots in the Processing Rack. Each MADI interface can operate in either 56 or 64 channel mode and can transmit over a coaxial AND optical medium and receive over a coaxial OR optical medium.
  • Page 70 70 ZE TA Broadcast Production Console...
  • Page 71 ZETA TECHNICAL INFORMATION calrec.com Putting Sound in the Picture...
  • Page 72 TYPICAL RACK LAYOUT It is recommended that all equipment over 8Kg (17.5 lbs) in weight, or over 150mm (6 inches) deep is mounted into equipment bays which offer mechanical supports under each of the units. This will allow units to be supported as they slide forward during removal for maintenance pur- poses.
  • Page 73 BNC/XLR I/O Interface Panels Processing Rack EDAC I/O Interface Panels Processing Rack MADI Unit 16.5 Processing Rack Hydra Gigabit Interface Unit 16.5 * For longer distances, the control surface requires a local power supply. CALREC Putting Sound in the Picture...
  • Page 74 POWER SYSTEM All PSU’s are rack mounting and are separate from the units they power, except for the PC which has its PSU built in. Diode feeding allows supplies of the same type to be parallelled together. Bulk Power Supply and Distribution Unit ZN5526 ZN5526 ZN5526...
  • Page 75 A network port is provided to enable the user to connect to their own LAN. Calrec will not be re- sponsible for the confi guration of this port or for any performance issues arising from its use.
  • Page 76 SYSTEM SPECIFICATION DIGITAL INPUTS Word Length 24-Bit Formats Supported AES/EBU (AES3) Also suitable for use with SPDIF (IEC958 Type 2) signals Interface 110 Ohm transformer balanced, 5V Pk-Pk 75 Ohm unbalanced (BNC), 1V Pk-Pk Sample Rate Conversion 24-Bit switchable on all digital inputs SRC THD+N -117dB @ 1kHz, 0.00014% DIGITAL OUTPUTS...
  • Page 77 CALREC Putting Sound in the Picture...
  • Page 78 78 ZE TA Digital Broadcast Production Console...
  • Page 79 CALREC Putting Sound in the Picture...
  • Page 80 This publication is for International usage. Despite considerable effort to produce up Zeta is a trademark of Calrec Audio Ltd. Calrec Audio Ltd to date information, no literature published Nutclough Mill by the company nor any other material All other trade marks acknowledged.
