- Page 1 Item #31655 INTERCHANGEABLE MACPHERSON STRUT COMPRESSOR INSTRUCTIONS...

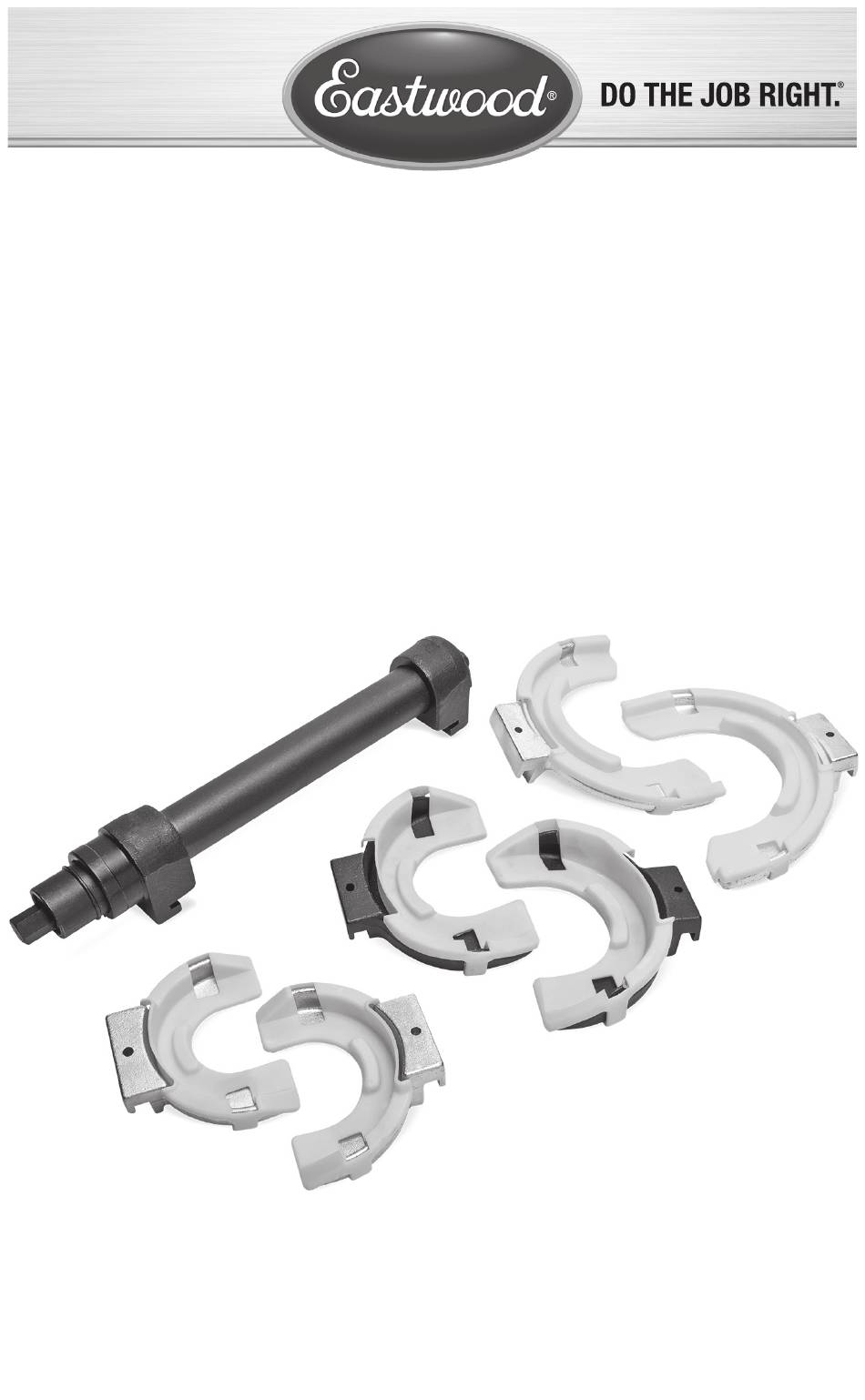

- Page 2 The EASTWOOD INTERCHANGEABLE MACPHERSON STRUT COMPRESSOR KIT includes all the components required to compress springs on the suspension of most non-commercial vehicles. This tool is constructed of robust, high-strength steel alloy forgings and will provide years of reliable service. The included Composite Yoke Covers protect spring finishes from scratching and chipping.
- Page 3 Wear ANSI approved eye protection while using. FALL HAZARD! • Parts may suddenly shift while being operated. Failure to ensure proper footing can quickly result in a fall which could inflict serious personal injury or property damage. To order parts and supplies: 800.343.9353 >> eastwood.com...
- Page 4 • To release spring: Slowly and gently rotate the 21mm Hex Drive in a loosening direction until all compression on the spring is released and the Yokes slide easily away from the coil spring. Eastwood Technical Assistance: 800.343.9353 >> tech@eastwood.com...
- Page 5 """" " " " " Yoke 21mm Drive M6 Screw Actuator Screw Fixed Traveling Assembly Mounting Block Mounting Block FIG. 3 Spring Under Compression Compressing Fixed Traveling Mounting Block Mounting Block To order parts and supplies: 800.343.9353 >> eastwood.com...
- Page 6 • To release spring: Slowly and gently rotate the 21mm Hex Drive in a loosening direction until all compression on the spring is released & the Yokes slide easily away from the coil spring. Eastwood Technical Assistance: 800.343.9353 >> tech@eastwood.com...
- Page 7 NOTES To order parts and supplies: 800.343.9353 >> eastwood.com...
- Page 8 Eastwood 6-Ton Jack Stands If you have any questions about the use of this product, please contact The Eastwood Technical Assistance Service Department: 800.343.9353 >> email: tech@eastwood.com PDF version of this manual is available at eastwood.com The Eastwood Company 263 Shoemaker Road, Pottstown, PA 19464, USA 800.343.9353 eastwood.com...
