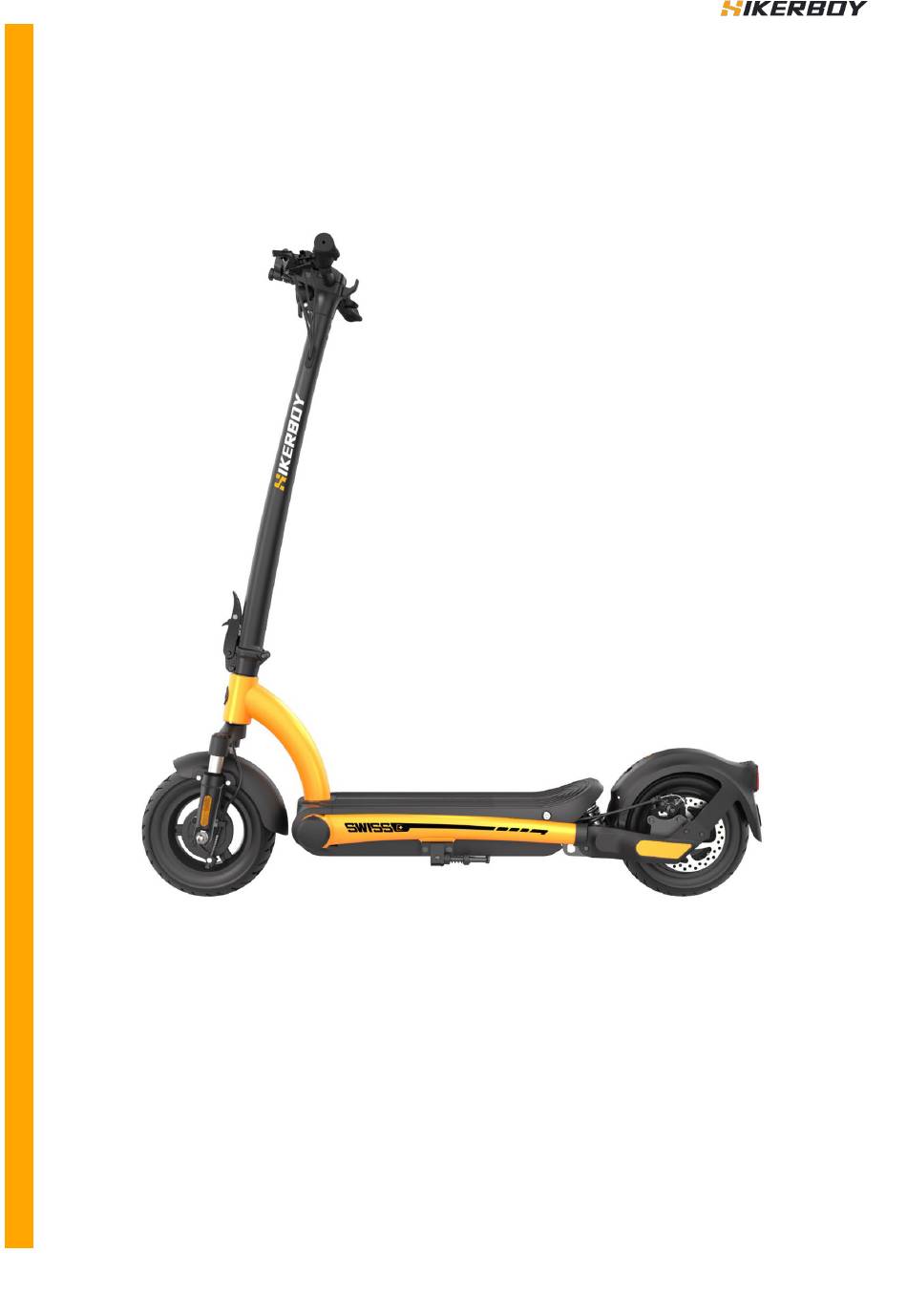

- Page 1 USER MANUAL FOXTROT PLUS ALPMARS SA BOULEVARD HELVETIQUE 36 | 1207 GENEVA | SWITZERLAND Tel: +41 (0)21 311 51 60 | www.hikerboyscooter.com | services@alpmars.com...
-
Page 2: Table Of Contents
PRODUCT DETAILS ........................32 WARRANTY ..........................33 INTRODUCTION Welcome, and congratulations on your new Hikerboy e-scooter. The manual of use and maintenance for the electric scooter will ensure proper use of the scooter and help to reduce the risks of danger and harm. -
Page 3: Safety Instructions
In the meantime, please contact your dealer or the customer service of Hikerboy Scooter. While you ride in countries where there are no national standards and regulations for electric scooters, please strictly abide by the safety requirements of this manual. -
Page 4: What's In The Box
WHAT’S IN THE BOX PLUS MAIN ELEMENTS OF THE E-SCOOTER Front drum Rear disc... -
Page 5: How To Fold & Unfold
Press the rear safety slot to release the stem, and lift it up until it is aligned with the hinge. • Lift the hinge until it is secured to the stem, you will hear a "click". (Figure 3.3) • Note: The Foxtrot Plus handlebar is not foldable. -
Page 6: Battery & Charger
6. BATTERY & CHARGER Remark : Before your first use, connect the battery as shown on the figure. Open the deck with the keys, turning the key one time, then open the deck and connect the battery. CHARGING THE BATTERY FROM THE SCOOTER •... - Page 7 REMOVE & CHARGE THE BATTERY • Unlock the platform of the scooter on each side by turning only one turn with the key provided. (A-1) Lift up the tray, to release it. • Disconnect the battery as shown in picture B. •...
-
Page 8: Control Panel & Mobile App
Unscrew the thumbwheel counterclockwise (as in the picture) to loosen the holder, then set your smartphone in the landscape direction and tighten. Note: Make sure that the smartphone is properly maintained before each trip. Hikerboy cannot be held responsible for any damage. -
Page 9: First Ride
1. Install the Hikerboy Scooter app: iOS or Android. 2. Switch on the scooter. Activate the Bluetooth option on your phone. 3. Start the application, click on "Start" to connect to the scooter: (serial number + Foxtrot Plus) - Page 10 4. You can access the parameters under "more settings": Manual light adjustment or in auto mode, speed regulator, on / off, led strip under the table top. 5. The general menu ☰ gives you access to the user manual, to the online store www.hikerboyscooter.com 6.
-
Page 11: Start & Ride
START & RIDE START AND DISPLAY PANEL Long press the "M" button to start the electric scooter. (The scooter will automatically turn off after 5 minutes of non-use.) ACCELERATOR Press the throttle grip to accelerate and control speed. The speed is between 1 and 25 km / h. The system has an integrated cruise control function. -
Page 12: Maintenance
If any parts come loose, tighten them by turning them clockwise. INFLATION OF TIRES The Foxtrot Plus is equipped with tubeless. It does not need any special care, just check yearly that they are in good conditions. -
Page 13: Troubleshooting
RECYCLING Batteries contain toxic heavy metals, and therefore require special attention for recycling. Lithium batteries cannot be thrown in a conventional trash can, they must be left at a collection point provided for this purpose. (inquire about the nearest battery recycling point to you). TROUBLESHOOTING If the scooter does not operate properly, check that all of the following actions have been performed: - Power on... - Page 14 DIAGNOSIS OF COMMON ANOMALIES TECHNICAL SUPPORT AND SERVICE This manual briefly introduces the Hikerboy scooter you have just purchased, some information may be missing. For technical support, service, maintenance and repairs please contact your dealer. You can also visit our website...
-
Page 15: Product Details
Voltage (V) 48 V Battery parameters Battery input （V) 54.6 V Capacity (Ah) 10.4 A Brushless DC motor Type FOXTROT PLUS 500 W Engine Power (Watt) Motor parameters Max rotational speed 800 RPM Nominal voltage 48 V Nominal Watt 109.2 W... -
Page 16: Warranty
WARRANTY The warranty and the repair and return policy apply to all Hikerboy brand products. All products meeting the warranty conditions can be repaired, exchanged and returned free of charge (excluding shipping costs). Within 15 days For quality problem, once confirmed, you can make an exchange or a return request. - Page 17 CARTE DE GARANTIE NAME MODEL NUMERO SERIE PRODUCT NAME TELEPHONE ZIP CODE USER ADRESS NAME TELEPHONE PURCHASE DATE DISTRIBUTOR ADRESS DFAULT DATE DEFAUT MAINTENANCE HISTORIC Note: The serial number can be found under the electric scooter. OTHER INFORMATION Yunyun Internet of things and technology (Suzhou) Co., Ltd. 1-2/F l Bldg.
