height-adjustable bench
Section:
SCREENS AND GABLES
Description:
FIXED CENTER SCREEN - FABRIC
Fixed Center Screen - Fabric (HABCFF)
Installation Guides
A
A1
For Customer Support please contact
product.support@teknion.com
Date:
May 2017
HABL_201c

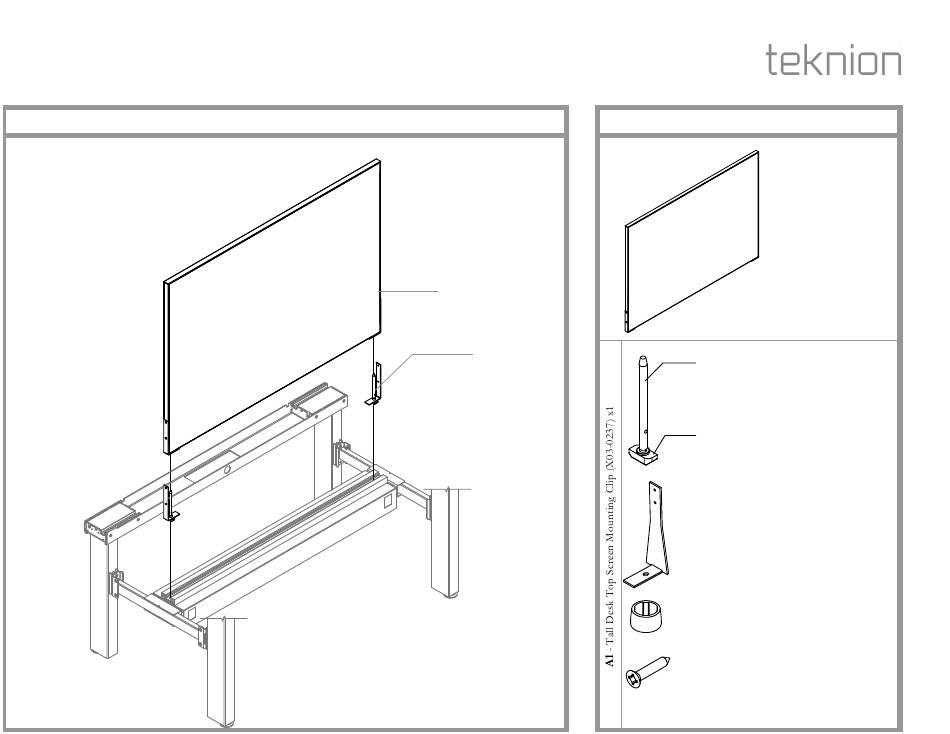

Part and Product Identification
A - Fixed Center Screen - Fabric - HAB
(HABCFF) x1
A1a - Screen Mounting Pin
(A18-0251) x2
A1b - Mounting Nut
(A25-0386) x2
A1c - Support Bracket - Fabric Screen
(A16-3499) x2
A1d - Bushing - Fabric Screen
(B02-0469) x2
A1e - #8x0.75" Quadrex Flat Head Screw
(E01-0947) x4
Page No:
1 of 5
Rev. No: 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Teknion HABCFF
Summary of Contents for Teknion HABCFF
- Page 1 1 of 5 Description: FIXED CENTER SCREEN - FABRIC HABL_201c Rev. No: 1 Fixed Center Screen - Fabric (HABCFF) Part and Product Identification A - Fixed Center Screen - Fabric - HAB (HABCFF) x1 A1a - Screen Mounting Pin (A18-0251) x2...
- Page 2 height-adjustable bench Installation Guides Section: SCREENS AND GABLES Date: May 2017 Page No: 2 of 5 Description: FIXED CENTER SCREEN - FABRIC HABL_201c SUPPORT BRACKET ASSEMBLY ATTACH SUPPORT BRACKETS STEP 1: Attach Mounting Pin, Support Bracket and Bushing as shown. INSERT ALLEN KEY Detail View STEP 2: Insert Allen Key through the hole on Mounting Pin.
- Page 3 height-adjustable bench Installation Guides Section: SCREENS AND GABLES Date: May 2017 Page No: 3 of 5 Description: FIXED CENTER SCREEN - FABRIC HABL_201c ATTACH SCREEN TIGHTEN MOUNTING NUTS Top View Top View STEP 4: Rotate Mounting Nuts parallel with the Center Rail Channel, then attach Fabric Screen STEP 5: Rotate Allen Key to tighten Mounting Nuts and make sure it positioned as shown in into the Center Rail Channel.
- Page 4 height-adjustable bench Installation Guides Section: SCREENS AND GABLES Date: May 2017 Page No: 4 of 5 Description: FIXED CENTER SCREEN - FABRIC HABL_201c REMOVE ALLEN KEYS Detail View STEP 6: Remove Allen Keys.
- Page 5 height-adjustable bench Installation Guides Section: SCREENS AND GABLES Date: May 2017 Page No: 5 of 5 Description: FIXED CENTER SCREEN - FABRIC HABL_201c PRESS SCREEN SECURE SCREEN Detail View STEP 7: Press Fabric Screen down and make sure Screen Frame secured with Bushing. STEP 8: Fasten Support Brackets with Fabric Screen with Screws provided.
