filing and storage
Section:
LEDGER PLUS
Description:
PEDESTAL LEG & REINFORCEMENT CHANNEL - SEMI-SUPPORTED WORKSURFACES
Bullet Worksurface (PLSW), Pedestal Leg (PLSP), Worksurface Reinforcement
B
Installation Guides
Channel (PLRC)
C

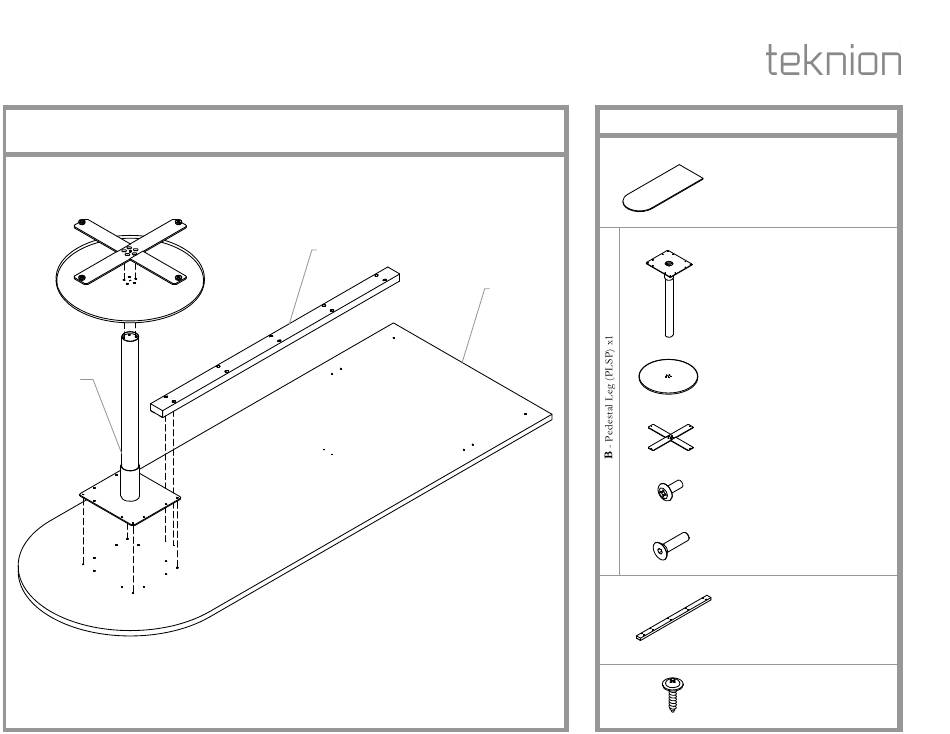

Part and Product Identification
A
Date:
Sept 2019
Page No:
1 of 5
TFF_404c
Rev. No: 1
A - Semi Supported Bullet
0
Worksurface (PLSW) x1
B1 - Pedestal Leg Assembly
(N80-67019) x1
B2 - Casual Table Base Shell
(A15-8719) x1
B3 - Base Assembly
(N80-67003) x 1
B4 - 1/4-20 x 5/8", Machine
Screw Quad Thuss HD
(E01-0098) x12
B5 - Screw Flat HD Sock Cap
3/8-16 x1-1/2"
(E01-0643) x5
C - Worksurface Reinforcement
Channel (PLRC) xQty varies
D - #10 x 0.875" Screw, Quad
Pan Washer
(E07-0077) xQty varies.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Teknion LEDGER PLUS
Summary of Contents for Teknion LEDGER PLUS
- Page 1 Installation Guides Section: LEDGER PLUS Date: Sept 2019 Page No: 1 of 5 Description: PEDESTAL LEG & REINFORCEMENT CHANNEL - SEMI-SUPPORTED WORKSURFACES TFF_404c Rev. No: 1 Bullet Worksurface (PLSW), Pedestal Leg (PLSP), Worksurface Reinforcement Part and Product Identification...
- Page 2 Installation Guides Section: LEDGER PLUS Date: Sept 2019 Page No: 2 of 5 Description: PEDESTAL LEG & REINFORCEMENT CHANNEL - SEMI-SUPPORTED WORKSURFACES TFF_404c ASSEMBLE LEG ATTACH LEG TO WORKSURFACE Wrench Hex Bolt STEP 1: Align Pedestal Leg Assembly, Casual Table Base shell and Base Assembly holes.
- Page 3 Installation Guides Section: LEDGER PLUS Date: Sept 2019 Page No: 3 of 5 Description: PEDESTAL LEG & REINFORCEMENT CHANNEL - SEMI-SUPPORTED WORKSURFACES TFF_404c ASSSEMBLE LEG WITH PEDESTAL ATTACH LEG TO WORKSURFACE Align Pedestal STEP 3: Measure the height of the Pedestal and adjust the Pedestal Leg to the same height.
- Page 4 Installation Guides Section: LEDGER PLUS Date: Sept 2019 Page No: 4 of 5 Description: PEDESTAL LEG & REINFORCEMENT CHANNEL - SEMI-SUPPORTED WORKSURFACES TFF_404c WORKSURFACE REINFORCEMENT CHANNEL INSTALLATION BOTTOM VIEW DIM L>=54 NOTE : Length of Reinforcement Channel is L-6"...
- Page 5 Installation Guides Section: LEDGER PLUS Date: Sept 2019 Page No: 5 of 5 Description: PEDESTAL LEG & REINFORCEMENT CHANNEL - SEMI-SUPPORTED WORKSURFACES TFF_404c SECURE THE WORKSURFACE Cabinet Top View Mounting Holes Bar Height Drawer Cabinet-Elevated (PLDBE) used for demonstration STEP 6: Assemble the Worksurface with the Pedestal.
