- Page 1 Product manual │ 05.11.2024 62721/xx-U-WL-500 Smart switch Bra n d i n g -- R e l e a s e 2 0 1 8 - 0 1 - 0 1...
- Page 2 Table of contents Ta b l e o f c o n te n t s Notes on the instruction manual ......................... 3 Trademarks ..............................3 Safety ................................. 4 Information and symbols used ......................4 Intended use ........................... 5 Improper use ........................... 5 Target group / Qualifications of personnel..................
- Page 3 If you pass the device on, also include this manual along with it. ABB accepts no liability for any failure to observe the instructions in this manual. If you require additional information or have questions about the device, please contact ABB or visit our Internet site at: https://new.abb.com/en...
- Page 4 However, residual hazards remain. Read and adhere to the safety instructions to prevent hazards of this kind. ABB accepts no liability for any failure to observe the safety instructions. Information and symbols used The following Instructions point to particular hazards involved in the use of the device or provide...
- Page 5 Each use not listed in Chapter 3.2 “Intended use“ on page 5 is deemed improper use and can lead to personal injury and damage to property. ABB is not liable for damages caused by use deemed contrary to the intended use of the device. The associated risk is borne exclusively by the user/operator.
- Page 6 Cyber security The industry faces intensifying cyber security risks. In order to increase stability, safety and robustness of its solutions, ABB has formally established cyber security robustness testing as part of the product development process. The following measures are prerequisite for the safe operation of your ABB-free@home ®...
- Page 7 Safety Personal data (also telemetry data) Personal data consists of details regarding the personal or factual circumstances of a certain or identifiable natural person. Information that cannot be connected directly or indirectly to your identity, such as the number of users of a page, is not personal data. In the case MyBuildings these consist of data you have made available to us yourself, such as registration data, contact data, or data added in connection with the services used, such as bank data, as well as data of devices which have been allocated to the user account.
- Page 8 Safety Notice on privacy policies: https://new.abb.com/privacy-policy/en Concrete handling of personal data that are obtained, stored and processed by the ABB- free@home ® System Access Point 2.0: Revocation of Description Processing options Obtaining consent consent The name of the user is...
- Page 9 Safety Concrete handling of telemetry data that are recorded, stored and processed by ABB- free@home ® System Access Point 2.0: The telemetry data include all sensors and actuators that are connected via the cable-bound or wireless interfaces with the SysAP. Also IP-connected devices that are controlled by the SysAP or from which it requests information, are enclosed (e.g.
- Page 10 This function can only be used by the ABB technician, not by the end customer. The end customer always has his device under his own control. Without activation by the user/end customer, the interface cannot be used by anyone.
- Page 11 General deleting functions Notice Further instructions are available in the corresponding chapter of this product manual or in the system manual for ABB-free@home ® Shut-down, archiving and destruction If the device is to be taken out of operation, archived or destroyed, first remove al sensitive and personal data from the device with the function “Reset to factory settings”...
- Page 12 Information on protection of the environment Information on protection of the environment Environment Consider the protection of the environment! Used electric and electronic devices must not be disposed of with domestic waste. – The device contains valuable raw materials which can be recycled. Therefore, dispose of the device at the appropriate collecting depot.

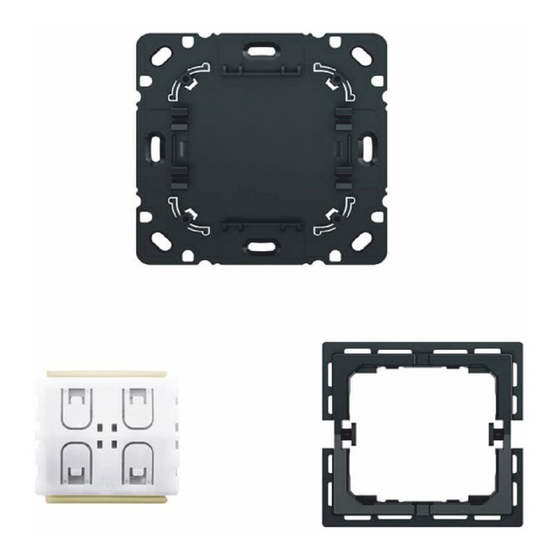

- Page 13 Product Overview Product Overview Setup Smart switch Fig. 3: Overview of devices Smart switch [A] Double-sided adhesive film [B] Mounting plate [C] Cover frame (not included in the scope of delivery) [D] Intermediate ring [E] Smart switch-insert with integrated antenna [F] Rocker(s) (not included in the scope of delivery) Notice Additional information about possible switch ranges is available in the electronic...
- Page 14 [B] Switch contact for rocker(s) - channel B [C] Integrated kinetic energy generator The Smart switch is designed for switching and dimming of Smart Home devices of the ABB- free@home system. Lamps, socket outlets, blinds or light scenes can be controlled via the ®...
- Page 15 Technical data Technical data Technical data Description Value Energy generation Integrated kinetic energy generator Radio standard IEEE 802.15.4 Radio frequency 2.4 - 2.48 GHz Transmission performance 0.4 dBm < 75 m in free field, Radio range < 10 m in buildings Radio certifications Device interface for configuration NFC (ISO 14443)
- Page 16 Connection, installation / mounting Planning instructions Note Planning and application instructions for the system are available in system manual for ABB-free@home ® . This can be downloaded via www.abb.com/freeathome. The independence from a power supply allows the device to be installed at all locations that make signal transmission possible.
- Page 17 Connection, installation / mounting Mounting Use the supplied adhesive film for mounting on flat, even surfaces (e.g. tiles or glass). If used with heavy cover frames, fasten the device with screws. To install the device, perform the following steps: Fig. 5: Attaching the mounting plate 1.
- Page 18 Connection, installation / mounting Fig. 7: Mounting the intermediate ring 3. Clip the intermediate ring into the mounting plate. – Ensure that the groove on the intermediate ring is positioned vertical [B]. – This firmly clamps the cover frame. Fig. 8: Mount the Smart switch insert 4.
- Page 19 Connection, installation / mounting Fig. 9: Latching the rocker(s) 5. Latch the rocker(s) on the Smart switch insert. – Mounting a rocker/series rocker is possible. Dismantling Dismantling is carried out in the reverse order to mounting. Electrical connection The device has no electrical connection and requires no external power supply. Product manual 2CKA000073B0082 │19...
- Page 20 Commissioning Commissioning System requirements The Smart switch must be programmed in an installation with a ABB-free@home ® WL or flexTronics WL device. This WL device then acts as proxy (interface between two participants) for the free@home or flexTronics system. The Smart switch is automatically connected with the actuator channel of the proxy device during commissioning.
- Page 21 To connect the device with the app, proceed as follows. 1. Activate the NFC and Bluetooth on your smartphone. ® 2. Open the existing installation in the app ABB-free@home ® Next App. Fig. 10: Integrating the device [A] - [C] (example illustration) 3.
- Page 22 The setting “Standard PIN” makes possible the direct access to the device via the app. Notice Commissioning with the standard PIN is not recommended since the device is not protected against foreign access via the app ABB-free@home ® Next App.
- Page 23 Configure the device anew to connect it with a different receiver device. Notice If the connected receiver device is deleted, this is displayed with a warning in the ABB-free@home ® Next App. The device must be connected with a different receiver device.
- Page 24 Maintenance Maintenance The device is maintenance-free. In case of damage, e.g. during transport or storage), do not perform repairs. Once the device is opened, the warranty is void. Access to the device must be guaranteed for operation, testing, inspection, maintenance and repairs (according to DIN VDE 0100-520).
- Page 25 Declaration of conformity Declaration of conformity ABB herewith declares, that radio system type 62721/xx-U-WL-500 conforms to directive 2014/53/EU. The complete text of the EU Declaration of Conformity is available at the following Internet address: 62721 U-WL-500 https://new.abb.com/products/2CKA006710A0048/ 62721/01 U-WL https://new.abb.com/products/2CKA006710A0052/ 62721/10 U-WL-500 https://new.abb.com/products/2CKA006710A0049/...
- Page 26 Index Index Cleaning ............. 24 Maintenance ............24 Commissioning ............ 20 Mounting ............17 Commissioning via NFC ........16, 21 Connection, installation / mounting ....... 16 Notes on the instruction manual ......3 Dismantling............19 Downloading and installing the app ......20 Operation ............
- Page 27 Busch-Jaeger Elektro GmbH A member of the ABB Group Freisenbergstraße 2 D-58513 Lüdenscheid, Germany https://new.abb.com/en Customer service: Tel.: +49 2351 956-1600 © Copyright 2024 Busch-Jaeger Elektro GmbH All rights reserved...
