SMART TOILET CONTROL
Installation and Maintenance Instructions
THE FOLLOWING ARE CAUTIONARY STATEMENTS THAT MUST BE READ AND
FOLLOWED DURING BOTH INSTALLATION AND OPERATION.
WARNING:
Raritan Engineering Company, Inc. recommends that a qualified person or electrician install
this product. Equipment damage, injury to personnel or death could result from improper instal-
lation. Raritan Engineering Company, Inc. accepts no responsibility or liability for damage to
equipment, injury or death to personnel that may result from improper installation or operation
of this product.
WARNING: HAZARD OF SHOCK OR FIRE
Always use recommended fuse, circuit breaker and wire size.
Motors used with this product are "Ignition Protected". They are not however, explosion-
proof as defined in 46CFR 110.15-65(e), Subchapter J-Electrical Engineering.
DO NOT run continuously for more than 30 seconds.

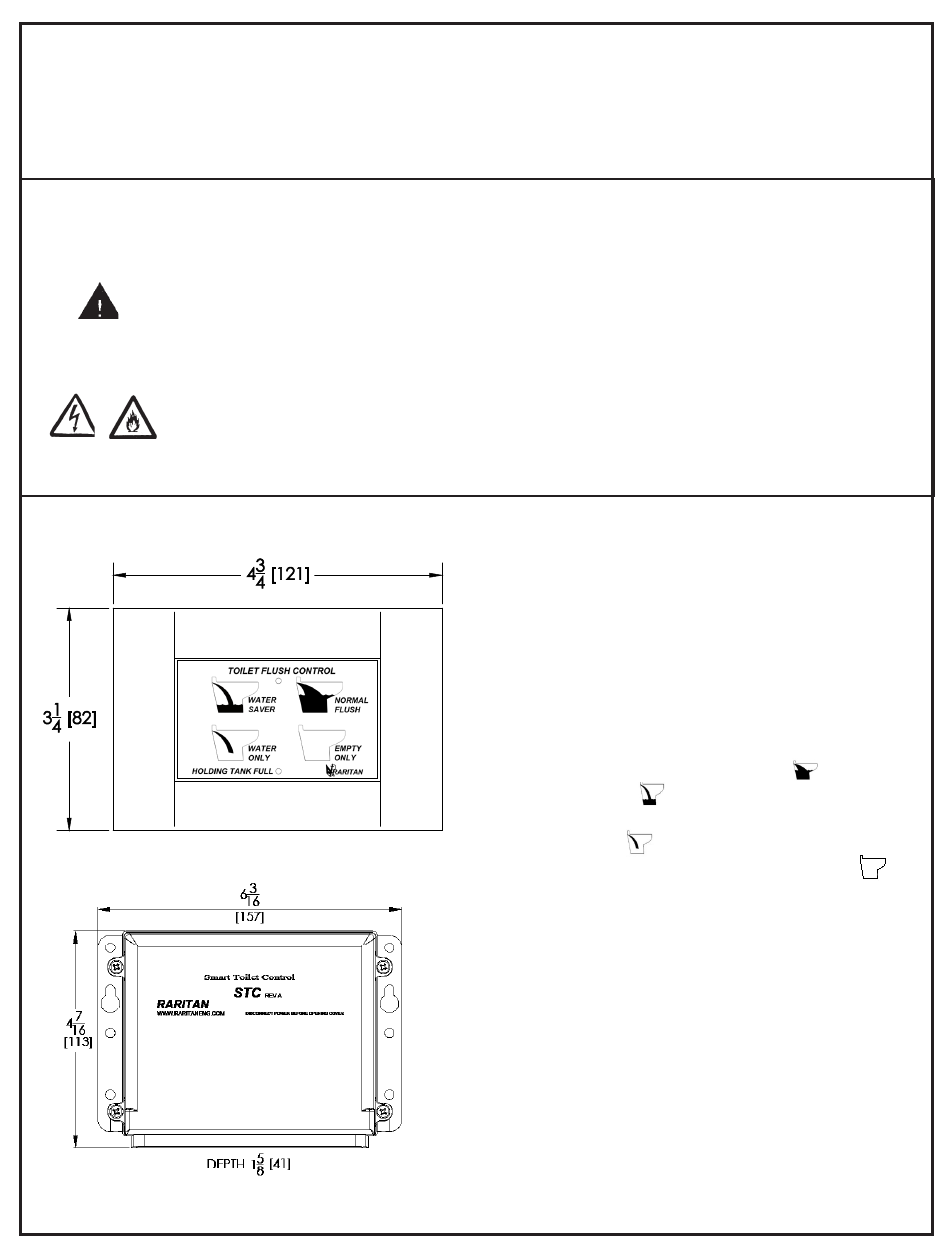

Control box
L480 0824jlc
Panel
Part# STC
Description:
Smart Toilet Control (STC) is a controller for flushing
toilet to optimize water use without compromising the
quality of flush.
Control consists of a controller, panel and 7' of cable.
Contact Raritan for information about our optional
"Holding Tank Full" sensor.
STC is designed to automatically start a
flushing cycle if NORMAL FLUSH
WATER SAVER
WATER ONLY
the bowl when pressed and EMPTY ONLY
button evacuates the bowl. Both water only and
empty button have a time limit of eight seconds.
Flush timing of initial fill, discharge and final fill are
fully programmable from the panel.
If wired, the panel also shows holding tank full
status. When holding tank full LED is lit, normal
and water saver button are disabled. Water only and
empty button continue to function.
Control is reverse polarity protected. In case of
reverse polarity, motors and solenoid will activate as
soon as power is connected. After reverse polarity
is corrected (within 10 minutes), unit will work as
normal.
or
buttons are pressed.
TOILET FLUSH CONTROL
button brings inlet water to
WATER
SAVER
WATER
ONLY
HOLDING TANK FULL
NORMAL
FLUSH
EMPTY
ONLY
RARITAN
