I
*
acoa
glass
TM

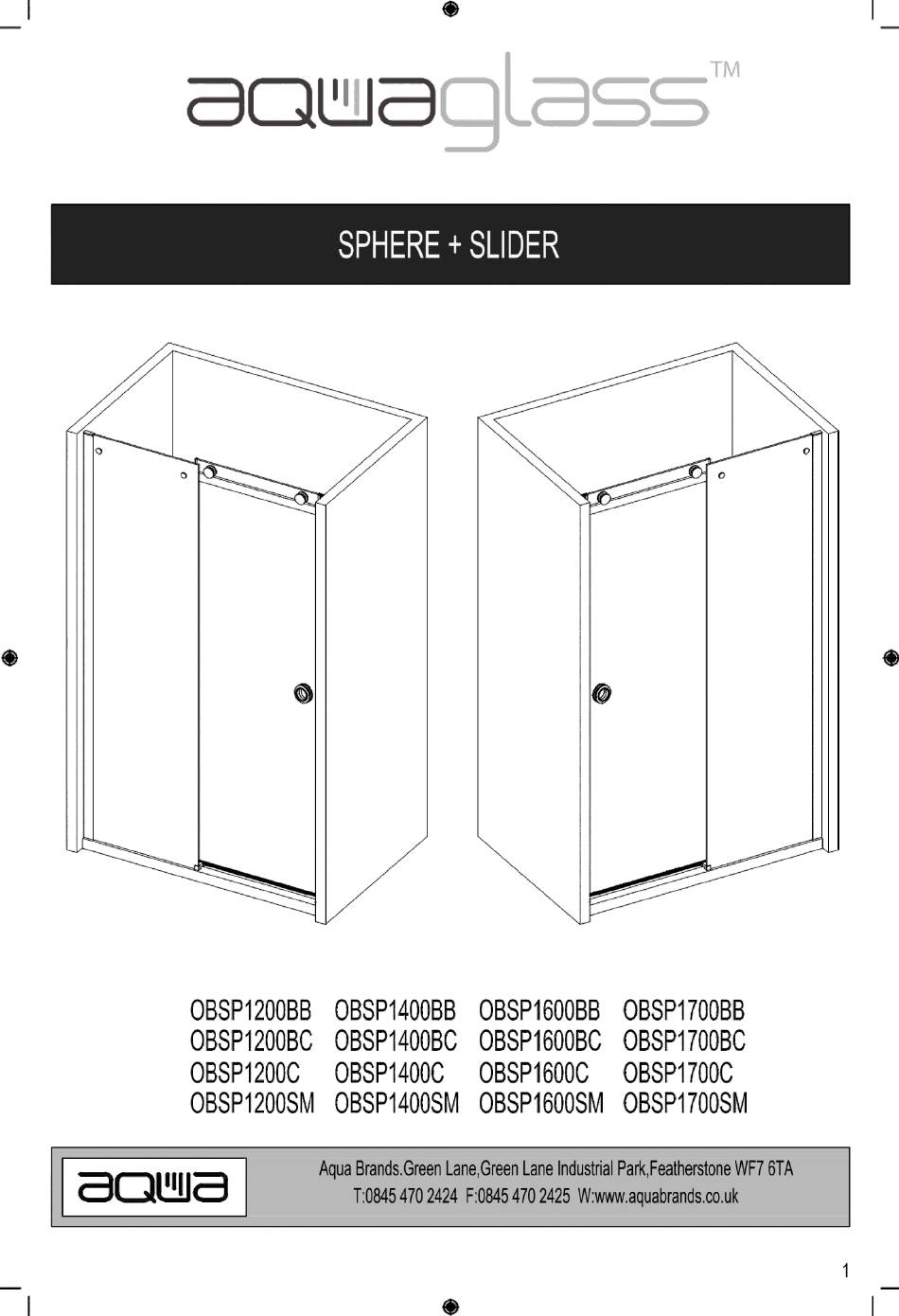

SPHERE + SLIDER
<§>
0
OBSP1200BB OBSP1400BB OBSP1600BB OBSP1700BB
OBSP1200BC OBSP1400BC OBSP1600BC OBSP1700BC
OBSP1200C
OBSP1400C
OBSP1600C
OBSP1700C
OBSP1200SM OBSP1400SM OBSP1600SM OBSP1700SM
Aqua Brands.Green Lane, Green Lane Industrial
Park.Featherstone
WF7 6TA
T:0845 470 2424 F:0845 470 2425 W:www.aquabrands.co.uk
aamua
1
I
Advertisement
Related Manuals for Aqua aquaglass SPHERE + SLIDER OBSP1200BB
Summary of Contents for Aqua aquaglass SPHERE + SLIDER OBSP1200BB
- Page 2 ●Please read these instructions in full before installing IMPORTANT ●If this product is installed on top of shower tray, order to achieve a better water proof function, it is strongly suggested that the tray’s threshold width is not less than 60mm. ●Check that the tray has been installed to the manufacturer’s instructions.
- Page 3 IDENTIFICATION OF PARTS (2ES22) (2ES23) (2ES21) (2ES20) (2ES4) (2ES01 ) (2ES02 ) (2ES19) (2ES03 ) (2ES05 ) (2ES06 ) (2ES07 ) (2ES24) (2ES08 ) (2ES18) (2ES09 ) (2ES17) (2ES10) (2ES16) (2ES15) (2ES14) (2ES11) (2ES12) (2ES13)
- Page 4 Fixings & fittings supplied Item No .: Item No .: Quantity Part Part Quantity 2ES01 2ES15 2ES16 X 10 2ES02 2ES03 2ES17 2ES04 ST3.9X40 2ES18 2ES05 2ES19 2ES06 2ES20 2ES21 2ES07 2ES08 2ES22 ST3.9X35 2ES09 2ES23 2ES24 2ES10 2ES11 2ES25 2ES12 2ES26 2ES13...
- Page 5 A:Moving Panel Size B:Fixed Panel 1200 1160-1190 E:Mounting dimension X:Door Opening 1400 1360-1390 1600 1560-1590 1700 1660-1690 Recommended shower head position...
- Page 6 Product Direction The slider is ok to be installed in left hand and right hand. The following step is based on left hand. For right hand, please follow the step in mirror direction.
- Page 8 ASSEMBLYINSTRUCTIONS -Insert fix panel 2ES07 in to the channel of 2ES07 wall profile. 2ES07...
- Page 9 ASSEMBLYINSTRUCTIONS 2ES27 2ES28 2ES20 2ES23 2ES19 25mm - Mount wall bracket 2ES19 on the end of rail profile 2ES20 . Fasten the screw by hex key 2ES27 . -Mount rail profile 2ES20 on fix panel 2ES07 by fixing part 2ES23 and 4mm hex key 2ES28 .
- Page 10 ASSEMBLYINSTRUCTIONS 2ES27 2ES28 2ES20 2ES23 2ES19 25mm -Disassemble the rail profile 2ES20 from fix panel 2ES07 by loose fixing part 2ES23 with hex key 2ES28. -Disassemble the wall bracket 2ES19 from rail profile 2ES20 by loose screw with hex key 2ES27. 2ES27 2ES07 2ES19...
- Page 11 5 ASSEMBLYINSTRUCTIONS 2ES02 2ES04 2ES19 ST3.9X40 - Take the wall seat from the wall bracket . -Drill the holes accordingly . -Insert wall plug 2ES02 into the holes . -Fix the wall seat on the wall with screw 2ES04 . Ø...
- Page 12 ASSEMBLYINSTRUCTIONS 2ES27 2ES28 2ES20 2ES23 2ES19 25mm -Insert rail profile 2ES20 into the wall bracket 2ES19 and fasten them together with screw. -Assemble fixing part 2ES23 on the rail profile through fixing panel. 2ES28 2ES23...
- Page 13 ASSEMBLYINSTRUCTIONS - Adjust the position of fix panel to meet with 2ES25 2ES06 8FR17 opening requirement . Please make sure the same opening both on top and bottom . -Insert sealer 2ES06 between glass panel and wall profile from inside of cabin .
- Page 14 8 ASSEMBLYINSTRUCTIONS 2ES12 2ES14 2ES11 -Apply silicone glue on the back of the bottom anti-water profile 2ES12 and sliding guide 2ES11 and end cover 2ES14. -Put sliding guide 2ES14 next to the fix panel. Insert bottom profile 2ES12 into the guide.
- Page 15 9 ASSEMBLYINSTRUCTIONS 2ES18 2ES21 2ES22 2ES24 2ES13 - Mount roller 2ES22 on sliding panel 2ES18 . - Mount anti -jump part 2ES21 on the sliding panel 2ES18 . - Mount handle 2ES24 on the sliding panel . Please make sure the washers on the 2 sides of glass panel before fasten the handle part.
- Page 16 10 ASSEMBLYINSTRUCTIONS - Apply magnetic strip 2ES17 on the sliding panel 2ES10 2ES17 edge next to the handle. -Apply vertical sealer 2ES10 on the other edge of sliding panel for left hand installation. For right hand installation, apply vertical sealer 2ES09 on the edge of sliding panel.
- Page 17 11 ASSEMBLYINSTRUCTIONS 2ES09 2ES10 -Apply vertical sealer 2ES09 on the edge of fix panel for left hand installation. -Cut the extra part on top according to below. -For right hand installation, please apply vertical sealer 2ES10 on the fixing panel edge and cut the extra part accordingly.
- Page 18 12 ASSEMBLYINSTRUCTIONS - Mount sliding panel on the rail profile . Put the top roller on the top of rail profile and put anti -jump part into the channel of rail profile . Make sure the bottom sealer of sliding panel into the channel of bottom sliding bracket .
- Page 19 13 ASSEMBLYINSTRUCTIONS - Insert magnetic stip 2ES16 into the small wall profile 2ES15 . 2ES15 2ES16 -Put 2 magnetic strip closed on the sliding panel . -Close the door to mark the position of small wall profile .
- Page 20 14 ASSEMBLYINSTRUCTIONS - Take off the magnetic strip out off small 2ES02 2ES08 wall profile . - Put the small wall profile on the wall according to the mark . ST3.9X35 - Mark the hole position . - Drill theholes accordingly . - Insert wall plug 2ES02 into the holes .
- Page 21 15 ASSEMBLYINSTRUCTIONS - Insert magnetic strip 2ES15 into the channel of small wall profile . 2ES15 2ES01 - Put top cover 2ES01 on the big wall profile .
- Page 22 16 ASSEMBLYINSTRUCTIONS - The top roller is adjustable to make door vertical . 2ES26 -Take off the back cover off . Turn the nut on the back with tool 2ES26 . - Turn the nut until the door is vertical with magnetic strip closing well .
- Page 23 17 ASSEMBLYINSTRUCTIONS -Apply silicone sealant to the outside of the enclosure. Please note: Do not apply silicone sealant to the inside of the enclosure. Sealant drying times may vary in cold damp conditions and will be extended where thicker beads of sealant are Cleaning and Maintenance: applied.Allow sealant to dry completely before exposing to water.
