NEVER EXPOSE EYES OR SKIN TO AN OPERATING UV LAMP
Read and follow all instructions contained in the manual before using the product. Read the maintenance instructions before
opening the UV unit or system. Failure to comply with these instructions may result in injuries or damage to the UV unit or system.
For full installation instructions, scan the QR code found on the back.
UVC
Installer Phone:
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
QUICK INSTRUCTIONS
Model AUV24V

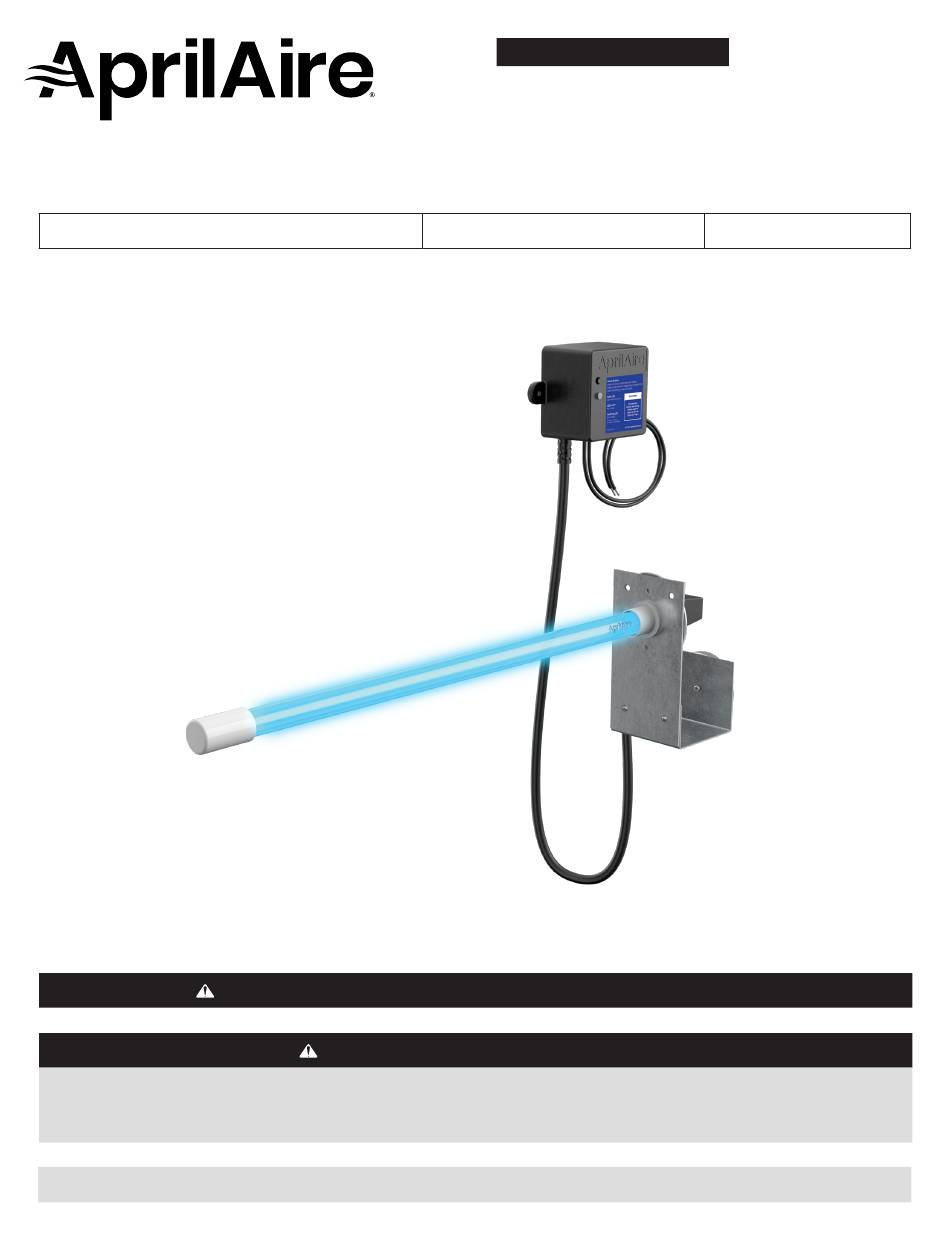

Residential UVC Coil Cleaner
Date Installed:
English
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the AUV24V and is the answer not in the manual?

Questions and answers

Related Manuals for Aprilaire AUV24V

Summary of Contents for Aprilaire AUV24V

  • Page 1 QUICK INSTRUCTIONS Model AUV24V Residential UVC Coil Cleaner Installed By: Installer Phone: Date Installed: ALL RIGHTS RESERVED. AUGUST 2022 V.1 (PHOTOS ILLUSTRATING PRODUCTS ARE NON CONTRACTUAL) NEVER EXPOSE EYES OR SKIN TO AN OPERATING UV LAMP IMPORTANT SAFETY INSTRUCTIONS Read and follow all instructions contained in the manual before using the product. Read the maintenance instructions before opening the UV unit or system.
  • Page 2 14. Use only specified AprilAire branded replacement UV lamps for your UV unit or system. Use of any other lamps will void your warranty and can result in damage to the UV unit or system.
  • Page 3 • Step Down Transformer (AC) to convert a regular outlet (120 VAC) to 24 VAC if the necessary power (20VA minimum) is not available from your HVAC System: 120 VAC to 24 VAC 40VA AprilAire Part Number: 8029 SETUP & INSTALLATION: UV-C LAMP WHAT YOU WILL NEED: •...
  • Page 4 STEP BY STEP INSTALLATION GUIDE – EXTERIOR BRACKET METHOD Drill a 1-inch hole at the desired Lamp installation location using the stepped drill bit. This position should be at least 3-inches above the evaporator coil. a. Ensure ballast power cord will be able to reach Lamp power terminal and connect to a 24VAC power source with chosen Lamp position once ballast is securely mounted.

  • Page 5: Maintenance & Troubleshooting

    between the back plate and shaft flange. Align retainer ring mounting slot with previously installed screws and compress the Lamps shaft shoulder between the retainer ring and mounting plate. Twist the retainer ring and tighten down screws by hand. 4. Connect the ballasts right angled 4-hole plug to the UVC Lamps 4-pronged terminal.

  • Page 6: Customer Service

    AUVRPB Regular intensity 16” UV lamp 8029 Step-down transformer 120VAC to 24VAC (40VA) For full install instructions, scan here: B2210000 • 61002239 • 11.22 © 2022 AprilAire | aprilairepartners.com | 800.334.6011 AprilAire reserves the right to change specifications without notice.
