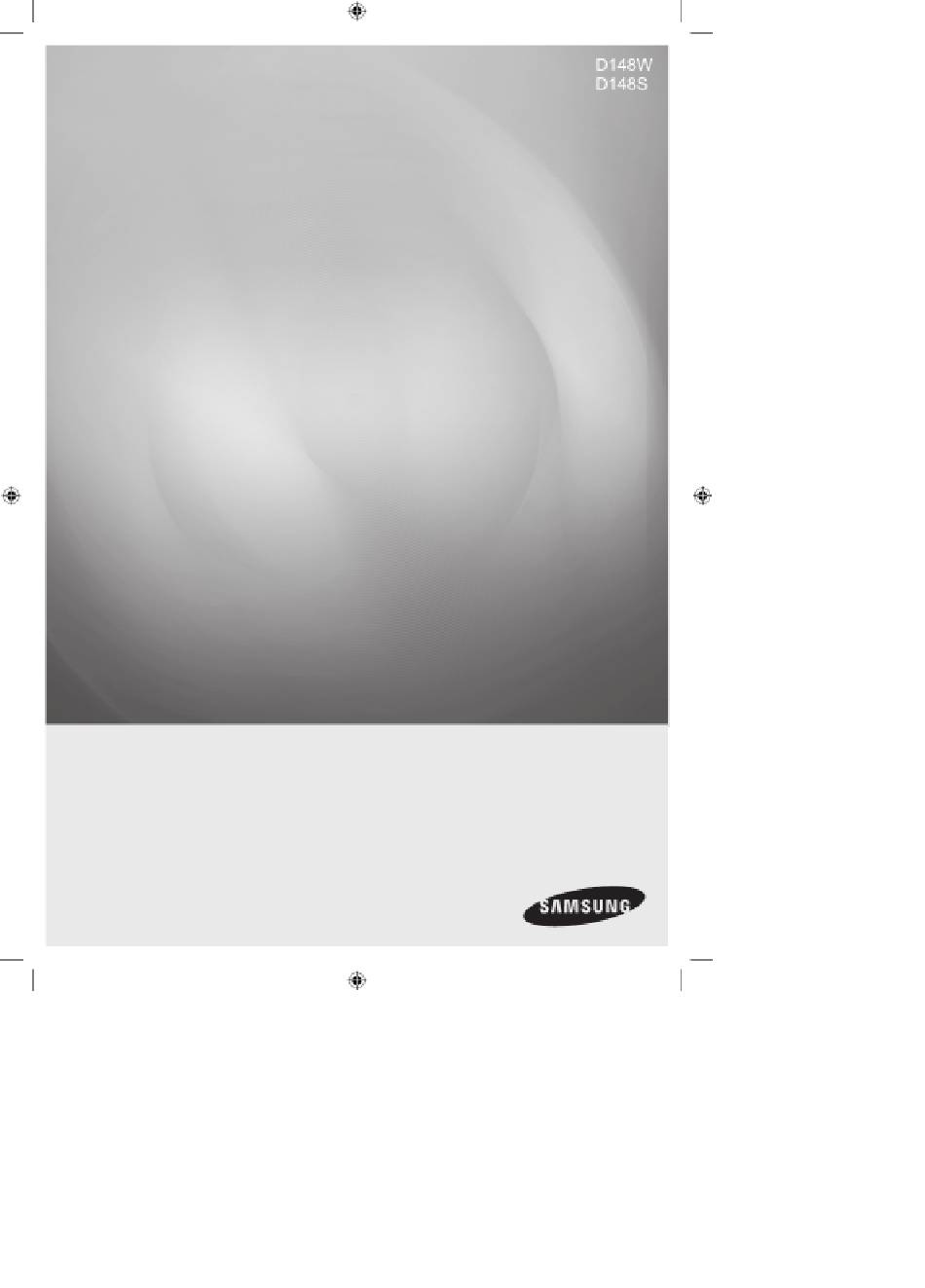

Dishwasher
user manual
imagine
the possibilities
Thank you for purchasing this Samsung
product. To receive more complete service,
please register your product at
www.samsung.com/global/register
Cover.indd 1
2008-06-17 ¿ÀÈÄ 5:20:06

Advertisement

loading
Need help?

Need help?

Do you have a question about the D148W and is the answer not in the manual?

Questions and answers

Summary of Contents for Samsung D148W

  • Page 1 Dishwasher user manual imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/global/register Cover.indd 1 2008-06-17 ¿ÀÈÄ 5:20:06...
  • Page 3 1/ FOR THE USER’S ATTENTION • Safety instructions ______________________________________ • Protection of the environment______________________________ • Economical, environmentally friendly washing ________________ 2/ DESCRIPTION OF YOUR APPLIANCE • General presentation of the dishwasher ____________________ • Presentation of the control panel __________________________ 3/ INFORMATION ______________________________________________ 4/ WHAT TO DO BEFORE FIRST USING THE MACHINE •...
  • Page 4 Keep this user s manual with your appli young children or infirm persons unless they ance. If the appliance is sold or transferred to have been adequately supervised by a respon- someone else, ensure that the manual is with sible person to ensure that they can u it.
  • Page 5 — As far as possible, avoid opening the dishwasher s door when it is operating, and in particular during the heating phases, because scalding steam may escape or you may be splashed with hot water. The machine is fitted with a safety system that immediately blocks the dishwasher’s operation if the door is open —...
  • Page 6 A A A A A B B B B B C C C C C D D D D D G G G G G H H H H H I I I I I J J J J J Fig.
  • Page 7 E E E E E A A A A A B B B B B C C C C C D D D D D Fig. 02 A A A A A E E E E E Selector switch (3 functions): The indicator lights: •...
  • Page 8 use a combination of traditional pro- cable washing and drying results with no marks, you must set it correctly using the ducts: water softening system, which uses regene- ① ① ① ① ① Washing detergent to clea rating salt. crockery perfectly (powder, liquid or dard tablets).
  • Page 9 In one simple action, you can test the your water’s lime content using the testing strip supplied with your dishwasher. Alternatively, contact your local water utility to ascertain your water’s hardness. — Let the water run from the tap for a few moments. —...
  • Page 10 • Proceed as follows to set the softener on the control panel: — Turn the selector to the “Set” position; the screen displays S S S S S E E E E E L L L L L to inform you that you are in setting mode. —...
  • Page 11 the water hardness is less than 25°F. Tip: Your dishwasher’s “TABS” option adjusts to the wide range of multipurpose produc has two possible settings, which you access via the Select. “Extra Dry” (the factory setting) improves the results after drying where the“ “ “ “ “ 2 2 2 2 2 i i i i i n n n n n 1 1 1 1 1 ” ” ” ” ” , , , , , “ “ “ “ “ 3 3 3 3 3 i i i i i n n n n n 1 1 1 1 1 ” ” ” ” ” o o o o o r r r r r multipurpose product offers a lower level of performance.
  • Page 12 Filling with salt is essential for providing a good wash without marks. It regenerates the resins that soften the water, by removing its lime content (unless the mains water supply is soft enough). Refer to “Setting the water sof- tener”. A A A A A Important : Only use special dishwasher regener-...
  • Page 13 Important : Only use a rinsing product designed for dishwashers. The rinsing product ensures your items shine and are well dried. A A A A A A A A A A B B B B B When first putting the machine into service, fill the tank until the level is flush with the top of the adjustment lever.
  • Page 14 Items not suitable for washing in a dishwasher: - Wooden cutting boards - Stainless steel utensils or plastic utensils that are not heat-resistant - Copper or pewter items - Glued crockery and cutlery - Cutlery with wooden, horn or mother-of-pearl handles - Antique or hand-painted porcelain When purchasing crockery, glasses or cutlery, ensure that it is dishwasher-safe •...
  • Page 15 This basket is particularly designed to take glasses, cups, ramekins, small salad bowls, bowls and saucers. Arrange your items methodically to save on space (arranging glasses, cups or bowls together). You can also arrange cups, ladles, etc. on the folding cup racks (Fig. 10) Advice: Position the cavities of glasses, cups or bowls facing downwards.
  • Page 16 The cutlery basket slides to allow flexible loading. It can be placed anywhere in the lower basket. You can therefore make a variety of loads depending on the items (Fig. 12). If your cutlery items or your dishes are too large, alter the height setting for the upper basket.
  • Page 17 • Locked programme access While the programme is running, the programme selection switch is automatically locked a not be changed. It will unlock automatically when the programme ends or is cancelled. • Anti-overflow system This system automatically activates the drain pump if the water level in the tub reaches an mal height.
  • Page 18 T T T T T y y y y y p p p p p e e e e e o o o o o f f f f f i i i i i t t t t t e e e e e m m m m m s s s s s : : : : : Mixed Delicate Mixed...
  • Page 19 Mixed Mixed Mixed Resistant N N N N N o o o o o r r r r r m m m m m a a a a a l l l l l l l l l l y y y y y d d d d d i i i i i r r r r r t t t t t y y y y y , , , , , i.e. a N N N N N o o o o o r r r r r m m m m m a a a a a l l l l l l l l l l y y y y y d d d d d i i i i i r r r r r t t t t t y y y y y , , , , , i.e.
  • Page 20 A A A A A B B B B B C C C C C D D D D D Fig. 02 Advice : Consult the Programmes table on the preceding pages to determine the programm need for the type of items, the quantity and the amount of food residue. •...
  • Page 21 The filtration system consists of several ➀ ➀ ➀ ➀ ➀ elements: A A A A A - - - - - The waste filter B B B B B - - - - - The large main filter A A A A A B B B B B C C C C C C C C C C...
  • Page 22 out any items in the machine, using a special dishwasher cleaning product. Important : Keep this product out of children’s reach. • If not using your dishwasher for a prolonged period: Clean your dishwasher completely and then unplug it from the electricity supply and close th tap.
  • Page 23 d01: water supply fault (tap) d07: overflow / anti-leak fault d02: draining fault d08: sprinkling distribution fault d03: heating fault d11: pressure sensor fault d04: temperature fault d12: filling fault (water inlet detection syst d05: fault – motor under load d13: overheating fault d14 : installation fault : (incorrect drainage d06: fault - motor overload...
  • Page 24 Problem Possible auses What to do? The salt light does not go out - No salt or an insufficient quan- - Refill the tank and wait for the tity of salt in the tank to trigger cycle to end. If you have the float.
  • Page 25 washing cycle. (controlled internally by the appliance). The appliance does not drain - The cover has not been remo- - Remove the cover. (Cf. table fault d02). ved from the sink’s U-bend. - Drain hose kinked. - Check the drain hos behind the machine is O - Filters totally blocked.
  • Page 26 Problem Possible auses What to do? White marks - Chalky film (removable with - Check that there is salt in the (identify what type) vinegar). tank (light unlit = OK). - Check the water hardn the tap and that the wat tener is set correctly.
  • Page 27 Problem Possible auses What to do? Constant filling - Drain hole situated too low for - Drain wand has fallen on the the appliance (Cf. table fault floor. d012). - The filters and drain outlets are - Remove and clean the A lot of waste on the large filter blocked with...
  • Page 28 Any intervention work on your appliance must be performed by a qualified professional approved by the manufacturer. When you call, please mention the full reference for your appliance (model, type and serial number). This information is shown on the description plate (see Fig.
  • Page 29 — Arrangement of the items - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Figs. A-B-C; see next page — Loading as per the indications on next page, without side shelves or stemmed glass support, and 5 cup/saucer supports (4 for12 saucers &...
  • Page 30 N N N N N O O O O O K K K K K N N N N N O O O O O K K K K K O O O O O K K K K K 3 3 3 3 3 3 2 3 3 2 1 8 8 8...
  • Page 32 Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. Cover.indd 2 2008-06-17 ¿ÀÈÄ 5:20:06...
