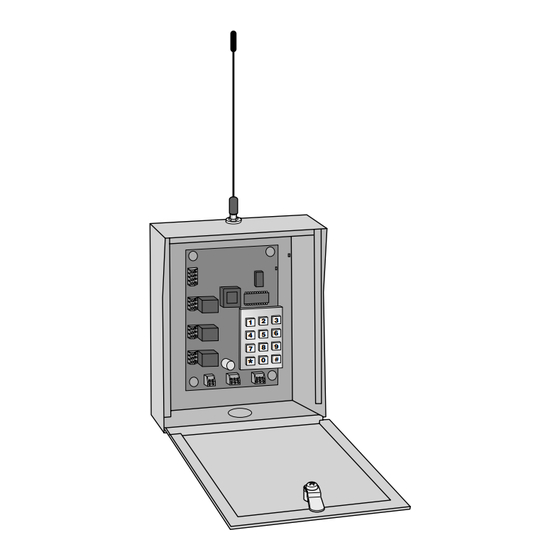

- Page 1 The Chamberlain Group ® 845 Larch Ave. Elmhurst, IL 60125-1196 www.chamberlain.com AutoKey Radio Control System Installation Manual Controller Board -211 -221...
- Page 2 T A B L E O F C O N T E N T S TESTING AND ADJUSTING THE UNIT INSTALLATION Verifying the DIP Switch Position ....10 Wire Chart .
- Page 3 W I R E C H A R T AUTOKEY BOARDS Use the following chart to pull wires in preparation for your installation: Wire Run Wire Spec. Max. Distance Recommendation Refer to Door strikes 2-Conductor ––––––– Alpha #1292C Page 6 18-22 AWG shielded Magnetic locks 2-Conductor...
- Page 4 I N S T A L L A T I O N G U I D E L I N E S PROVIDE POWER FROM A DEDICATED SOURCE FIGURE 1 Plug transformer (provided) into outlet wired to its own circuit breaker. This will prevent two problems: •...
- Page 5 (depending on which knockout you are using). 3. Mount the unit on the wall or pedestal securely. Mounting hardware is provided if you are using Wire Chamberlain’s pedestal mount. Tighten down all four Grounding Wire screws/bolts. Screw 4.
- Page 6 W I R I N G DOOR STRIKES MAG LOCKS Connect the wires from the door strike and the strike power Connect the wires from the mag lock and the power supply to the supply to the terminal block according to Figure 1. Strike power terminal block according to Figure 2.
- Page 7 CONNECTING AN RS232 SERIAL PRINTER If you are connecting an Okidata 184 Turbo serial printer purchased from Chamberlain, the printer can be located up to 50' from the AutoKey system. For this installation you will need a 3-conductor, 18-24 AWG shielded cable (such as Belden Datalene #9925) and a DB25 connector (provided with printers purchased from Chamberlain).
- Page 8 C O N N E C T I N G A P R I N T E R Connecting a RS422 serial printer: If you are connecting an Okidata 184 turbo serial printer purchased from Chamberlain, the PIN NUMBER ON THE CONTROLLER BOARD TB6 printer can be located up to 1000' from the AutoKey system.
- Page 9 Should Be No Further Than 12' from the Unit and Use a Minimum This type of damage is not covered under Chamberlain’s warranty. of 12 Gauge Wire in Most Cases. The Type and Length of Earth 1.
- Page 10 T E S T I N G A N D A D J U S T I N G T H E U N I T VERIFYING THE DIP SWITCH POSITION DATA VALIDATION AND NOISE DETECTION (NARROW BAND AUTOKEY ONLY) In order for the system to operate properly, it is important that the dip switches in area S1 of the controller board are in the correct The Data Validation and Noise Detection LEDs are located on the...
- Page 11 T R O U B L E S H O O T I N G RESOLVE COMMON INSTALLATION MISTAKES DOOR STRIKES/MAG LOCKS/GATE OPERATOR NOT WORKING • Check for correct length and AWG of wires. See page 3. • Check power source. Strikes and Mag Locks must be powered •...
- Page 12 This document is protected by copyright and may not be copied or adapted without the prior written consent of Chamberlain. This documentation contains information proprietary to Chamberlain and such information may not be distributed without the prior written consent of Chamberlain.
