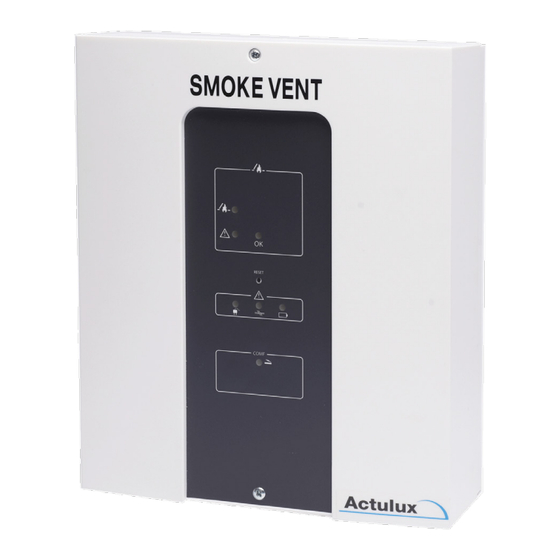

Control Panel for Fire Ventilation
•
Can be connected to a fire switch.
•
Has deep discharge protection.
•
Can be connected externally and can control the operation of for example gates, doors or curtains,
as well as opening systems.
•
Automatic reset after alarm mode.
•
Potential free contact can give alarm and fail indication.
#211561
Installation instruction
SVM Micro 24V-4A
Fire ventilation
Comfort ventilation
Advertisement
Related Manuals for Actulux SVM Micro 24V-4A
Summary of Contents for Actulux SVM Micro 24V-4A
- Page 1 Installation instruction Control Panel for Fire Ventilation SVM Micro 24V-4A Fire ventilation Comfort ventilation • Can be connected to a fire switch. • Has deep discharge protection. • Can be connected externally and can control the operation of for example gates, doors or curtains, as well as opening systems.
-
Page 2: Table Of Contents
Control for Fire and Comfort Ventilation Type SVM Micro 24V-4A Control for Fire and Comfort Ventilation Type SVM Micro 24V-4A Table of contents Address of installation Address of installation / Description of installation ................2 Name: ___________________________________________________________________________________________ General description ..........................4 Safety rules during installation and operation ...................4 Explosion danger.... -
Page 3: General Description
Control for Fire and Comfort Ventilation Type SVM Micro 24V-4A Control for Fire and Comfort Ventilation Type SVM Micro 24V-4A General description Explosion danger The control panel is supplied with back-up batteries, which contain large amounts of energy which can The control panel can be used for electrical opening of e.g. -
Page 4: Connection To Motor- (Actuator) Outputs And Line Monitoring
Red 2,5mm2 Control for Fire and Comfort Ventilation Type SVM Micro 24V-4A Control for Fire and Comfort Ventilation Type SVM Micro 24V-4A Engelsk RESET Connection to motor- (actuator-) output and line monitoring Black 2,5mm2 Not available Actuator LOCKOUT Motor line monitor... -
Page 5: Auto Reset
Max. 8A START termi DIP settings see page 13 Control for Fire and Comfort Ventilation Type SVM Micro 24V-4A Control for Fire and Comfort Ventilation Type SVM Micro 24V-4A FUSE F1 - fast BLUE BUS M END termination DOME OPEN... - Page 6 Control for Fire and Comfort Ventilation Type SVM Micro 24V-4A Control for Fire and Comfort Ventilation Type SVM Micro 24V-4A REMOTE no: 111894 Connection SVM Micro 24V - 4A ALARM BUZZER LED 1 Actuator open (red). Lit when actuator is opening.
-
Page 7: Fuse Specifications
Control for Fire and Comfort Ventilation Type SVM Micro 24V-4A Control for Fire and Comfort Ventilation Type SVM Micro 24V-4A LEDs on main board and front panel Complete jumper settings for SVM Micro PCB Text on board Factory Mounted / ON function... -
Page 8: Connection Of Weather Sensor / Close All Function
DOME OPEN BUS Slave Puls Control for Fire and Comfort Ventilation Type SVM Micro 24V-4A Control for Fire and Comfort Ventilation Type SVM Micro 24V-4A Max. 8A START termination FUSE F1 - fast BUS Master Actuator Motor line monitor Ext 3 wire monitor (line 1) -
Page 9: Special Functions
Comfort ventilation button 24V Min. 3 x 0.5 mm² Wind- and rain sensor 24V Min. 4 x 0.5 mm² Table for SVM Micro 24V-4A allowed voltage drop 15% = 3.6V Power Cable cross section and amount of cores consumption per group in 2x1.5 mm²... -
Page 10: Part No. And Accessories
Control for Fire and Comfort Ventilation Type SVM Micro 24V-4A Control for Fire and Comfort Ventilation Type SVM Micro 24V-4A Part no. and accessories (DK) YDEEVNEDEKLARATION IHT. FORORDNING NR. (EU) 305/2011) (UK) DECLARATION OF PERFORMANCE ACCORDING TO REGULATION NO. (EU) 305/2011) -
Page 11: Technical Specifications
Control for Fire and Comfort Ventilation Type SVM Micro 24V-4A Technical specifications SVM Micro 24V-4A Power supply 230VAC / max. 1.5A Output supply 24VDC Motor outputs 1 pcs. (line detecton: 1-4 lines) Max. load Operation temperture -15°C - +40°C Density...
