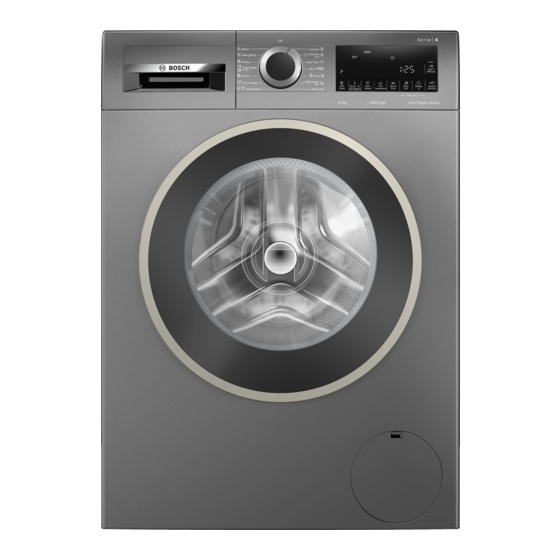

- Page 1 Washing machine WGA254ZRSA [en] User manual and installation instructions...
- Page 2 Further information and explanations are available online: Table of contents 1 Safety ........... 4 8 Buttons ........ 21 1.1 General information.... 4 9 Programmes ...... 23 1.2 Intended use...... 4 1.3 Restriction on user group.. 4 10 Accessories...... 27 1.4 Safe installation ...... 5 11 Laundry........ 27 1.5 Safe use ........
- Page 3 16 Cleaning and servicing ... 31 16.1 Cleaning the drum.... 31 16.2 Cleaning the detergent drawer........ 32 16.3 Cleaning the drain pump.. 33 17 Troubleshooting...... 36 17.1 Emergency release .... 42 18 Transportation, storage and disposal ........ 42 18.1 Removing the appliance .. 42 18.2 Inserting the transit bolts..
- Page 4 en Safety 1 Safety Observe the following safety instructions. 1.1 General information ¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. 1.2 Intended use Only use this appliance: ¡...
- Page 5 Safety en 1.4 Safe installation WARNING ‒ Risk of electric shock! Incorrect installation is dangerous. ▶ Connect and operate the appliance only in accordance with the specifications on the rating plate. ▶ Connect the appliance to a power supply with alternating cur- rent only via a properly installed socket with earthing. ▶...
- Page 6 en Safety WARNING ‒ Risk of injury! The heavy weight of the appliance may result in injury when lifted. ▶ Do not lift the appliance on your own. If this appliance is not correctly installed in a washer-dryer stack, the installed appliance may fall. ▶...
- Page 7 Safety en ▶ Wear protective gloves when installing and transporting the ap- pliance. 1.5 Safe use WARNING ‒ Risk of electric shock! If the appliance or the power cord is damaged, this is dangerous. ▶ Never operate a damaged appliance. ▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.
- Page 8 en Safety WARNING ‒ Risk of poisoning! Detergents and care products may result in poisoning if con- sumed. ▶ If accidentally swallowed, seek medical advice. ▶ Keep detergents and care products out of the reach of children. WARNING ‒ Risk of explosion! Laundry that has been pretreated with flammable cleaning agents that contain solvents may cause an explosion in the appliance.
- Page 9 Safety en 1.6 Safe cleaning and maintenance WARNING ‒ Risk of electric shock! Improper repairs are dangerous. ▶ Never make any technical modifications to the appliance or its features. ▶ Repairs to the appliance should only be carried out by trained specialist staff. ▶ Only use genuine spare parts when repairing the appliance. ▶...
- Page 10 en Preventing material damage If the water pressure is too high or Preventing material damage 2 Preventing material too low, the appliance may not be able to operate properly. damage Ensure that the water pressure in ▶ the water supply system is at least Preventing material damage ATTENTION! 100 kPa (1 bar) and max.
- Page 11 Environmental protection and saving energy en Set the maximum spin speed if you Environmental protection and saving energy 3 Environmental protec- want to dry the laundry in the tumble tion and saving energy dryer afterwards. a The drier the laundry, the shorter Environmental protection and saving energy the programme duration when dry- 3.1 Disposing of packaging...
- Page 12 en Installation and connection Remove any packaging and pro- 4.3 Requirements for the in- tective covers completely from the stallation location appliance. → "Disposing of packaging", WARNING Page 11 Risk of electric shock! Check the appliance for visible The appliance contains live parts. damage. Touching live parts is dangerous.
- Page 13 Installation and connection en Pull the hoses out of the holders. Installation loca- Requirements tion Wooden joist Place the appli- floor ance on a water- resistant wooden board (minimum thickness of 30 mm) which is screwed tightly to the floor. Kitchen unit Only install the appliance under- neath a continu-...
- Page 14 en Installation and connection Remove the 4 sleeves. 4.5 Connecting the appliance Connecting the water inlet hose Connect the water inlet hose. Put on the 4 cover caps. Connect the water inlet hose to a tap (26.4 mm = 3/4"). Push the 4 cover caps downwards. Open the water tap carefully and check that the connection points are tight.
- Page 15 Installation and connection en Note: Observe the draining heights. 4.6 Aligning the appliance The maximum draining height is In order to reduce noise and vibra- 100 cm. tion and to prevent the appliance Siphon Secure the con- from moving, align the appliance cor- nection point with rectly.
- Page 16 en Before using for the first time Use a WAF 17 wrench to tighten Pour approx. 1 litre of tap water the lock nuts against the housing into compartment II. until they are hand-tight. Add washing powder containing In doing so, hold the foot tight and oxygen bleach to compartment II.
- Page 17 Familiarising yourself with your appliance en Familiarising yourself with your appliance 6 Familiarising yourself with your appliance Familiarising yourself with your appliance 6.1 Appliance You can find an overview of the parts of your appliance here. On certain models, specific details such as the colour and shape may differ from those pictured.
- Page 18 en Familiarising yourself with your appliance Measuring aid for liquid deter- gent → "Inserting the measuring aid", Page 28 Dispenser II: detergent for the main wash Compartment : Fabric softener Compartment I: Detergent for prewash and soaking 6.3 Control panel You can use the control panel to configure all functions of your appliance and to obtain information about the operating status.
- Page 19 Display en Display 7 Display The display shows the current settings, options or relevant information. Display Example: Display Display Description 0:40 Expected programme duration or programme time re- maining in hours and minutes. Program end time → "Buttons", Page 21 10.0 Recommendation for the maximum load capacity for the selected program in kg.
- Page 20 en Display Display Description Prewash is activated. → "Buttons", Page 22 Soaking is activated. → "Buttons", Page 22 The programme pauses and you can still load more laun- dry within 15 minutes. Pretreatment / is activ- أو َّ لية معالجة ated and the soaking has finished. Options: ¡...
- Page 21 Buttons en Buttons 8 Buttons The selection of programme settings depends on the programme that is set. Buttons Button Selection More information Start/Reload // ¡ Start Start, cancel or pause the pro- gramme. ¡ Cancel ابدأ إعادة تحمیل ¡ Pause Speed Perfect ¡...
- Page 22 en Buttons Button Selection More information Pretreatment / (Prewash) Selecting activates the Prewash ¡ programme. (Soaking) أو َّ لية معالجة ¡ Prewash for washing heavily soiled laundry. Selecting activates the Soaking programme. Before the main wash cycle starts, the laundry remains in the water for longer.
- Page 23 Programmes en Programmes 9 Programmes Programmes Notes ¡ The laundry's care labels provide you with additional information on pro- gramme selection. ¡ For programmes with a temperature setting of 80 °C or 90 °C, the actual temperature may deviate from the specified temperature. The washing effect and hygiene expected at the specified temperatures is nevertheless achieved.
- Page 24 en Programmes Programme Description Max. load (kg) Note: Wash especially delicate items or items with hooks, eyelets or clips in a mesh laundry bag. Tip: Gently cleaning the laundry reduces abrasion of textile fibres and microplastic fibres. Programme setting: ¡ Max. 40 °C ¡...
- Page 25 Programmes en Programme Description Max. load (kg) Note: Use the Delicates/Silk // pro- حرير ناعمة أقمشة gramme to wash shirts and blouses made from silk or delicate fabrics. Programme setting: ¡ Max. 60 °C ¡ Max. 800 rpm – Steam Suitable for shirts, T-shirts and similar fabrics made (Easy Ironing from cotton or linen.
- Page 26 en Programmes Programme Description Max. load (kg) – Drum Clean / Clean and care for the drum. Use this programme in the following cases: تنظ الحلة يف ¡ Before using the appliance for the first time ¡ If you regularly wash at temperatures of 40 °C or lower ¡...
- Page 27 Accessories en Accessories 10 Accessories Use original accessories. These have Accessories been made especially for your appli- ance. Note: Some accessories are avail- able in other colours. Contact → "Customer Service", Page 43. Order num- Water inlet hose ex- Extend the water inlet hose for cold water WMZ2381 tension or AquaStop (approx.
- Page 28 en Detergents and care products Turn the programme selector and Detergents and care products 12 Detergents and care set the required programme. → "Programmes", Page 23 products If required, adjust the programme You can protect your appliance and Detergents and care products settings. your laundry by selecting and using → "Buttons", Page 21 the correct detergents and care The programme settings are not...
- Page 29 Basic operation en Insert the measuring aid. Fold the measuring aid down and click it into place. 13.5 Using the measuring aid 13.6 Adding detergent and To more easily measure the liquid care product detergent, you can use a measuring aid in the detergent drawer. Note: Observe the information about detergents and care products Note: Do not use a measuring aid for...
- Page 30 en Childproof lock Turn off the tap. 13.8 Adding laundry Wipe the rubber gasket dry and re- After the programme starts, you can move any foreign objects. remove or add laundry depending on the programme status. Press Start/Reload // ابدأ إعادة تحمیل The appliance pauses.
- Page 31 Basic settings en Press on both 3 sec. / 3 15.2 Changing the basic set- ▶ )ثوانbuttons for approx. three tings seconds. So that the programme currently Set the programme selector to po- running is not cancelled, the pro- sition 1. → Page 31 gramme selector must be set to Press Spin Speed / الدوران...
- Page 32 en Cleaning and servicing oxygen bleach or a a cleaning Clean the detergent drawer and in- agent for caring for the inside of sert with water and a brush, and the appliance. then dry them. → "Accessories", Page 27 16.2 Cleaning the detergent drawer Pull out the detergent drawer.
- Page 33 Cleaning and servicing en Take the drain hose out of the 16.3 Cleaning the drain pump holder. Clean the drain pump regularly, at least once a year, as well as in the event of faults, e.g. blockages or rat- tling noises. Emptying the drain pump Turn off the tap.
- Page 34 en Cleaning and servicing Insert the drain hose into the Clean the interior, the thread on holder. the pump cap and the pump hous- ing. Cleaning the drain pump Ensure that the impeller in the drain pump can rotate. Requirement: The drain pump is empty.
- Page 35 Cleaning and servicing en Screw the pump cap as far as it will go. The handle on the pump cap must be in a vertical position. Insert and close the maintenance flap. Before the next wash To prevent unused detergent from flowing straight into the outlet in the next wash, run a suitable programme for draining after you have emptied...
- Page 36 en Troubleshooting Troubleshooting 17 Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- Troubleshooting ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Improper repairs are dangerous. Never make any technical modifications to the appliance or its features. ▶...
- Page 37 Troubleshooting en Fault Cause and troubleshooting E:30 -10 / The filters in the water inflow are blocked. Clean the filters in the water inflow. ▶ The water pressure is low. Check whether the tap has sufficient water pres- ▶ sure. The water level measuring system is defective. With this error message, the appliance starts a drain- ing process.
- Page 38 en Troubleshooting Fault Cause and troubleshooting flashes and the pro- The appliance has detected fluctuations in the power gramme is paused. supply. No action required. If the power supply is stable, the programme continues to run as normal. Heavy foam build-up. Detergent dosage is too high.
- Page 39 Troubleshooting en Fault Cause and troubleshooting The appliance is vi- Appliance is not correctly aligned. brating, 'wandering' Align the appliance. → Page 15 ▶ and making loud The appliance feet are not fixed. noises during the spin Secure the appliance's feet. → Page 15 ▶ cycle.
- Page 40 en Troubleshooting Fault Cause and troubleshooting The laundry is too wet Set a suitable programme. → Page 23 ▶ after the spinning cycle. Creasing. The selected programme is unsuitable for the type of fabric. Set a suitable programme. → Page 23 ▶ A high spin speed is selected. The next time you run a wash cycle, set a lower ▶...
- Page 41 Troubleshooting en Fault Cause and troubleshooting Odours have formed Humidity and detergent residue may promote the in the appliance. formation of bacteria. Clean the drum. → Page 31 ▶ If you are not using the appliance, leave the door ▶ and detergent drawer open so that residual water can evaporate.
- Page 42 en Transportation, storage and disposal 17.1 Emergency release 18.2 Inserting the transit bolts Releasing the door Secure the appliance before trans- Requirement: The drain pump is portation using transit bolts in order empty. → Page 33 to prevent transport damage. ATTENTION! Escaping water may Use a screwdriver to remove the 4 cause material damage.
- Page 43 Customer Service en 18.4 Disposing of old appli- Customer Service 19 Customer Service ance Detailed information on the warranty Customer Service Valuable raw materials can be re- period and terms of warranty in your used by recycling. country is available from our after- sales service, your retailer or on our WARNING website.
- Page 44 en Consumption values Consumption values 20 Consumption values The indicated consumption values are approximate. Consumption values The values may deviate from the indicated values depending on water pres- sure, water hardness, water inlet temperature, room temperature, type of laun- dry, amount and soiling of laundry, detergent used, fluctuations in the mains voltage and selected settings.
- Page 45 Technical data en Technical data 21 Technical data Technical data Appliance height 84.5 cm Appliance width 59.8 cm Appliance depth 58.8 cm Appliance depth 63.2 cm with door closed Appliance depth 104.9 cm with door open Weight 70.7 kg Maximum load 10.0 kg Mains voltage 220-240 V, 50-60 Hz Minimum in- 10 A stallation protec- tion...
