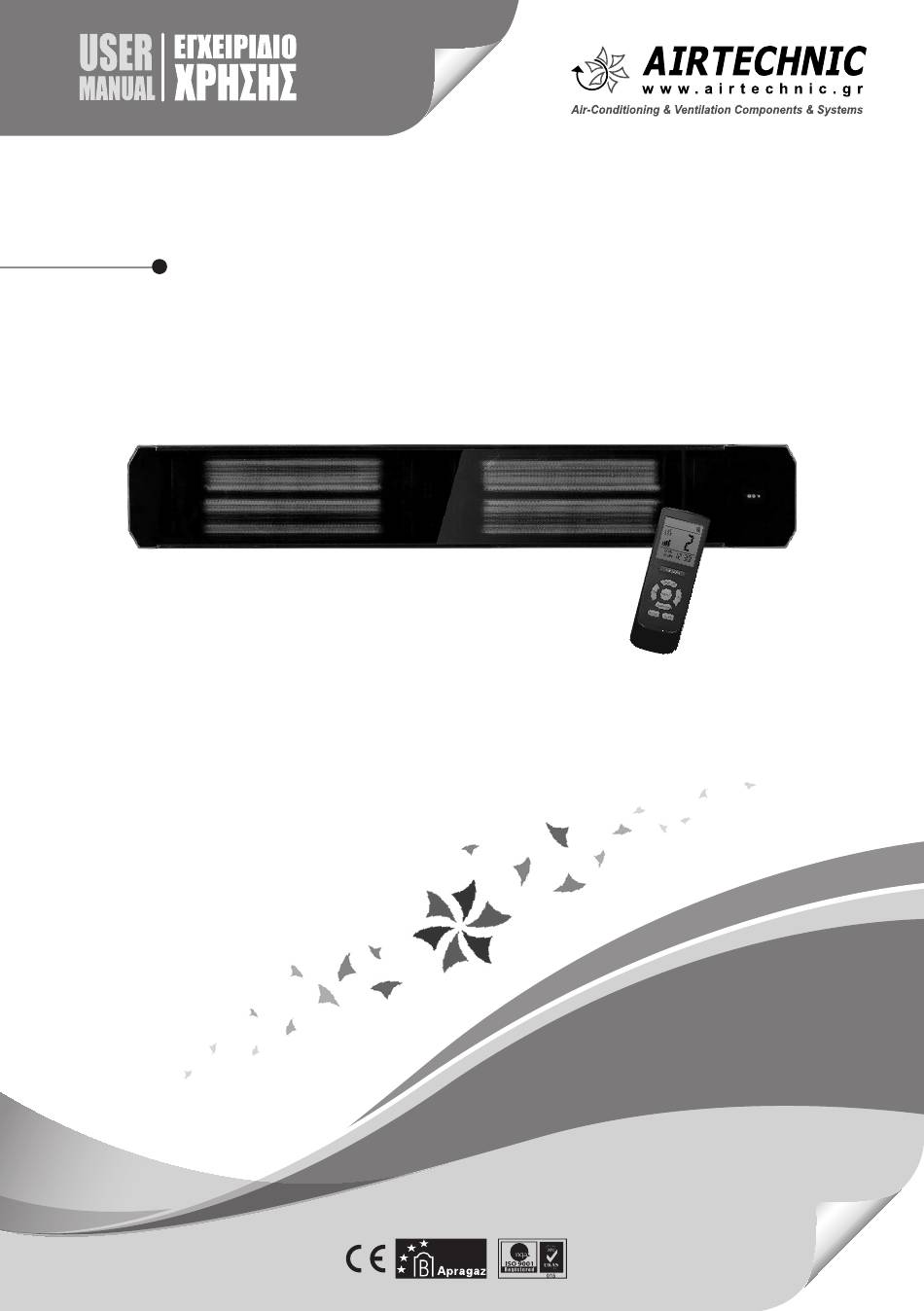

- Page 1 INFRARED HEATER AH22B V. 4...

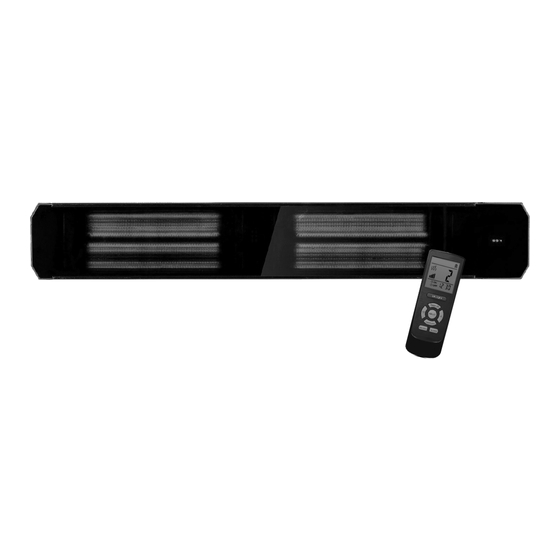

- Page 2 Infrared Heater AH22B This manual provides you with important information needed for setup, operate and maintain your AH22B radiant heater. Failure to follow these instructions may damage and/or impair its operation and void the warranty.
- Page 3 Infrared Heater AH22B INTRODUCTION Thank you for choosing the infrared radiant heater AH22B. Please read all instructions carefully before setting up and operating this product. This manual contains important information required for setting up, operating and maintaining your radiant heater. Failure to follow these instructions may damage the heater and/or impair its operation and void the warranty.
- Page 4 Infrared Heater AH22B TECHNICAL DETAILS Energy saving Low heat loss, instant heating and high electrothermal conversion efficiency. Safety Special construction with good insulation and strong flame resistance. Comfortable Gentle warmth to human body and no harm to environment. The unit is silent and since there is no air circulation or mixing, the indoor air remains clean and maintains its humidity levels.
- Page 5 Infrared Heater AH22B INSTALLATION NOTES Model A [mm] B [mm] AH22B - 16 AH22B - 22 1.160 AH22B - 32 1.660 1.050 Step 1 Connect the adjusting bracket to the sliding bracket, as shown in the image below. ADJUSTING BRACKET...
- Page 6 Infrared Heater AH22B Step 2 Install the sliding bracket on the heater, as shown in the image below. Fix the adjusting bracket on the ceiling or wall using expansion screws, as shown Step 3 in the image below. EXPANSION SCREWS ADJUSTING BRACKET Connect the two adjusting brackets.
- Page 7 Infrared Heater AH22B Ceiling installation spacing. Wall installation spacing.
- Page 8 Infrared Heater AH22B WIRING DIAGRAM N OT1 OT2 Electrical reheat Power input 220 - 240V 50 - 60 Hz Power switch (SPDT) Controller EARTH OPERATION NOTES ON / OFF button Indicator lights Green Light (Power) Power Switch Yellow Light (Network)
- Page 9 Infrared Heater AH22B Remote controller Standby Sending Battery power Heating Level Level Timer on Clock Timer off ON / OFF button Press the ON / OFF button to turn the heater on / off. Pic. 1-1 Pic. 1-2 “OFF” status...
- Page 10 Infrared Heater AH22B OPERATION NOTES CLOCK button Turn on the heater. The remote is in “On” status (as shown in Pic 2-1). The time indication is “00:00”. In order to set the time, follow the steps below. Press the CLOCK button. The hours indication will flash (as show in picture 2-2). Press button UP or DOWN to change the hours.
- Page 11 Infrared Heater AH22B Pic. 5-1 Pic. 5-2 Pic. 5-3 Pic. 5-4 TIMER OFF button Press TIMER OFF button. The indication “OFF --:--” appears on screen (as show in picture 6-1). Press button UP or DOWN to change the hours (as shown in picture 6-2).
- Page 12 Infrared Heater AH22B Make sure the remote control is in OFF status (as shown in Pic 1-1). Hold the remote facing the heater and press the following buttons in sequence : After the heater receives the signal, the yellow light will flash rapidly. This means that the heater has entered pairing mode.
- Page 13 Infrared Heater AH22B Smart APP operation Once the heater is connected, you can use the App to control the heater. BEFORE STARTING THE HEATER Make sure that the heater installation is stable. Improper installation can lead to unit shaking or dislocating and falling, causing damages and injuries.
- Page 14 Infrared Heater AH22B PACKAGING Name Heater 1 pc Remote controller 1 pc Adjusting bracket 1 set Fastener 1 set Sliding bracket 1 set Model No. Dimension Package size (mm) Net weight Gross weight (mm) (kg) (kg) AH22B - 16 810 x 180 x 77...
- Page 15 Infrared Heater AH22B...
