Owner's Manual

Undercounter Wine and Beverage Refrigerator

Models: AWBC242SGRH, AWBC242SGLH

AVALLON.COM

Need help?

Do you have a question about the AWBC242SGRH and is the answer not in the manual?

Questions and answers

Summary of Contents for Avallon AWBC242SGRH

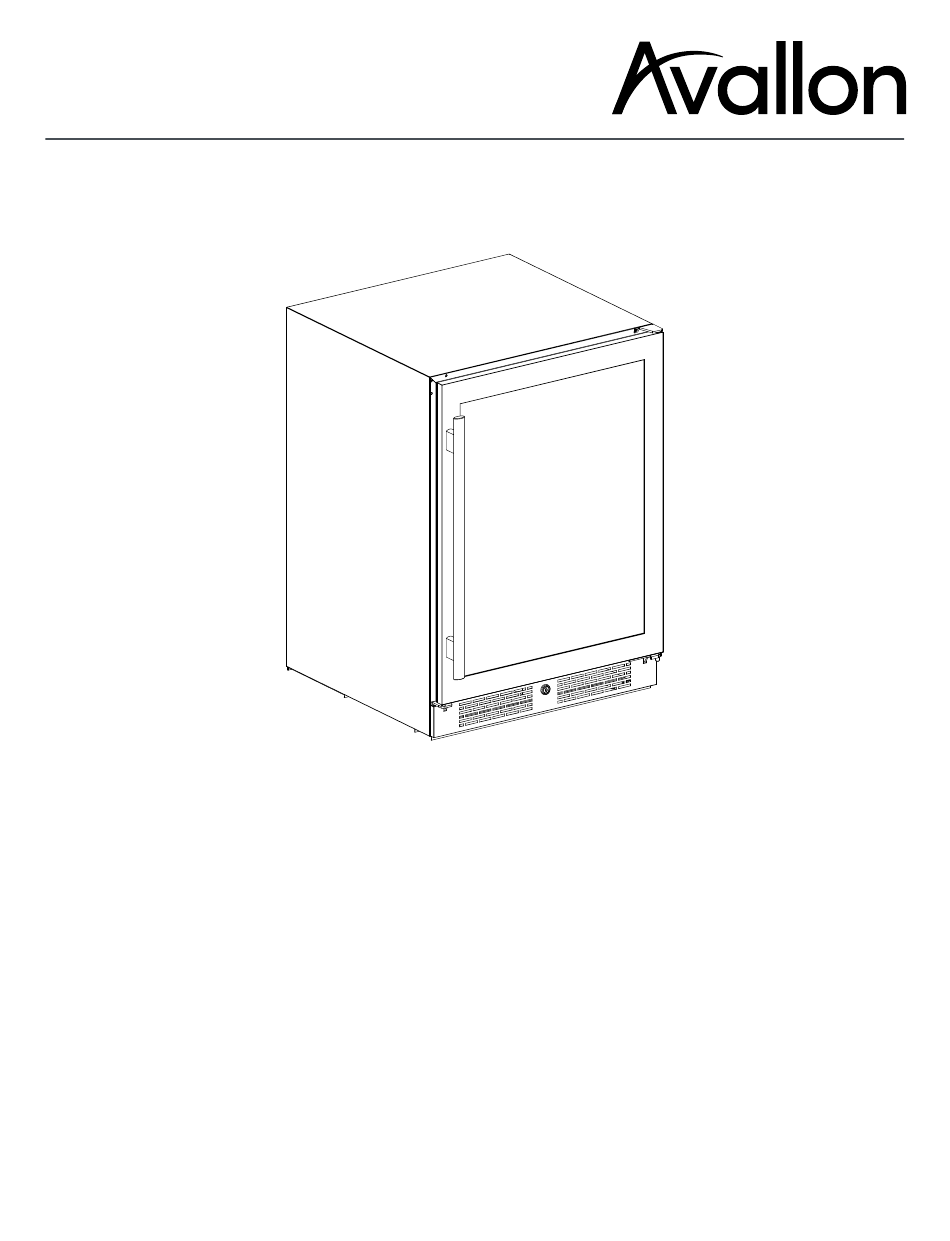

Page 1 ® Owner’s Manual Undercounter Wine and Beverage Refrigerator Models: AWBC242SGRH, AWBC242SGLH AVALLON.COM ©2024 Ferguson Enterprises, LLC V1.0-05302024...
Page 2 ® Important Safety Information Improper handling can cause serious damage to the Avallon refrigerator and / or injury to the user. This refrigerator is designed for domestic indoor use only. Do not use the unit for industrial or commercial use. Any other use may invalidate the warranty. Please review the rating label located inside and on the rear panel of the unit for electrical and other technical data related to this unit.
Page 3 Warning: Risk of child entrapment. Before you throw away your old refrigerator or freezer, take off the doors and leave the shelves in place so that children may not easily climb inside. ©2024 Ferguson Enterprises, LLC V1.0-05302024 AVALLON.COM...
Page 4 Temperature Alarm ............................16 Door Ajar Alarm ............................16 Defrosting ..............................16 Preparing the Refrigerator for Storage ......................17 Cleaning and Maintenance ........................... 17 Troubleshooting ..............................18 Specifications ................................ 20 Product Warranty ..............................21 ©2024 Ferguson Enterprises, LLC V1.0-05302024 AVALLON.COM...
Page 5 The instruction manual should be read before use. Introduction Thank you for purchasing this Avallon refrigerator. We hope that this purchase will be the beginning of a lasting and rewarding relationship between you and Avallon. We will provide the customer support and exemplary products necessary to nurture that relationship.
Page 6 ® Parts Identification Full View: Front Vent Door Lock Levelling Leg Empty View: Carbon Filter Control Panel Wine Shelf Internal Fan Beverage Shelves ©2024 Ferguson Enterprises, LLC V1.0-05302024 AVALLON.COM...
Page 7 Note: The carbon filter should be replaced every three to six (3 - 6) months depending on the unit’s exposure level to odor. If the unit is placed in the kitchen, regular replacement every three (3) months is ideal. ©2024 Ferguson Enterprises, LLC V1.0-05302024 AVALLON.COM...
Page 8 2. If the electrical outlet for the refrigerator is behind the cabinet, plug in the refrigerator. 3. Push the refrigerator into position. Warning: DO NOT install the refrigerator behind a closed cabinet door. ©2024 Ferguson Enterprises, LLC V1.0-05302024 AVALLON.COM...
Page 9 If needed, you can adjust the height of the refrigerator by rotating the feet. See the “Leveling the Refrigerator” section. Note: A standard electrical supply (115 VAC only, 60 Hz), properly grounded in accordance with National Electrical Code and local codes and ordinances, is required. ©2024 Ferguson Enterprises, LLC V1.0-05302024 AVALLON.COM...
Page 10 National Electrical Code and local codes and ordinances. If a mating wall socket is not available, it is the personal responsibility of the customer to have a properly grounded, 3-prong wall receptacle installed by a qualified electrician. ©2024 Ferguson Enterprises, LLC V1.0-05302024 AVALLON.COM...
Page 11 Note: Panel ready models allow for the installation of handles which may be affixed to the panel overlay directly. Door handle installation may be different than the above instructions. Please visit www.avallon.com for additional panel ready information. ©2024 Ferguson Enterprises, LLC V1.0-05302024...
Page 12 Ensure that the shelf is pushed back completely. Carefully lift either the left or right side of the shelf up 45°. Pull the shelf forward until it is completely removed from the inner compartment. Metal Guide Post ©2024 Ferguson Enterprises, LLC V1.0-05302024 AVALLON.COM...
Page 13 You may choose to do this by hand or by using a flathead screwdriver. 5. Evenly pull out the shelf from the track until it is completely removed from the inner compartment. Post ©2024 Ferguson Enterprises, LLC V1.0-05302024 AVALLON.COM...
Page 14 To switch between C and F, press and hold both the Up and Down buttons simultaneously for approximately three (3) seconds. A beep will sound and the indicator light will illuminate next to the desired temperature setting. ©2024 Ferguson Enterprises, LLC V1.0-05302024 AVALLON.COM...
Page 15 NOTE: We run test every unit that we produce in our factory. Because of this, your model may default to any of the above colors out of the box. Simply cycle through until you reach your desired internal light color. ©2024 Ferguson Enterprises, LLC V1.0-05302024 AVALLON.COM...
Page 16 If the inner temperature is lower than 25°F (-4°C), “LO” is shown on the temperature display panel and the temperature alarm will sound continuously after fifteen minutes. If one of these situations occurs please reference the troubleshooting section found in this manual or contact Avallon for support. Door Ajar Alarm This refrigerator includes a door ajar alarm, which will sound if the door is open for more than three (3) minutes.
Page 17 2. Open the door and remove the contents and shelves. 3. Wait until the unit defrosts. 4. With a clean cloth, wipe down the interior of the unit. 5. Reinsert the shelves and contents. 6. Reconnect power to the unit. ©2024 Ferguson Enterprises, LLC V1.0-05302024 AVALLON.COM...
Page 18 Clearance Requirements” section. The door is opened too Close the door tightly and do not open frequently or for a long the door too frequently or for a long period of time. period of time. ©2024 Ferguson Enterprises, LLC V1.0-05302024 AVALLON.COM...
Page 19 The door gasket is dirty. Clean the door gasket. The door gasket is not Make sure the door gasket is correctly installed correctly. installed. The shelves are incorrectly Install the shelves correctly. installed. ©2024 Ferguson Enterprises, LLC V1.0-05302024 AVALLON.COM...
Page 20 Specifications are subject to change. Check the rating label on the refrigerator for the most accurate information. Product Type Undercounter Wine and Beverage Refrigerator Model AWBC242SGRH / AWBC242SGLH Voltage / Frequency AC 115V~60Hz Amperage Color Black Cabinet with Stainless Steel Door Refrigerant R600a, 1.4 oz.
Page 21 WHAT IS COVERED: One Year Parts and Labor: For one year from the date of original retail purchase, Avallon will repair or replace any part free of charge including labor that fails due to a defect in materials or workmanship. Avallon will be responsible for all transportation costs for the first 90 days from original purchase date, after 90 days the consumer will be responsible.
