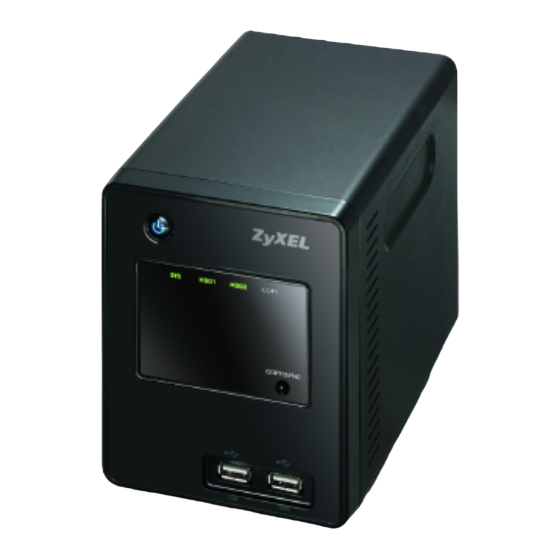

ENGLISH ENGLISH The NSA-220 lets you share files and back up data on your home network. Media clients can also play video, music, and photo content files stored on the NSA-220. This guide covers how to: 1 Install hard drives. 2 Connect the NSA.
Page 3
ENGLISH 1 Install Hard Drives Hard drives are NOT hot swappable. The NSA-220 must be turned off before you remove or install hard drive(s). 1 Make sure the power and Ethernet cords are disconnected from the NSA-220. 2 Loosen the thumbscrews on the rear panel and open 3 Use a...
Page 4
ENGLISH 6 Slide the tray back into the disk bay. Make sure the screw hole is at the top. Push the tray in all the way so the screw hole at the top is flush with the internal frame. 7 Put the disk tray retaining screw back in. 8 Repeat steps for a second hard drive if you have one.
Page 5
ENGLISH 2 Connect the NSA-220 1 Use the included gray (Ethernet) cable to connect the LAN port on the rear of the NSA-220 to a computer, switch, or router on your network. 2 Connect one end of the power cord to the POWER socket on the rear of the NSA-220 and the other end to the external power supply.
Page 6
Click Finish to complete the installation. 3 In Windows, click start > All Programs > ZyXEL NSA > NSA discovery Utility to run the discovery utility. If your computer has more than one network card, then you will be prompted to select...
Page 7
ENGLISH 4 The utility lists the NSAs in your network. 5 Click the Admin icon to see the web configurator login screen (see section 4). • If you need to change the NSA-220 IP address, click the icon under Config. •...
Page 8
ENGLISH 2 It is recommended that you change to a new password (and write it down). Click Apply to save your changes and go to the next screen. 3 The My NSA screen displays. 5 Create a Volume 1 Click Administration. 2 If there is not already an internal volume (storage area), click Create an Internal Volume.
Page 9
ENGLISH If you want to delete an existing volume, see the Storage Screens chapter in the User’s Guide. Creating a volume formats the hard drives. All data will be lost. 3 If you have two hard disks installed, select a disk configuration. •...
Page 10
ENGLISH 4 Click Apply to begin volume creation. 5 Wait while the volume is being created. 6 You can use the volume after the status is Healthy. For a RAID volume, the status is Resync until the volume is ready. 7 If two disks are installed and you created a single-...
Page 11
NSA-220. After mapping a share, you can drag and drop files between your computer and the NSA-220. 1 In Windows, click start > All Programs > ZyXEL NSA > NSA discovery Utility to run the discovery utility. If your computer has more than one network card, then you will be prompted to select one.
Page 12
7.1 Installing the Media Client Software on Your Computers This section shows how to install the included DLNA-compliant media client software on a computer. Skip to section if you will just use a media client like ZyXEL’s DMA-1000. 7.1.1 Requirements...
Page 13
ENGLISH You can only install the media client software on a Windows XP computer. • Microsoft Windows XP Home Edition Service Pack 1 or above or Professional Service Pack 1 or above • Windows Media® Player 9 or above and Microsoft DirectX® 9.0 or above •...
Page 14
ENGLISH See the requirements section if you have trouble installing or using the media server. 3 Enter your information in this screen. Enter a user name (up to 64 ASCII characters recommended). The company name is optional (up to 64 ASCII characters recommended).
Page 15
ENGLISH 5 The following screen displays if you do not have DirectX version 9.0 installed, click yes to install it. 6 Close any other applications and click Finish to restart your computer. 7.2 Play Your Media Files Use a media client (like the DMA-1000W) or a computer with DLNA-compliant media client software (included on your NSA-220 CD) to play video, music, and photo files stored on the NSA-220.
Page 16
ENGLISH 1 After your computer restarts, click start > All Programs > DigiOn > DiXiM Media Client to start the media client. 2 The media client sorts the shared files on your network’s media servers into MUSIC, VIDEO and PHOTO menus. Use the the SERVER menu to view files on a specific media server (like the NSA-220).
Page 17
ENGLISH Files with unsupported formats or codecs may not display properly. See the User’s Guide product specifications appendix for details on the supported formats and codecs. Since the media software uses your computer’s installed codecs, it is also possible that the media client software supports a file’s codec but the codec is not installed on your computer.
Page 18
ENGLISH If this screen does not display, use Windows Explorer (My Computer) to go to the CD-ROM (commonly drive D). Double-click setup.exe. 3 Follow the instructions to install the software. Memeo Autobackup requires Microsoft.NET version 1.1. The wizard installs it for you if it is not already on your computer.
Page 19
ENGLISH 5 Select the NSA-220’s mapped drive and click 6 In this screen, select the items that you want to back up. 7 This screen lists the items to be backed up, just click Next if you do have already selected everything you want to back up.
Page 20
ENGLISH 8 Specify a name for your backup plan (or just use the default). Click Next and then Done. 8.3 Using Memeo Autobackup After the Initial Setup After you have installed and configured Memeo Autobackup, double-click the icon in the system tray to open the program’s start screen. If the icon is not displayed, you can click start >...
Procedure to View a Product’s Certification(s) 1 Go to www.zyxel.com. 2 Select your product from the drop-down list box on the ZyXEL home page to go to that product's page. 3 Select the certification you wish to view from this page.
DEUTSCH DEUTSCH Mit dem NSA-220 können Sie in Ihrem Heimnetzwerk von verschiedenen Geräten aus gemeinsam auf Dateien zugreifen und Daten sichern. Medienclients können auch Video-, Musik- und Fotodateien, abspielen die auf dem NSA-220 gespeichert sind. In diesem Benutzerhandbuch wird beschrieben: 1 Wie die Festplatten installiert werden.
Page 23
DEUTSCH • Netzwerkgerät wie Switch, Router oder Hub 1 Installieren der Festplatten Festplatten dürfen NICHT bei eingeschaltetem Gerät angeschlossen und abgetrennt werden. Schalten Sie den NSA-220 aus, bevor Sie die Festplatte(n) einsetzen oder entfernen. 1 Stellen Sie sicher, dass das Netz- und das Ethernetkabel vom NSA-220 abgetrennt sind.
Page 24
DEUTSCH 5 Legen Sie die Festplatte mit den Schraublöchern nach oben zeigend auf eine flache Unterlage. Legen Sie die Laufwerkslade darauf, und schrauben Sie sie wie abgebildet fest. 6 Schieben Sie die Lade zurück in den Schacht. Das Schraubloch muss sich oben befinden.
Page 25
DEUTSCH 9 Setzen Sie die Gehäuserückseite wieder auf, und drehen Sie die Rändelschrauben fest. 2 Anschließen des NSA-220 1 Verbinden Sie den LAN-Anschluss an der Rückseite des NSA-220 mit dem mitgelieferten grauen Kabel (Ethernetkabel) mit einem Computer, Switch oder Router im Netzwerk. 2 Schließen Sie ein Ende des Netzkabels an den POWER-Anschluss an der Rückseite des NSA-220 und das andere Ende an das externe Netzteil an.
Page 26
DEUTSCH 3 Drücken Sie auf die Ein/Aus-Taste an der Vorderseite des NSA-220, um das Gerät einzuschalten. Die LED-Anzeigen befinden sich an der Gerätevorderseite. Wenn keine Anzeige leuchtet, prüfen Sie noch einmal die Kabelanschlüsse und die Stromquelle. • Die Betriebsanzeige-LED leuchtet blau. •...
Page 27
Installation abzuschließen. 3 Um das Discovery Utility zu starten, klicken Sie bei Windows auf Start > Alle Programme > ZyXEL NSA > NSA discovery Utility. Wenn der Computer über mehr als eine Netzwerkkarte verfügt, werden Sie aufgefordert, eine...
Page 28
DEUTSCH 4 Das Utility-Programm listet die NSAs Ihres Netzwerks auf. 5 Klicken Sie auf das Symbol Admin (Administrator), um das Anmeldefenster des Web- Konfigurators aufzurufen (siehe Abschnitt 4). • Wenn Sie die NSA-220 IP- Adresse ändern müssen, klicken Sie auf das Symbol unter Config (Konfiguri- eren).
Page 29
DEUTSCH 1 Geben Sie den Standardbenutzernamen admin und das Kennwort 1234 ein, und klicken Sie auf Login (Anmelden). Achten Sie bei der Eingabe des Benutzernamens und des Kennworts auf Groß- und Kleinschreibung. Die Feststelltaste darf nicht aktiviert sein. 2 Es wird empfohlen, das Kennwort zu ändern (notieren Sie es sich). Klicken Sie auf Apply (Übernehmen), um die Änderungen zu speichern und zum nächsten Fenster zu wechseln.
Page 30
DEUTSCH 5 Erstellen eines Volumens 1 Klicken Sie auf Administration. 2 Wenn es noch kein internes Volumen (Speicherbereich) gibt, klicken Sie auf Create an Internal Volume (Internes Volumen erstellen). Wenn Ihre Festplatte bereits ein Volumen hat, das Sie verwenden möchten, gehen Sie weiter zu Abschnitt 6. Wie Sie ein bestehendes Volumen löschen können, erfahren Sie im Benutzerhandbuch im Kapitel Speicher-Fenster.
Page 31
DEUTSCH Beim Erstellen eines Volumens werden die Festplatten formatiert. Alle Daten gehen verloren. 3 Wenn zwei Festplatten installiert sind, wählen Sie eine Disk-Konfiguration. • RAID 0 (nicht empfohlen) Diese Konfiguration bietet die größte Geschwindigkeit, aber bei Ausfall einer Fest- platte gehen alle Daten auf beiden Festplatten verloren. Verwenden Sie RAID 0 nur für unwichtige Daten, die große Schreibgeschwindigkeiten erfordern (z.
Page 32
Computer und dem NSA-220 verschieben. 1 Um das Discovery Utility zu starten, klicken Sie bei Windows auf Start > Alle Programme > ZyXEL NSA > NSA discovery Utility. Wenn der Computer über mehr als eine Netzwerkkarte verfügt, werden Sie aufgefordert, eine...
Page 33
DEUTSCH 2 Das Utility-Programm listet die NSAs Ihres Netzwerks auf. Klicken Sie im Discovery Utility-Programm auf das Symbol MAP. 3 Bei Windows Explorer wird der öffentliche NSA-220-Ordner angezeigt. 4 Klicken Sie auf Tools > Map Network Drive (Extras > Netzwerklaufwerk mappen). Wählen Sie aus dem Feld Drive (Laufwerk) einen Laufwerksbuchstaben aus, der für...
Page 34
In diesem Abschnitt wird beschrieben, wie die mitgelieferte DLNA-kompatible Medienclient-Software auf einem Computer installiert wird. Wenn Sie nur einen Medienclient wie den DMA-1000 von ZyXEL verwenden, fahren Sie fort mit Abschnitt 7.2. 7.1.1 Systemvoraussetzungen Die Medienclient-Software kann nur auf Windows XP-Computern installiert werden.
Page 35
DEUTSCH 1 Legen Sie die CD in das CD-ROM- Laufwerk. Klicken Sie im nächsten Fenster auf Tools (Extras). Klicken Sie dann auf Media Client Software (Medienclient-Software). Wenn dieses Fenster nicht gezeigt wird, rufen Sie mit Windows Explorer (Arbeitsplatz) die CD-ROM (normalerweise Laufwerk D) auf.
Page 36
DEUTSCH Firmennamens ist optional (bis maximal 64 ASCII-Zeichen empfohlen). Die Seriennummer ist bereits eingegeben und darf nicht geändert werden. 4 Wenn Sie zum Konfigurieren der Windows XP-Firewall aufgefordert werden, klicken Sie auf Yes (Ja). Dadurch erhält der NSA-220 die Möglichkeit, auf die Dateien des Computers zuzugreifen, die gemeinsam benutzt werden.
Page 37
DEUTSCH 6 Schließen Sie alle anderen Anwendungen und dann auf Finish (Fertig stellen), um den Computer neu zu starten. 7.2 Abspielen der Mediendateien Videos, Musik und Fotodateien, die auf dem NSA-220 gespeichert sind, können mit einem Medienclient (wie dem DMA-1000W) oder einem Computer mit DLNA-kompatibler Medienclient-Software (auf der NSA-220-CD enthalten).
Page 38
DEUTSCH 3 Navigieren Sie zu dem Ordner, der die gewünschte Datei enthält, oder markieren Sie den Ordner All Videos (Alle Videos). 4 Klicken Sie doppelt auf die Datei, die abgespielt werden soll. Dateien nicht unterstützter Formate und Codecs werden u. U. nicht einwandfrei wiedergegeben.
Page 39
DEUTSCH 8 Sichern von Dateien mit Memeo Autobackup Die auf der CD enthaltene Memeo Autobackup-Software kann dazu verwendet werden, automatisch die ausgewählten Dateien vom Computer auf den NSA-220 zu sichern, sobald sie geändert werden. 8.1 Systemvoraussetzungen Memeo Autobackup arbeitet mit Windows 2000 Workstation mit Service Pack 6, Windows XP Pro und Windows XP Home Edition.
Page 40
DEUTSCH 3 Führen Sie die Anweisungen aus, um die Software zu installieren. Für Memeo Autobackup ist Microsoft.NET Version 1.1. erforderlich. Der Assistent installiert es für Sie, wenn es noch nicht auf dem Computer installiert ist. 4 Wenn das folgende Fenster angezeigt wird, wählen Sie Network Places...
Page 41
DEUTSCH 6 Wählen Sie in diesem Fenster die Elemente aus, die gesichert werden sollen. 7 In diesem Fenster werden die Elemente angezeigt, die gesichert werden sollen. Klicken Sie auf Next (Weiter), wenn bereits alles markiert ist, was Sie sichern möchten. 8 Geben Sie dem Sicherungsplan einen Namen...
Page 42
DEUTSCH (oder verwenden Sie den Standardnamen). Klicken Sie auf Next (Weiter), und dann auf Done (Fertig). 8.3 Verwenden von Memeo Autobackup nach der Installation Wenn Sie Memeo Autobackup installiert und konfiguriert haben, klicken Sie doppelt auf das Symbol in der Taskleiste, um das Startfenster des Programms aufzurufen. Wenn das Symbol nicht angezeigt wird, können Sie auch auf Start >...
Page 43
DEUTSCH Problembeseitigung Wenn Sie nicht das Anmeldefenster des NSA-220 aufrufen können, versuchen Sie Folgendes. 1 Stellen Sie sicher, dass der NSA-220 eingeschaltet ist. 2 Prüfen Sie die Kabelverbindungen des NSA-220. Stellen Sie sicher, dass die LAN-LED des NSA-220 (am LAN-Port) leuchtet oder blinkt. 3 Prüfen Sie, ob Sie den Servernamen (Standard nsa220) richtig in das Adressfeld des Internetbrowsers eingegeben haben.
Page 44
DEUTSCH Schritte zum Ansehen von Produktzertifizierung(en) 1 Zu www.zyxel.com. 2 Wählen Sie Ihr Produkt aus der Drop-down-Liste in dem Feld auf der ZyXEL-Homepage und gehen Sie auf diese Produktseite.
FRANÇAIS FRANÇAIS Le NSA-220 vous permet de partager des fichiers et de sauvegarder des données sur votre réseau domestique. Les clients média peuvent aussi lire des fichiers vidéo, musique et photo stockés sur le NSA-220. Ce guide explique comment : 1 Installer les disques durs.
Page 47
FRANÇAIS 1 Installer les disques durs Les disques durs NE SONT PAS échangeables à chaud. Le NSA-220 doit être éteint avant de retirer ou d'installer le(s) disque(s) dur(s). 1 Assurez-vous que les cordons d’alimentation et Ethernet sont déconnectés du NSA- 220.
Page 48
FRANÇAIS 6 Replacez le tiroir en le faisant coulisser dans la baie du disque. Assurez-vous que le trou de vis se trouve au-dessus. Poussez le tiroir vers l’intérieur sur toute sa longueur de façon à ce que le trou de vis situé au-dessus soit aligné avec le cadre interne.
Page 49
FRANÇAIS 2 Connecter le NSA-220 1 Utilisez le câble gris (Ethernet) inclus pour connecter le port LAN situé au dos du NSA-220 à l’ordinateur, commutateur ou routeur sur votre réseau. 2 Connectez une extrémité du cordon d'alimentation à la prise POWER (Alimentation) située au dos duNSA-220 et l'autre extrémité...
Page 50
FRANÇAIS Pour éteindre le NSA-220, appuyez une seule fois sur le bouton d'alimentation. 3 Accéder au NSA-220 Pour un ordinateur fonctionnant sous Windows, utilisez la section 3.1. Pour un autre type d’ordinateur (comme Mac ou Linux), utilisez la section 3.2. 3.1 Utiliser l’utilitaire de découverte pour accéder au NSA-220 1 Insérez le CD inclus dans votre lecteur de CD-ROM.
Page 51
FRANÇAIS 3 Dans Windows, cliquez sur Start (Démarrer) > All Programs (Tous les programmes) > ZyXEL NSA > NSA discovery Utility (utilitaire de découverte NSA) pour exécuter l’utilitaire de découverte. Si votre ordinateur est équipé de plusieurs cartes réseau, vous serez alors invité à...
Page 52
FRANÇAIS 1 Entrez le nom d’utilisateur ‘admin’ et le mot de passe ‘1234’ par défaut et cliquez sur Login (Ouvrir une session). Le nom de l'utilisateur et le mot de passe tiennent compte de la casse. Vérifiez que le verrouillage de majuscule n’est pas activé.
Page 53
FRANÇAIS 5 Créer un volume. 1 Cliquez sur Administration. 2 S’il n’y a pas encore de volume interne (zone de stockage), cliquez sur Create an Internal Volume (Créer un volume interne). Si votre disque dur comporte déjà un volume que vous voulez utiliser, passez à la section 6. Si vous voulez supprimer un volume existant, consultez le chapitre Storage Screens (Ecrans de stockage) dans le guide de l’utilisateur.
Page 54
FRANÇAIS Le fait de créer un volume formate les disques durs. Toutes les données seront perdues. 3 Si vous avez deux disques durs installés, sélectionnez une configuration de disque. • RAID 0 (non recommandé) Présente les vitesses d’écriture les plus élevées, mais si un disque tombe en panne, vous perdez toutes les données sur les deux disques.
Page 55
NSA-220. 1 Dans Windows, cliquez sur Start (Démarrer) > All Programs (Tous les programmes) > ZyXEL NSA > NSA discovery Utility (utilitaire de découverte NSA) pour exécuter l’utilitaire de découverte. Si votre ordinateur est équipé...
Page 56
FRANÇAIS 2 L’utilitaire donne la liste des NSA dans votre réseau. Cliquez sur l’icône MAP dans l’utilitaire de découverte 3 Le dossier public du NSA- 220 s’affiche dans Explorateur Windows. 4 Cliquez sur Tools (Outils) > Map Network Drive (Mapper le lecteur réseau).
Page 57
Cette section indique comment installer le logiciel client compatible DLNA inclus sur un ordinateur. Passez à la section si vous voulez simplement utiliser un client média comme DMA-1000 de ZyXEL. 7.1.1 Configuration requise Vous pouvez uniquement installer le logiciel du client multimédia sur un ordinateur fonctionnant sous Windows XP.
Page 58
FRANÇAIS 1 Placez le CD dans votre lecteur de CD-ROM. Cliquez sur Tools (Outils) dans l’écran qui s’affiche. Cliquez ensuite sur le logiciel Media Client Software (client média). Si cet écran n’apparaît pas, utilisez Windows Explorer (My Computer) (Poste de travail) pour accéder au CD- ROM (généralement lecteur D).
Page 59
FRANÇAIS caractères ASCII recommandé). Le numéro de série a déjà été entré pour vous, ne le changez pas. 4 Si vous voyez apparaître un écran vous invitant à configurer le pare feu de Windows XP, cliquez sur Yes (Oui). Cela permet au NSA-220 d'accéder aux fichiers sur votre ordinateur que vous partagez.
Page 60
FRANÇAIS 6 Fermez toutes les autres applications et cliquez sur Finish (Terminer) pour redémarrer votre ordinateur. 7.2 Lire vos fichiers média Utilisez un client média (comme le DMA-1000W) ou un ordinateur avec le logiciel client média DLNA (inclus dans votre NSA-220 CD) pour lire des fichiers vidéo, musique, et photo stockés sur le NSA-220.
Page 61
FRANÇAIS 3 Allez sur le dossier comportant le fichier désiré ou utilisez simplement le dossier All Videos (Toutes les vidéos). 4 Double cliquez sur le fichier que vous voulez lire. Les fichiers ou codecs d'un format non pris en charge risquent de ne pas s'afficher correctement.
Page 62
FRANÇAIS 8 Sauvegarder des fichiers à l’aide de Memeo Autobackup Utilisez le logiciel Memeo Autobackup inclus sur le CD pour sauvegarder automatiquement les fichiers sélectionnés depuis votre ordinateur sur le NSA-220 chaque fois que vous modifiez les fichiers. 8.1 Configuration requise Memeo Autobackup fonctionne avec Windows 2000 Workstation avec Service Pack 6, Windows XP Pro, ou Windows XP Edition familiale.
Page 63
FRANÇAIS 3 Suivez les instructions pour installer le logiciel. Memeo Autobackup nécessite Microsoft.NET version 1.1. L’assistant l’installe pour vous s’il n’est pas déjà installé dans votre ordinateur. 4 Quand vous voyez l’écran suivant, sélectionnez Network Places (Emplacements du réseau) et cliquez sur link (Liaison) pour sélectionner votre...
Page 64
FRANÇAIS 6 Dans cet écran, sélectionnez les éléments que vous voulez sauvegarder. 7 Cet écran donne la liste des éléments à sauvegarder, cliquez simplement sur Next (Suivant) si vous avez déjà sélectionné tout ce que vous désirez sauvegarder. 8 Spécifiez un nom pour votre plan de sauvegarde (ou...
Page 65
FRANÇAIS utilisez simplement le nom par défaut). Cliquez sur Next (Suivant) et ensuite sur Done (Fait). 8.3 Utiliser Memeo Autobackup après l’installation initiale Après avoir installé et configuré Memeo Autobackup, double cliquez sur l’icône dans la barre d’état pour ouvrir l’écran de démarrage du programme. Si l’icône ne s’affiche pas, vous pouvez cliquer sur Sart (Démarrer) >...
Page 66
FRANÇAIS Dépannage Procédez de la manière suivante si vous n’arrivez pas à obtenir l’écranNSA-220 d’ouverture de session. 1 Assurez-vous que le NSA-220 est allumé. 2 Vérifiez les connexions des câbles du NSA-220. Vérifiez que la LED LAN du NSA-220 (située sur le port LAN) est allumée ou clignote. 3 Si vous avez essayé...
Page 67
FRANÇAIS Procédure pour afficher la (les) certification(s) d'un produit 1 Allez à www.zyxel.com. 2 Sélectionnez votre produit dans la liste déroulante dans la page d'accueil du ZyXEL pour aller à la page de ce produit.
ITALIANO ITALIANO L'NSA-220 consente di condividere file e di eseguire il backup di dati nella propria rete. I client multimediali possono anche riprodurre file video, musicali e foto archiviati nell'NSA- 220. In questa guida viene spiegato come: 1 Installare la unità a disco rigido.
Page 69
ITALIANO 1 Installazione delle unità a disco rigido I dischi rigidi NON sono "hot swap" (sostituibili a caldo). L'NSA-220 deve essere spento prima di poter rimuovere o installare i dischi rigidi. 1 Verificare che alimentazione e cavi Ethernet siano scollegati dall'NSA-220. 2 Svitare le viti zigrinate sul pannello posteriore e...
Page 70
ITALIANO 6 Reinserire il vassoio nel bay del disco. Verificare che il foro della vite sia rivolto verso l'alto. Spingere il vassoio completamente in modo che il foro della vite superiore sia allineato con il telaio interno. 7 Ravviare la vite di sostegno del vassoio. 8 Ripetere i passi da per un secondo disco rigido (se presente).
Page 71
ITALIANO 2 Collegare l'NSA-220 1 Utilizzare il cavo grigio fornito a corredo (Ethernet) per collegare la porta LAN che si trova dietro l'NSA-220 a un computer, switch o router presente in rete. 2 Collegare un'estremità del cavo di alimentazione alla presa POWER (alimentazione) che si trova dietro l'NSA-220 e l'altra estremità...
Page 72
ITALIANO Per spegnere l'NSA-220, premere il pulsante di accensione solo una volta. 3 Accesso all'NSA-220 Per un computer Windows, utilizzare la sezione 3.1. Per un altro tipo di computer (come Mac o Linux), utilizzare la sezione 3.2. 3.1 Uso dell'utilità di analisi per accedere all'NSA-220 1 Inserire il CD fornito a corredo nell'unità...
Page 73
ITALIANO 3 In Windows, scegliere start > Tutti i programmi > ZyXEL NSA > NSA discovery Utility per avviare l'utilità di analisi. Se nel computer c'è più di una scheda di rete, viene richiesto di selezionarne una. 4 L'utilità elenca le unità NSA presenti in rete.
Page 74
ITALIANO 1 Inserire il nome utente "admin" e la password "1234" predefiniti e scegliere Login (accedi). Per nome utente e password viene fatta distinzione tra maiuscole e minuscole. Può essere necessario verificare di non avere il Blocco maiuscole attivato. 2 Si consiglia di utilizzare una nuova password (e di annotarla). Scegliere Apply (applica) per salvare le modifiche e passare alla sezione successiva.
Page 75
ITALIANO 5 Creazione di un volume 1 Fare clic su Administration (amministrazione). 2 Se non è già presente un volume interno (area di archiviazione), scegliere Create an Internal Volume (crea volume interno). Se il disco rigido dispone già di un volume che si desidera utilizzare, saltare alla sezione 6.
Page 76
ITALIANO La creazione di un volume formatta i dischi rigidi. Tutti i dati vengono persi. 3 Se si hanno due dischi rigidi installati, selezionare una configurazione di dischi. • RAID 0 (non consigliato) Consente di ottenere le velocità di scrittura più elevata, ma se uno dei dischi si guasta si perdono tutti i dati presenti su entrambi i dischi.
Page 77
è possibile trascinare i file tra computer e l'NSA-220. 1 In Windows, scegliere start > Tutti i programmi > ZyXEL NSA > NSA discovery Utility per avviare l'utilità di analisi. Se nel computer c'è più di una scheda di rete, viene richiesto di selezionarne una.
Page 78
ITALIANO 2 L'utilità elenca le unità NSA presenti in rete. Fare clic sull'icona MAP (connetti unità) nell'utilità di analisi 3 In Esplora risorse di Windows viene visualizzata la cartella pubblica dell'NSA-220. 4 Scegliere Strumenti > Connetti unità di rete. Nel campo Unità, selezionare la lettera di unità...
Page 79
In questa sezione viene mostrato come installare su un computer il software del client multimediale compatibile DLNA fornito a corredo. Saltare alla sezione se si utilizzerà solo un client multimediale quale ad esempio DMA-1000 di ZyXEL. 7.1.1 Requisiti Il software del client multimediale può essere installato solo su un computer Windows XP.
Page 80
ITALIANO 1 Inserire il CD nell'unità CD-ROM. Scegliere Tools (strumenti) nella schermata visualizzata. Scegliere Media Client Software. Se la schermata non viene visualizzata, aprire il CD (generalmente l'unità D) da Esplora risorse di Windows (Risorse del computer). Fare doppio clic su setup.exe. 2 Appare l'installazione guidata.
Page 81
ITALIANO 3 Immettere le informazioni in questa schermate. Immettere un nome utente (massimo di 64 caratteri ASCII). Il nome della società è opzionale (massimo 64 caratteri ASCII). Il numero seriale viene compilato automaticamente e non va cambiato. 4 Se viene visualizzata una schermata relativa alla configurazione del firewall di Windows XP, scegliere Sì.
Page 82
ITALIANO 6 Chiudere tutte le applicazioni e scegliere Finish (fine) per riavviare il computer. 7.2 Riproduzione dei file multimediali Utilizzare un client multimediale (come il DMA-1000W) o un computer dotato di un software client multimediale compatibile con DLNA (incluso nel CD dell'NSA-220) per riprodurre video, musica e foto archiviate sull'NSA-220.
Page 83
ITALIANO 3 Navigare fino alla cartella contenente il file desiderato oppure semplicemente utilizzare la cartella All Videos. 4 Fare doppio clic sul file da riprodurre. I file con formati o codec non supportati possono non essere visualizzati correttamente. Vedere l'appendice della Guida utente contenente le specifiche tecniche del prodotto per i dettagli relativi ai formati e ai codec supportati.
Page 84
ITALIANO 8 Eseguire il backup dei file tramite Memeo Autobackup Utilizzare il software Memeo Autobackup incluso nel CD per eseguire automaticamente il backup dei file selezionati dal computer all'NSA-220 ogni volta che si modificano i file. 8.1 Requisiti Memeo Autobackup funziona con Windows 2000 Workstation con Service Pack 6, Windows XP Pro oppure Windows XP Home Edition.
Page 85
ITALIANO 3 Attenersi alle istruzioni per installare il software. Memeo Autobackup richiede la presenza di Microsoft.NET versione 1.1. Se questa libreria non è già presente sul computer, l'installazione guidata provvederà a installarla. 4 Alla visualizzazione della schermata seguente, scegliere Network Places (percorsi di rete) e quindi fare clic sul...
Page 86
ITALIANO 6 In questa schermata, selezionare le voci di cui eseguire il backup. 7 In questa schermata vengono elencati gli elementi di cui eseguire il backup. Se si è già selezionato ciò che deve essere compreso nel backup, è sufficiente scegliere Next (avanti).
Page 87
ITALIANO di backup (oppure utilizzare il nome predefinito). Scegliere Next (avanti) e quindi Done (fine). 8.3 Utilizzo di Memeo Autobackup dopo la configurazione iniziale Una volta installato e configurato Memeo Autobackup, fare doppio clic sull'icona nell'area di notifica del sistema per aprire la schermata iniziale del programma. Se l'icona non viene visualizzata, è...
ITALIANO Risoluzione dei problemi Se non si riesce a visualizzare la schermata di login dell'NSA-220, provare con le istruzioni seguenti. 1 Verificare che l'unità NSA-220 sia accesa. 2 Controllare i collegamenti dei cavi dell'NSA-220. Verificare che il LED LAN dell'NSA- 220 (che si trova sulla porta LAN) sia acceso o lampeggiante.
Page 89
ITALIANO Procedura per visualizzare le certificazioni di un prodotto 1 Aprire la pagina www.zyxel.com. 2 Selezionare il prodotto dall'elenco di riepilogo a discesa nella Home Page di ZyXEL per passare alla pagina del prodotto in questione.
日本語 8 Memeo Autobackup を使ったファイルのバックアップ CD に含まれる Memeo Autobackup ソフトウェアを使うと、コンピュータ内の選択された ファイルに変更を加えるたびに、これらのファイルを NSA-220 へ自動的にバックアップす ることができます。 8.1 要件 Memeo Autobackup は Windows 2000 Workstation with Service Pack 6、 Windows XP Pro、 Windows XP Home Edition で使用することができます。 8.2 Memeo Autobackup のインストールとセットアップ Memeo Autobackup プログラムは、ディスカバリ ユーティリティと同じ ネットワークポートを使って...
Page 122
多媒體伺服器功能應用至其他分享。 NSA-220 未對多媒體伺服器檔案提供安全措施。網路上任何與 DLNA 相容的 媒體用戶端都可以播放上述多媒體檔案。 7.1 將媒體用戶端軟體安裝至電腦 本節說明如何將隨附的 DLNA 相容媒體用戶端軟體安裝至電腦。如果您打算直接使用媒體用 戶端 ( 如 ZyXEL 的 DMA-1000),請跳至第 節。 7.1.1 需求 媒體用戶端軟體只能安裝在 Windows XP 電腦上。 • Microsoft Windows XP Home Edition Service Pack 1 或更新版本 , 或 Professional Ser - vice Pack 1 或更新版本...
Page 123
繁體中文 1 將 CD 放入 CD-ROM 機。在顯示的畫面 中按一下 Tool ( 工具 )。然後再按一 下 Media Client Software ( 媒體用戶 端軟體 )。 如果電腦螢幕未顯示此畫 面,請使用 Windows Explorer ( 我的電腦 ) 前往 CD-ROM 機 ( 通常是 D 磁碟 )。按兩下 setup.exe。 出現安裝精靈。依照指示安裝軟體。 如果安裝過程或使用媒體伺服器時出現問題,請參閱需求一節。...
