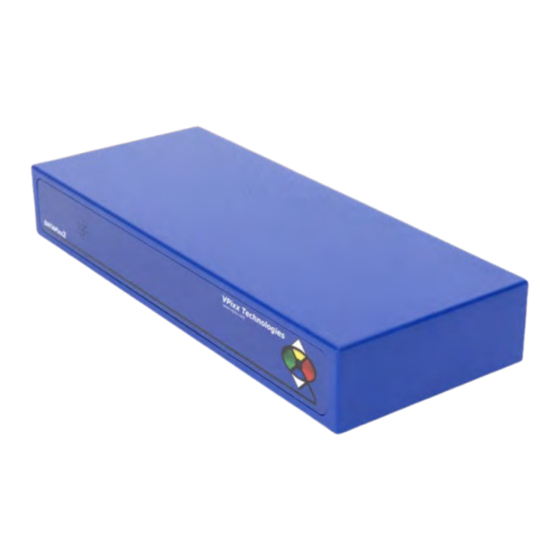

- Page 1 DATAPixx2 Full (VPX-DPX-1003C) DATAPixx2 Lite (VPX-DPX-1002A) Installation Guide Version 1.0 Phone : (514) 328-7499 1 (844) 488-7499 - Toll Free USA/Canada EMAIL: support@vpixx.com www.vpixx.com...
- Page 3 DATAPixx2 Installation Guide IMPORTANT VPixx Technologies Inc. reserves the right to modify or otherwise update this document without notice as required by a constantly evolving marketplace, client requests or to adapt to new progress or constraints in engineering or manufacturing technology. The information contained in this document may change without prior notice.
- Page 4 Digital input connector ..............................12 Audio In / MIC In / Audio Out ............................13 DATAPixx2 installation ................................14 Installation precautions ..............................14 Cable installation ................................14 Device detection ................................14 Copyright © 2020 VPixx Technologies Inc. All Rights Reserved...
- Page 5 DATAPixx2 Installation Guide Maintenance and Calibration ............................... 15 Cleaning the DATAPixx2..............................15 Warranty ....................................15...
- Page 6 TABLE 6 AUDIO OUT PIN ASSIGNMENT ..............................13 TABLE 7 MIC IN PIN ASSIGNMENT ................................13 Table of Figures FIGURE 1 DATAPIXX2 UNIT ..................................8 FIGURE 2 DATAPIXX2 REAR PANEL CONNECTORS ..........................10 Copyright © 2020 VPixx Technologies Inc. All Rights Reserved...
- Page 7 By creating your MyVPixx account on the VPixx Technologies website, you will have access to additional product documentation, demos, source code examples and the latest firmware and software drivers. The DATAPixx2 device is suitable only for research and is not designed for medical applications or for diagnostic purposes.
- Page 8 Supplementary Information: To remain CE compliant, only CE compliant parts should be used with this product. Maintaining CE compliance also requires proper cable and cabling techniques. VPixx Technologies will not retest systems or components that have been modified by customers.
- Page 9 The mark indicates the requirement NOT to dispose of the equipment as unsorted municipal waste. For support@vpixx.com more information call VPixx Technologies Inc. or email us at For the United States of America This device complies with part 15 subpart B of FCC rules. Its operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 10 I/O to video refresh with microsecond precision. As with all VPixx Technologies Products, the DATAPixx2 is field upgradable. If you need a new feature in order to follow some exciting new direction in your research, we are able to develop your functionality in our labs, and provide you with an update for your DATAPIxx2 via email.
- Page 11 • Programmable microphone bias voltage range: 2.0 V to 3.1 V Stereo DAC sampling rate 96 kHz • *Audio CODEC functionalities are available only with DATAPixx2 full version (VPX-DPX-1003C) Digital input Number of digital inputs: 24 on db-25 connector •...
- Page 12 Digital IN/OUT Audio connector interface interface ** Figure 2 DATAPixx2 rear panel connectors * For future use **Analog I/O and audio functionalities are available only with DATAPixx2 full version (VPX-DPX-1003C) Copyright © 2020 VPixx Technologies Inc. All Rights Reserved...
- Page 13 The following table shows the analog I/O pin assignment. If you use the analog breakout cable, refer to the associated user manual interconnection. *Analog I/O functionalities are available only with DATAPixx2 full version (VPX-DPX-1003C) Table 1 Analog I/o pin assignment...
- Page 14 Digital In 19 Digital In 20 Digital In 21 Digital In 22 Digital In 23 Shield * * Shield is tied to the GND by a 0 Ohm resistor inside the DATAPixx2. Copyright © 2020 VPixx Technologies Inc. All Rights Reserved...
- Page 15 Audio equipment may be connected through these jacks with standard 1/8” (3.5mm) stereo plugs. The following table shows the audio pin assignment for each jack. *Audio IN, MIC In and Audio functionalities are available only with DATAPixx2 full version (VPX-DPX-1003C) Audio In...
- Page 16 On a Mac OS X system, no driver is required; under Microsoft Windows, a driver must be installed for the DATAPixx2. For more information on software and driver installation, please refer to the VPixx Products Application Guide. Copyright © 2020 VPixx Technologies Inc. All Rights Reserved...
- Page 17 DATAPixx2 Installation Guide Maintenance and Calibration The DATAPixx2 does not require periodic calibration activities. Cleaning the DATAPixx2 Clean the surface of your DATAPixx2 as required and depending on usage. Do not use cleaners that contain any petroleum-based materials such as benzene, thinner, or any volatile substance Warranty The DATAPixx2 is warranted against manufacturing defects in materials and workmanship for two years for parts and...
- Page 18 VPixx Technologies Inc. 630 Clairevue West suite 301 Saint-Bruno, Qc Canada, J3V 6B4 TEL/FAX: (514) 328-7499 TOLL FREE: (844) 488-7499 (USA/CANADA) EMAIL: sales@vpixx.com...
