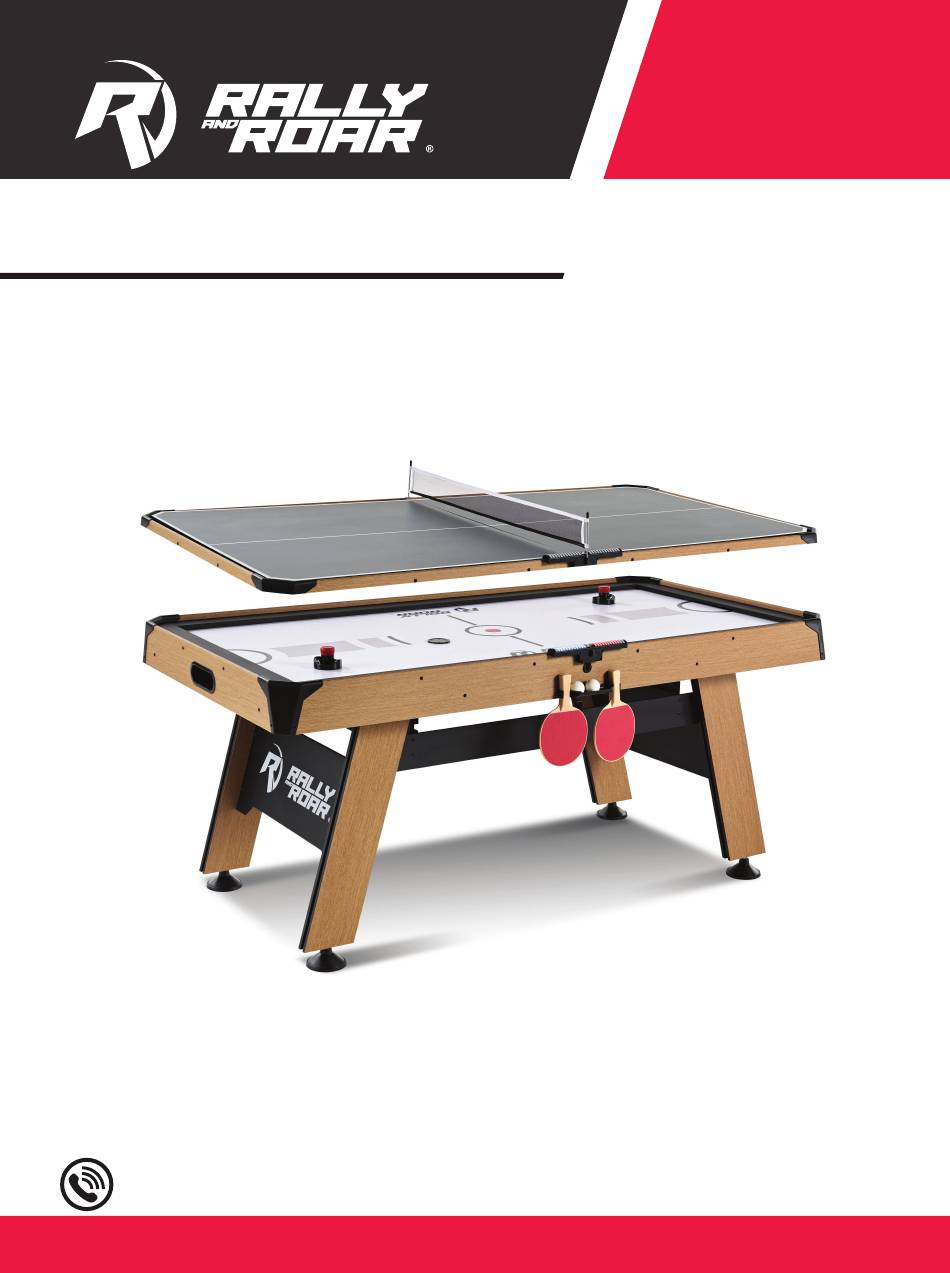

- Page 1 MODEL AH072Y24006 User Manual 877-472-4296 rallyandroar@medalsports.com...
- Page 2 English LIMITED 90 DAYS WARRANTY This product is covered by a limited warranty that is effective for 90 days from the date of purchase. If, during the limited warranty period, a part is found to be defective or breaks, we will offer replacement parts at no cost to you, the customer. The only exceptions to the warranty include mainframes, table tops, playing surfaces, batteries or tools.
- Page 3 English TOOLS REQUIRED Phillips Screwdriver - Not Included Standard (Flat Head Screwdriver) - Not Included Allen Key - Included Power Tools: Set to Low Torque RECOMMENDED Electric Screwdrivers may be helpful during assembly; however, please set a low torque and use extreme caution. High Torque Over Tightened IMPORTANT NOTICE Please do not sit, climb or lean on the product.
- Page 4 English IMPORTANT SAFETY INSTRUCTIONS Read all instructions READ ALL INSTRUCTIONS-All the safety and operating instructions should be read carefully before this hockey game is played. CAUTION-This is not a toy and is intended for use by or under the supervision of adults. Adults should review safety guidelines with children to avoid possible risk of electric shock or other injuries.
- Page 5 English PARTS IDENTIFIER PART NUMBER FIG. NUMBER FOR FIG. 1 PART QUANTITY PART NAME Mainframe FOR FIG. 2 FOR FIG. 2 FOR FIG. 2 FOR FIG. 4 Leg - A Leg - B End Leg Panel Side Leg Panel FOR FIG. 5 FOR FIG.
- Page 6 English HARDWARE FOR FIG. 3 FOR FIG. 3 FOR FIG. 1, 7, 8 FOR FIG. 4 M6x45mm Bolt M6 Washer T3x12mm Screw T4x10mm Screw FOR FIG. 6 FOR FIG. 2 FOR FIG. 2, 4, 5 F3x25mm Screw 3.5x28mm Screw 3.5x38mm Screw Allen Key PRE-INSTALLED PARTS FOR FIG.
- Page 7 English ASSEMBLY FIG. 1 FIG. 2 2 SETS AH072Y24006 (Continued on the next page) rallyandroar@medalsports.com...
- Page 8 English ASSEMBLY FIG. 3 Note: Do NOT tighten the bolts (A1) until FIG. 5. FIG. 4 The Hole AH072Y24006 (Continued on the next page) rallyandroar@medalsports.com...
- Page 9 English ASSEMBLY FIG. 5 Note: Go back and make sure that all connections are tightened. CAUTION Lift the table off the ground. Turn the table over. Place it on all feet at the same time on the ground. AH072Y24006 (Continued on the next page) rallyandroar@medalsports.com...
- Page 10 English ASSEMBLY FIG. 6 BOTTOM OF TABLE FIG. 7 Note: Tear off the backside papers of the felt pads (20) and stick them onto the bottom of the pushers (18). GAME 1: AIR POWERED HOCKEY AH072Y24006 (Continued on the next page) rallyandroar@medalsports.com...
- Page 11 English ASSEMBLY FIG. 8 FIG. 9 GAME 2: TABLE TENNIS AH072Y24006 (Continued on the next page) rallyandroar@medalsports.com...
- Page 12 English STORAGE POSITION ELECTRONIC CONNECTIONS DIAGRAM (BOTTOM OF TABLE) AH072Y24006 (Continued on the next page) rallyandroar@medalsports.com...
- Page 13 English ELECTRONIC CONNECTIONS DIAGRAM PLUG IN TABLE & ENJOY ON/OFF To Wall Outlet MOTOR SCHEMATIC DIAGRAM CONNECTOR THERMAL PROTECTOR SPT-2 POWER CORD AC 120V MOTOR ON/OFF POLARIZED PLUG BATTERY INSTALLATION Battery Box: Unscrew the bolt using a screwdriver and open the battery box. Insert 3 pcs 1.5 V “AAA” batteries (not included) in the sequence of polarity as shown on the inside cover.
- Page 14 English GAME INSTRUCTIONS When the “ ” player scores a point, the “ ” indicator will show 1 point; when the “ ” player scores a point, the “ ” indicator will show 1 point. The first player to reach 12 points wins the game. After the game, you can press the “RESET”...
- Page 15 English DISCLAIMER WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 16 rallyandroar@medalsports.com...
