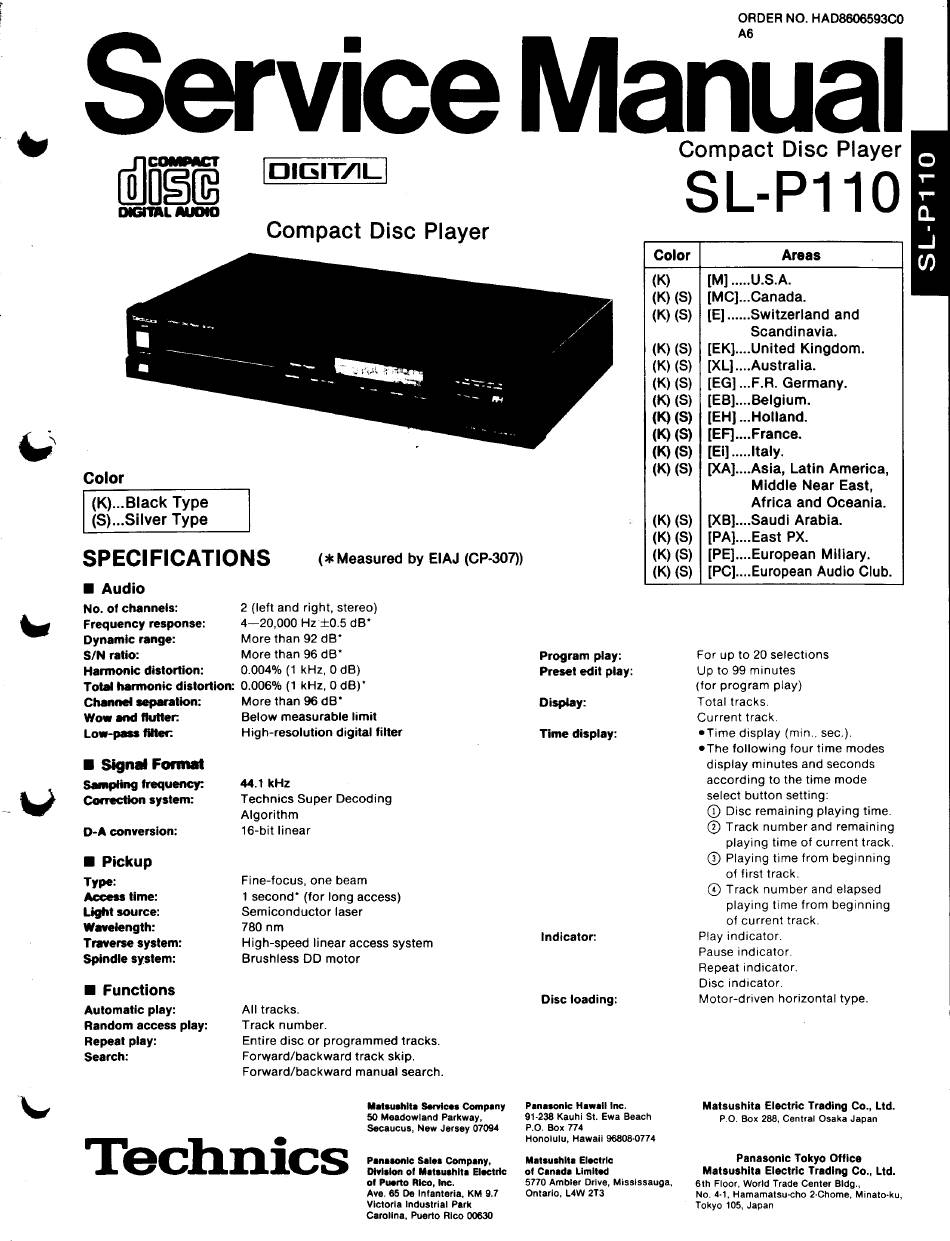

Technics SL-P110 Service Manual

ORDER NO. HAD8606593C0
A6
ervice Manual
Compact Disc Player
SL-P110
IDIGIT/IL]
Compact Disc Player
Color Areas
(K) M]....US.A.
(K) (S) | [MC]...Canada.
(K} (S) | [E]......Switzerland and
Scandinavia.
(K) (S) | [EK]....United Kingdom.
(K) (8) | [XL]....Australia.
(K) (S) | [EG]...F.R. Germany.
(K) (S) | [EB]....Belgium.
(K) (S) | [EH] ...Holland.
N (K) (S) | [EF]....France.
G :g gg {)E(;]\]::aly Latin Amer
....Asia, Latin America,
Color Middie Near East,
(K)...Black Type Africa and Oceania.
(S)...Silver Type (K) (S) | [XB]....Saudi Arabia.
(K) (S) | [PA]....East PX.
*M red by EIAJ (CP-30 (K) (S) | [PE]....European Miliary.
SPECIFICATIONS (*Measured by I (© " (K) (S) | [PC]....European Audio Club.
B Audio
No. of channels:
Frequency response:
Dynamic range:
2 (left and right, stereo)
4—20,000 Hz'+0.5 dB*
More than 92 dB*
S/N ratio: More than 96 dB*
Harmonic distortion: 0.004% (1 kHz, 0 dB)
Total harmonic distortion: 0.006% (1 kHz, 0 dB)*
For up to 20 selections
Up to 99 minutes
(for program play)
Program play:
Preset edit play:
Channel separation: More than 96 dB" Display: Total tracks.
Wow and flutter: Below measurabie limit Current track.
Low-pass filter: High-resolution digital filter Time display: e Time display (min., sec.).
e The following four time modes
B Signal Format display minutes and seconds
Sampling frequency: 44.1 kHz according to the time mode
U Correction system: Technics Super Decoding select button setting:
- Algorithm (@ Disc remaining playing time.
D-A conversion: 16-bit linear @ Track number and remaining
playing time of current track.
B Pickup (® Playing time from beginning
: of first track.
Type: Fine-focus, one beam
Access time: 1 second" (for long access) ® Tlrac'k nf4mbefr a:qdbela&sgd
Light source: Semiconductor laser gfaglzcir:tn:?acr: eginning
Wavelength: 780 nm . o :
Traverse system: High-speed linear access system Indicator: Elay :nglggtotr.
Spindle system: Brushless DD motor ause ndicator.
Repeat indicator.
Disc indicator.
® Functions Motor-driven horizontal type.
Automatic play:
Random access play:
Repeat play:
Search:
Disc loading:
All tracks.
Track number.
Entire disc or programmed tracks.
Forward/backward track skip.
Forward/backward manual search.
