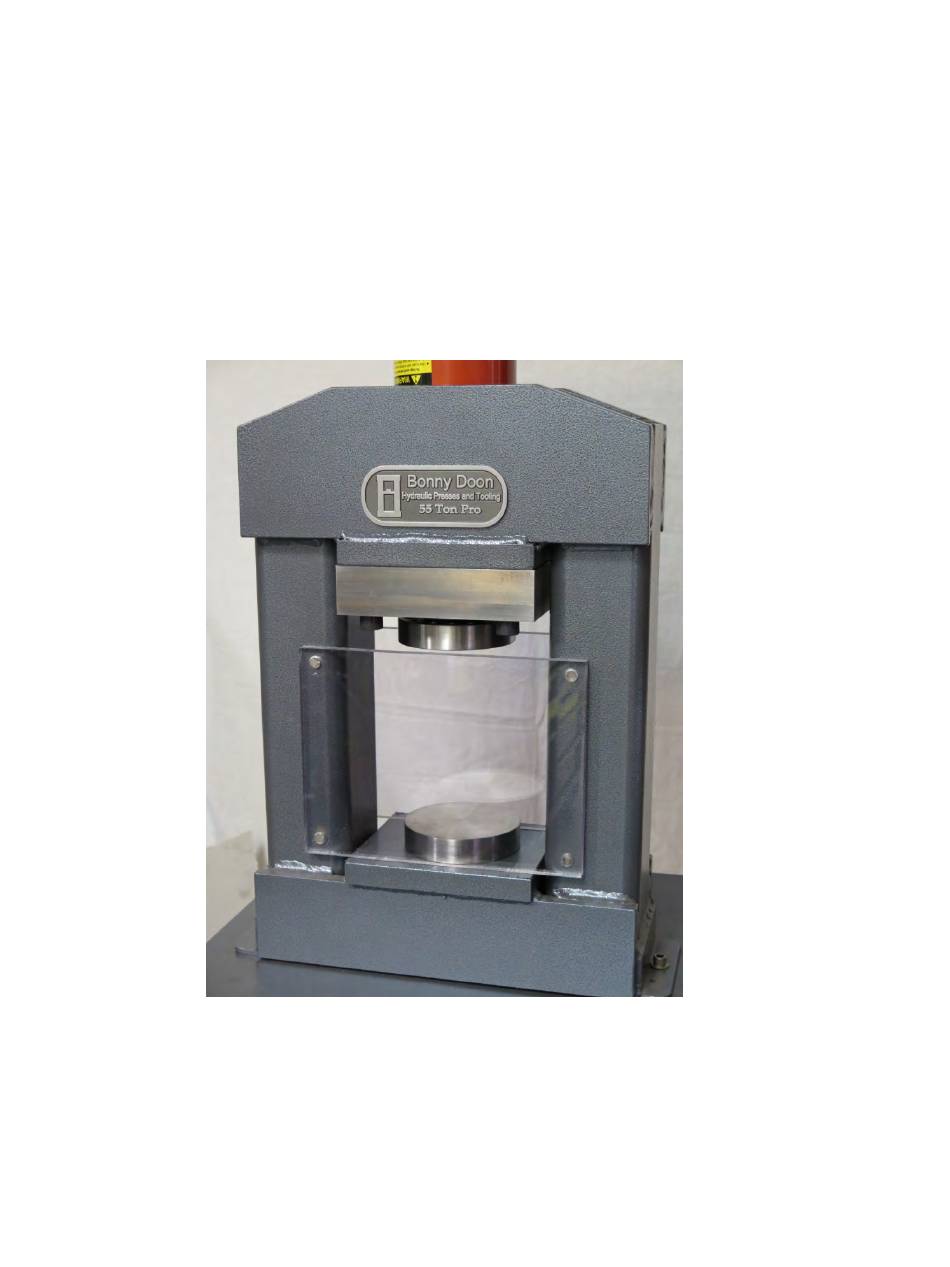

Bonny Doon 55 ton Pro Press
Operators Manual
READ ALL SAFETY, ASSSEMBLY AND OPERATING INSTRUCTIONS BEFORE
ASSEMBLING OR OPERATING THE PRESS. FAILURE TO DO SO CAN RESULT
IN SERIOUS or LIFE-THREATENING INJURIES.
Save this manual: Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, cleaning and maintenance procedures. Keep this manual safe and
dry for future reference.
Advertisement
Related Manuals for Bonny Doon 55 ton Pro
Summary of Contents for Bonny Doon 55 ton Pro
- Page 1 Bonny Doon 55 ton Pro Press Operators Manual READ ALL SAFETY, ASSSEMBLY AND OPERATING INSTRUCTIONS BEFORE ASSEMBLING OR OPERATING THE PRESS. FAILURE TO DO SO CAN RESULT IN SERIOUS or LIFE-THREATENING INJURIES. Save this manual: Keep this manual for the safety warnings and precautions, assembly, operating, inspection, cleaning and maintenance procedures.
- Page 2 55 Ton Pro Owners Manual and Safety Instructions READ ALL SAFETY, ASSSEMBLY AND OPERATING INSTRUCTIONS BEFORE ASSEMBLING OR OPERATING THE PRESS. FAILURE TO DO SO CAN RESULT IN SERIOUS or LIFE-THREATENING INJURIES. Save this manual: Keep this manual for the safety warnings and precautions, assembly, operating, inspection, cleaning and maintenance procedures.
-
Page 3: Shipping Crate
You will need to ship the ram back to the factory for new seals every 5- 10 years depending upon use. It must be shipped in this crate. Figure 2 Figure 1 1. 55 Ton Pro press frame, ram, and polycarbonate safety shields 2. Universal Tooling Plate (UTP) 3. 10’ remote switch 4. - Page 4 Figure 5 Figure 4 The 55 ton pro is shipped with the UTP (1) in place on the ram’s head. It is used for most applications. If the UTP is ever removed for other applications you must insure that the steel ram puck (2) is in place at all times. It can be used alone or with the UTP but the puck must always be in place at the head of the ram.
- Page 5 Figure 10 Figure 11 The 55 ton Pro shown with UTP and 5” diameter hard steel platen and standard tooling adapter. Use the UTP as a platen for pushing generic tooling as shown in Figure 10, or install the tooling adapter (Fig3, #8) for use with 1”...
- Page 6 Safety concepts to fully understand before using the 55 Ton Pro press. The 55 ton press has almost 3 times the power and force available compared to the standard 20 ton press. Caution must be used at all times when operating this press.
- Page 7 tends to produce a sliding failure on a material along a plane that is parallel to the direction of the force. When a paper is cut with scissors, the paper fails in shear. Fracturing: This type of deformation is also irreversible. A break occurs after the material has reached the end of the elastic, and then plastic, deformation ranges.
- Page 8 Above is an example of forces applied to 1215 alloy steel. All samples were 1” diameter X 1” tall. #1 is unpressed, #2 55 tons, #3 70 tons, #4 100 tons. This sample of steel went beyond its yield strength at approximately 25 tons. Above is an example of forces applied to 360 alloy brass.
- Page 9 Tips for Using your Hydraulic Press Always keep the Polycarbonate safety doors in place. ALWAYS WEAR SAFETY GLASSES OR A FACE SHIELD. Things can always break under the pressures that you are working with. Do not use small daps or punches with urethane pads, it ruins the pad by cutting it, and the punch can eject out of the press if pressure was excessive.
