Patriot 245C Owner's Manual

Seed tender
Hide thumbs

Advertisement

Quick Links

Download this manual
Patriot 245C Seed Tender
TM
Owner's Manual
Manufactured by
Minden Machine Shop Inc.
1302 K Road
Minden, NE 68959
308-832-0220
www.patriotequip.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the 245C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Patriot 245C

Summary of Contents for Patriot 245C

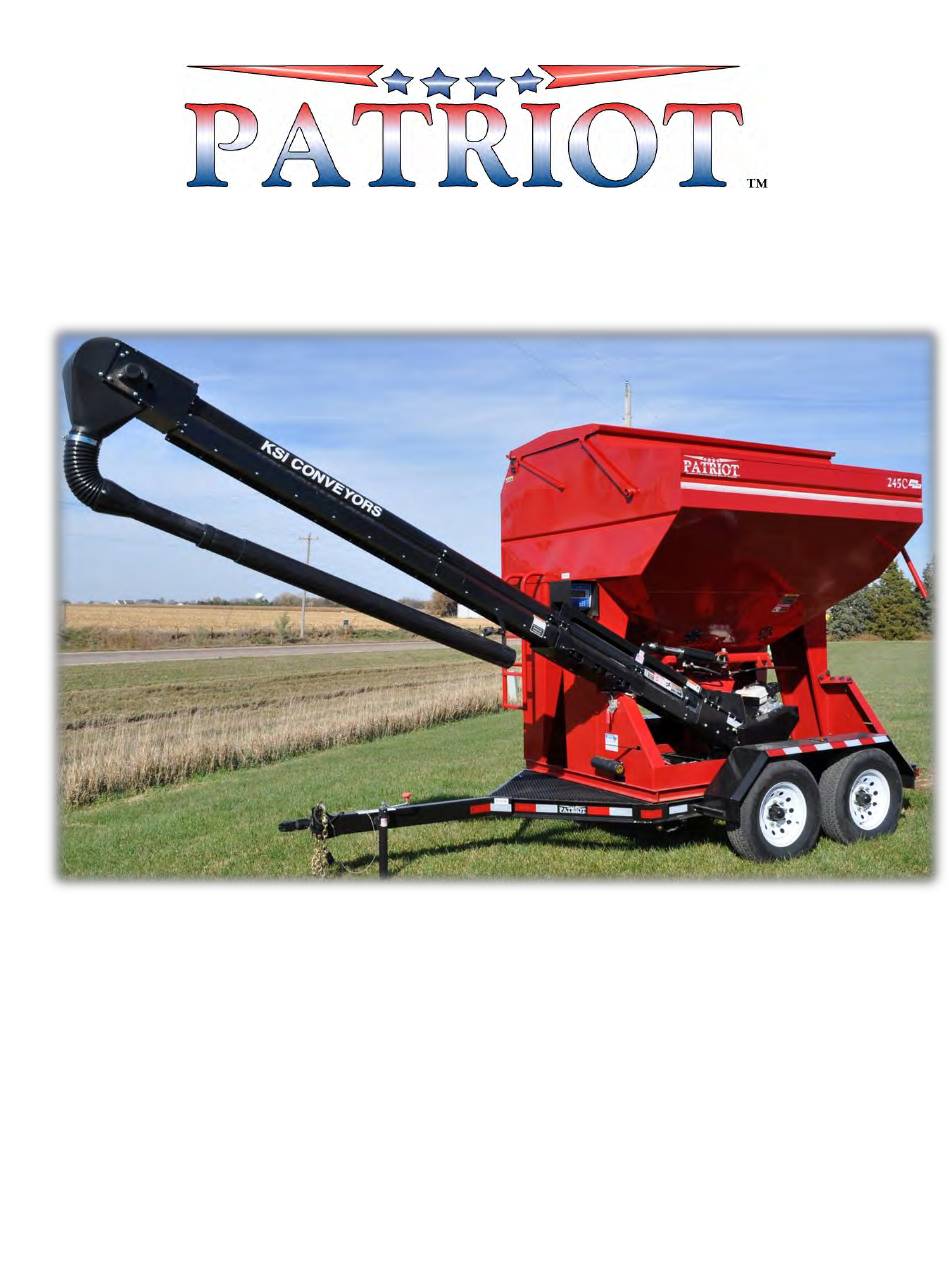

  • Page 1 Patriot 245C Seed Tender Owner’s Manual Manufactured by Minden Machine Shop Inc. 1302 K Road Minden, NE 68959 308-832-0220 www.patriotequip.com...
  • Page 2 TABLE OF CONENTS Introduction Warranty Warranty Registration Tire Registration Safety Decals Seed Tender Dimensions Bolt Torque Tables Operating Procedures Lubrication Troubleshooting Tracking the Belt Highway and Transport Operations Maintenance Operating and Adjustment Variable Speed Throttle Actuator General Trailer Maintenance Parts Diagrams Electronics 245 Conveyor Manual V24.1...
  • Page 3 The Patriot Seed Tender serves as a bulk transfer system for seed and other dry flowable products. It allows the user to move their product from point A to point B via the Patriot Seed Tender on a trailer. This process accelerates delivery and handling time.
  • Page 4 Reference Numbers and Date of Purchase Seed Tender Serial Number: __________________________________ Date of Purchase: ________________________________ Trailer Serial Number: __________________________________ Date of Purchase: ________________________________ 245 Conveyor Manual V24.1...
  • Page 5 Minden Machine Shop Inc LIMITED WARRANTY Minden Machine Shop Inc warrants all products manufactured by it to be free of defect in material and workmanship for a period of one (1) year from the date of purchase. This Minden Machine Shop Inc. warranty does not cover: Parts and accessories supplied by Minden Machine Shop Inc.
  • Page 6 WARRANTY REGISTRATION To register equipment, or file a claim, copy and paste the words on this page into an email or word document, fill out the appropriate information completely, and email it to larry@mindenmachine.com with the subject as EQUIPMENT WARRANTY, or fill it out and fax it to 308-832-1340.
  • Page 7 CLAIM FILE Defect: 245 Conveyor Manual V24.1...
  • Page 8 TIRE REGISTRATION – ELECTRONIC In the event of a tire recall, it is important to have the tire purchaser’s information on file to be able to replace the tires immediately. To register the tires electronically please go to the following website: https://www.taskmastercomponents.com/ Scan the QR code to the left to be taken directly to the Taskmaster website...
  • Page 9 245 Conveyor Manual V24.1...
  • Page 10 245 Conveyor Manual V24.1...
  • Page 11 245 Conveyor Manual V24.1...
  • Page 12 245 Conveyor Manual V24.1...
  • Page 13 245 Conveyor Manual V24.1...
  • Page 14 245 Conveyor Manual V24.1...
  • Page 15 245 Conveyor Manual V24.1...
  • Page 16 Patriot Package Decals ST-245C Driver Side Decal TS6054 Passenger Side Decal TS6053 Minden Machine Shop Inc. 1302 K Road Minden, NE 308-832-0220 245 Conveyor Manual V24.1...
  • Page 17 Model 0806 MINDEN Conveyor Installing Safety Signs KS-0030 245 Conveyor Manual V24.1...
  • Page 18 Model 0806 MINDEN Conveyor Installing Safety Signs KS-0017 KS-0006 245 Conveyor Manual V24.1...
  • Page 19 Model 0806 MINDEN Conveyor Installing Safety Signs KS-1419 KS-0008 KS-0007 245 Conveyor Manual V24.1...
  • Page 20 Model 0806 MINDEN Conveyor Installing Safety Signs Installing Safety Signs KS-0002 KS-0001 KS-0015 245 Conveyor Manual V24.1...
  • Page 21 245 Conveyor Manual V24.1...
  • Page 22 245 Conveyor Manual V24.1...
  • Page 23 245 Conveyor Manual V24.1...
  • Page 24 245 Conveyor Manual V24.1...
  • Page 25 245 Conveyor Manual V24.1...
  • Page 26 245 Conveyor Manual V24.1...
  • Page 27 245 Conveyor Manual V24.1...
  • Page 28 245 Conveyor Manual V24.1...
  • Page 29 245 Conveyor Manual V24.1...
  • Page 30 245 Conveyor Manual V24.1...
  • Page 31 245 Conveyor Manual V24.1...
  • Page 32 245 Conveyor Manual V24.1...
  • Page 33 Torque Data for Standard Nuts, Bolts, and Capscrews Tighten all bolts to torques specified in chart unless otherwise noted. Check tightness of bolts periodically, using bolt chart as guide. Replace hardware with some grade bolt. Note: Unless otherwise specified, high-strength Grade 5 hex bolts are used throughout assembly of equipment. Bolt Torque for Standard Bolts Grade 2 Grade 5...
  • Page 34 OPERATING PROCEDURES Operation Recommendations  One person must be in a position to monitor the operation of the conveyor at ALL times. That person should visually inspect the conveyor before and during operation and be alert to any unusual vibrations, noises, and loosening of any fasteners.
  • Page 35 OPERATING GUIDELINES The Patriot Seed Tender is designed to safely and efficiently transport bulk seed to the field to be filled into your planter or drill. Following all safety and operating guidelines should ensure many years of safe and affordable use.
  • Page 36  Do not use the unit until you are sure that the area is clear, especially of children and animals.  Because it is possible that this equipment may be used in dry areas or in the presence of combustibles, special precautions should be taken to prevent fires and firefighting equipment should be readily available.
  • Page 37 SHUTDOWN Normal Shutdown When shutting down the conveyor to ready for transportation, make certain that the hopper and conveyor are empty before stopping the unit. Before positioning the conveyor, the power source needs to be turned off. Emergency Shutdown  If you have to immediately shutdown the conveyor under load, be sure to disconnect and lockout the power source.
  • Page 38 Conveyor Belt Care  It is recommended that the conveyor belt be washed off and the tail end be cleaned out at the end of the season. This will help prevent material residue from building up and causing damage to the belt. ...
  • Page 39 Lubricants for Patriot Seed Tenders Seed Tender Lubricants Equipment Lubricant Type Quantity Engines 0.63 quart Honda GX160 SAE 10W-30 1.16 quarts Honda GX270 SAE 10W-30 Kohler Pro 10W-50 Synthetic 0.63 quart Kohler CH255 or SAE 10W-30 Kohler Pro 10W-50 Synthetic 1.16 quarts...
  • Page 40 Troubleshooting Problem Possible Cause Solution The conveyor is A. Damage can occur to the A. It may be necessary to remove the vibrating belting causing a noise. belting for inspection. Damage usually is caused from foreign material being run through the conveyor B.
  • Page 41 Tracking the Belt 1. Basic rule: the belt moves toward the end of the roller that it contacts first. 2. Rollers must be square with the housing and parallel to each other. 3. Belt tension must be great enough to prevent slippage, tension to10-13 ft.-lbs. on adjustment bolts. Caution: Make sure everyone is clear of machine before running.
  • Page 42 HIGHWAY AND TRANSPORT OPERATIONS Always drive at a safe speed relative to local conditions and ensure that your speed is low enough for an emergency stop to be safe and secure. Keep speed to a minimum. Reduce speed prior to turns to avoid the risk of overturning. Avoid sudden uphill turns on steep slopes.
  • Page 43 Maintenance WARNING! WARNING Keep all safety shields and devices in place. Never clean, adjust or lubricate a machine that is in operation. Make sure there is plenty of ventilation. Never operate the engine in an enclosed building. The exhaust fumes may cause asphyxiation. Always use the proper tools or equipment for the job at hand.
  • Page 44 2. Keep all guards and shields in place. Replace any that are damaged or lost. 3. The Patriot Seed Tenders are well made and we are proud of our line of equipment. We would like you, as our customer, to do your part in using caution and good judgment in using the equipment as well as any other machinery.
  • Page 45 GENERAL TRAILER MAINTENANCE BRAKE ADJUSTMENT Brakes should be adjusted (1) after the first 200 miles of operation when the brake shoes and drums have “seated,” (2) at 3000 mile intervals, (3) or as use and performance requires. The brakes should be adjusted in the following manner.
  • Page 46 Inspections Inspect front hitch for wear, replace if wear prevents for correct coupling if ball hitch or oblong  hole for trailer hitch pin. Check the trailer frame for cracks and/or deformities and have them repaired.   Inspect lights and repair/replace if broken or damaged. ...
  • Page 47 245 Conveyor Parts DETAIL D SCALE 1 / 20 105 110 111 DETAIL C DETAIL A SCALE 1/20 SCALE 1/10 DETAIL B Minden Machine Shop Inc. SCALE 1/10 1302 K Road Minden, NE 308-832-0220 245 Conveyor Manual V24.1...
  • Page 48 245 Conveyor Part List 245 Conveyor Part List ITEM PART NUMBER DESCRIPTION ITEM PART NUMBER DESCRIPTION ST-245D-A0002 245 Welded Body W1/4F Plain Washer ST-CP-A0035 Lower Pivot Mount W1/4L Lock Washer ST-CP-A0034 Motor Mount Weldment B1/4x0.75 Hex Bolt Plain Washer ST-245D-P0036 245 Gate W5/16F ST-245D-P0037...
  • Page 49 Seed Tender Conveyor Assembly Parts List ITEM PART NUMBER DESCRIPTION S3000 6"Conveyor Assembly ST-CP-A0031 Handle Weldment ST-245D-P0059 Angle Flap Mount Front ST-245D-P0060 Angle Flap Mount Rear ST-CP-A0032 Transport Latch Weldment Minden Machine Shop Inc. ST-CP-A0036 6IN Spout Mount 1302 K Road Minden, NE 308-832-0220 ST-CP-P0132 Spout Mount...
  • Page 50 Conveyor Parts List Parts List ITEM PART NUMBER DESCRIPTION ST-CP-A0035 Lower Pivot Mount Motor Mount ST-CP-A0034 S3006 Turntable Washer P1001; Sheave Pully H1000; H1101 P1000 12" Pulley ST-CP-A0037 Cylinder Base Pivot ST-CP-A0030 KSI Conveyor S4601 Honda Motor 5.5HP S4607 Wet Clutch ST-CP-A0038 Belt Shield N1/4N...
  • Page 51 245 Conveyor Manual V24.1...
  • Page 52 Seed Tender Flexible Spout Options 6" Flexible Poly Spouts 7" Flexible Poly Spouts Part Number Length Description Length Description Part Number Standard spout S5002 Standard spout S5502 Spout with no handle S5001 4'10" Spout with no handle S5501 4'10" Spout with handle for Spout with handle S5014 4'10"...
  • Page 53 ST-245T Bumper Pull Trailer Parts Parts List PART ITEM DESCRIPTION NUMBER ST-245T 245 ST Trailer TR3007 Rear Triple Light TR3008 License Plate Light TR3000 Amber Clearance Light TR3002 Red/Amber Fender Light RH TR3003 Red/Amber Fender Light LH TR1595 Safety Chain TR1610 15"...
  • Page 54 ST-245GT Goose Neck Trailer Parts Parts List PART ITEM DESCRIPTION NUMBER ST-245GT ST-245GT Gooseneck Trailer Assembly TR3007 Rear Triple Light TR3000 Amber Clearance Light License Plate Light TR3008 TR1595 Safety Chain TR3004 Curb Side Tail Light TR3005 Driver Side Tail Light TR3002 Red/Amber Fender Light RH TR3003...
  • Page 55 Axle Parts Axle Parts Inner Bearing Outer Bearing Axle Size Axle PN Grease Seal Inner Race Outer Race 3500# TR1040 5 on 4.5 171255TB L-68149 L-68111 L-44610 L-44649 6000# TR1060 8 on 6.5 2233TBN 25580 25520 14276 14125A 7000# TR1074 8 on 6.5 22333TBN 25580...
  • Page 56 ELECTRONICS 245 Conveyor Manual V24.1...
  • Page 57 245 Conveyor Manual V24.1...
  • Page 58 110 Seed Tender Deck Mount Harness Trailer Plug Wires with 1/8" Spade Connectors 220 Trailer Harness Black White 245 Seed Tender Harness Blue Green Yellow Brown PN: TR1805 Blue Wires Bullet Socket Connectors Battery Breakaway Switch White Wire 1/4" Ring Terminal 2 Pin Connector A - Blue Wire...
  • Page 59 245 Conveyor Manual V24.1...
  • Page 60 245 Conveyor Manual V24.1...
  • Page 61 245 Conveyor Manual V24.1...
