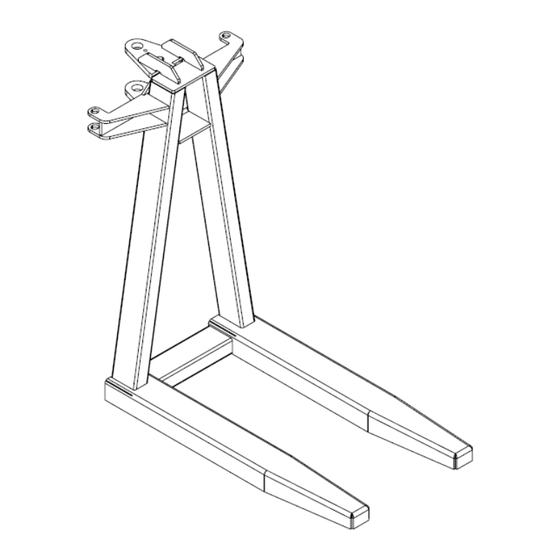

- Page 1 Pallet fork Type SL 1008 Type SLI 1008 User Manual English Issued by: Date: Approved by: Document name.: 30-07-2024 USER MANUAL - PALLET FORKS TYPE 1008 EN 02...
- Page 2 User Manual - Accessories Pallet fork - Type SL/SLI 1008 Table of contents 1 Introduction ............................1 1.1 Smartlift customer service ..................... 1 1.2 About the user manual ......................1 1.3 Type overview ........................2 1.4 Technical specifications ......................2 1.5 Nameplate ..........................
- Page 3 The SLI machines are based on the basic structure of a similar SL machine, but are built without the vacuum system in favour of specially adapted solutions. A Smartlift is a utility tool, designed for lifting glass with a controlled and fixed vacuum yoke. The machine's application possibilities can be increased by purchasing accessories like lifting hook and pallet forks, but the machine must not be compared to a crane or a forklift.
- Page 4 The user manual covers two types of pallet forks that can be used on the following machine models. Type Type Maschine models SL 1008 SLI 1008 SL 1009 SL 1008 New Gen SL 1008 SL 809 SL 808 SLI 1009 SLI 1008 New Gen 1.4 Technical specifications Type...
- Page 5 User Manual - Accessories Pallet fork - Type SL/SLI 1008 2 Safety instructions The machine may only be used by persons who have received competent training in the use of the machine's functions and who understand the risks involved in using the machine and any accessory.
- Page 6 User Manual - Accessories Pallet fork - Type SL/SLI 1008 3 Demounting vacuum yoke and mounting pallet fork (SL) 3.1 Demounting vacuum yoke (SL) In order to demount the vacuum yoke, the following steps must be completed in the indicated order.
- Page 7 User Manual - Accessories Pallet fork - Type SL/SLI 1008 3.2 Mounting pallet fork (SL) In order to mount the pallet fork, the following steps must be completed in the indicated order. Description Place the tilt head in the horizontal position (both directions) Place the pallet fork as shown Mount the shaft for yoke and secure...
- Page 8 User Manual - Accessories Pallet fork - Type SL/SLI 1008 4 Mounting pallet fork (SLI) In order to mount the pallet fork, the following steps must be completed in the indicated order. Description Mount the pallet fork on the quick shift Mount the locking shaft Mount the tractor split Issued by:...
- Page 9 Pallet forks cracks and the like. Perform function testing. 5.2 Spare parts If spare parts are needed, these can be ordered by contacting your nearest dealer or Smartlift Customer Service at tel. +45 97 72 29 11 or email: customerservice@smartlift.com.
- Page 10 The entire basic machine unit and any equipment model The accessory The accessory used on the machine The load The object to be lifted Abbreviation Meaning Smartlift Smartlift Industry Machines without vacuum Working Load Limit / Maximum lifting capacity Issued by: Date: Approved by: Document name.:...
- Page 11 Pallet fork - Type SL/SLI 1008 7.2 Declaration of conformity Manufacturer and bearer of responsibility for the compilation of technical files: Morten Rosengreen Smartlift A/S N.A. Christensensvej 39 DK - 7900 Nykøbing Mors Hereby declares that: Pallet fork Serial no.:...
- Page 12 User Manual - Accessories Pallet fork - Type SL/SLI 1008 N.A. Christensensvej 39, DK-7900 Nykøbing Mors Tel.: +45 97 72 29 11 E-mail: smart@smartlift.com www.smartlift.com...
