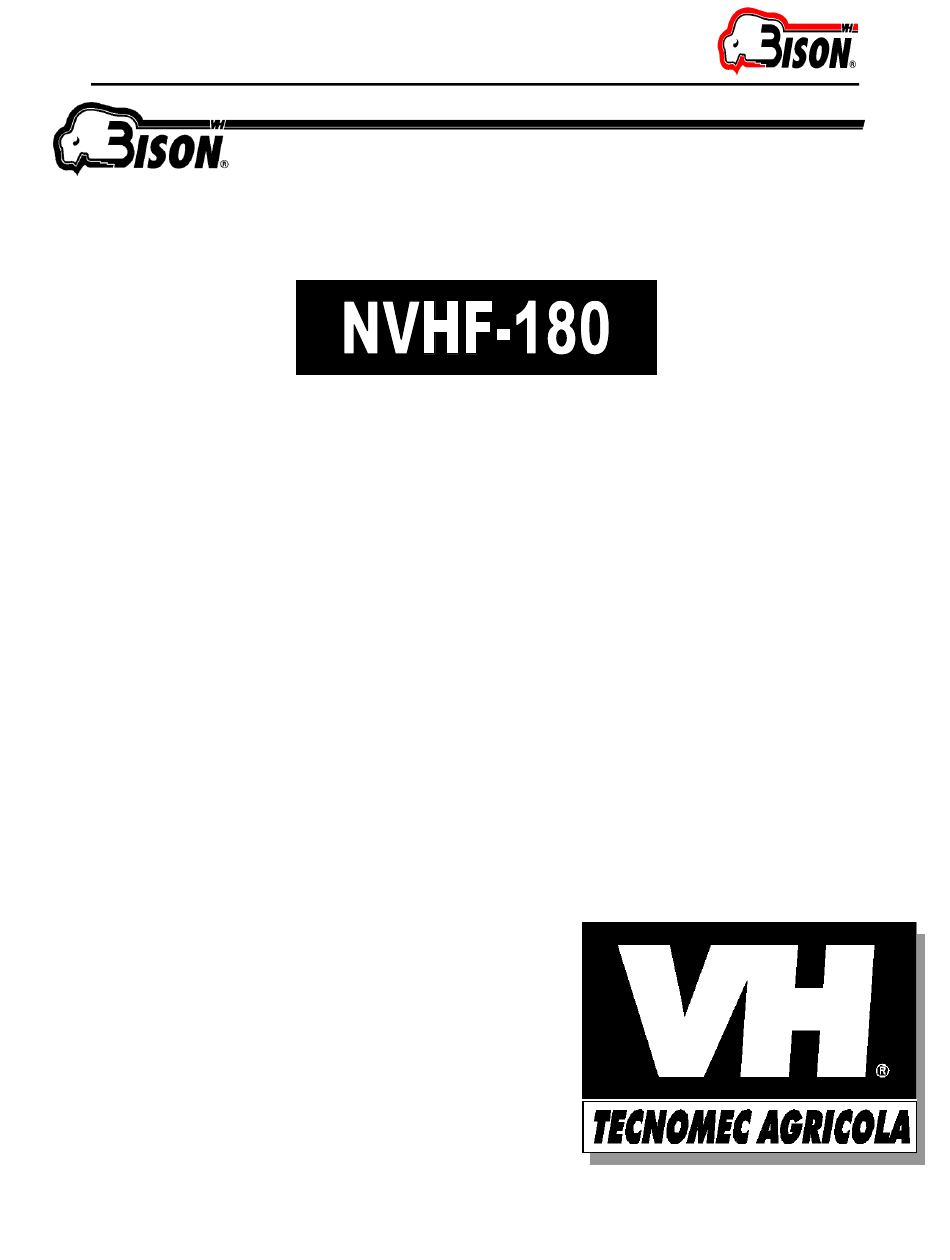

- Page 1 Revision B, October 1, 2002 NVHF-180 REAR BLADE REAR BLADE OPERATOR´S MANUAL ASSEMBLY / OPERATION / MAINTENANCE Page 1...
- Page 2 Paso Blanco Km. 2 #400, Colonia Vista Hermosa, C.P. 20905, Jesús María, Aguascalientes, Mexico. As an authorized TECNOMEC S.A. de C.V. dealer, we stock genuine BISON parts. Our trained service personnel are well informed on methods required to service BISON equipment, and are ready and able to help you so that you will obtain the ultimate in service and satisfaction.
-
Page 3: Table Of Contents
Revision B, October 1, 2002 NVHF-180 REAR BLADE NVHF-180 Operator’s Manual TABLE OF CONTENTS SECTION PAGE Customer’s Responsibility Under Warranty.................4 Limited Warranty......................…..5 Dealer Preparation Check List.....................6 Safety Precautions.......................7 Federal Laws and Regulations..................…..9 Sign-Off Form........................11 INTRODUCTION & DESCRIPTION Welcome Letter……………………………………………………………………………………12 Introduction...…........................13... -
Page 4: Customer's Responsibility Under Warranty
Revision B, October 1, 2002 NVHF-180 REAR BLADE RETAIL CUSTOMER´S RESPONSIBILITY UNDER THE TECNOMEC, S.A. de C.V. WARRANTY It is the retail customer and/or operator’s responsibility to read the operator’s manual, and to operate, lubricate, maintain, and store the product in accordance with all instructions and safety procedures. -
Page 5: Limited Warranty
Revision B, October 1, 2002 NVHF-180 REAR BLADE LIMITED WARRANTY TECNOMEC S.A. de C.V. warrants to the original purchaser of any new BISON equipment, purchased from any authorized TECNOMEC S.A. de C.V. dealer, that the equipment be free from defects in material and workmanship for a period of one (1) year under agricultural use. The obligation of TECNOMEC S.A. -
Page 6: Dealer Preparation Checklist
Revision B, October 1, 2002 NVHF-180 REAR BLADE DEALER PREPARATION CHECKLIST THE FOLLOWING CHECKLIST SHOULD BE COMPLETED BEFORE DELIVERING MACHINE. USE THE OPERATOR´S MANUAL AS A GUIDE. _____ Machine properly assembled. _____ All safety decals readable (See decal page.) _____ All bolts tightened to torque specifications given in torque chart. -
Page 7: Important Safety Precautions
Revision B, October 1, 2002 NVHF-180 REAR BLADE IMPORTANT SAFETY PRECAUTIONS TAKE NOTE! This symbol is used to call attention to safety precautions that should be followed by the operator to avoid accidents. When you see this symbol, carefully read the message that follows and heed its advice. - Page 8 Revision B, October 1, 2002 NVHF-180 REAR BLADE SAFETY PRECAUTIONS (CONTINUED) equipment. Avoid wearing loose clothing or jewelry that may catch and entangle on equipment moving parts. In addition to the design and configuration of equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence, and proper training of personnel in the operation, transport, maintenance and storage of equipment.
-
Page 9: Federal Laws And Regulations
Revision B, October 1, 2002 NVHF-180 REAR BLADE IMPORTANT FEDERAL LAWS AND REGULATIONS* CONCERNING EMPLOYERS, EMPLOYEES, AND OPERATIONS. *(This section is intended to explain in broad terms the concept and effect of the following federal laws and regulations. It is not intended as a legal interpretation of the laws and should not be considered as such.) - Page 10 Revision B, October 1, 2002 NVHF-180 REAR BLADE EMPLOYEE TRACTOR OPERATING INSTRUCTIONS: Securely fasten your seat belt if the tractor has a ROPS. Where possible, avoid operating the tractor near ditches, embankments, and holes. Reduce speed when turning, crossing slopes, and on rough, click, or muddy surfaces.
-
Page 11: Sign-Off Form
Revision B, October 1, 2002 NVHF-180 REAR BLADE SIGN-OFF FORM TECNOMEC AGRICOLA S.A. de C.V. follows the general Safety Standards specified by the American Society of Agricultural Engineers (ASAE) and the Occupational Safety and Health Administration (OSHA). Anyone who will be operating and/or maintaining this equipment must read and clearly understand ALL safety, operating, and maintenance information presented in this manual. -
Page 12: Introduction & Description Welcome Letter
Revision B, October 1, 2002 NVHF-180 REAR BLADE Dear Customer, Thank you for choosing a BISON implement. We would like to take this opportunity to express the importance of us having your warranty registration form. Please fill it out and send it to: TECNOMEC AGRICOLA S.A. -
Page 13: Introduction
Revision B, October 1, 2002 NVHF-180 REAR BLADE INTRODUCTION We are pleased to have you as a BISON customer. Your rear blade has been carefully designed to give maximum service with minimum downtime. This manual is provided to give you the necessary operating and maintenance instructions for keeping your rear blade in top operating condition. -
Page 14: Attaching Tractor
Revision B, October 1, 2002 NVHF-180 REAR BLADE Offset/Tilt Bolts Attaching to Tractor The blade should be placed on level ground. Place the tractor rockshift control in “position control” (non-floating) for attaching and detaching the rear mounted blade. “Draft control” or “position control” can be used while operating. -
Page 15: Angling
Revision B, October 1, 2002 NVHF-180 REAR BLADE CAUTION: USE SUITABLE MATERIAL TO SUPPORT AND PREVENT MAST BOOM FROM FALLING WHEN DETACHING BLADE. KEEP BODY, HANDS, AND FEET CLEAR OF IMPLEMENT. ADJUSTMENTS ANGLING: The design of these blades allows the blade to be angled for both forward and backward operation. -
Page 16: Maintenance
Revision B, October 1, 2002 NVHF-180 REAR BLADE MAINTENANCE Keep all nuts and bolts tight. Refer to Torque Chart for correct torque. Store the blade out of the weather when it is not in use. This prevents rusting. Inspect your blade periodically and replace any worn or broken parts in order to have your implement ready for use when needed. -
Page 17: Rear Blade Specifications
Revision B, October 1, 2002 NVHF-180 REAR BLADE Specifications Moldboard Width (ft.) Approximate Weight (lbs.) 2”x 5” grade 5 Center Bolt Moldboard Height & Thickness 12 1/2" x 1/4" Moldboard Cutting Edge 1/2" x 6" High Carbon Steel Blade Reversible, Interchangeable...
