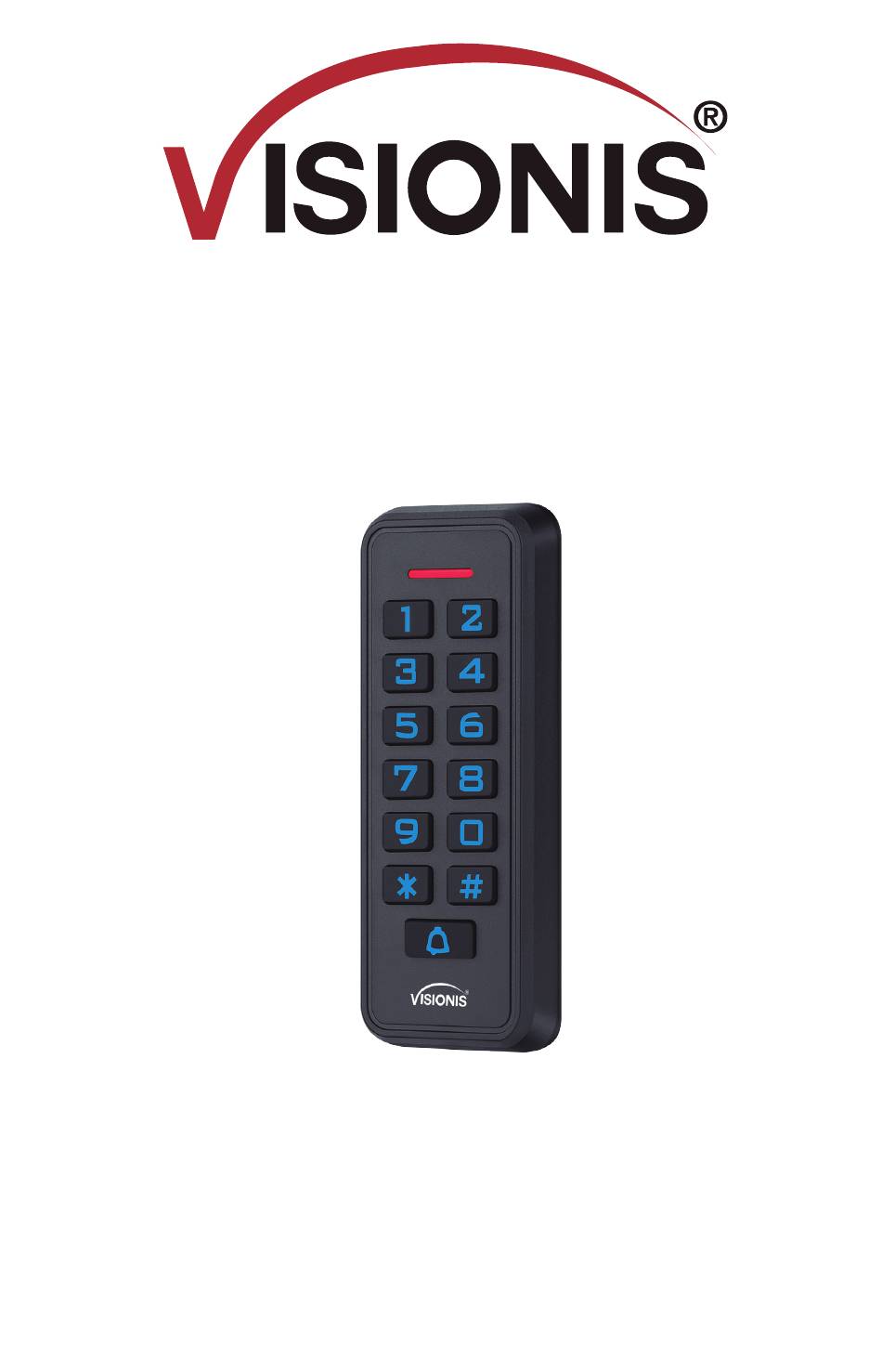

- Page 1 Access Control Outdoor IP68 Weatherproof Card Reader / Keypad Standalone No Software Wiegand 26 Bits Delay and On/Off Toggle Mode 125KHz EM Cards 2,000 Users User Manual VIS-3008 www.visionistech.com...
- Page 2 1. Description The Visionis 3008 is a black weather-proof keypad/reader that is standalone, hardwired, and designed for access control. The keypad provides proximity entry for up to 2000 users. This keypad is standalone but it can also work with Wiegand protocol controllers.
- Page 3 4. Sound and Light Indication Operate Status LED Light Color Buzzer Standby Red flash Keypad Beep Green Operation Successful Beep Operation Failed Beep-Beep-Beep Entering Programming Red Beep Programmable Status Orange Beep Exit Programming Flash Red Slowly Door Opening Green Beep Alarm Flash Red Quickly Alarm...
- Page 4 6. Advance Setting 8 or 10 When the card is broken or get lost, you can delete the user by card number...
- Page 6 Standalone access control mode Data Backup: Example: Backup the data of machine A to machine B (Must close the Keypad output, ( The green wire and white wire of machine A connects with the green wire and white wire of machine B correspondingly, set B for receiving mode at first, then set A for sending mode, the indicator light turns green flash during the data backup, data backup is successful when indicator light turns red.
- Page 7 7. Revise user PIN code (Don’t need go to programming state) Revise user PIN code by card Revise user PIN code by master code 8.To Reset to Factory Default and Match Master Card Reset to Factory Default Method 1: Power off, power on, when the indicator light turn orange, press the # key, swipe the first card as for master add card, swipe the second card as for master delete card, on hearing tick tick-tick sound thrice, the master code has been reset to 999999, factory default settings is successful.
- Page 9 12.1 Diagram Common Power Supply 12.2 Diagram Special Power Supply...
- Page 10 12.3 Diagram Reader Mode 12.4 Connection with Accessories: Doorbell and Exit Button...
- Page 11 12.5 Connection with Accessories: Doorbell, Exit Button and Wireless Receiver 12.6 Connection with Accessories: Doorbell, Exit Button, and PIR...
- Page 12 12.7 Connection with Access Control Panel 13. Packing List...
