ASSEMBLY INSTR CTIONS
Thank you for purchasing this product. Be sure to check all packing materials carefully for small
parts that may have come loose inside the carton during shipment.
Before You Assemble: Please read all instructions carefully before beginning assembly. It is
recommended that 2 people work together during assembly to prevent personal injury and to
ensure that heavy or cumbersome parts are not damaged during the process.
CA TION: For your safety, this product requires two people to lift.
PLEASE NOTE: Screws may loosen over time with use and periodically require tightening.
6 5
5
1/ 2 CO NTER HEIGHT TABLE PART LIST
PART
DRAWING
A
B
C
DESCRIPTION
QTY
Table Top
1
Table Legs
4
Bottom Shelf
1

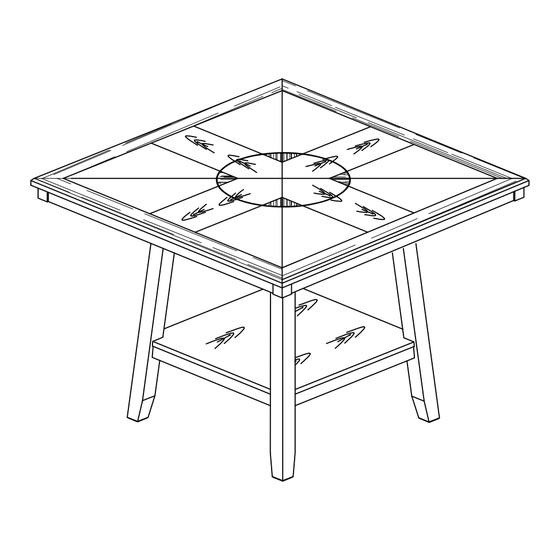

COMPLETED CO NTER HEIGHT TABLE ASSEMBLY
Page 1 of 3
ITEM
CO NTER HEIGHT TABLE
PART
DRAWING
H1
Allen Bolt (Ø5/16'' *65 MM)
Hex Nut (Ø5/16'')
H2
H3
Lock Washer (Ø5/16'')
H4
Flat Washer (Ø5/16'')
H5
Open Wrench (12mm)
H6
Allen Key (4mm)
6 5
5
1/ 2 CO NTER HEIGHT TABLE
6 5
5
DESCRIPTION
TEAM
LIFT
For Your Safety!
MADE IN VIET NAM
1/ 2
QTY
4
8
12
12
1
1
