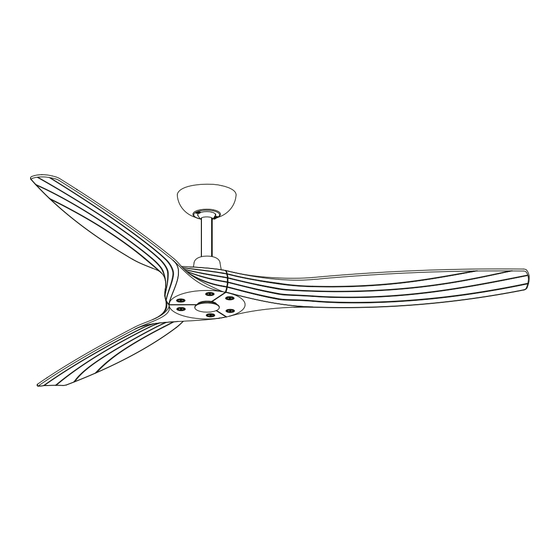

Finishes
Refs
Acabados
33511
33511WT
Dark Brown +.Dark
Walnut
33511WW
Marrón Oscuro + Nogal
Oscuro
33511WP
33511-110

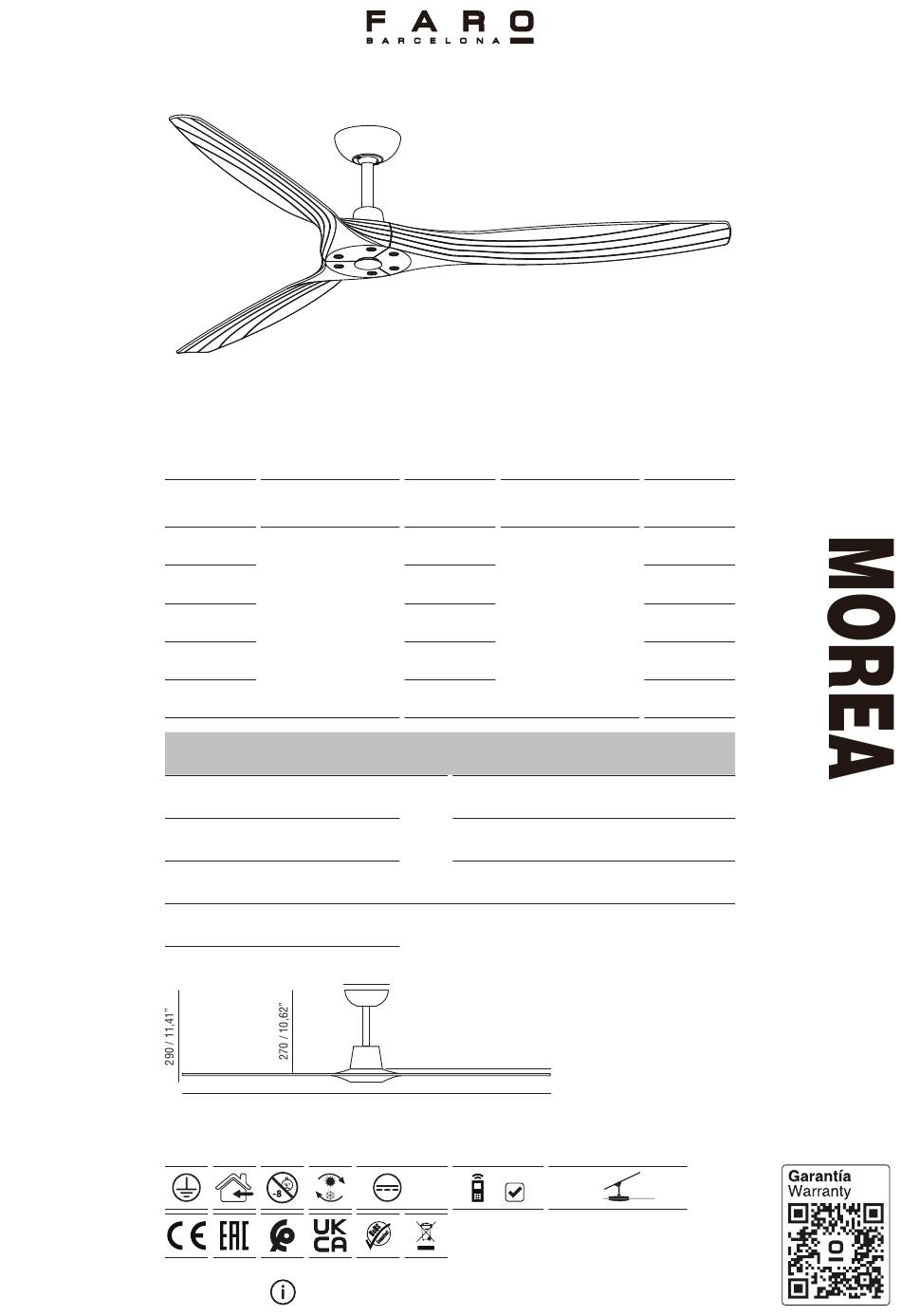

Common specifications
Especificaciones comunes
Speeds
6
Velicidades
Max power used
W 38
Potencia max utilizada
Consumption in standby
W 0,5
Consumo en espera
Wight
Kg 5,20
Peso
Lb 11,46
Sizes mm/inch
Medidas mm/inch
Ø1.520 / 60,00"
Assembly and installation see on page 07.
Método de montaje e instalación ver en pag 07 .
Finishes
Refs
Acabados
33519
33519WT
Dark Brown + Dark
Walnut
33519WW
Marrón Oscuro + Nogal
Oscuro
33519WP
33519-110
Maximum air flow
Caudal máximo
Max. RPM
Max. RPM
Service Value
Valor de Servicio
Ø150 / 5,9"
750 / 29,52"
DC
RF
Power
Alimentación
V 220-240~
Hz 50/60
V 220-240~
Hz 50/60
V 100-240~
Hz 50/60
V 100-240~
Hz 50/60
V 100-120~
Hz 50/60
m
3
min 211,7
CFM 7.473,0
195
(m3/min)/W 9,06
max 15º
