Figure A-3. Connection
Monitor window
You will see an icon to the left of the connection name:
Š
A indicates that the connection has a Phase 2 IPSec SA, or both
key
a Phase 1 and Phase 2 SA. When there is a single Phase 1 SA to a
gateway that is protecting multiple Phase 2 SAs, there will be a
single Phase 1 connection with the SA icon and individual Phase 2
connections with the key icon listed above that entry.
Š
An indicates that the connection has only a Phase 1 IKE SA.
SA
This occurs when connecting to a secure gateway tunnel or when
a Phase 2 IPSec SA fails to establish or has not been established
yet.
Š
A moving beneath the key icon indicates that the client
black mark
is processing secure IP traffic for that connection.

More about the Connection Monitor

Global Statistics are not real-time operations; they are updated every
five seconds.
Dropped Packets includes packets from connections that are
configured as blocked.
Remote Modifier is either the remote party subnet mask or the end of
the address range when IP Address Range is selected for the Remote
Party Identity and Addressing ID Type.

To view the details

To see the details about a connection, click

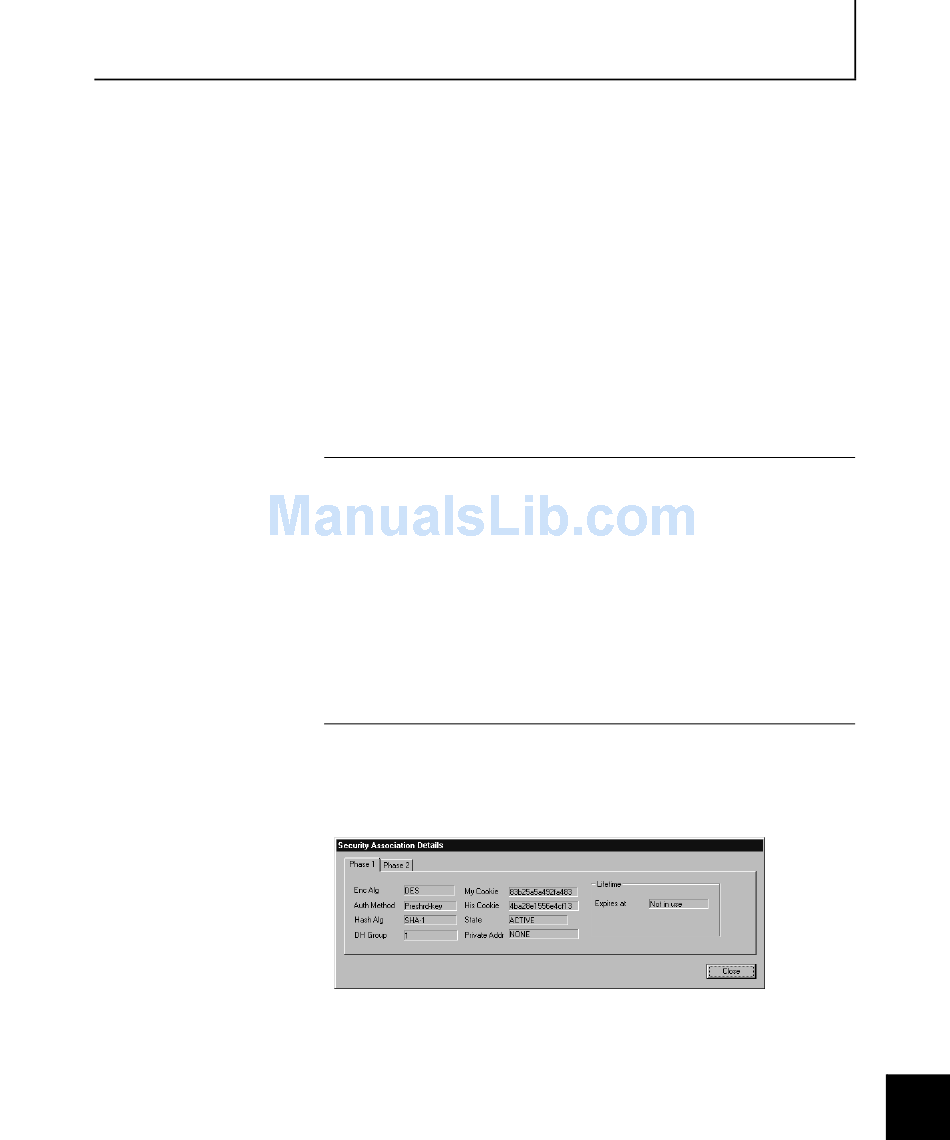

Association Details window appears as shown below.
You will see a Phase 1 tab and/or a Phase 2 tab; these tabs indicate
Soft-PK Connection Monitor
. The Security
Details
