ASSEMBLY INSTRUCTIONS
SKU: VB60
Description
Dimension
Product
Cube Size
: 62.7 IN x 17.5 IN x 2.9 IN
Cube Size
: 46 IN x 3.1 IN x 1.5 IN
Cube Size
: 20 IN x 17.5 IN x 7.2 IN

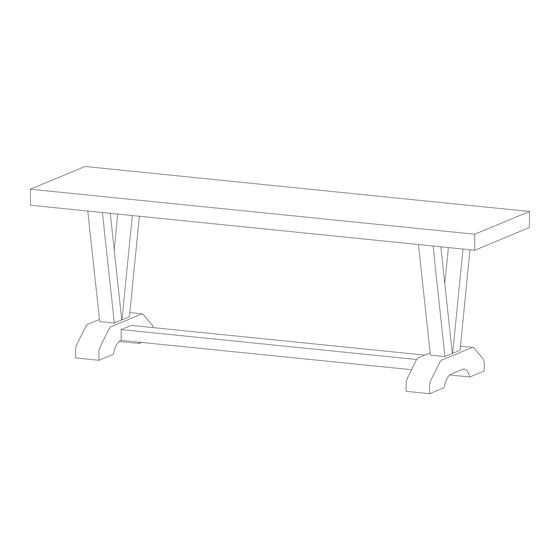

V-Style 60 in long Dining Bench
:
V-Style 60 in long Dining Bench
: 60"Wx15"D x18"H
(TOP)
(CROSS BAR)
(LEG)
- 1 -
175 Southbelt Industrial Dr,
Houston, TX 77047
Email:sales@eastwestfurniture.net
NW: 18.7
GW: 22
NW: 3.3
GW: 4.4
NW: 9.9
GW: 12.1
LBS
LBS
LBS
LBS
LBS
LBS
Advertisement
Related Manuals for East West Furniture VB676
Summary of Contents for East West Furniture VB676
- Page 1 ASSEMBLY INSTRUCTIONS SKU: VB60 175 Southbelt Industrial Dr, Houston, TX 77047 Email:sales@eastwestfurniture.net Description V-Style 60 in long Dining Bench Dimension : 60"Wx15"D x18"H Product Cube Size : 62.7 IN x 17.5 IN x 2.9 IN NW: 18.7 (TOP) GW: 22 Cube Size : 46 IN x 3.1 IN x 1.5 IN NW: 3.3...
- Page 2 BEFORE ASSEMBLY Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for durability. Please take the time to read and follow the assembly instructions carefully. Be sure to check all packing material carefully for small parts which may have come loose inside the carton during shipment. Please separate, identify, and count all parts and metal hardware.
- Page 3 STEP 1 Attach legs (B) to the Cross bar (C) with Bolts (1) and washers (3), (4). Tighten with the Allen Key (5). Note: DO NOT tighten any bolt until the bench is fully assembled. STEP 2 Attach Legs (on step1) to the Top (A) with Bolts (2) and washers (3), (4). Tighten with the Allen Key (5). Note: Tighten the all bolts on the Step 1.
