milleteknik FLX M Installation Manual

Cassette for sentrion s4

Advertisement

Quick Links

EN
FLX M Cassette For Sentrion S4
52 137 15

Advertisement

loading
Need help?

Need help?

Do you have a question about the FLX M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for milleteknik FLX M

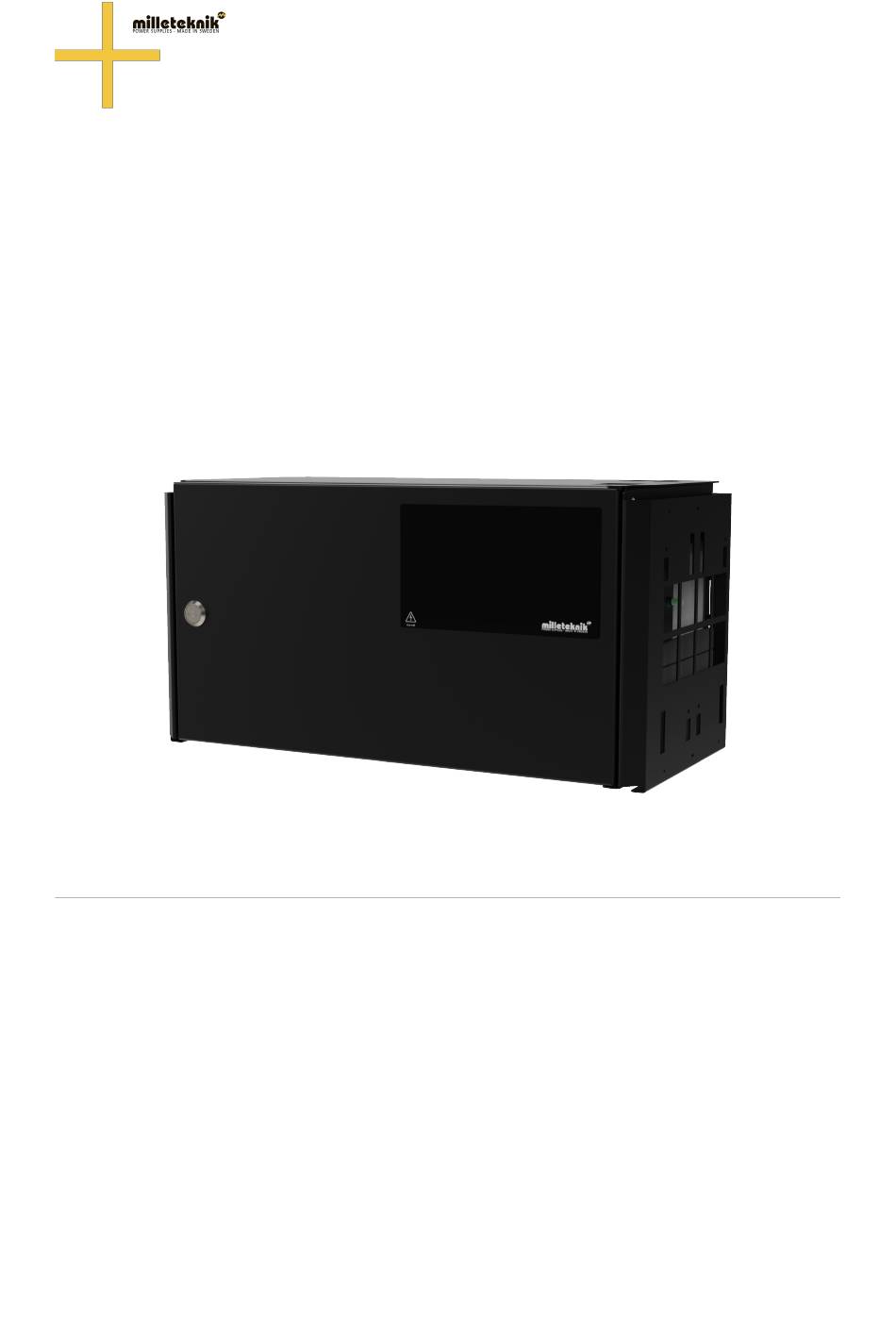

  • Page 1 FLX M Cassette For Sentrion S4 52 137 15...
  • Page 2 350-263 Publication date 2023-11-29...
  • Page 3 8.1.10. Guarantee ......................12 8.1.11. Manufacturing, lifespan, environmental impact and recycling ....... 12 8.1.12. Link to the latest information ................12 8.1.13. About this information ..................12 1. IF FLX M housing with insert for accessories for Sentrion S4. 2. PRODUCT IMAGE...
  • Page 4 3. NAME, ARTICLE NUMBER AND E-NUMBER Name Item number E-number (sv) FLX M Cassette for Sentrion S4 FM010000000FLX01 52 137 15...
  • Page 5 4. WHAT COMES WITH IT? Explanation Pouch. 10 pieces of screw, M5x6 and lock nut, M5.
  • Page 6 Tamper switch, 12 V or 24 V. Four attachment pads. 20 spacers, M3, 10 mm. 40 pieces TT screw M3x6. Plate insert. FLX M tin box. Bracket for wall or 19" rack. 5. OVERVIEW CONFIGURATIONS Figure 1. Configuration 1 Image of how components can be assembled.
  • Page 7 Figure 2. Configuration 2 Image of how components can be assembled. Explanation Explanation Explanation Both configurations configuration 1 configuration 2 Distances. Fan. Enclosure. Cassette plate. Cable channel. DIN rails. Tamper contact, place for. Ventilation grille. Sheet metal cable channel. Cable entries.
  • Page 8 6. INSTALL THE SUPPLIED COMPONENTS Figure 3. Mount configuration 1 Explanation Cable channel is screwed into sheet metal. Mount spacers and screw on plate. Distances are screwed from both sides. Use two screws per spacer. The tamper contact is pressed onto a sheet tongue in the enclosure. Ventilation grilles are placed in holders and screwed into sheet metal.
  • Page 9 Explanation Fan is screwed with four sheet metal screws. Mount DIN rails with four screws and nuts in each DIN rail. Ventilation grilles are placed in holders and screwed into sheet metal. 7. ENCLOSURES 7.1. Bracket Brackets are used so that the unit can be mounted on a wall or in a 19 "rack. Explanation Clip in bracket that secures the bracket to the housing.
  • Page 10 Figure 5. FLX M - mount brackets Left bracket facing the front for mounting in a 19 "rack. Right bracket facing the back for wall mounting. IMPORTANT Leave 100 mm free around the air vents. 7.3. Mounting Use the appropriate screw for mounting on a wall or in a 19" rack. Screws for mounting on a wall or in a rack are not included.
  • Page 11 Box with insert for attaching accessories to DIN rail or insert. 8.1.6. Weight Name Net weight Weight incl. packaging FLX M Cassette for Sentrion S4 7.35 kg 8.25 kg 8.1.7. Installation requirements The device is intended for fixed installation. 8.1.8. Requirements that the product meets...
  • Page 12 8.1.11. Manufacturing, lifespan, environmental impact and recycling Manufactured by Milleteknik in Partille, Sweden. 8.1.12. Link to the latest information Products and software are subject to updates, you will always find the latest information on our website.
