milleteknik NEO FLX S Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EN
NEO FLX S
NEO FLX 24V 5A FLX S, NEO FLX 24V 10A FLX S

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NEO FLX S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for milleteknik NEO FLX S

Summary of Contents for milleteknik NEO FLX S

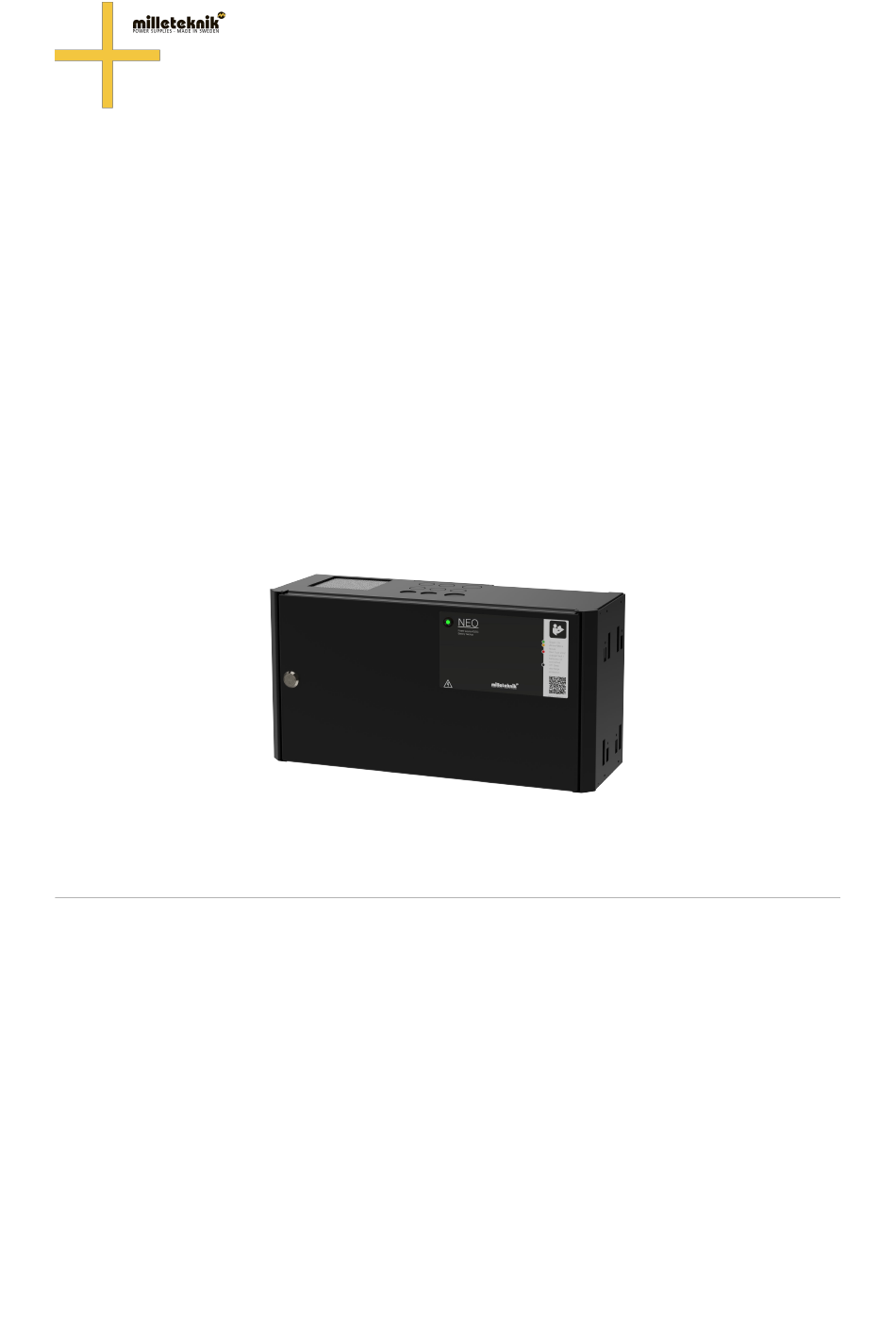

  • Page 1 NEO FLX S NEO FLX 24V 5A FLX S, NEO FLX 24V 10A FLX S...
  • Page 2 351-248 Publication date 2023-02-13 Abstract PCB: CEO3_uP...

  • Page 3: Table Of Contents

    Questions about product performance? ..............16 7.8.3. Contact us ......................16 7.8.4. Country of manufacture ..................16 7.8.5. Designed and produced by: Milleteknik AB ............16 7.9. Batteries - recommended, not included ................16 7.9.1. Batteries are not included they are sold separately ..........16 7.9.2.

  • Page 4: Component Overviews

    READ THIS FIRST! If possible, leave 100 mm of free space. The system is intended for use in a controlled indoor environment. Only authorized persons should install and maintain the system. It is the installer's responsibility to ensure that the system is suitable for its intended use.

  • Page 5: Enclosures

    Table 1. Component overview Number Explanation Cabinet in black powder-coated sheet metal. The power supply, location and type vary with configuration. Motherboard. Cable entries. Batteries. 2. ENCLOSURES 2.1. Bracket Brackets are used so that the unit can be mounted on a wall or in a 19 "rack. Explanation Clip in bracket that secures the bracket to the housing.

  • Page 6: Mounting

    Figure 1. FLX S - mount brackets Left bracket facing the front for mounting in a 19 "rack. Right bracket facing the back for wall mounting. IMPORTANT Leave 100 mm free around the air vents. 2.3. Mounting Use the appropriate screw for mounting on a wall or in a 19" rack. Screws for mounting on a wall or in a rack are not included.

  • Page 7: Connection Of Batteries In Flx S, Flx M And Flx L

    3.2. Connection of batteries in FLX S, FLX M and FLX L Battery wiring is mounted on the circuit board upon delivery. Pictures below only show how to connect wiring. Place the batteries in the cabinet with the battery terminals facing outwards. Connect the battery cable.

  • Page 8: Connect Alarm On P3

    Table 2. Connect in this order Explanation Connect alarm. Connect load. Connect batteries Connect mains. Figure 4. Description: CEO3 uP On PCB Explanation Indicator diode. Jumper for alarm control. P1:1-3 Mains connection. P2:1-2 Load output, + / -. P2:3-4 Load output, + / -. P3:1-3 Alarm output, NC, CO, NO.

  • Page 9: Connect Load

    4.3. Connect load Table 4. Load connections Circuit board number Explanation P2: 1 Connection for load 1 + P2: 2 Connection for load 1 - P2: 3 Connection for load 2 +. P2: 4 Connection for load 2 -. MAX CURRENT Maximum current must not be exceeded.

  • Page 10: Control Alarm Limit

    ELECTRICAL MAINS CONNECTION 230 V AC ON CIRCUIT BOARD Check that the marking on the circuit board matches the cable arrangement on the terminal block. 4.5. Control alarm limit Alarm for low battery voltage in battery operation can be controlled. By jumpering JU2, the limit for when the unit should give an alarm can be lowered.

  • Page 11: Alarm Displayed On Cabinet Door

    When operating system: If the indicator LED is off, deep discharge protection has come into force. 7. NEO PRODUCT SHEET 7.1. NEO Battery backup with more alarm functions Figure 6. NEO FLX S NEO FLX S is available in 24 V and can be mounted on a wall or in a 19" rack.

  • Page 12: Neo - Name, Article Number And E-Number

    7.1.3. Flexibility NEO FLX S can have an extra battery box. NEO FLX M and NEO FLX L with 1-4 extra battery boxes. NEO FLX M and NEO FLX L with battery shelves in 19 ”rack *. * The battery boxes and shelves are connected via a 9-pin connector.

  • Page 13: Expected Operating Time In The Event Of A Power Failure ( With New Batteries)

    7.3. Expected operating time in the event of a power failure ( with new batteries) 7.4. Circuit boards - Technical data 7.4.1. Technical data: CEO 3 Table 7. CEO3-ECO Info Explanation Article name CEO3-ECO Product description CEO 3 is the next generation circuit board for simpler battery backups. Advanced functions that were not previously possible in simpler battery backups are now available as standard.

  • Page 14: Power Supply

    FUSE REPLACEMENT WARNING (A) There is a risk of damage if the fuse is changed to a larger one than what the unit is delivered with. The function of the fuse is to protect the connected load and cables against damage and fire. It is not possible to change the fuse to a larger one to increase the power output.

  • Page 15: Technical Data Enclosures

    The product has a two-year warranty, from the date of purchase (unless otherwise agreed). Support during the warranty period can be reached at support@milleteknik.se or telephone, +46 31-34 00 230. Compensation for travel and / or working hours in connection with locating faults, installing repaired or...

  • Page 16: Support

    10 years after the date of purchase. Switching to an equivalent product may occur if Milleteknik deems that repair is not possible. Support costs may (at Milleteknik's discretion) occour after the warranty period has expired.

  • Page 17: Address And Contact Details

    * Design Life is the durability this year for unused battery. Environmental factors such as heat and load affect service life. Batteries that have a durability (+10 Design lLife) of 10+ years usually need to be replaced after 4-5 years. 8. ADDRESS AND CONTACT DETAILS Milleteknik AB Ögärdesvägen 8 B S-433 30 Partille...
  • Page 18 This page is intentionally left blank.
  • Page 19 This page is intentionally left blank.
  • Page 20 This page is intentionally left blank.

This manual is also suitable for:

Neo flx 24v 5a flx sNeo flx 24v 10a flx s
