superbrightleds TRIAC DMR-TE01-3WH User Manual

Important: Read all instructions prior to installation.

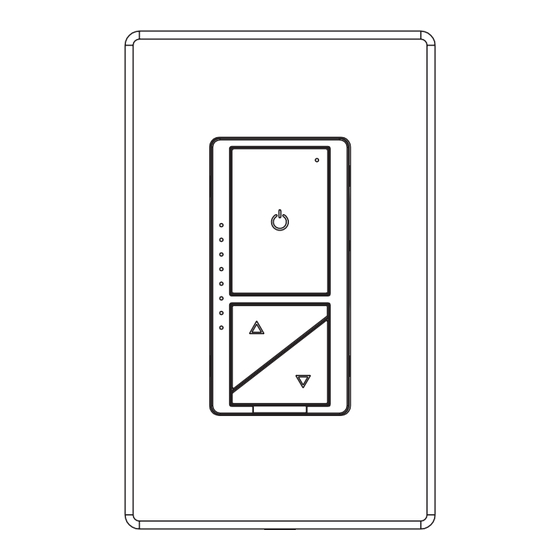

TRIAC Dimmer Switch
Specifications
Specifications
Rated Voltage
Rated Frequency
Incandescent: 15–600 W
Load Range
LED/CFL: 3–200 W
Dimming Method
Operating Temperature 32°–104° F(0°–40° C)
Humidity Range
Troubleshooting
Possible
Problem
Cause
lamp has
lights flickering a bad
connection
LED and CFL
incompatible
bulbs flicker at
trim setting
low end of the
and light
dimming range
circuit breaker
has tripped or
fuse burned
out
lights do not
lamp burned
turn on
out
connection
is not wired
correctly
bad electrical
connection
light does not
respond to
out of sync
controls properly
connection /
controls
Safety and Notes
WARNING AND CAUTION
• Risk of fire and electrical shock, the dimmer should be installed in accordance with
appropriate electrical codes and regulations.
• This product should be used together with an upstream air-gap switch.
• Turn power off at circuit breaker or fuse and test that power is off before installing.
• Once the dimmer is successfully installed, it is recommended to adjust the minimum
desired brightness level and set the maximum brightness to the desired range, then
test the ON/OFF switch to ensure the light is working after adjustments are completed.
• If you are unsure about any part of these instructions, consult a licensed electrician.
• To reduce risk of overheating and possible damage to other equipment, do not install
to control a receptacle, a motor-operated appliance or transformer-supplied appliance.
• Use with compatible dimmable LED, CFL, incandescent, or halogen bulbs only.
• When multiple bulbs are used with one dimmer, DO NOT mix bulb types. All bulbs must
be either LED, CFL, or incandescent. Using the same model of each bulb will enhance
dimmer performance.
• On Wi-Fi compatible model, input on the dimmer switch will override app controls.
120 VAC
INSTALLATION TOOLS
• Voltage tester, pliers, wire cutters, Phillips screwdrivers, electrical tape, measuring tools,
60 Hz
and more may be required for proper installation. Make sure all necessary tools are available
before beginning installation.
Phase-cut
FCC Compliance (Wi-Fi compatible model only)
This equipment complies with the FCC RF radiation exposure limits set forth for an uncontrolled
10–90% R.H.
environment. This equipment should be installed and operated with a minimum distance of 7.9
in. (20 cm) between it and any part of your body. Any changes or modifications to this unit not
expressly approved by the manufacture could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
Solution
two conditions: (1) This device may not cause harmful interference, and (2) This device must
accept any interference received, including interference that may cause undesired operation.
recheck
This equipment has been tested and found to comply with the limits for a Class B digital device,
connections
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
and check for
correct wiring against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
set the dimming
may cause harmful interference to radio communications. However, there is no guarantee that
trim adjustment
interference will not occur in a particular installation. If this equipment does cause harmful
to a higher level
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
reset breaker or
replace fuse
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
replace the lamp
connected.
• Consult the dealer or an experienced radio/TV technician for help.
check wiring
Mobile App (Wi-Fi compatible model only)
check electrical
connections,
On Wi-Fi dimmer switch (DMR-TE01-3WH-WIFI),
then if needed
The Smart Life or Tuya Smart apps can be used
remove supply
to control dimming function remotely and as part
power for a
of a smart home system. Download the app and
short time to
reset switch
follow in-app instructions to link your device and
dimmer switch. When prompted, press the power
button on the switch five times quickly to initiate
pairing. The status indicator will flash to indicate
the switch is in pairing mode.
