FS-mmW-3 MmWave Fall Sensor
The FS-mmW-3 is a fall detection sensor featuring mmWave Technology. Unlike classic fall detection solution that relies on a
wearable device to detect the fall itself, the mmWave fall sensor is a non-wearable device that can immediately detect a fallen
person as he/she changes from a standing position to a lying position.
The fall sensor is designed to be installed in corners of each frequently visited place such as bathroom, bedroom, porch steps
or anywhere people may easily fall down. It gives a typical detection area of 5m x 5m when mounted at a height of 2 meters
above the ground. There are 5 sensitivity levels for FS-mmW-3, which can be programmed on the Control Panel.
I
I
d
d
e
e
n
n
t
t
i
i
f
f
y
y
i
i
n
n
g
g
t
t
h
h
e
e

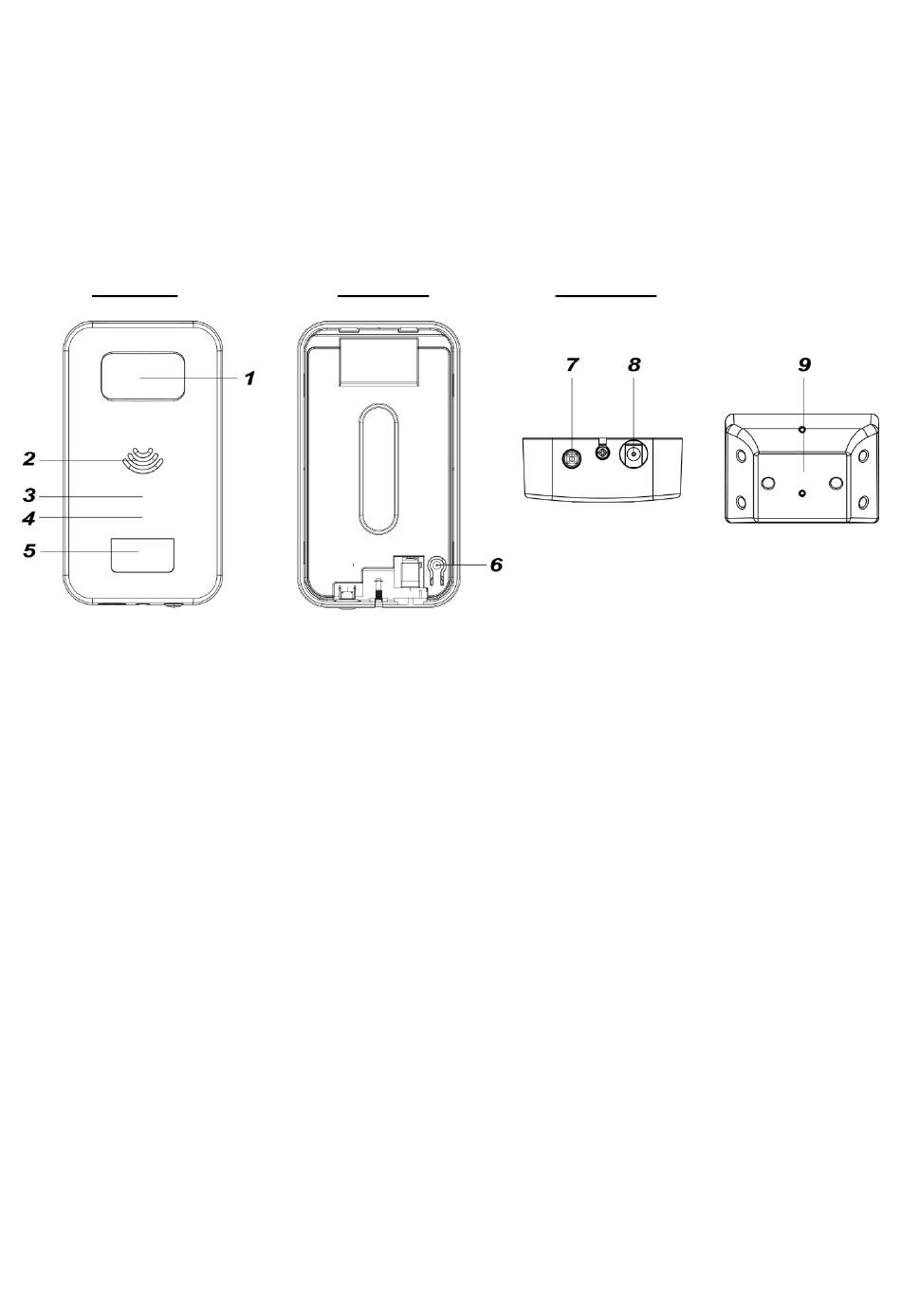

Front View
1. mmWave sensor
2. Buzzer
3. Green/Red LED indicator
The Green LED indicator is used to indicate the system status.
- Steady ON: After power on.
- Flashes once every 5 seconds: Low Battery status.
The Red LED indicator is used to indicate mmWave movement detection.
- Quick Flash: After mmWave detects movement.
4. Red LED indicator
The Red LED indicator is used to indicate IR movement detection.
- ON for 10 seconds: After IR sensor detects a movement.
5. IR Sensor
The sensor is intended to detect movement.
6. Reset Button
After plugging in the 5V 2A adaptor, press the reset button once to reset the device.
7. Learn Button
- Press the Learn Button once to send a learn code to the Control Panel.
- Press and hold the Learn Button for 8 seconds to cancel the alarm.
- Press and hold the Learn Button for 8 seconds to receive sensitivity level data from the Control Panel.
8. DC Jack
Connect to a 5V 2A adaptor.
9. Mounting Bracket
P
P
o
o
w
w
e
e
r
r
S
S
u
u
p
p
p
p
l
l
y
y
A DC 5V 2A output Power Adapter is generally used to power the device. Be sure only to use an adapter with the
appropriate AC voltage rating to prevent component damage.
In addition to the adapter, there is a rechargeable battery inside the fall detection sensor, which serves as a back-up
P
P
a
a
r
r
t
t
s
s
Inside View
Bottom View
