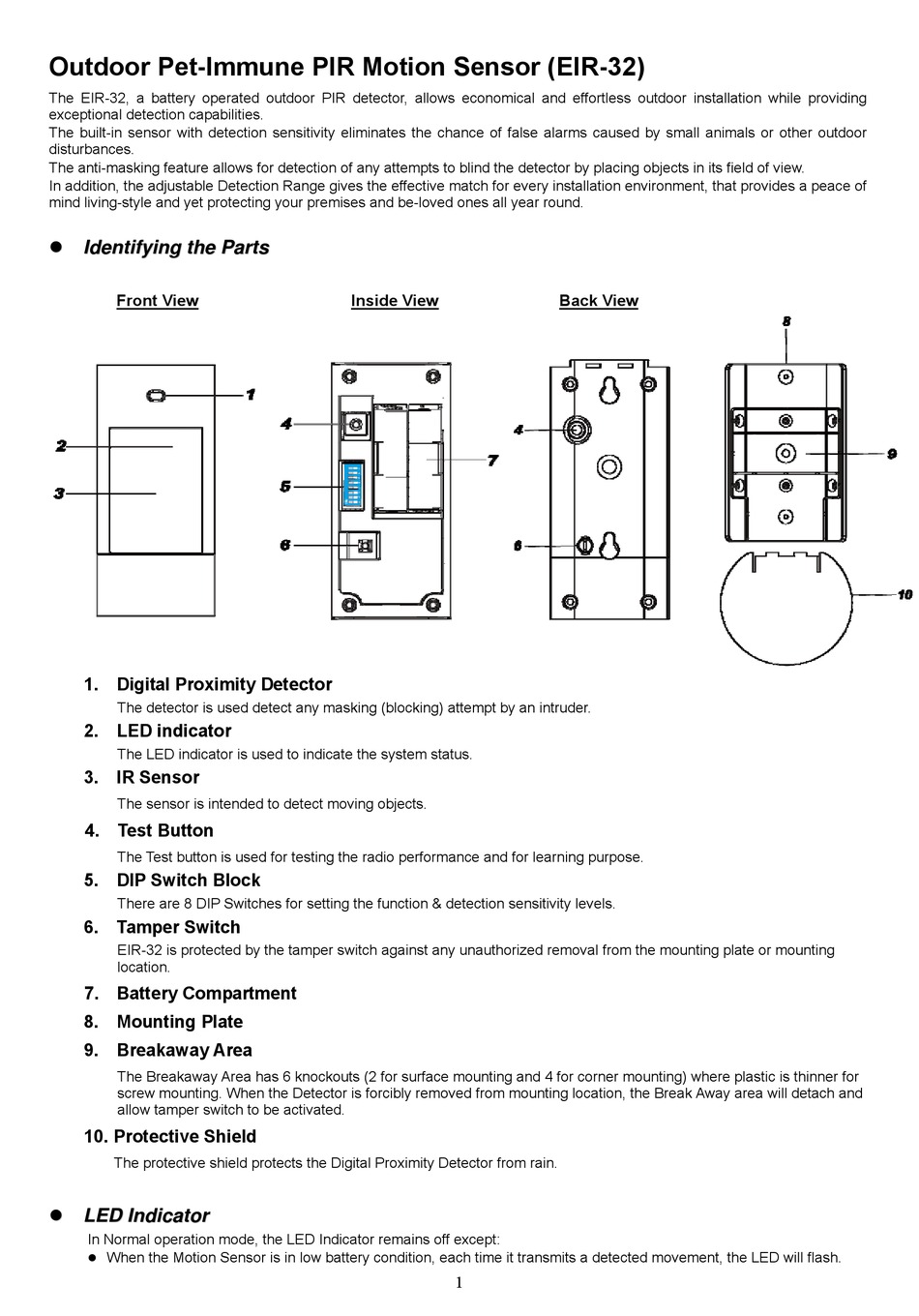

Outdoor Pet-Immune PIR Motion Sensor (EIR-32)

The EIR-32, a battery operated outdoor PIR detector, allows economical and effortless outdoor installation while providing
exceptional detection capabilities.
The built-in sensor with detection sensitivity eliminates the chance of false alarms caused by small animals or other outdoor
disturbances.
The anti-masking feature allows for detection of any attempts to blind the detector by placing objects in its field of view.
In addition, the adjustable Detection Range gives the effective match for every installation environment, that provides a peace of
mind living-style and yet protecting your premises and be-loved ones all year round.
I
I
d
d
e
e
n
n
t
t
i
i
f
f
y
y
i
i
n
n
g
g
t
t
h
h
e
e
P
P
Front View
1. Digital Proximity Detector
The detector is used detect any masking (blocking) attempt by an intruder.
2. LED indicator
The LED indicator is used to indicate the system status.
3. IR Sensor
The sensor is intended to detect moving objects.
4. Test Button
The Test button is used for testing the radio performance and for learning purpose.
5. DIP Switch Block
There are 8 DIP Switches for setting the function & detection sensitivity levels.
6. Tamper Switch
EIR-32 is protected by the tamper switch against any unauthorized removal from the mounting plate or mounting
location.
7. Battery Compartment
8. Mounting Plate
9. Breakaway Area
The Breakaway Area has 6 knockouts (2 for surface mounting and 4 for corner mounting) where plastic is thinner for
screw mounting. When the Detector is forcibly removed from mounting location, the Break Away area will detach and
allow tamper switch to be activated.
10. Protective Shield
The protective shield protects the Digital Proximity Detector from rain.
L
E
D
I
n
d
i
c
a
t
o
r
L
E
D
I
n
d
i
c
a
t
o
r
In Normal operation mode, the LED Indicator remains off except:
When the Motion Sensor is in low battery condition, each time it transmits a detected movement, the LED will flash.
a
a
r
r
t
t
s
s
Inside View
Back View
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EIR-32 and is the answer not in the manual?

Questions and answers

Summary of Contents for Climax EIR-32

  • Page 1 5. DIP Switch Block There are 8 DIP Switches for setting the function & detection sensitivity levels. 6. Tamper Switch EIR-32 is protected by the tamper switch against any unauthorized removal from the mounting plate or mounting location. 7. Battery Compartment 8.
  • Page 2 The Motion Sensor has a digital proximity detector that can detect any masking (blocking) attempt by an intruder.  When a masking event is detected, and the masking condition lasts for 2 minutes, EIR-32 will send tamper open signal ...
  • Page 3  Tamper Protection EIR-32 is protected by a tamper switch which is compressed when it is hooked onto the mounting bracket.  Whenever the Motion Sensor is removed from the mounting plate, the tamper switch will be activated.  When the Motion Sensor is forcibly removed from mounting location, the Break Away area on the mounting plate will ...
  • Page 4 2) Fix the mounting plate on the swivel ball with the fixing screw secured through the foolproof design hole. 3) Mount EIR-32 with the hooks of the mounting plate latched on the back cover of the EIR-32, and then push downwards until you hear a click sound to lock the hook.
  • Page 5 >   When EIR-32 is mounted with rotating holder, it will not have the regular detection area (as in the above diagram), or the typical pet immue range. Limitations: Do not install the Motion Sensor completely exposed to direct sunlight.
  • Page 6 Avoid looking directly at the path of outdoor unit’s intake or exhaust airflow.  < > < >  Adjust the Dip Switches according to the installation location of the Motion Sensor for ideal performance. If Dip Switch settings does not match with installation environment, the Motion Sensor’s performance will be hindered and may cause either false alarm or inability to detect movement.
  • Page 7 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
