Klarstein BORNHOLM, WONDERWALL (10045470, 10045471, 10045472) Manual

TECHNICAL DATA

INSTALLATION

Before assembly, make sure that all parts are complete and that the product is undamaged.
If you wish to use the electric heater freestanding, please mount it using the feet provided and follow the instructions below. Make sure the fan heater is mounted on a flat, stable and clean surface.

1. Taking out the 4 x metal wall mounting brackets and 4 x metal screws for wall mounting brackets from attachment, fix these brackets onto the back of the product.

2. Mark the positions of the four holes to be drilled on the wall, and drill the holes with the drill bit. Make sure the distance between each holes is same as the round holes on the wall mounting brackets.

3. Insert the plastic dowels fitting into the holes

4. Insert the 4 x metal screws for wall mounting into the plastic dowls.

5. Lift the heater and aim the four round holes on the brackets at back of the heater to the 4 screws on the wall, and slide the screw from Position A to Position B by moving the heater slightly.

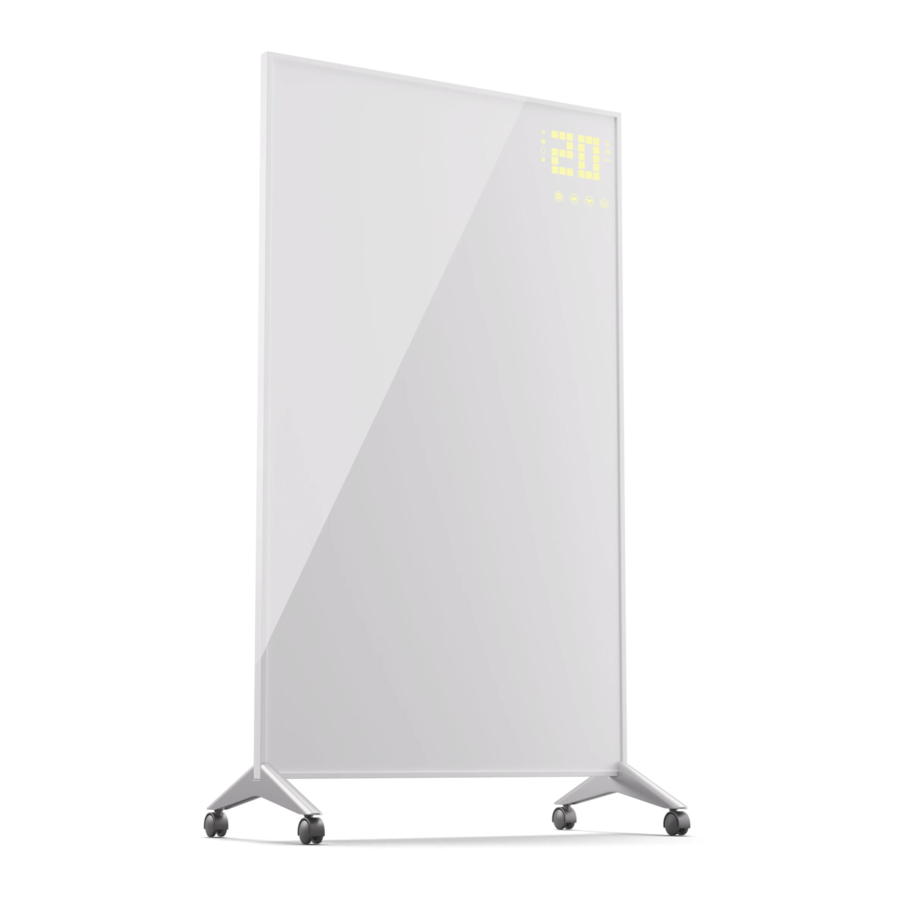

Standing feet assembling instructions

1. Push four wheels onto the standing feet
2. Put the product upside down on a soft cotton cloth or carpet.
3. Fix the feet to the base of the heater using the screws provided.

OPERATION

Control panel

Operating part

1. ON/OFF
2. Temp./Timer DOWN key, long press to turn off the "Child lock"
3. Temp./Timer UP key, long press to turn on the "Child lock"
4. Setting program

Display part

5. Child lock
6. Timer
7. Heating indicator light
8. WiFi indicator light
9. Temperature mode light
10. Timer mode light
11. ECO indicator light (Open window function)
12. Display of Temperature / Timer

Remote Control

Operation

1. Insert the plug in the socket.
2. Turn the main switch on, you will hear "beep", the big display screen will be light on, then display "--", WIFI light flashing and the heater is in standby mode.
3. Press "ON/OFF", the display screen will show default setting temperature 25°C, the unit will start heating if the room temperature is lower than 25°C, the heating icon will be light on; the unit will not heat if the room temperature reaches or higher than 25°C.
4. Press the "up" or "down" key to set the temperature, it will flash 5 seconds on the display to confirm the setting temperature. With each press, the temperature will be increased or decreased by one degree. Temperature setting range 5°C~50°C.
5. The unit will start heating when the setting temperature is higher than the room temperature, and stop heating if the room temperature reaches or higher than the setting temperature.
6. Press until the is light on, to set the 0-24 hours timer, with each press of to increase one hour and with each press of to decrease one hour, it will be cycle as


The countdown timer will be set after 5 seconds blinking.

7. Long press will disconnect the WiFi connection, or change between rapid and slow blinking.

CLEANING AND CARE

Before cleaning your heater, switch off the heater and allow it to cool. Disconnect the electricity supply to the appliance. The outside can be cleaned by wiping it over with a soft damp cloth and then dried. Do not use abrasive cleaning powders or furniture polish, as this can damage the surface finish. To release the heater from the wall, for cleaning or redecoration, just open the screw bolt cap and unscrew the bolts to take off from the wall.

For short term storage, just plug off the heater and leave it away; for long term storage, you can dismantle from the wall or cover it with some material.

TROUBLESHOOTING

If your heater fails to operate, please follow these instructions:

• Ensure that your circuit breaker or fuse is working properly.
• Be sure the heater is plugged in and that the electrical outlet is working properly.
• If the ON/OFF switch is not illuminated at ON position, send it to service center for reparation directly.

NOTE: If you experience a problem with your heater, please see the warranty information for instructions. Please do not attempt to open or repair the heater yourself. Doing so may void the warranty and could cause damage or personal injury. If the problem still persists, please contact the distributor.

DEVICE CONTROL BY SMARTPHONE

If you integrate the device into your home WiFi, you can conveniently operate it via the associated Klarstein app. The app not only allows you to remotely control the device via your smartphone, but also gives you access to recipes and additional information.

Follow these steps to connect your smartphone to your Klarstein device:

1. Download the Klarstein app first by scanning the QR code with your smartphone (see below), or download it directly from App Store or Google Play.

2. Make sure your smartphone is connected to the same WiFi network that your Klarstein device is to be connected to.
3. Open the Klarstein app.
4. Sign in to your account. If you do not have an account, sign up in the Klarstein app.
5. Follow the instructions from the app.

App Download
Use the scan function of your smartphone to scan the QR code and save the app on your smartphone.
Note: The app provides further information on how to use the app and help on how to connect to your device as soon as you open it for the first time.

iOS

Android

TROUBLESHOOTING CONNECTION PROBLEMS

If your Klarstein device cannot be found in the WLAN, check the following:

1. The device is not plugged in. Make sure that your device is plugged into an electric socket.
2. The device is not in pairing mode. Make sure that the WiFi indicator (LED) on the smart device control panel is blinking as described in the 'Reset WiFi settings' instruction of your smart device (instructions are usually available on device connection process).
3. The WiFi access point does not operate on 2.4 GHz. Make sure that your access point operates on 2.4 GHz band and you have a separate SSID on 2.4 GHz band. If you are not sure about the operating band of your access point, please contact your internet provider company.

Please note that if your WiFi router is dual band - operating on both 2.4 GHz and 5 GHz band - you need to separate the SSIDs for each band and use the 2.4 GHz SSID for connection.

4. Firewall settings of your WiFi network; the firewall setting of your WiFi network may not allow the Klarstein app to configure the WiFi settings on your smart device. Please make sure that you are not using a public WiFi network, e.g. airports, dormitories, companies, etc.
5. Different credentials used in smartphone and the app. Make sure that the WiFi credentials entered in the Klarstein app are the same as the ones that your smartphone is connected to.

Following the above mentioned points, if your smart device still fails to connect to the app, please contact us via email for support: appsupport@go-bbg.com

PRODUCT DATA SHEET

SAFETY INSTRUCTIONS

• Read the user manual before using the heater. Keep the user manual and make sure it stays with the heater if you pass it on to a new owner.
• Before use, make sure that the heater and the supplied accessories are complete and undamaged.
• The heater must be installed according to the instructions in the installation manual. The power plug must be connected to an outlet that meets the following requirements: AC 220-240 V~, frequency 50 Hz.
• The heater is only suitable for indoor use. Do not use it outdoors.
•
  Do not leave the heater unattended during operation. Keep the heater away from children: risk of burns.
• Do not use external control with the heater. The heater should not be set to turn on when left unattended.
• Do not use the heater near flammable or explosive materials: risk of fire or explosion.
• Strictly avoid inserting objects into the heater's protective grille: risk of electric shock.
•
  Do not touch the metal housing as it gets hot when the heater is in operation: risk of burns. Allow the heater to cool before turning off and storing.
• Pull the plug out of the socket if you do not intend to use the device for a long period of time.
• Before each use of the electric heater, make sure that it is in good condition and intact. Do not plug in the heater if the housing, cable or power plug is damaged.
• The heating element can be damaged if dropped or hit. Before each use, make sure the heating element is not damaged. Do not use the heater if the heating element is defective.
• Unplug the power cord from the outlet when moving or cleaning the heater. To do this, first turn off the switch, and then unplug the power cord. Do not pull on the cable.
• It is strictly forbidden to dismantle the electric heater without authorisation. If the heater is damaged, contact professional service personnel.
• The device is intended for household use only.
•
  Do not touch the surface of the device with bare skin during use: risk of burns.
• Do not share the heater socket with other devices: risk of fire due to overloading.

Fire hazard
Never cover the heater. If you cover the device, there is a risk of overheating and fire. The heater must not be placed directly under a power socket.

• If the power cord is damaged, it must be replaced by the manufacturer, its after-sales service or a similarly qualified person in order to avoid any hazards
•
  Avoid using an extension cord as it can overheat and pose a fire hazard.
• This heater is not intended for use in bathrooms, laundry rooms or similar areas where moisture may occur. Never place the heater where it can fall into a bathtub or other body of water.
• Do not use the heater in the immediate vicinity of a bathtub, shower or swimming pool.
• Children under the age of 3 should be kept away unless constantly supervised.
• Children aged 3 to 8 years should not turn the appliance on or off unless it is placed or installed in the normal position for use and they are supervised or have been instructed in the safe use of the appliance and understand the hazards involved. Children from 3 years and under 8 years of age must not plug in the power plug, operate the device, clean it or carry out any maintenance work.
• This device may be used by children aged 8 years and over and by persons with reduced physical, sensory or mental abilities or lack of experience and knowledge if they are supervised or have been instructed in the safe use of the device and understand the hazards involved. Children must not play with the device. Cleaning and maintenance work must not be carried out by children without supervision.

Risk of burns
Some parts of this appliance can become very hot and cause burns. Special care should be taken when children and infirm persons are present.
