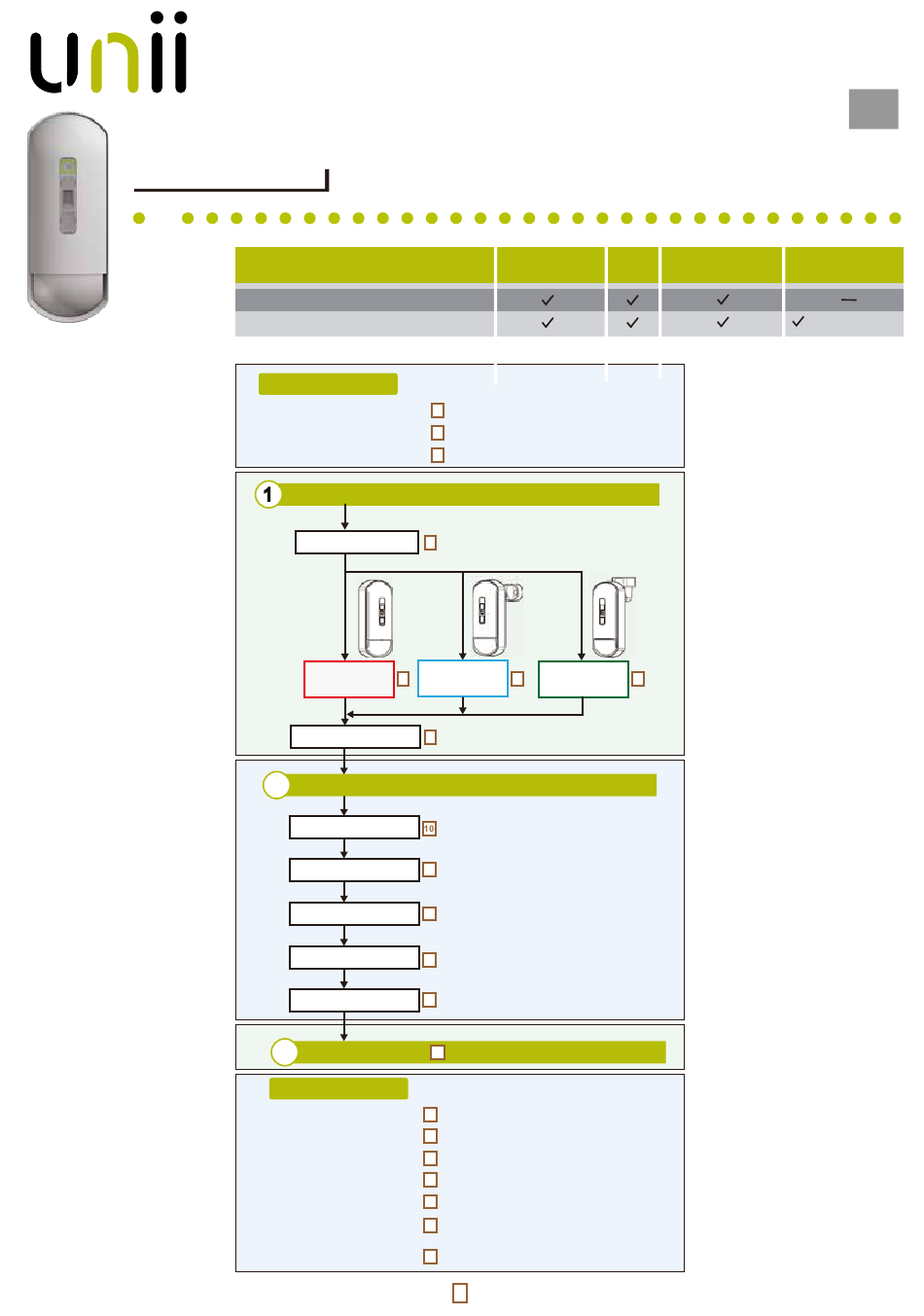

UNii X series
GRADE 3 MODELS
UNii UN-X-PIR/AM detector (15m)
UNii UN-X-DT/AM detector (15m)
<< Contents >>
Before installation
- Manufacturer's statement
- Parts identification
- Anti-masking
1
*1
Page
2
3
3
Installation
Disassemble
4
Wall mount
Wall mount
5
with bracket
without bracket
Wiring
8
2
Settings
Wide/Narrow setting
EOL settings
11
DIP switch settings
12
Volume setting
12
Down zone ON/OFF
12
3
Checking
13
Others
- Specifications
14
- Events and responses
15
- LED indications
15
- Dimensions
16
- Detection area
17
- Angle adjustment
17
with bracket UN-X-MB2/UN-X-MB3
- Compliance
17
INSTALLATION INSTRUCTIONS
PIR
Wide/Narrow area
Flip lens
Ceiling mount
6
with bracket
1
Anti-masking
7
EN
Microwave
(10.525 GHz)
Advertisement
Related Manuals for unii X Series
Summary of Contents for unii X Series
- Page 1 INSTALLATION INSTRUCTIONS UNii X series GRADE 3 MODELS Anti-masking Microwave Wide/Narrow area Flip lens UNii UN-X-PIR/AM detector (15m) (10.525 GHz) UNii UN-X-DT/AM detector (15m) << Contents >> Before installation Page - Manufacturer's statement - Parts identification - Anti-masking Installation Disassemble...
- Page 2 Before installation - Manufacturer's statement Symbol Meaning Symbol Meaning Check mark indicates recommendation. Failure to follow the instructions provided with this indication Warning Nix sign indicates prohibition. and improper handling may cause death or serious injury. Failure to follow the instructions provided with this indication Special attention is required to the Caution NOTE...
- Page 3 - Parts identifications Base Accessories Sponge Main unit Mounting screw x 2 Wall tamper screw x 1 Options Cover Bracket for wall/ceiling mount CW-G3: with tamper switch Mounting screw x 2 Joint screw x 3 Fixing screw x 2 PEU: Plug-in EOL Unit Do not touch units.
- Page 4 Installation 1-1. Disassemble Open the cover Remove the terminal block Unlock the cover NOTE You do not need to remove the terminal block if it does not interfere with the mounting of the base.
- Page 5 1-2. Wall mount without bracket How to break the knockouts Wire through the base Wiring knockouts For Wall/ Corner mount Surface wiring : Upper : Lower For Wall/ Corner mount Hidden wiring: B. Hidden wiring A-2. Lower A. Surface wiring A-1.
- Page 6 1-3. Wall mount with bracket Wire and mount on the wall Wiring knockout guides Mounting screw Caution Punch out 3 knockout guides, to open the wiring hole to allow If the mounting surface is uneven, wiring run. the tamper may not work well. Wiring knockout hole NOTE See page 5 for how to break the knockouts.
- Page 7 1-4. Ceiling mount with bracket How to change the bracket to the ceiling mounting [1] Remove the fixing screw and the anchor. [2] Rotate the body. [3] Insert the anchor and tighten the fixing screw. Wire and mount on the ceiling Wiring knockout guides Caution If the mounting surface is uneven,...
- Page 8 1-5. Wiring Wire to the terminal block Power Trouble Alarm Remote LED Spare Common Tamper Attach the terminal block to the base Insert the protrusions on both ends of the terminal block into the holes in the base (the parts shown in red). Power cable length NOTE The power cable should be limited to the...
- Page 9 Settings Page 2-1. Wide/Narrow setting Go to 2-2 on to skip 2-1 when using the default “Wide” setting. Remove the main unit Change the Flip lens from “Wide” to “Narrow” WIDE Default NARROW NOTE NOTE Opening the hooked part as the red arrows indicate Install the lens so that the letters on the cover and on the lens makes it easy to take out the main unit.
- Page 10 How to install the lens Push the lens firmly at 3 points in numerical order. NOTE By changing the lens, the internal settings of “Wide” and “Narrow” are automatically switched. It is not necessary to change the settings such as DIP switches. When the lens is set to the “Narrow”...
- Page 11 2-2. EOL settings EOL resistor End Of Line resistor) socket for Select whether to use the (option sold separately), or [2] Processing lead wires of the resistors (not included) Trouble Alarm Tamper resistors Relay & Tamper inside the detector EOL resistor socket Wiring to the control panel Grade 2 Grade 3...
- Page 12 2-3. DIP switch settings ON: LED is activated always. OFF*: LED can be controlled through the Remote LED terminal. [ Open; OFF 0 V; ON ] * Certified to EN and INCERT when set to "OFF" PIR sensitivity Middle* High* Super High* * certified to EN and INCERT...
- Page 13 Checking 3-1. Walk test Confirm that the LED switch is “ON” , then close the cover. Walk in the detection area to check the detecting performance via LED indication. Return the LED switch to “OFF” after the walk test, Lock the cover if necessary.
- Page 14 Others Others - Specifications Models UN-X-PIR/AM UN-X-DT/AM Installation Detection method Passive infrared Passive infrared and Microwave Wide ： 15 m (50 ft.) 85°, Narrow ： 24 m (80 ft.) 5° Coverage ( No MW detection at “Narrow” setting ) Detection zones Wide: 80 zones/ Narrow: 20 zones Mounting height 2.0 to 3.0 m (6'7"...
- Page 15 - Events and responses Events Triggered by Output & Remarks Anti-masking detection Objects close to the lens surface over 20 sec. Alarm and Trouble signals. Local self test Controlled by detector’ s circuit periodically. Fail; Trouble signal. (Detector doesn't work for about 10 seconds during local self test.) (PIR and Microwave are tested at the same time.) Walk test Conduct a walk test at least once a year.
- Page 16 - Detection area Wide - Top view - 50 ft. Middle 20 ft. High 14 m Wide - Side view - 50 ft. * 2.4 9 ft. 14 m Down zone * Narrow - Top view - 80 ft. 6 ft. 24 m Narrow - Side view - 80 ft.
- Page 17 RE Directive 2014/53/EU Alphatronics BV declares that the radio equipment type UN-X-DT/AM, is in compliance with Directive 2014/53/EU. ■ The full text of the EU declaration of conformity is available at the following internet address: www.unii-security.com/declarations Microwave emission Frequency and Power ■...
