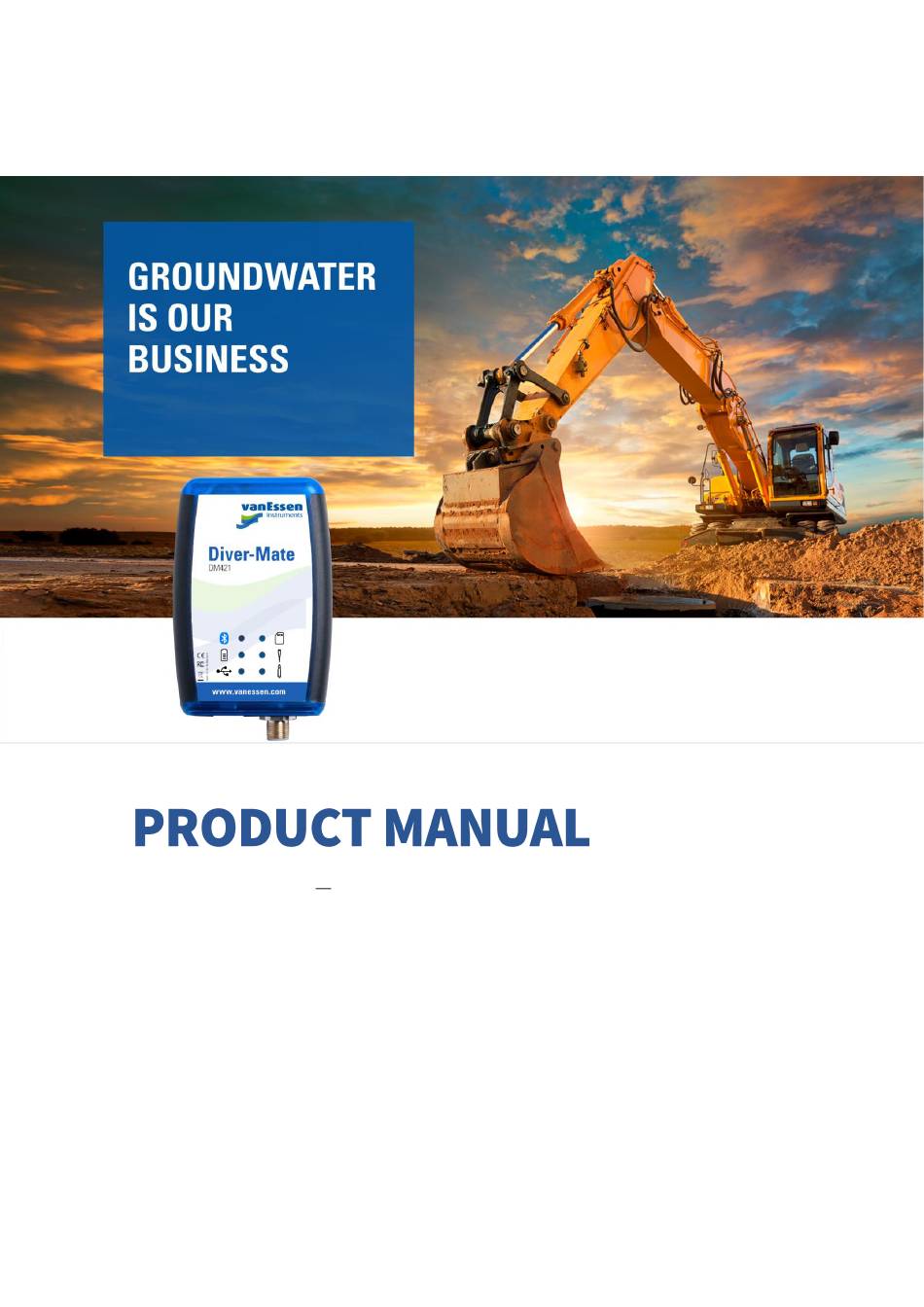

- Page 1 Diver-Mate DM421...
- Page 2 The Declaration of Conformity for the Diver-Mate can be downloaded from www.vanessen.com. © December 2024 Van Essen Instruments. All rights reserved.
- Page 3 Tel: +1 226-791-6499 Van Essen Instruments - USA 4561 Greer Circle, Suite 100, Tucker GA, United States 30083 Tel: +1 520-203-3445 (US West) Tel: +1 678-983-2818 (US East) Internet: www.vanessen.com Support: diver@vanessen.com © December 2024 Van Essen Instruments. All rights reserved. www.vanessen.com...
- Page 4 Diver-App for Android software ....................9 Diver-HUB software ........................9 Communication Cable......................... 10 TD-Diver ............................10 Baro-Diver ............................ 11 Cera-Diver ............................ 11 Micro-Diver ..........................12 CTD-Diver ............................. 12 DDC-DXT Adapter ........................13 © December 2024 Van Essen Instruments. All rights reserved. www.vanessen.com...

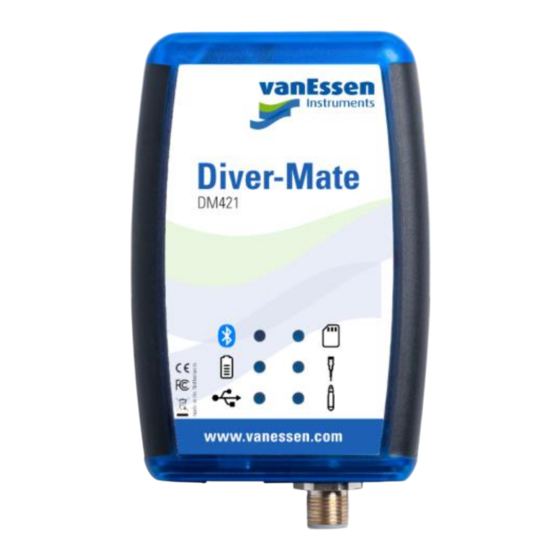

- Page 5 The Diver-Mate is depicted in the figure below. The front face of the Diver-Mate contains 6 status indicators for Bluetooth, battery, USB, memory, DXT cable and Diver. The USB-C connector and DXT Cable connector are located at the bottom of the Diver-Mate. © December 2024 Van Essen Instruments. All rights reserved. www.vanessen.com...
- Page 6 The Diver-Mate can be used as a stand-alone device or with the Diver-App for Android software to collect Diver data in the field as depicted in the figure below. The Diver is connected through a DXT Cable to the Diver-Mate. © December 2024 Van Essen Instruments. All rights reserved. www.vanessen.com...
- Page 7 The following cables can be used in combination with the Diver-Mate: • DXT Cable (AS2xxx) • DDC Cable (AS6xxx); DDC-DXT Adapter (AS348) required See appendix B for more details on these products. © December 2024 Van Essen Instruments. All rights reserved. www.vanessen.com...
- Page 8 Continuous green battery capacity is 40 to 100%. • Flashing red battery capacity is less than 40% (it is recommended to charge the battery). • Continuous green Memory OK. • Continuous red Memory error. © December 2024 Van Essen Instruments. All rights reserved. www.vanessen.com...
- Page 9 Diver-Mate. When connected the status of the USB indicator • Continuous green Connected. • Flashing green Transferring data. Note: The Diver- accessed through Bluetooth other than reading Diver time series data in the Diver-App. © December 2024 Van Essen Instruments. All rights reserved. www.vanessen.com...
- Page 10 The most recent firmware for the Diver-Mate can be found in the Downloads section of the Diver-Mate product page: www.vanessen.com/products/accessories/diver-mate/ Complete the following steps to install a new firmware version: Make sure the Diver-Mate is not connected through Bluetooth (Bluetooth LED is off).
- Page 11 Disconnect the USB cable. After a few seconds the 3 LEDs on the right will blink several times indicating that the firmware is updated. Note: After the firmware is updated the extension of the firmware file is © December 2024 Van Essen Instruments. All rights reserved. www.vanessen.com...
- Page 12 -20 to 60 °C Storage Temperature 0 to 30 °C 3.1.5 Barometric Pressure Sensor Range 400 to 1100 cmH Accuracy ±2.0 cmH Resolution 0.06 cmH maximum over temperature range -20 to 60 °C © December 2024 Van Essen Instruments. All rights reserved. www.vanessen.com...
- Page 13 • Barometric compensation • Units: Metric and U.S. • 8 languages: Chinese, Dutch, English, Free download from www.vanessen.com French, German, Polish, Portuguese and Spanish Diver-App for Android software Program Diver data loggers and download measurements onto your smart phone using the Diver-Mate.
- Page 14 The TD-Diver is available in the following pressure ranges: 10 m, 20 m, 50 m and 100 m. Part no: DI8xx © December 2024 Van Essen Instruments. All rights reserved. www.vanessen.com...
- Page 15 The Cera-Diver is available in the following Part no: DI7xx pressure ranges: 10 m, 20 m, 50 m and 100 m. © December 2024 Van Essen Instruments. All rights reserved. www.vanessen.com...
- Page 16 Part no: DI28x The CTD-Diver is available in the following pressure ranges: 10 m, 50 m, 100 m and 200 m. © December 2024 Van Essen Instruments. All rights reserved. www.vanessen.com...
- Page 17 DDC-DXT Adaptor. Once connected, the Diver deployed on the cable can be read by clicking the DDC -Adaptor onto the top connector of the DDC Cable. Part no: AS348 © December 2024 Van Essen Instruments. All rights reserved. www.vanessen.com...
