Sealey Auto Service PP3 Instructions Manual

thank you for purchasing a sealey product. Manufactured to a high standard this product will, if used according to these instructions and
properly maintained, give you years of trouble free performance.
IMPORTANT: PLease reaD tHese instructions carefuLLy. note tHe safe oPerationaL reQuireMents, warninGs, anD
cautions. use tHis ProDuct correctLy, anD witH care for tHe PurPose for wHicH it is intenDeD. faiLure to Do so
May cause DaMaGe anD/or PersonaL inJury anD wiLL invaLiDate tHe warranty.
1. safety instructions
safety instructions
if You ArE in AnY DouBt ABout

ELEctricAL sAfEtY consuLt A QuALifiED
ELEctriciAn.
only for use with 12 - 24 volt Dc systems.

Do not apply voltage or current to the probe that

exceeds the specified maximum of 24V Dc.
Do not use with industrial 110V systems.

Do not use on any circuit directly or indirectly

connected to Ac lines or any other Ac power
source.
Do not use with any component or circuits of the

ignition system.
Before using this device, check the vehicle's

electrical wiring and disconnect any part or system
sensitive to voltage and current pulses such as air
bags, electronic control modules, etc.
Always check the instructions and procedures

indicated in the vehicle service manual before
attempting to disconnect any part or subsystem of
the electrical circuit.
When not in use, store the probe carefully in a

safe, dry, childproof location. Avoid extremes of
temperature.
Do not use the unit around explosive gases,

vapour or dust. When the power switch is operated
(forwards or backwards), battery current is
conducted to the tip of the probe which may cause
sparks when contacting earth or other certain
circuits.
Do not use leads if damaged or if the wire is

bared in any way.
Do not use this tester for any purpose other than

that for which it has been designed.
2. introDuction anD inforMation
A range of functions allows automotive electricians
and mechanics the ability to effectively diagnose short
circuits and bad earths and electrical circuits quickly and
easily. the 6.1mtr lead connects to the battery supply
and reaches to all areas of the vehicle. fly lead allows
continuity and polarity testing with a high-contrast LcD
display with 7mm high (12V to 24V) read-out.
Activate components for fast diagnoses in situ or prior to
installation. feature audible and Positive/negative
voltage indicator and two integral work lights. the Power
Probe 3 Kit, Model no. PP3K includes a cigarette lighter
adaptor along with an additional 6.1mtr extension lead.
supplied in a carry-case.
instructions for:
Power ProBe 3 12 - 24v
MoDEL no's:

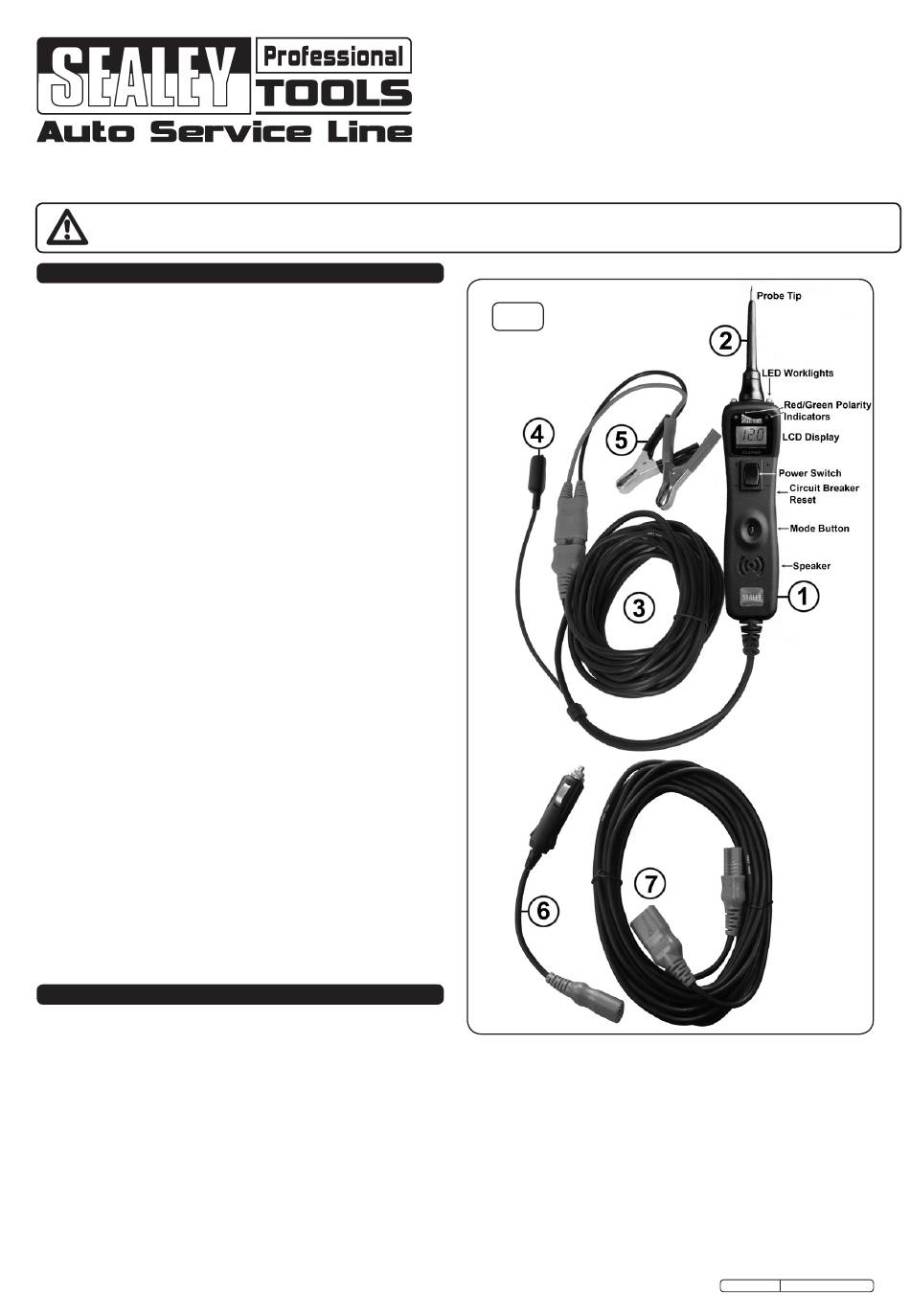

fig.1
see fig.1.
1) Probe Body
2) Probe tip
3) 6.1mtr Lead
4) Earth clip
5) Positive/negative Battery clip
6) 12V Vehicle Accessory socket Adapter (PP3K onLy)
7) Probe Extension Lead (PP3K onLy)
Original Language Version
PP3, PP3K
PP3, PP3K issue: 1 - 17/10/11
