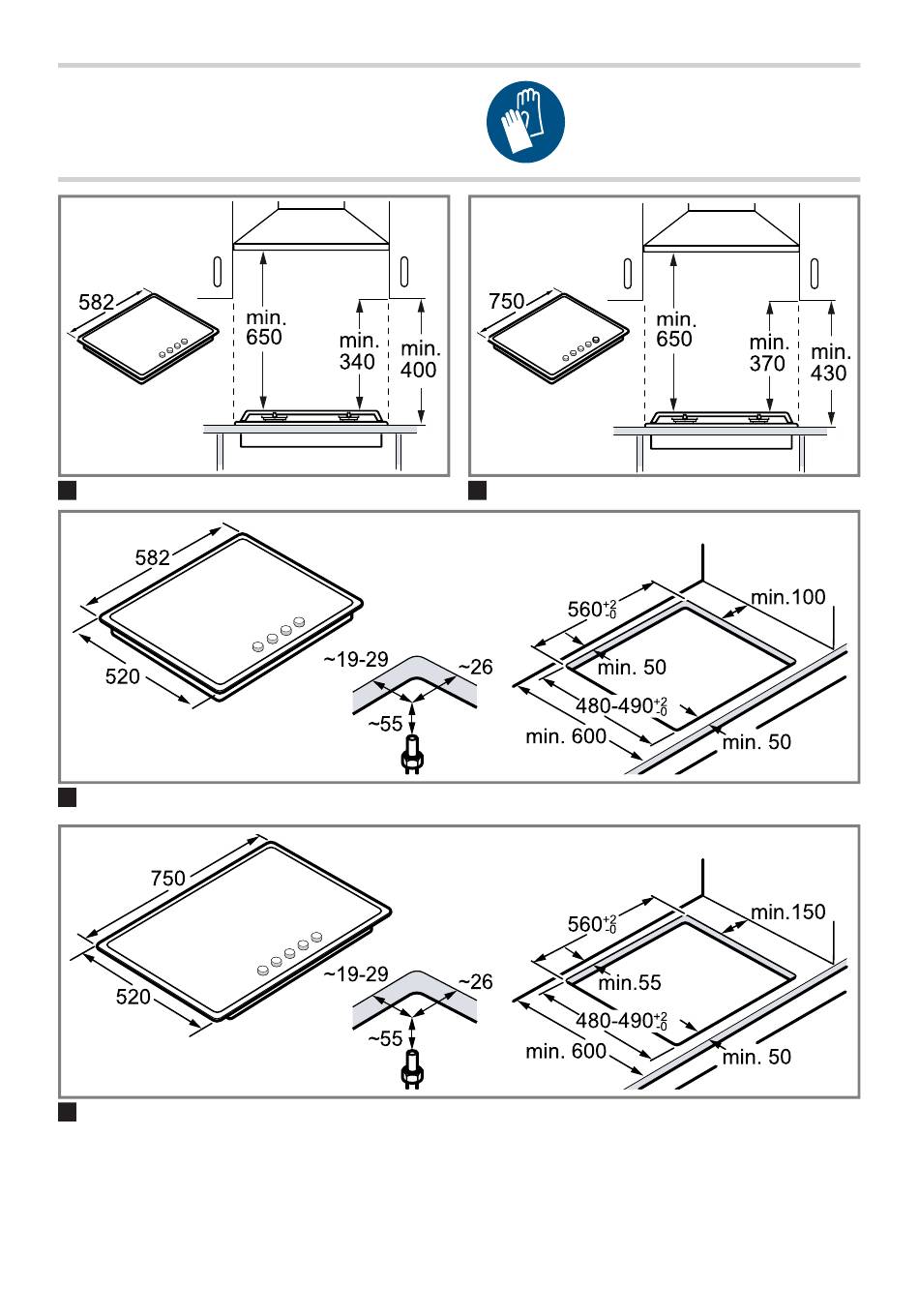

  • Page 1 *8001246497* 8001246497 020928 Installation instructions Инструкция по установке...
  • Page 4 Nz  ⁠ Qn (kW) G20/20 mbar 1,00 0,095 G20/25 mbar 1,00 0,095 G25/20 mbar 1,00 0,111 G25/25 mbar 1,00 0,111 G25.1/25 mbar 0,90 G25.3/25 mbar 1,00 0,108 G30/29 mbar 1,00 G30/37 mbar 1,00 G30/50 mbar 1,00 G31/37 mbar 1,00 G20/20 mbar 1,75 0,167 G20/25 mbar 1,75 0,167 G25/20 mbar 1,75 0,194 G25/25 mbar 1,75 0,194 G25.1/25 mbar 1,60...
  • Page 5 Nz  ⁠ Qn (kW) G30/29 mbar 3,30 G30/37 mbar 3,30 G30/50 mbar 3,30 G31/37 mbar 3,30 G20/20 mbar 4,00 0,381 G20/25 mbar 4,00 0,381 G25/20 mbar 4,00 0,443 G25/25 mbar 4,00 0,443 G25.1/25 mbar 3,80 0,42 G25.3/25 mbar 4,00 0,434 G30/29 mbar 4,00 G30/37 mbar 4,00 G30/50 mbar 4,00 G31/37 mbar 4,00 G20/20 mbar 1 - 155 5,00 0,476 2 - 67...
  • Page 6 Before installing Connecting the gas ¡ This appliance is a class 3 appliance in accord- Observe the country-specific guidelines. ance with the EN 30-1-1 standard for gas appli- CAUTION ‒ Risk of explosion! ances: Built-in appliance. A gas leakage may cause an explosion. ¡...
  • Page 7 With the tip of the screwdriver, push down on the ¡ Перед установкой прибора проверьте соответствие настроек прибора, указанных на типовой табличке (тип flexible rubber holder to access the bypass screw. и давление газа, мощность, напряжение), региональ- → Fig. ным требованиям. Never remove the sealing ring.
  • Page 8 Переверните варочную панель и установите ее в вы- Стандартная газовая горелка рез. Выровняйте варочную панель по передней части Газовая горелка повышенной мощности выреза. →  Рис. Горелка Miniwok с широким охватом пламени Поверните зажимы, и они зафиксируются. Горелка Wok с широким охватом пламени → ...
