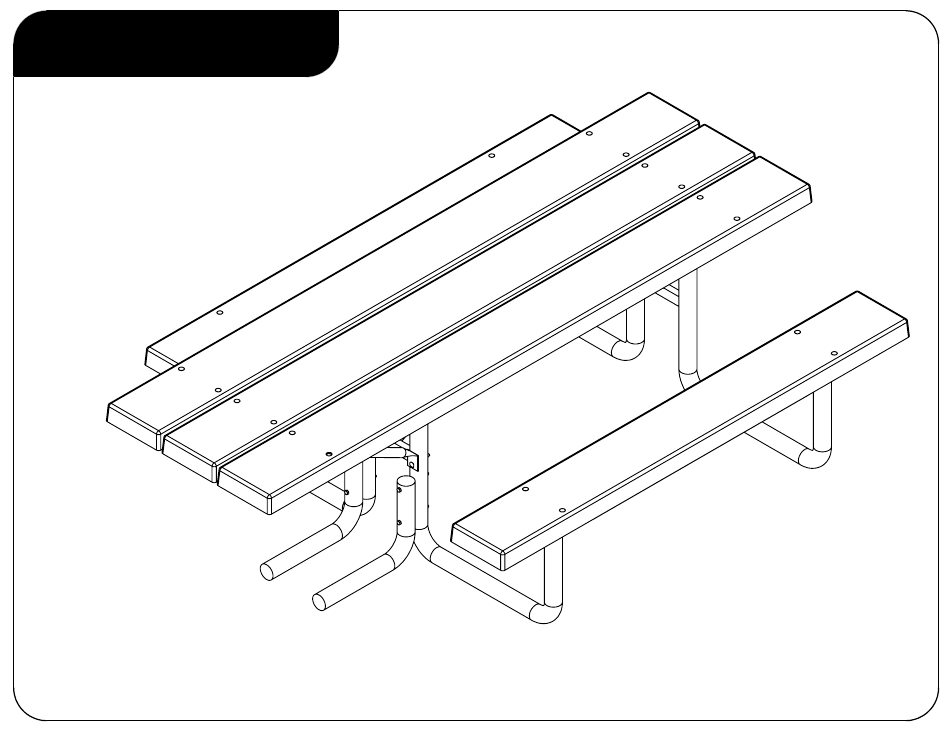

- Page 1 ADA Steel Walk-Thru BM1207 REV #1 4/22/2019 Table Instructions...
- Page 2 ADA Steel Walk-Thru Table Instructions 23" CENTER CHANNEL ANGLE SUPPORT BRACES 10089A 11447 SEAT AND TOP TUBE SUPPORT 10097 2 @ 6FT PLASTIC BOARDS PTB1005 3 @ 8FT METAL END - NO HOLES 10218 PLASTIC BOARDS PTB1010 29" ADA SUPPORT...
-
Page 3: Required Tools
ADA Steel Walk-Thru Table Instructions 5/16" FLANGE NUT 5/16-18 X 1" HEX BOLT 1/4 X 1-1/2" LAG SCREW EXTRA THICK WASHER 5/16-18 X 3" CARRIAGE BOLT 5/16-18 X 3-1/4" CARRIAGE BOLT 5/16-18 X 5" HEX BOLT REQUIRED TOOLS (NOT INCLUDED) NOTE: IT IS IMPORTANT TO KEEP ALL BOLTS FINGER TIGHT 1 -1/2"... -
Page 4: Step #1 Tabletop Assembly
ADA Steel Walk-Thru STEP #2 End and ADA Support Brace Table Instructions • Take the metal NO HOLES end (F), flip it upside down and onto the tabletop assembly of boards/thick washers/ top tube supports • Loosely attach with 5/16" flange nuts (L) STEP #1 Tabletop Assembly •... - Page 5 ADA Steel Walk-Thru Step #3A Table Instructions Pilot Hole Location • Drill a 1/8" pilot hole 3/4" deep in the cross section of the boards as shown below by each black dot CENTER CHANNEL LOCATION CROSS SECTION ASSEMBLE 5/10 TABLETOP...
- Page 6 ADA Steel Walk-Thru Table Instructions Step #3B ADA End Support Assembly • Center the ADA metal end WITH HOLES (G) on the cross section that was drilled in Step 3A • Place 4 thick washers (K) over the center pre-drilled pilot...
- Page 7 ADA Steel Walk-Thru STEP #5 Table Instructions Angle Support Braces • Attach the angle support braces (C) to the center channel STEP #4 tab (B) Attach Center Channel • Place a 5/16” x 1”hex bolt (M) through the two braces •...
-
Page 8: Step #6 Seat Assembly
ADA Steel Walk-Thru Table Instructions STEP #6 Seat Assembly • With two people, carefully flip the table over with the boards, metal ends, center channel and angle support braces attached • Place 2 seat tube supports (A) over the two angle brackets located on the metal ends •... - Page 9 ADA Steel Walk-Thru Table Instructions STEP #8 ADA support braces • At the ADA end, attach two 29" ADA support braces (J) to the the ADA angle bracket (I) with two 5/16" x 1" hex bolts (M) and 5/16" flange nuts (L) See Detail 3 •...
- Page 10 ADA Steel Walk-Thru BM1207 REV #1 4/22/2019 Table Specifications 72.00 ALL DIMENSIONS 96.00 ARE SHOWN IN INCHES 35.13 SIDE HARDWARE: ZINC PLATED 2.25 45.24 POWDER COATED METAL FRAME PLASTIC SEATS / TOP...
