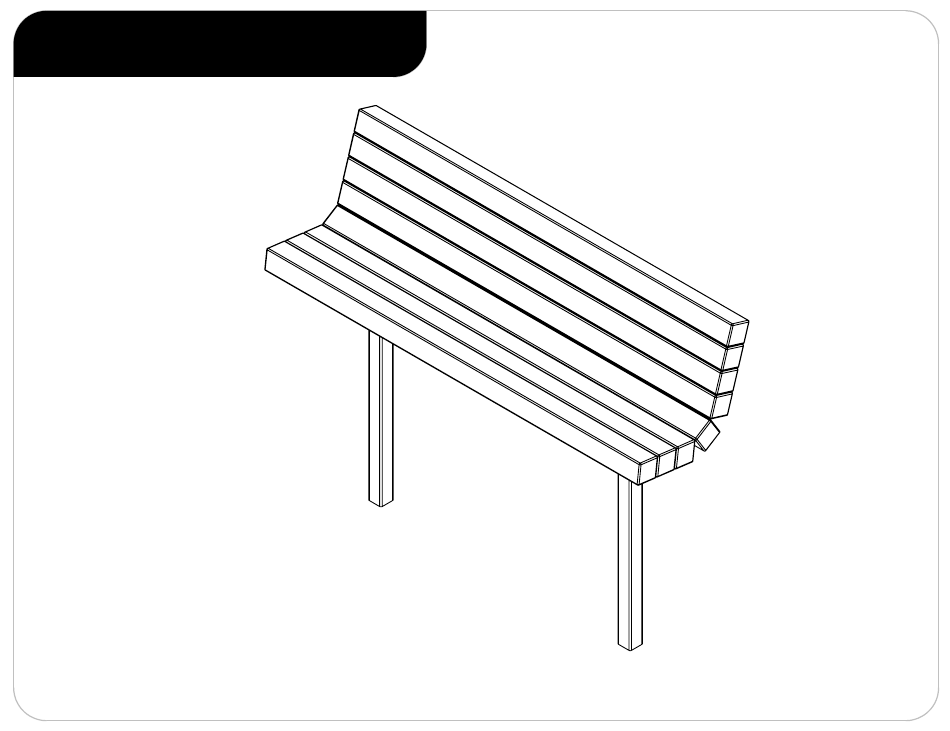

- Page 1 BENCH INSTRUCTIONS BC1275 REV# 2 7-15-2016 BC1276 BC1277 BC1278 BC1315 BC1316 BC1317 BC1318...
- Page 2 BENCH INSTRUCTIONS SEAT SLAT BENCH END ABC-SSI1020 1/4" FLAT WASHER 1/4" X 1.50" LAG SCREW F0001 F0002 REQUIRED TOOLS: -(1) SCREW GUN REQUIRED MATERIALS: -(1) 7/16" SOCKET -READY-TO-MIX CONCRETE -(1) 8" - 10" POST HOLE DIGGER -LOOSE GRAVEL -(1) LEVEL -WIRE &...
- Page 3 BENCH INSTRUCTIONS PRE-DRILLED PILOT HOLE F0001 F0002 1/8" SPACING KEEP SPACING BETWEEN BOARDS APPROXIMATELY 1/8". REPEAT STEPS FOR REMAINING SEAT SLATS...
- Page 4 BENCH INSTRUCTIONS USING POST HOLE DIGGER, DIG TWO HOLES AS SHOWN BELOW. THEN, FILL IN EACH HOLE WITH APPROXIMATELY 4" OF LOOSE GRAVEL. 48.00 6FT BENCH 24.00 4FT BENCH 26.000 4.000 LOOSE GRAVEL (8" - 10" DIAMETER) BEFORE INSTALLING BENCH, PLEASE CHECK LOCAL CODES TO ENSURE PROPER INSTALLATION.
- Page 5 BENCH INSTRUCTIONS CAREFULLY, PLACE THE BENCH INTO HOLES. CENTER EACH POST IN EACH HOLE AND LEVEL BENCH. ALSO, BE SURE TO CHECK SEAT HEIGHT TO ENSURE COMFORTABLE SEATING. SECURE PLACEMENT OF BENCH WITH BRACING MATERIALS AND FILL IN HOLES WITH READY-TO-MIX CONCRETE. ALLOW TO DRY AND REMOVE BRACING MATERIALS.
- Page 6 ALL DIMENSIONS SHOWN IN INCHES BENCH SPECIFICATIONS BC1275 BC1276 TOP VIEW BC1277 BC1278 BC1315 BC1316 BC1317 21.465 BC1318 47.875 4FT BENCH 3.500 71.875 6FT BENCH 14.375 13.635 3.500 31.360 17.000-18.000 10.750 10.750 45.500 GROUND CONSTRUCTION MATERIALS: SET POSTS 24 TO 26 INCHES INTO GROUND...
